Daikin 24,000 BTU Aurora Single Zone Wall Mount Mini Split Air Handler - R32 | 230V
R32208-230V$1,093.00 -
Daikin 9,000 BTU Entra 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V
R32208-230V18 SEER$1,183.00 -
Daikin 12,000 BTU Entra 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V
R32208-230V18 SEER$1,314.00 -
Daikin 9,000 BTU Oterra 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 115V
R32115V20 SEER$1,345.00 -

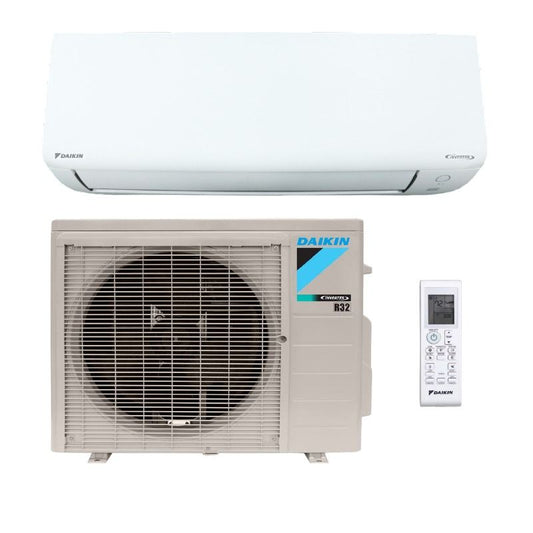

Daikin 12,000 BTU Oterra 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 115V
R32115V20 SEER$1,509.00 -
Daikin 9,000 BTU Oterra 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V
R32208-230V21 SEER$1,680.00 -
Daikin 18,000 BTU Entra 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V
R32208-230V18 SEER$1,722.00 -

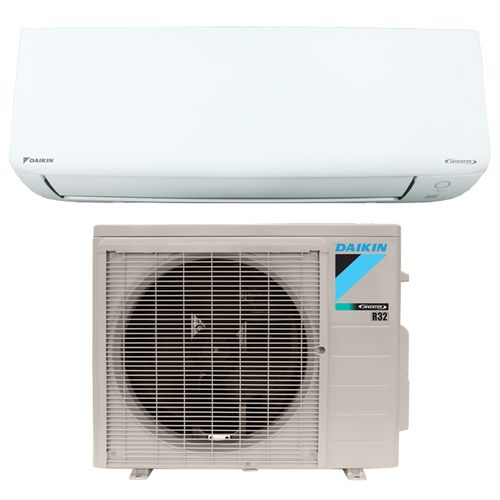

Daikin 12,000 BTU Oterra 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V
R32208-230V21 SEER$2,018.00 -
Daikin 24,000 BTU Entra 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V
R32208-230V18 SEER$2,058.00
Find Your Perfect Match: The HVAC Supplies BTU Sizing Guide
Selecting the correct BTU (British Thermal Units) capacity is the most critical step in ensuring your ductless system operates at peak efficiency while providing maximum comfort. At HVAC Supplies, we aim to eliminate the guesswork; an undersized unit will run constantly and drive up utility bills, while an oversized unit will cycle too frequently, leading to poor dehumidification and unnecessary wear.
Below is our comprehensive sizing guide designed for HVAC Supplies customers, featuring direct links to our high-efficiency mini split collections.
6,000 BTU
150 – 250 sq. ft.
Small bedrooms, home offices, nurseries, or high-efficiency “tiny homes”.
9,000 BTU
250 – 450 sq. ft.
Standard bedrooms, guest rooms, mid-sized offices, and insulated sunrooms.
12,000 BTU
450 – 600 sq. ft.
Master bedrooms, small living rooms, kitchens, or studio apartments.
18,000 BTU
600 – 1,000 sq. ft.
Large living rooms, master suites, or insulated 1-car garages.
24,000 BTU
1,000 – 1,200 sq. ft.
Open-concept main floors, 2-car garages, or small retail boutiques.
28,000 BTU
1,200 – 1,400 sq. ft.
Large open floor plans, community halls, or multi-room office suites.
30,000 BTU
1,400 – 1,500 sq. ft.
Large workshops, pole barns, or medium-sized commercial floor plans.
36,000 BTU
1,500 – 1,700 sq. ft.
Large residential open areas, showrooms, coffee shops, or fitness studios.
42,000 BTU
1,700 – 1,900 sq. ft.
Commercial spaces, restaurants, medical clinics, or church halls.
48,000 BTU
1,900 – 2,100 sq. ft.
Very large open residential areas, small warehouses, or banquet facilities.
55,000 BTU
2,100 – 2,400 sq. ft.
Large retail stores, high-ceiling industrial spaces, or commercial grow rooms.
60,000 BTU
2,400 – 2,800+ sq. ft.
Large warehouses, multi-office buildings, or massive high-ceiling estates.
When to "Size Up" Your Unit
While the table above provides a baseline for standard rooms, specific environmental factors at your job site may require a higher BTU capacity:
•
High Ceilings: If your ceilings are 10 feet or higher, you are cooling a larger volume of air. We recommend increasing your BTU choice by 20%.
•
Insulation Levels: For older buildings with single-pane windows or poor insulation, opt for the next size up to ensure the system can maintain the set temperature.
•
Kitchen Installations: Cooking appliances generate significant heat. If the unit is for a kitchen area, add 4,000 BTUs to your total calculation.
•
Heavy Sun Exposure: Rooms with large south-facing windows act like greenhouses. Increase your BTU capacity by 10-15% for these spaces.
•
High Occupancy: If the area regularly hosts more than two people (such as a conference room), add 600 BTUs per additional person.
