Daikin

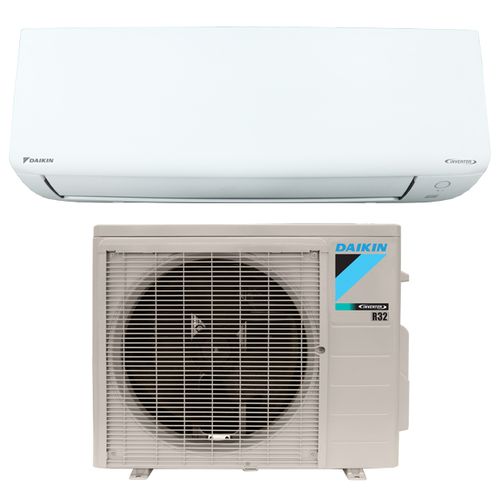

Daikin 12,000 BTU Oterra 21 SEER2 Single Zone Wall Mount Mini Split Air Conditioner System (Cooling Only) - R32 | 230V

SKU: RKF12BVJU9 + FTKF12BVJU9

System highlights
AC Type
Wall Mount
Refrigerant Type
R32
Brand
Daikin
Outdoor Unit
12000 BTU VO (1.0 TON)
Indoor Unit
12000 BTU (1.0 TON)
Voltage
208-230V
Looking For
Wall Mount
Cooling Area (sq.ft.)
400-550
Series
Oterra
SEER2 Rating
21.0
Features
Cooling Only

Price

$1,814.00
Shipping calculated at checkout.
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.
View full details
Daikin
Daikin 12,000 BTU Oterra 21 SEER2 Single Zone Wall Mount Mini Split Air Conditioner System (Cooling Only) - R32 | 230V

Product Overview

In compliance with the AIM Act of 2020, this product is designed for use with A2L appliances only. This product is NOT to be used in the installation or repair of an R410A appliances.



This product is a mini split package that includes both an indoor unit and outdoor unit.

Indoor Unit Description (FTKF12AXVJU)

Benefits:

  • R-32 Easy, Proven, Efficient, Available
  • Inverter Technology Reduces Energy Cost
  • Uniform Air Circulation
  • Optimal Comfort
  • Quiet Operations
  • Clean and Purified Indoor Air
  • Easy to Clean
  • Worry Free operation

Features:

  • Inverter
  • Power-airflow Dual Flaps
  • Wide Angle Louvers
  • Vericle Auto-Swing (Up and Down)
  • Auto Fan Speed
  • Quiet Operation
  • Auto Defrosting
  • Automatic Operation
  • Programme Dry Function
  • Fan Only Mode
  • Sleep mode
  • R/C with backlight & Signal Receiving Sign
  • Catechin Filter/Green Tea Filter
  • Titanium Apatite Air-Purifying Filter
  • Wipe Clean Flat Panel
  • Auto Restart (after power failure)
  • Self-Diagnosis

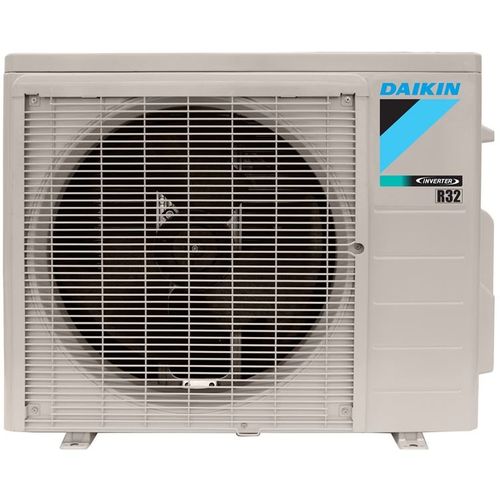

Outdoor Unit Description (RKF12AXVJU)

Benefits:

  • R-32- Proven, Easy, Efficient, Available
  • Energy Savings
  • Long lasting heat exchanger
  • Whisper quiet with specially designed airflow pattern
  • Effective cooling throughout the space
  • Control via a user-friendly remote control
  • 12 year warranty
  • Energy Efficient
  • Discreet wall mount

Features:

  • Inverter Powerful Operation
  • Anti Corrosion Treatment of Heat Exchanger
  • Wide Angle Louvers
  • Vertical Auto Swing (up and Down)
  • Auto Fan Speed
  • Indoor Unit Quiet Operations
  • Energy Saving Function
  • Sleep mode
  • Indoor unit ON/OFF button
  • R/C with Backlight
  • Catechin Filter/Green Tea Filter
  • Titanium Apatite Air Purifying Filter
  • Auto restart (after power failure)
  • Extended operation to -4F with facility setting and wind baffles


Note: As of January 1, 2023 the US Department of Energy released a new SEER2 standard that provides manufacturers guidance in measuring the efficiency of their HVAC units.


The US Department of Energy divided the country into 3 regions (North, Southeast, and Southwest) and established energy efficient standards for each.



Please check the SEER2 site to ensure efficiency compliance for your region.

Technical Specifications — RKF12BVJU9

sku RKF12BVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Mini-Split Air Conditioner
system family Mini-Split
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family RKF_BVJU9
series name Daikin OTERRA
short description Series Outdoor Mini-Split Air Conditioner, Single Zone
family description 0.75-2 Ton Single Split Air Conditioner 21 SEER2
product description R-32 1-Ton, Cooling only, Ductless ODU Daikin OTERRA
cooling btu 12,000
decibel level (dba) 49 dBA
refrigerant R-32
compressor type Swing
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
max breaker size 15 A
min. breaker size 14.6 A
tonnage 1
btu/tonnage 12,000 BTU/1 Ton
min/max outdoor temp for cooling 50 °F to 118.4 °F
zone compatibility Single Zone
height 21-15/16 in
width 26-9/16 in
depth 11-3/16 in
weight 71 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes
ahri reference number 216620055

Technical Specifications — FTKF12BVJU9

sku FTKF12BVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Mini-Split Fan Coils
system family Mini-Split
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family FTKF_BVJU9
series name Daikin OTERRA
short description Series Indoor Mini-Split Fan Coils
family description R-32 3/4 - 2 Ton Wall mounted unit cooling only
product description R-32 Daikin OTERRA 1 Ton AC only mini Split Indoor unit
decibel level (dba) 46 dBA
refrigerant R-32
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
min/max outdoor temp for cooling 50 °F to 118.4 °F
height 11-1/4 in
width 30-5/8 in
depth 8-3/4 in
weight 19 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes
