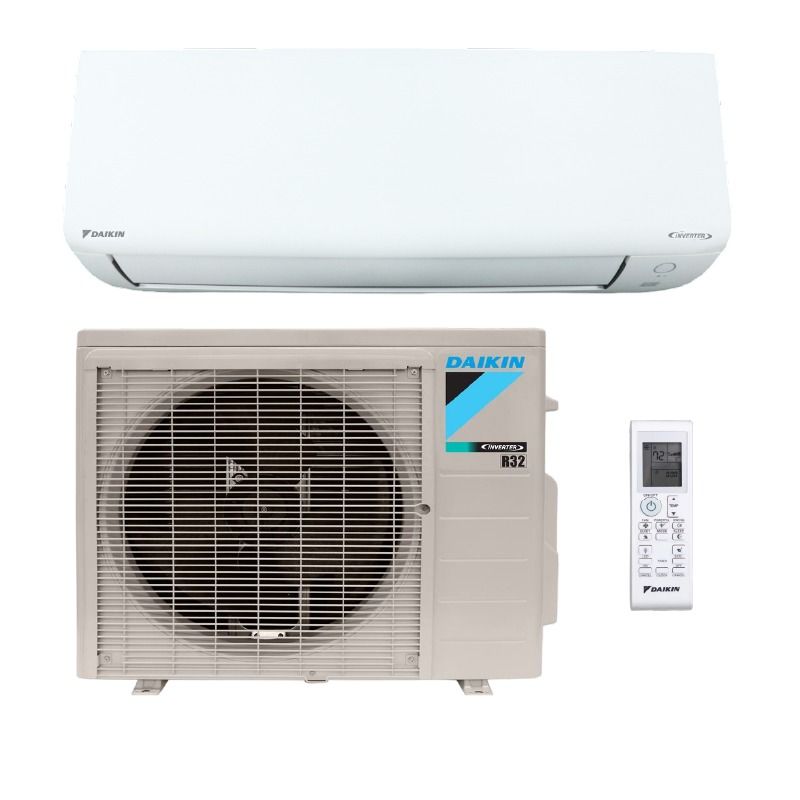

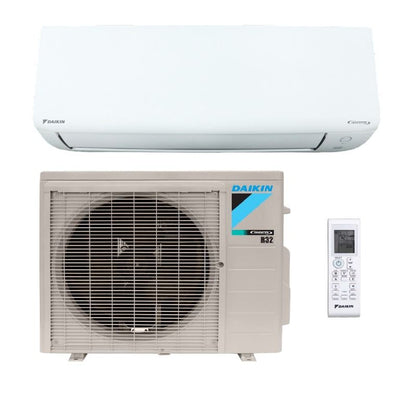

Daikin 12,000 BTU Oterra 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 115V
Product Overview
Daikin 12,000 BTU Oterra Single Zone Mini Split Heat Pump Condenser - R32 | 115V
12,000 BTU Daikin Oterra Mini Split Heat Pump Condenser - R32 | 115V
The 12,000 BTU Daikin Oterra Mini Split Heat Pump Condenser delivers efficient and reliable heating and cooling for single-zone wall-mount systems. Featuring advanced R32 refrigerant and a Daikin Swing Compressor with Inverter, this unit provides superior performance, quiet operation, and long-term durability for residential and light commercial applications.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 1 Ton Heat Pump Systems
- Delivers up to 20 SEER2, 12 EER2, and 9 HSPF2 for outstanding energy efficiency

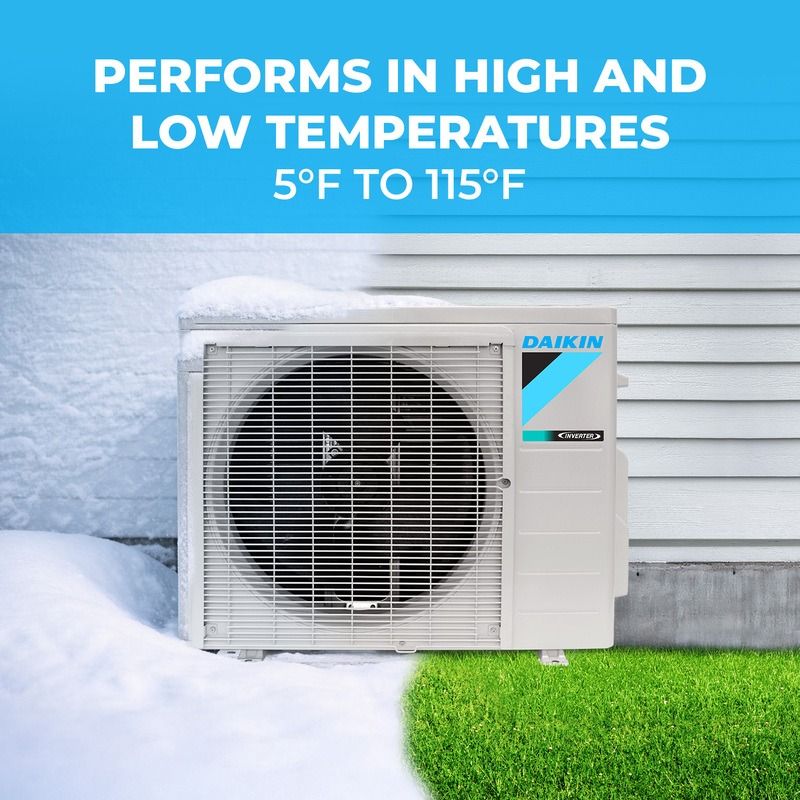

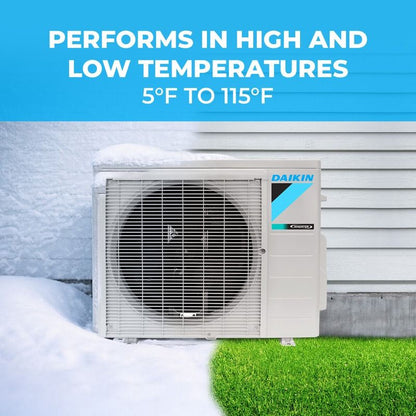

- Operates within a broad temperature range:
- Heating: 5°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Equipped with a Daikin Swing Compressor with Inverter for precise and energy-efficient operation
- Features Auto Defrost, Auto Fan Speed, and Auto Restart for uninterrupted operation
- Offers advanced comfort settings like Energy Saving Function and Programmable Dry Function
- Includes *NEW Easy Install WiFi* for convenient remote access and control
Quiet and User-Friendly Design:
- Ensures Indoor Unit Quiet Operation for minimal noise disturbance
- Features Wide Angle Louvers and Vertical Auto Swing for optimized airflow
- Includes Sleep Mode for enhanced nighttime comfort
Durable and Hygienic:
- Equipped with a Mold Proof Air Filter to enhance indoor air quality
- Includes a Removable Drain Pan for easy maintenance and cleaning
- Built with Flare-less Joint Connection and a 15A Circuit Breaker for secure and safe installation
Warranty Coverage:
- Limited 12-Year Parts Warranty for long-term reliability
- Extended 12-Year Labor Warranty for comprehensive coverage
The 12,000 BTU Daikin Oterra Mini Split Heat Pump Condenser combines energy efficiency, advanc
Daikin 12,000 BTU Oterra Single Zone Wall Mount Mini Split Air Handler - R32 | 115V
Daikin Oterra 12,000 BTU Wall Mount Air Handler - R32 | 115V
The Daikin Oterra 12,000 BTU Wall Mount Air Handler offers efficient and reliable heating and cooling for single-zone applications. With advanced Daikin Swing Compressor technology, eco-friendly R32 refrigerant, and user-friendly features, this unit delivers consistent comfort with energy savings, quiet operation, and durable performance.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 1 Ton Heat Pump Systems
- Achieves up to 20 SEER2, 12 EER2, and 9 HSPF2 for exceptional energy efficiency
- Wide operating temperature range:
- Cooling: 50°F to 114.8°F
- Heating: 5°F to 64.4°F
Advanced Technology:
- Equipped with a Daikin Swing Compressor with Inverter for precise and energy-efficient operation
- Features Auto Defrost, Auto Fan Speed, and Auto Restart for seamless functionality
- Includes Energy Saving Function and Programmable Dry Function to optimize energy usage
- New *Easy Install WiFi* for enhanced control and convenience
Enhanced Comfort:
- Wide Angle Louvers and Vertical Auto Swing provide even airflow distribution
- Includes a Sleep Mode for night-time energy efficiency and comfort
- Quiet indoor operation minimizes noise, ensuring a peaceful environment
Durable and Easy to Maintain:
- Equipped with a Mold Proof Air Filter for improved air quality
- Removable Drain Pan for easy cleaning and maintenance
- Flare-less joint connection simplifies installation and ensures durability
Reliable Design:
- Operates with a 15A Circuit Breaker for safe and consistent performance
- Limited 12-Year Parts Warranty ensures long-term reliability
- Extended 12-Year Labor Warranty provides comprehensive coverage
The Daikin Oterra 12,000 BTU Wall Mount Air Handler is an ideal choice for efficient and reliable single-zone heating and cooling. Designed with advanced technology, enhanced comfort features, and easy maintenance in mind, this unit provides year-round comfort while minimizing energy costs.
Technical Specifications — RXQ12ASBU9
| sku | RXQ12ASBU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXQ_ASBU9 |
| series name | Daikin Oterra 115V |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75-1 Ton Daikin Oterra 115V Heat Pump |
| product description | Daikin Oterra 115V Heat Pump Ductless ODU 1 Ton |
| cooling btu | 12,000 |
| heating btu | 13,500 |
| decibel level (dba) | 50 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 115 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 15 A |
| tonnage | 1 |
| btu/tonnage | 12,000 BTU/1 Ton |
| min/max outdoor temp for heating | 5 °F to 65 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| zone compatibility | Single Zone |

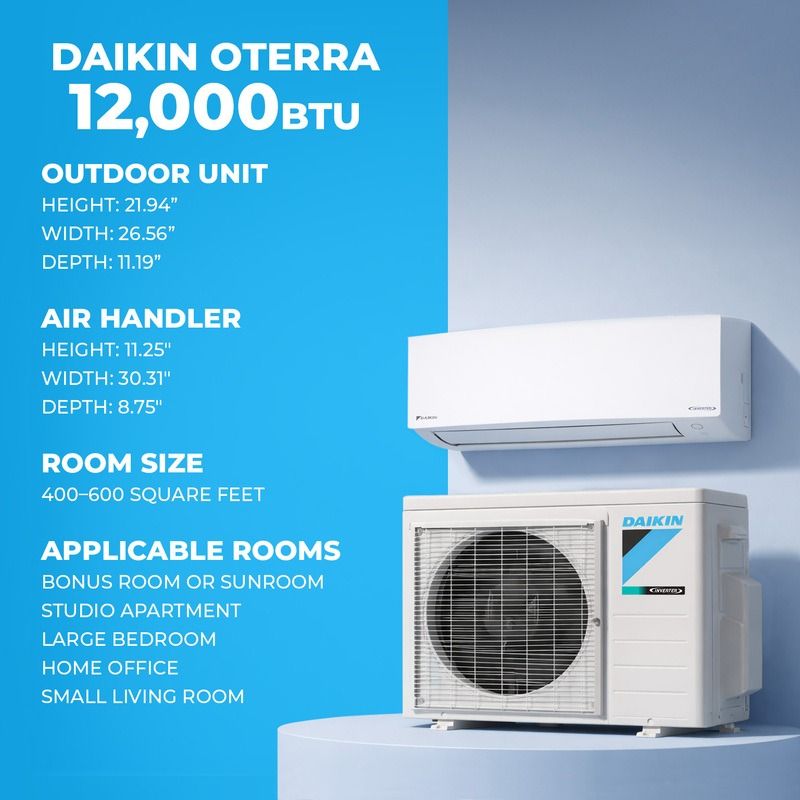

| height | 21-15/16 in |
| width | 26-9/16 in |
| depth | 11-3/16 in |
| weight | 64 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| seer2 | 20 |
Technical Specifications — FTXQ12ASBU9
| sku | FTXQ12ASBU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXQ_ASBU9 |
| series name | Daikin Oterra 115V |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | R-32- 0.75-1 Ton Wall mounted unit Heat Pump |
| product description | Daikin Oterra 115V R-32--12K Indoor High Wall Unit |
| cooling btu | 12,000 |
| heating btu | 13,500 |
| decibel level (dba) | 46 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 3/8 in |
| electrical | 115 V | 60 Hz | 1 Ph |
| tonnage | 1 |
| btu/tonnage | 12,000 BTU/1 Ton |
| min/max outdoor temp for heating | 5 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| height | 11-1/4 in |
| width | 30-5/16 in |
| depth | 8-3/4 in |
| weight | 19 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-FTXQ_ASBU9-RXQ_ASBU9
- Installation Manual (English) - IM-RXQ_ASBU9-English
- Installation Manual (English) - IM-Signa-Flareless-Adaptor-FTX
- Installation Manual (French) - IM-RXQ_ASBU9-French
- Installation Manual (Spanish) - IM-RXQ_ASBU9-Sapnish
- Installation Manual (English) - IM-BRP084A61-WIFI-Adaptor-Eng
- Installation Manual (English) - IM-FTXQ_ASBU9-English
- Installation Manual (French) - IM-BRP084A61-WIFI-Adaptor-Fren
- Installation Manual (French) - IM-FTXQ_ASBU9-French
- Installation Manual (Spanish) - IM-BRP084A61-WiFi-Adaptor-Span
- Installation Manual (Spanish) - IM-FTXQ_ASBU9-Spanish
- Operation Manual (English) - OM-FTXQ_ASBU9-English
- Operation Manual (French) - OM-FTXQ_ASBU9-French
- Operation Manual (Spanish) - OM-FTXQ_ASBU9-Spanish
