Daikin

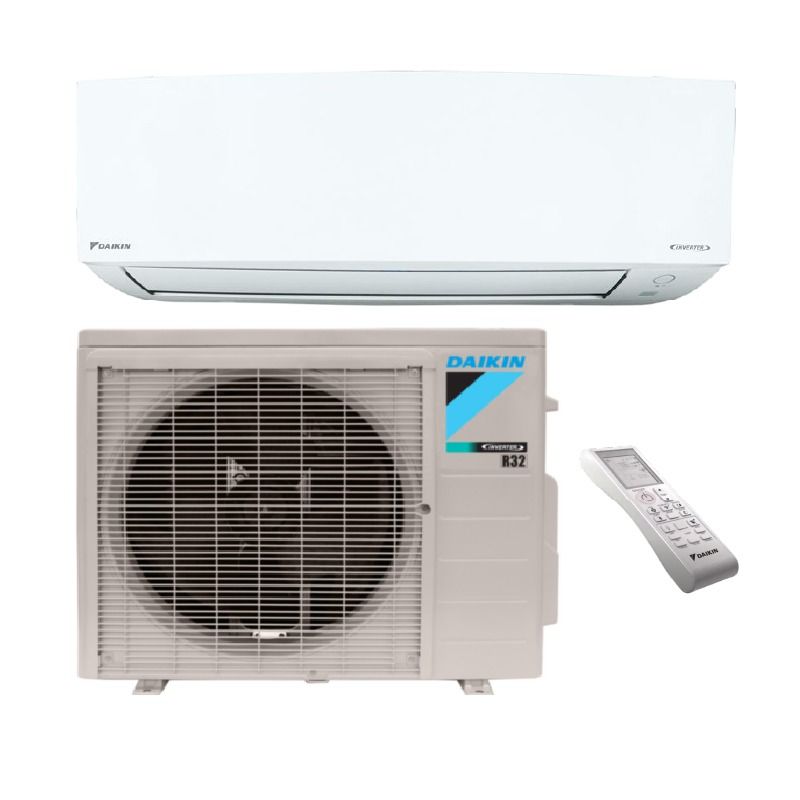

Daikin 24,000 BTU Entra 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V
Product Overview
Daikin 24,000 BTU Entra Single Zone Mini Split Heat Pump Condenser - R32 | 230V
Daikin Entra 24,000 BTU Mini Split Heat Pump Condenser - R32 | 230V
The Daikin Entra 24,000 BTU Mini Split Heat Pump Condenser delivers powerful and energy-efficient heating and cooling for single-zone wall mount systems. Utilizing advanced R32 refrigerant, an inverter compressor, and up to 18 SEER2, this unit ensures exceptional comfort, energy savings, and reliable performance for both residential and light commercial applications.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 18 SEER2, 11 EER2, and 9 HSPF2 for superior energy efficiency
- Operates across a wide temperature range:
- Heating: 5°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Equipped with an Inverter Compressor for precise and energy-efficient operation
- Features Self Diagnostics with a digital display for easy maintenance and troubleshooting
- Offers Energy Saving Function, Programme Dry Function, and Powerful Operation modes for customizable comfort
- Includes Auto Fan Speed Control to ensure optimized airflow
Durable and Reliable Design:
- Precharged for up to 32.8 ft of liquid line, streamlining installation
- Includes an Anti-Corrosion Treatment on the outdoor heat exchanger for enhanced durability
- Features Auto Restart functionality to resume operation after power interruptions
Quiet and User-Friendly:
- Ensures Indoor Unit Quiet Operation for minimal noise
- Comes with a Wireless IR Remote Controller for convenient operation
Piping Flexibility:
- Max piping for 09/12 MBH: 65.625' length, 32.8' height
- Max piping for 18/24 MBH: 98.5' length, 32.8' height
Warranty Coverage:
- 10 year warranty with online registration ensures dependable performance
The Daikin Entra 24,000 BTU Mini Split Heat Pump Condenser offers advanced technology, energy efficiency, and durable construction for superior year-round comfort. Perfect for single-zone systems, this unit delivers reliable, quiet operation and enhanced features to meet your heating and cooling needs.
Daikin 24,000 BTU Entra Single Zone Wall Mount Mini Split Air Handler - R32 | 230V
Daikin Entra 24,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Entra 24,000 BTU Wall Mount Air Handler is a high-capacity, energy-efficient solution for single-zone applications. Featuring advanced inverter technology and eco-friendly R32 refrigerant, it delivers reliable heating and cooling with superior efficiency, making it ideal for larger spaces.
Key Features:
Efficient Heating & Cooling:
- Supports 0.75 Ton to 2 Ton Heat Pump capacity
- Achieves up to 18 SEER2, 11 EER2, and 9 HSPF2 efficiency ratings
- Wide operating temperature range for year-round performance:
- Heating: 5°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Inverter compressor adjusts power output for consistent and efficient operation
- Self-diagnostics with a digital display for fast and accurate troubleshooting
- Includes Energy-saving, Programme Dry, and Powerful operation modes to suit your comfort needs
- Auto Fan Speed Control automatically adjusts airflow for optimal performance
Durability and Quiet Operation:
- Anti-corrosion treatment on the outdoor heat exchanger enhances durability and longevity
- Operates quietly indoors, ensuring a comfortable and peaceful environment
- Auto restart functionality restores operation automatically after power interruptions
Installation Flexibility:
- Precharged for up to 32.8 ft of liquid line, simplifying the installation process
-
Max piping capability:
- 09/12 MBH models: 65.625 ft length, 32.8 ft height
- 18/24 MBH models: 98.5 ft length, 32.8 ft height
User-Friendly Features:
- Comes with a Wireless IR Remote Controller for easy operation
Warranty Coverage:
- 10 year warranty with online registration for dependable protection
Note: This unit does not support low ambient cooling operation.
The Daikin Entra 24,000 BTU Wall Mount Air Handler is the perfect combination of power, efficiency, and advanced features, providing reliable and long-lasting comfort for larger single-zone applications.
Technical Specifications — RXC24AXVJU
| sku | RXC24AXVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXC_AXVJU |
| series name | Daikin ENTRA |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75 - 2 Ton 17 Series Heat Pump Up to 17 SEER / 9 HSPF |
| product description | Daikin Entra R-32 Heat Pump Ductless ODU 2 Ton |
| cooling btu | 22,400 |
| heating btu | 23,000 |
| decibel level (dba) | 53 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 20 A |
| min. breaker size | 16.34 A |
| tonnage | 2 |
| btu/tonnage | 22,400 BTU/2 Ton |
| min/max outdoor temp for heating | 5 °F to 65 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| zone compatibility | Single Zone |
| height | 27-13/32 in |
| width | 36-5/8 in |
| depth | 13-13/16 in |
| weight | 101 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 213895725 |
Technical Specifications — FTXC24AXVJU
| sku | FTXC24AXVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Fan Coils |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXC_AXVJU |
| series name | Daikin ENTRA |
| short description | Series Indoor Mini-Split Fan Coils |
| family description | R-32 -- 0.75 - 2.0 Ton Wall Mounted Unit Heat Pump |
| product description | Daikin Entra R-32 - 24K Indoor High Wall Unit |
| cooling btu | 22,400 |
| heating btu | 23,000 |
| decibel level (dba) | 51 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| tonnage | 2 |
| btu/tonnage | 22,400 BTU/2 Ton |
| min/max outdoor temp for heating | 5 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 114.8 °F |
| height | 11-11/16 in |
| width | 39-9/16 in |
| depth | 11-1/3 in |
| weight | 30.5 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 213895725 |
