Daikin

Daikin 9,000 BTU Oterra 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V

SKU: RXF09BVJU9 + FTXF09BVJU9

System highlights
AC Type
Wall Mount
Refrigerant Type
R32
Brand
Daikin
Outdoor Unit
9000 BTU VO (0.75 TON)
Indoor Unit
9000 BTU (0.75 TON)
Voltage
208-230V
Looking For
Wall Mount
Cooling Area (sq.ft.)
250-400
Series
Oterra
SEER2 Rating
21.0

Price

$1,680.00
Shipping calculated at checkout.
Line Set Length

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.
View full details
Daikin
Daikin 9,000 BTU Oterra 21 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V

Product Overview

In compliance with the AIM Act of 2020, this product is designed for use with A2L appliances only. This product is NOT to be used in the installation or repair of an R410A appliances.

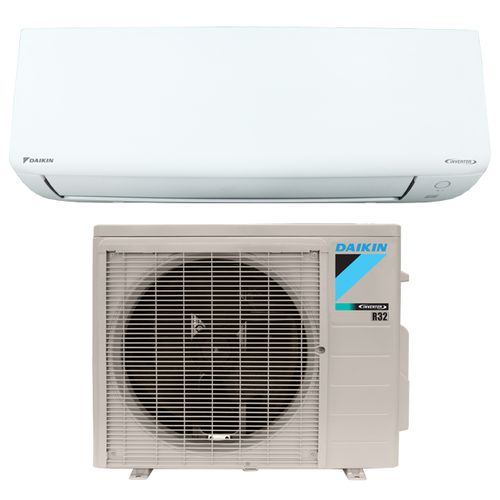

This product is a mini split package that includes both an indoor unit and outdoor unit.

Indoor Unit Description (FTXF09BVJU9)

Benefits:

  • R-32 Easy, Proven, Efficient, Available
  • Inverter Technology Reduces Energy Cost
  • Uniform Air Circulation
  • Optimal Comfort
  • Quiet Operations
  • Clean and Purified Indoor Air
  • Easy to Clean
  • Worry Free operation

Features:

  • Inverter
  • Power-airflow Dual Flaps
  • Wide Angle Louvers
  • Vericle Auto-Swing (Up and Down)
  • Auto Fan Speed
  • Quiet Operation
  • Auto Defrosting
  • Automatic Operation
  • Programme Dry Function
  • Fan Only Mode
  • Sleep mode
  • R/C with backlight & Signal Receiving Sign
  • Catechin Filter/Green Tea Filter
  • Titanium Apatite Air-Purifying Filter
  • Wipe Clean Flat Panel
  • Auto Restart (after power failure)
  • Self-Diagnosis

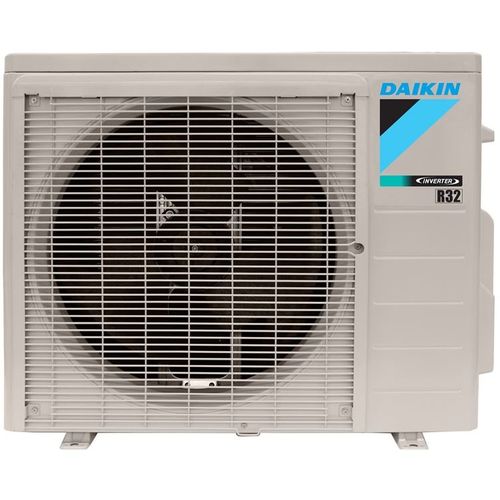

Outdoor Unit Description (RXF09BVJU9)

Benefits:

  • Energy Savings
  • Worry Free Operations
  • Long life of equipment
  • R-32 Easy, Prove, Efficient, Available

Features:

  • Inverter Technology
  • Swing Compressor
  • Auto Restart (after power failure)
  • Self Diagnosis
  • Anti-Corrosion Treatment of Outdoor Heat Exchanger
  • Quiet Operations


The AHRI Reference # for this unit is 213895726.


Note: As of January 1, 2023 the US Department of Energy released a new SEER2 standard that provides manufacturers guidance in measuring the efficiency of their HVAC units.


The US Department of Energy divided the country into 3 regions (North, Southeast, and Southwest) and established energy efficient standards for each.



Please check the SEER2 site to ensure efficiency compliance for your region.

Technical Specifications — RXF09BVJU9

sku RXF09BVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Mini-Split Heat Pump
system family Mini-Split
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family RXF_BVJU9
series name OTERRA
short description Series Outdoor Mini-Split Heat Pump, Single Zone
family description R-32-- 0.75 -2.0 Ton Single Split Heat Pump
product description R-32-- Daikin OTERRA 0.75 Ton ODU Heatpump
decibel level (dba) 49 dBA
refrigerant R-32
compressor type Swing
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
max breaker size 15 A
min. breaker size 11.6 A
min/max outdoor temp for heating 5 °F to 64.4 °F
min/max outdoor temp for cooling 50 °F to 118.4 °F
zone compatibility Single Zone
height 21-15/16 in
width 26-9/16 in
depth 11-3/16 in
weight 63 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes

Technical Specifications — FTXF09BVJU9

sku FTXF09BVJU9
manufacturer Daikin
product category Ductless Mini-Splits
product class Mini-Split Fan Coils
system family Mini-Split
function category Heat Pump
product type Equipment
unit type Indoor
market type Residential-Single Family
product family FTXF_BVJU9
series name Daikin OTERRA
short description Series Indoor Mini-Split Fan Coils
family description R-32 0.75 - 2.0 Ton Wall Mounted Unit Heat Pump
product description R-32 --- 0.75- Ton, Heat Pump, Wall Mounted IDU Daikin OTERRA
cooling btu 9,000
heating btu 10,900
decibel level (dba) 44 dBA
refrigerant R-32
liquid line 1/4 in
suction line 3/8 in
electrical 208-230 V | 60 Hz | 1 Ph
tonnage 0.75
btu/tonnage 9,000 BTU/0.75 Ton
min/max outdoor temp for heating 5 °F to 64.4 °F
min/max outdoor temp for cooling 50 °F to 118.4 °F
height 11-1/4 in
width 30-5/8 in
depth 8-3/4 in
weight 19 lb
warranty ALL PARTS - 12 YEARS PARTS
safety information Proposition 65 Label: Yes

Manuals

Warranty
