Daikin | Digital-Programmable | SKU TH6220U2000

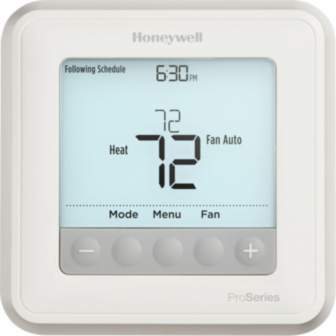

Thermostat, Universal Programmable, 1 degF, 1 A, 50/60 Hz
Product Description
The Daikin Thermostat, Universal Programmable, 1 degF, 1 A, 50/60 Hz is an HVAC replacement thermostat. It is used for digital-programmable service and replacement work. Key details include 1 degF Accuracy, 1 A Max, White, Blue Display, 50/60 Hz, 20 to 30 VAC, Digital, 5 to 95%, Horizontal Mounting, 2 Heat/1 Cool Heat Pump, 2 Heat/2 Cool Conventional Systems System Configuration, 37 to 102 degF, 4.0625 in WD, 4.0625 in LG, 1.0937 in DP.
Compatible model numbers are shown in the compatibility chart. Order by part number TH6220U2000 and compare it with the label on your existing component before purchasing.
Technical Specifications - TH6220U2000
| Part Number | TH6220U2000 |
|---|---|
| Full SKU | MHVC-RES-PTST-TH6220U2000 |
| Brand | Daikin |
| Part Type | Digital-Programmable |
| Category | Thermostats |
| Catalog Detail | 1 degF Accuracy, 1 A Max, White, Blue Display, 50/60 Hz, 20 to 30 VAC, Digital, 5 to 95%, Horizontal Mounting, 2 Heat/1 Cool Heat Pump, 2 Heat/2 Cool Conventional Systems System Configuration, 37 to 102 degF, 4.0625 in WD, 4.0625 in LG, 1.0937 in DP |
| Country of Origin | Mexico |
| Unit Height | 4.06 in |
| Unit Width | 5 in |
| Unit Depth | 1.09 in |
| Unit Weight | 0.81 lb |
| Humidification Control | No |
| Programmable | Yes |
| wifi Compatible | No |
Compatibility Chart
| Corporate | ASPT60D14, ASPT25B14, ASPT29B14, ASPT33C14, ASPT37B14, ASPT37C14, ASPT39C14, ASPT47C14, ASPT47D14, ASPT49D14, ASPT59C14, ASPT61D14 ASPT35B14, ASPT49C14 |
|---|
