HVAC Replacement Part | Digital-Programmable | SKU TH8110R1008

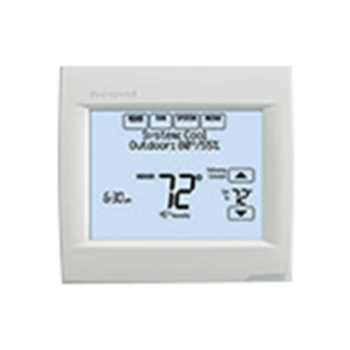

Thermostat, Programmable, Communicating, Dual Powered, 7 Day
Product Description
The Thermostat, Programmable, Communicating, Dual Powered, 7 Day is an HVAC replacement thermostat. It is used for digital-programmable service and replacement work. Key details include Arctic White, 50/60 Hz, 18 to 30 VAC, Touchscreen, 5 to 90%, Horizontal Mounting, 1 Heat/1 Cool Heat Pump, 1 Heat/1 Cool Conventional Systems, 4 Heat/2 Cool Heat Pump with EIM, 3 Heat/2 Cool Conventional with The Eim System Configuration, 37 to 102 degF, 7 Day, R, RC, C, W-O/B, Y, G, K, S1 Terminal, 4.937 in WD, 4.625 in HT, 1.125 in DP.
Document links are included below. Order by part number TH8110R1008 and compare it with the label on your existing component before purchasing.
Technical Specifications - TH8110R1008
| Part Number | TH8110R1008 |
|---|---|
| Full SKU | MHVC-RES-PTST-TH8110R1008 |
| Part Type | Digital-Programmable |
| Category | Thermostats |
| Catalog Detail | Arctic White, 50/60 Hz, 18 to 30 VAC, Touchscreen, 5 to 90%, Horizontal Mounting, 1 Heat/1 Cool Heat Pump, 1 Heat/1 Cool Conventional Systems, 4 Heat/2 Cool Heat Pump with EIM, 3 Heat/2 Cool Conventional with The Eim System Configuration, 37 to 102 degF, 7 Day, R, RC, C, W-O/B, Y, G, K, S1 Terminal, 4.937 in WD, 4.625 in HT, 1.125 in DP |
| Country of Origin | Mexico |
| Unit Height | 4.63 in |
| Unit Width | 5.25 in |
| Unit Depth | 1.13 in |
| Unit Weight | 0.95 lb |
| Programmable | Yes |
| wifi Compatible | No |
Documents & Downloads
