HVAC Replacement Part | Digital-Non-Programmable | SKU TH5220D1029

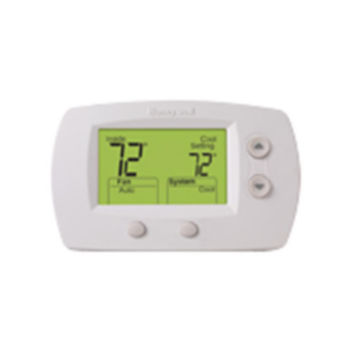

Thermostat, Non-Programmable, +/-1 degF, 1 A, Premier White
Product Description
The Thermostat, Non-Programmable, +/-1 degF, 1 A, Premier White is an HVAC replacement thermostat. It is used for digital-non-programmable service and replacement work. Key details include +/-1 degF Accuracy, 1 A Max, Premier White, 50/60 Hz, 24 V, Backlight LCD, 5 to 90%, Horizontal Mounting, 2 Heat/1 Cool Heat Pump, 2 Heat/2 Cool System Configuration, 40 to 99 degF, G, L, W2(AUX), Y2(E), C, RC, W(O/B), Y Terminal, 5.8125 in WD, 3.5625 in HT, 1.5 in DP.
Document links are included below. Order by part number TH5220D1029 and compare it with the label on your existing component before purchasing.
Technical Specifications - TH5220D1029
| Part Number | TH5220D1029 |
|---|---|
| Full SKU | MHVC-RES-PTST-TH5220D1029 |
| Part Type | Digital-Non-Programmable |
| Category | Thermostats |
| Catalog Detail | +/-1 degF Accuracy, 1 A Max, Premier White, 50/60 Hz, 24 V, Backlight LCD, 5 to 90%, Horizontal Mounting, 2 Heat/1 Cool Heat Pump, 2 Heat/2 Cool System Configuration, 40 to 99 degF, G, L, W2(AUX), Y2(E), C, RC, W(O/B), Y Terminal, 5.8125 in WD, 3.5625 in HT, 1.5 in DP |
| Country of Origin | Mexico |
| Unit Height | 1.5 in |
| Unit Width | 3.5625 in |
| Unit Depth | 5.8125 in |
| Power Voltage | 20-30 V |
| Unit Weight | 0.9 lb |
| Programmable | No |
| wifi Compatible | No |
