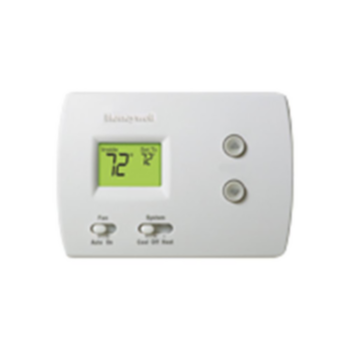

HVAC Replacement Part | Digital-Non-Programmable | SKU TH3210D1004
Thermostat, Digital Non-Programmable, +/-1 degF, 50/60 Hz
Product Description
The Thermostat, Digital Non-Programmable, +/-1 degF, 50/60 Hz is an HVAC replacement thermostat. It is used for digital-non-programmable service and replacement work. Key details include +/-1 degF Accuracy, Premier White, 50/60 Hz, 20 to 30 VAC, LCD, Horizontal Mounting, 2 Heat/1 Cool Heat Pump System Configuration, 40 to 99 degF, R, Y, AUX, E, G, O, B, L, C Terminal, 5.375 in WD, 3.8125 in HT, 1.25 in DP.
Document links are included below. Order by part number TH3210D1004 and compare it with the label on your existing component before purchasing.
Technical Specifications - TH3210D1004
| Part Number | TH3210D1004 |
|---|---|
| Full SKU | MHVC-RES-PTST-TH3210D1004 |
| Part Type | Digital-Non-Programmable |
| Category | Thermostats |
| Catalog Detail | +/-1 degF Accuracy, Premier White, 50/60 Hz, 20 to 30 VAC, LCD, Horizontal Mounting, 2 Heat/1 Cool Heat Pump System Configuration, 40 to 99 degF, R, Y, AUX, E, G, O, B, L, C Terminal, 5.375 in WD, 3.8125 in HT, 1.25 in DP |
| Country of Origin | Mexico |
| Unit Height | 3.81 in |
| Unit Width | 5.75 in |
| Unit Depth | 1.25 in |
| Unit Weight | 0.67 lb |
| Humidification Control | No |
| Programmable | No |
| wifi Compatible | No |
