HVAC Replacement Part | Digital-Programmable | SKU TH8321WF1001

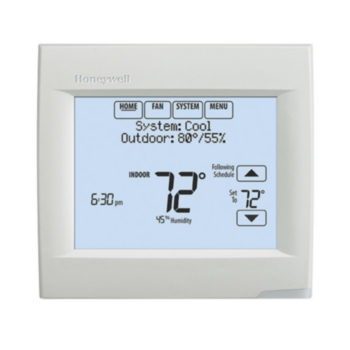

Thermostat, Arctic White, 50/60 Hz, 18 to 30 VAC, 5 to 90%
Product Description
The Thermostat, Arctic White, 50/60 Hz, 18 to 30 VAC, 5 to 90% is an HVAC replacement thermostat. It is used for digital-programmable service and replacement work. Key details include Thermostat, Programmable, Communicating, Digital, Dual Powered, Arctic White, 50/60 Hz, 18 to 30 VAC, Touchscreen, 5 to 90%, Horizontal Mounting, 3 Heat/2 Cool Heat Pump, 2 Heat/2 Cool Conventional System Configuration, 37 to 102 degF, 7 Day, R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 , S1 Terminal, 1.13 in WD, 4.94 in LG, 4.63 in HT.
Document links are included below. Order by part number TH8321WF1001 and compare it with the label on your existing component before purchasing.
Technical Specifications - TH8321WF1001
| Part Number | TH8321WF1001 |
|---|---|
| Full SKU | MHVC-RES-PTST-TH8321WF1001 |
| Part Type | Digital-Programmable |
| Category | Thermostats |
| Catalog Detail | Thermostat, Programmable, Communicating, Digital, Dual Powered, Arctic White, 50/60 Hz, 18 to 30 VAC, Touchscreen, 5 to 90%, Horizontal Mounting, 3 Heat/2 Cool Heat Pump, 2 Heat/2 Cool Conventional System Configuration, 37 to 102 degF, 7 Day, R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 , S1 Terminal, 1.13 in WD, 4.94 in LG, 4.63 in HT |
| Country of Origin | Mexico |
| Unit Height | 4.63 in |
| Unit Width | 4.9375 in |
| Unit Depth | 1.13 in |
| Unit Weight | 0.5 lb |
| Humidification Control | No |
| Programmable | Yes |
| wifi Compatible | Yes |
Documents & Downloads
