Perfect Aire — PTAC

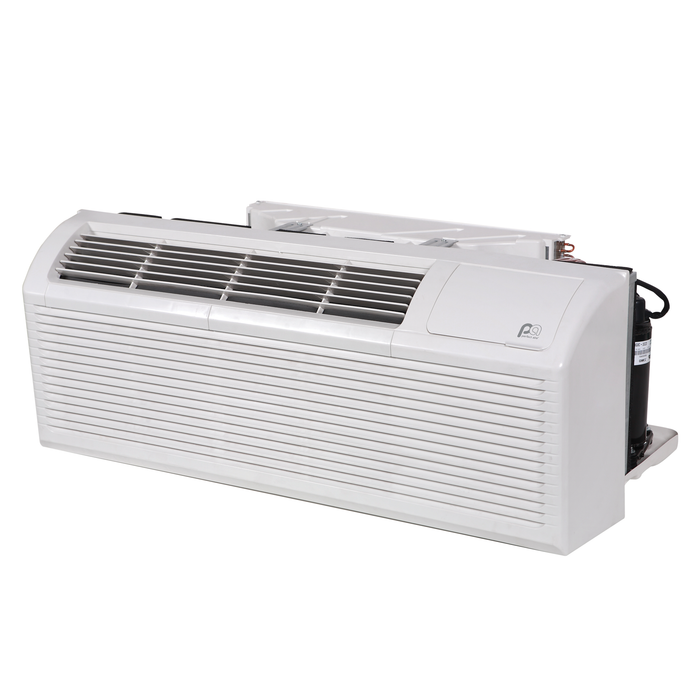

Perfect Aire 7,000 BTU 230V PTAC w/ 3.5 kW Electric Heat Assist
Overview
7,000 BTUPTAC7000 BTU (0.58 TON)7000 BTU VO (0.58 TON)R32
Details
7,000 BTU 230V PTAC w/ 3.5 kW Electric Heat Assist
Model #4PTC07A-HE-3.5
When you want to heat or cool a space room-by-room, rather than building-by-building, this sleek unit is your answer. Engineered by Perfect Aire®, this 7,000 BTU packaged terminal air conditioner is the perfect fit for Active construction or retrofit requirements in commercial spaces like hotels and apartments, or drafty sunrooms. The self-contained design does it all with a quiet operation and low-profile footprint. Swiftly heat or cool rooms up to 300 square feet with total energy efficiency and plenty of smart features, like compressor restart delay to prevent short-cycling and high-temperature protection during heat mode. You can rest easy knowing your customers or tenants are comfortable while your energy bills go down, down, down.
Features
- 7,300/7,100 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (10,900/8,900 BTU)
- Efficiently delivers comfort to rooms measuring approximately 250-300 sq. ft.
- Ideal for Active construction or retrofit requirements in commercial spaces
- Sleek design and low-profile footprint
- Quiet operation
- Energy efficient
- EER (Energy Efficiency Rating) of 11.9
- Power input is 20A, 208V/230V-60Hz
- Compressor Restart Delay in Cool Mode
- High Temperature Protection in Heat Mode
- Automatic Evaporator Freeze Protection
| cooling capacity (btu) | 7300/7200 |
|---|---|
| heating capacity (btu) | 10900/8900 |
| coverage area (sq. ft.) | 250-350 |
| cooling operating temperature range (°f) | 64 - 109 |
| heating operating temperature range (°f) | No Min. - 75 |
| unit width (in.) | 42.0 |
| unit height (in.) | 16.0 |
| unit depth (in.) | 21.0 |
| unit weight (lb.) | 101.75 |
