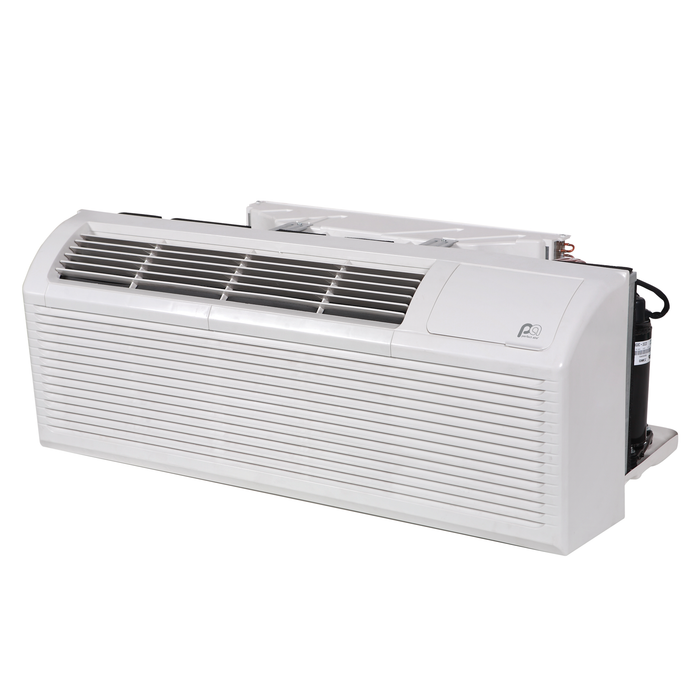

Perfect Aire 15,000 BTU 230V PTAC w/ 3.5 kW Electric Heat Assist
Overview
15,000 BTUPTAC15000 BTU (1.25 TON)R32
Details
15,000 BTU 230V PTAC w/ 3.5 kW Electric Heat Assist
Model #4PTC15A-HE-3.5
How do you ensure each and every customer or tenant in a building is in their comfort zone? Install one of these packaged terminal air conditioners in every room of your commercial space—simple as that.With a robust 15,000 BTU capacity, this Perfect Aire® PTAC efficiently heats and cools spaces up to 700 square feet (think: apartments, hotels, even sunrooms). Its sleek profile conceals a self-contained system that does it all at the touch of a button without interfering with your space or style. Not only is it easy on the eyes, it’s easy on the ears, too, operating at a whisper-quiet hum.
Features
- 14,700/14,500 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (10,900/8,900 BTU)
- Efficiently delivers comfort to rooms measuring approximately 550-700 sq. ft.
- Ideal for Active construction or retrofit requirements in commercial spaces
- Sleek design and low-profile footprint
- Quiet operation
- Energy efficient
- EER (Energy Efficiency Rating) of 9.5
- Power input is 20A, 208V/230V-60Hz
- Compressor Restart Delay in Cool Mode
- High Temperature Protection in Heat Mode
- Automatic Evaporator Freeze Protection
| cooling capacity (btu) | 14700/14500 |
|---|---|
| heating capacity (btu) | 15000/12200 |
| coverage area (sq. ft.) | 550-650 |
| cooling operating temperature range (°f) | 64 - 109 |
| heating operating temperature range (°f) | No Min. - 75 |
| unit width (in.) | 42.0 |
| unit height (in.) | 16.0 |
| unit depth (in.) | 21.0 |
| unit weight (lb.) | 113.25 |
