Perfect Aire — PTAC

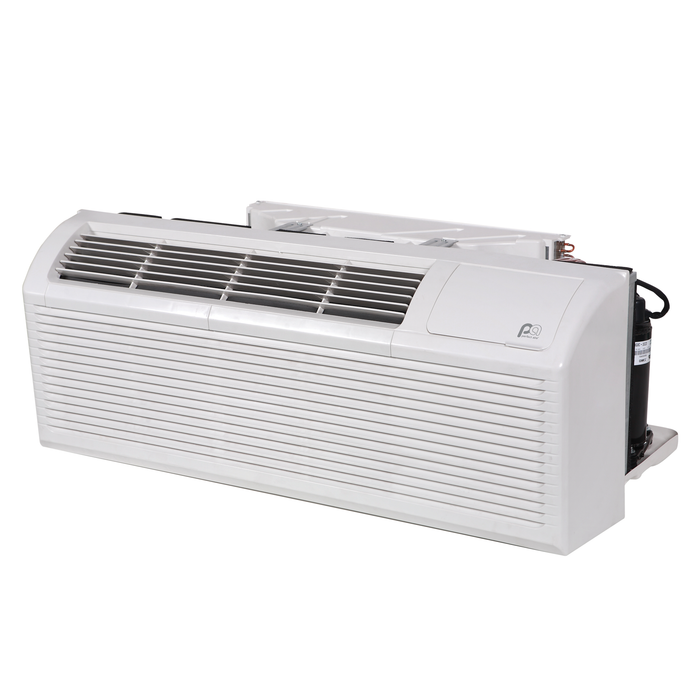

Perfect Aire 15,000 BTU 230V PTAC Heat Pump w/ 3.5 kW Electric Heat Assist
Overview
15,000 BTUPTAC15000 BTU (1.25 TON)R32
Details
15,000 BTU 230V PTAC Heat Pump w/ 3.5 kW Electric Heat Assist
Model #4PTH15A-HE-3.5
Don’t waste energy with a one-temperature-fits-all solution for an entire building. Efficiently bring room-by-room comfort with this 15,000 BTU packaged terminal air conditioner from Perfect Aire®. Designed for both commercial and residential spaces, this self-contained unit heats and cools rooms up to 700 square feet with total energy efficiency. Dorm rooms, apartments, hotels and hospitals have never been more comfortable—not to mention that sunroom that feels too drafty or stuffy. With a sleek profile and whisper-quiet operation, this PTAC allows you or your tenants to independently control the temperature of their room. So cool.
Features
- 14,700/14,500 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (13,500/13,200 BTU)
- Efficiently delivers comfort to rooms measuring approximately 550-700 sq. ft.
- Ideal for Active construction or retrofit requirements in commercial spaces
- Sleek design and low-profile footprint
- Quiet operation
- Energy efficient
- Memory Function
- EER (Energy Efficiency Rating) of 9.6
- Power input is 20A, 208V/230V-60Hz
- Compressor Restart Delay in Cool Mode
- High Temperature Protection in Heat Mode
| cooling capacity (btu) | 14700/14500 |
|---|---|
| heating capacity (btu) | 13500/13200 |
| coverage area (sq. ft.) | 600-700 |
| cooling operating temperature range (°f) | 64 - 109 |
| heating operating temperature range - heat pump (°f) | 25-75 |
| heating operating temperature range - heat strip (°f) | No Min.-75 |
| unit width (in.) | 42.0 |
| unit height (in.) | 16.0 |
| unit depth (in.) | 21.0 |
| unit weight (lb.) | 117.0 |
