Perfect Aire — PTAC

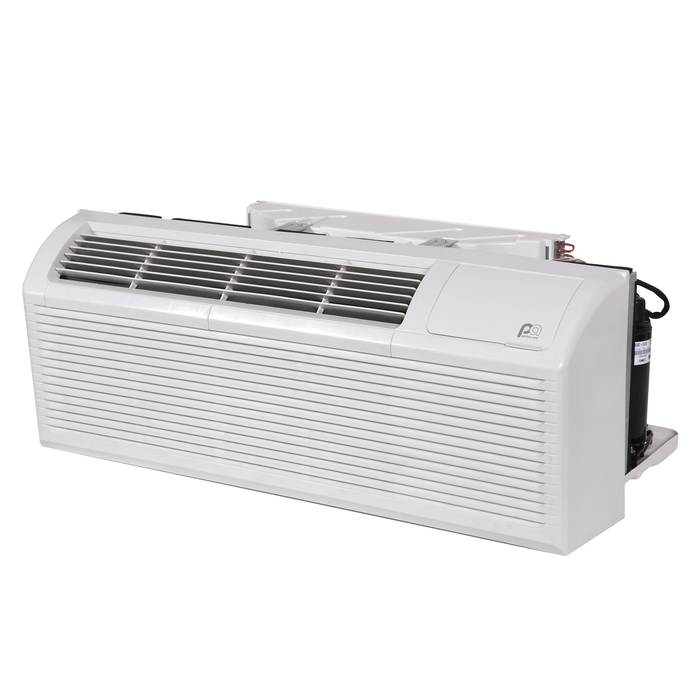

Perfect Aire 14,700 BTU 230V PTAC w/ 5.0 kW Electric Heat Assist
Overview
14,700 BTUPTAC14700 BTU (1.23 TON)R32
Details
14,700 BTU 230V PTAC w/ 5.0 kW Electric Heat Assist
Model #4PTC15A-HE-5.0
When you’re heating and cooling a commercial space like a dorm, apartment, hotel or hospital, economy is everything. The same goes for tough-to-heat or cool spaces, like a sunroom. This 15,000 BTU packaged terminal air conditioner from Perfect Aire® has you covered, delivering efficient heating and cooling to rooms up to 700 square feet. Installation, operation and maintenance are a breeze, thanks to a self-contained design with a sleek profile that’s built for energy efficiency. A whisper-quiet operation and smart features like a memory function, auto defrost and high temperature protection keep things humming along safely.
Features
- 14,700/14,500 BTU Packaged Terminal Air Conditioner with 5.0kW electric heater (15,000/12,200 BTU)
- Efficiently delivers comfort to rooms measuring approximately 550-700 sq. ft.
- Ideal for Active construction or retrofit requirements in commercial spaces
- Sleek design and low-profile footprint
- Quiet operation
- Energy efficient
- EER (Energy Efficiency Rating) of 9.5
- Power input is 30A, 208V/230V-60Hz
- Compressor Restart Delay in Cool Mode
- High Temperature Protection in Heat Mode
- Automatic Evaporator Freeze Protection
| cooling capacity (btu) | 14700/14500 |
|---|---|
| heating capacity (btu) | 15000/12200 |
| coverage area (sq. ft.) | 550-650 |
| cooling operating temperature range (°f) | 64 - 109 |
| heating operating temperature range (°f) | No Min. - 75 |
| unit width (in.) | 42.0 |
| unit height (in.) | 16.0 |
| unit depth (in.) | 21.0 |
| unit weight (lb.) | 113.25 |
