Perfect Aire — PTAC

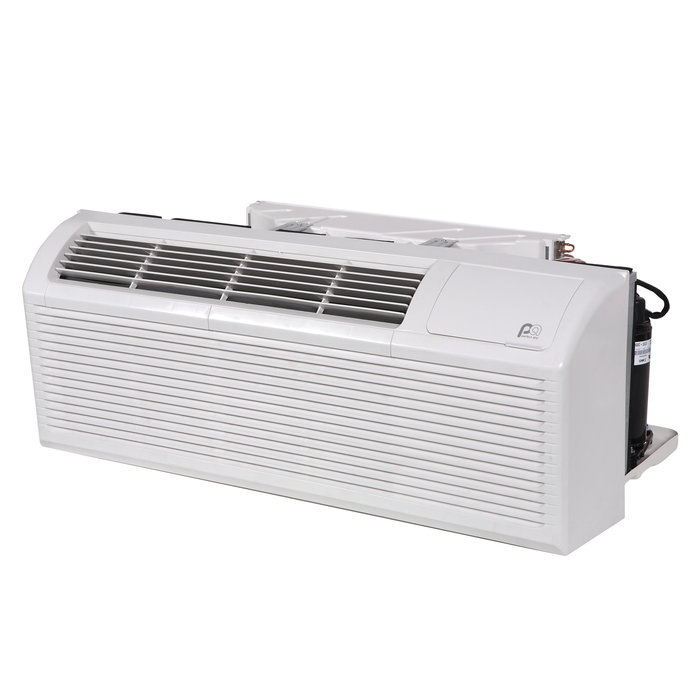

Perfect Aire 12,000 BTU 230V PTAC w/ 3.5 kW Electric Heat Assist
Overview
12,000 BTUPTAC12000 BTU (1.00 TON)R32
Details
12,000 BTU 230V PTAC w/ 3.5 kW Electric Heat Assist
Model #4PTC12A-HE-3.5
Have multiple rooms to heat and cool? This ultra-efficient packaged terminal air conditioner and electric heater from Perfect Aire® gives you the power to independently bring comfort to individual rooms in your home, hotel, dorm or apartment. With a 12,000 BTU capacity, you can rest assured that spaces up to 550 square feet are covered. Customers and tenants can switch from heat to cool at the touch of a button, while smart features keep working temperatures from going too extreme, protecting the life of the unit. Power outage? No worries. With memory function, things will pick up right where they left off so everybody stays in their comfort zone.
Features
- 12,000/11,8,000 BTU Packaged Terminal Air Conditioner with 3.5kW electric heater (10,900/8,900 BTU)
- Efficiently delivers comfort to rooms measuring approximately 450-550 sq. ft.
- Ideal for Active construction or retrofit requirements in commercial spaces
- Sleek design and low-profile footprint
- Quiet operation
- Energy efficient
- EER (Energy Efficiency Rating) of 10.7
- Power input is 20A, 208V/230V-60Hz
- Compressor Restart Delay in Cool Mode
- High Temperature Protection in Heat Mode
- Automatic Evaporator Freeze Protection
| cooling capacity (btu) | 12000/11800 |
|---|---|
| heating capacity (btu) | 10900/8900 |
| coverage area (sq. ft.) | 400-500 |
| cooling operating temperature range (°f) | 64 - 109 |
| heating operating temperature range (°f) | No Min. - 75 |
| unit width (in.) | 42.0 |
| unit height (in.) | 16.0 |
| unit depth (in.) | 21.0 |
| unit weight (lb.) | 108.75 |
