OLMO Sierra Single-Zone Series

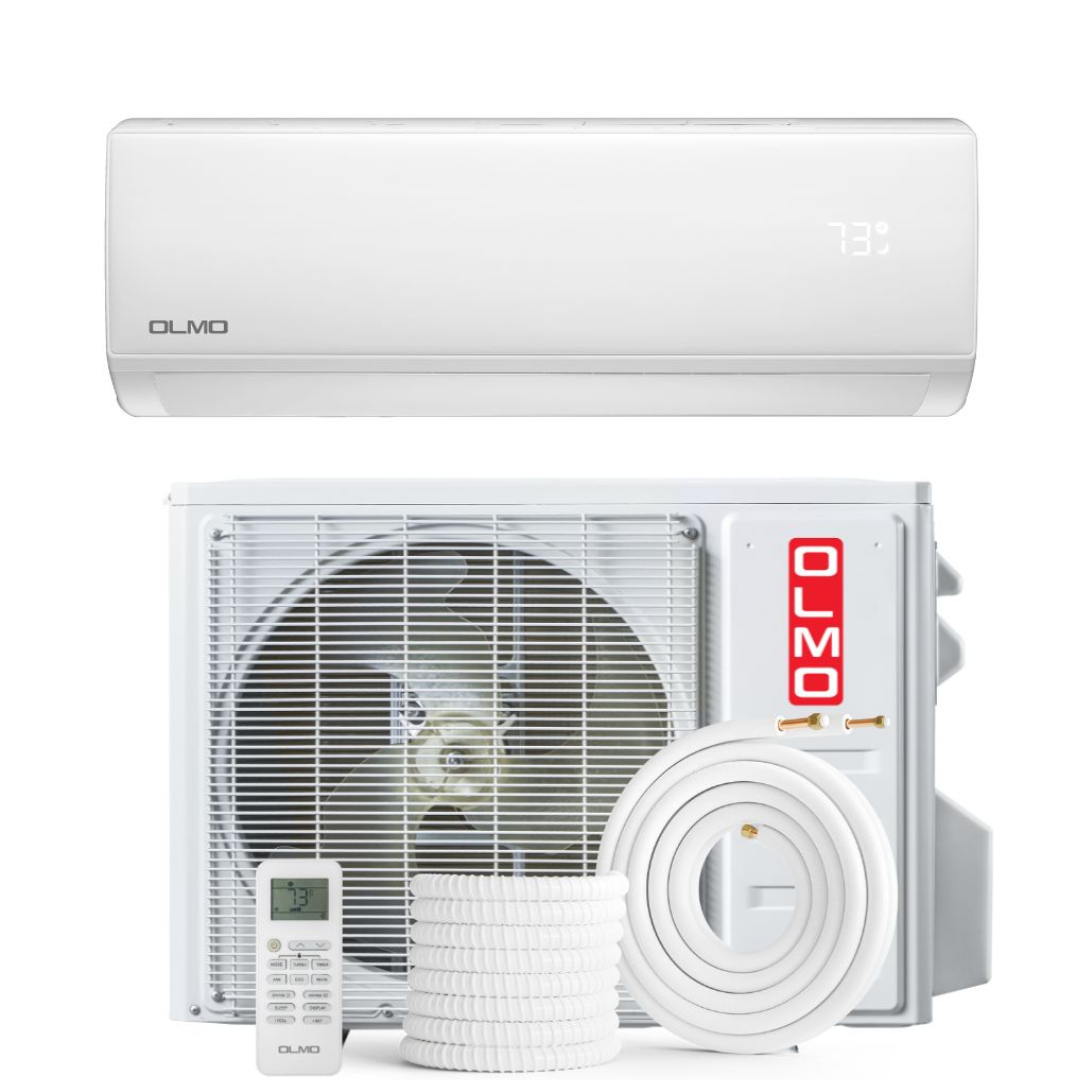

OLMO Sierra Series 36,000 BTU 230V Single Zone Wall Mount Air Conditioner and Heat Pump Mini Split with WI-FI and 16FT Installation Kit Included OS-36SRW-230VI + OS-SR36-230VO
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-893 FOR ANY QUESTIONS
Description
Description: Discover the efficiency and comfort of the OLMO Sierra Series 36,000 BTU/h 3 Ton Mini Split Air Conditioner and Heat Pump. This ductless wall-mounted system offers powerful cooling and heating with a 20 SEER2 rating, ensuring energy savings and year-round comfort. Perfect for both residential and commercial use, the Sierra Series blends seamlessly with any room decor.
Whether you're looking for a mini split air conditioner heat pump for your home or office, the Sierra Series provides an excellent solution. With its integrated WIFI capability, you can control your unit from anywhere using the Smart Connect App or the exclusive remote controller, which features Sleep Mode, Timer, Louver Auto Swing, Turbo & Eco Modes. The 208-230V power supply ensures reliable performance.
Key Features:
- High Efficiency: 20 SEER2 rating for optimal energy savings.
- Powerful Cooling and Heating: 36,000 BTU/h capacity to maintain comfortable temperatures all year.
- Smart Control: Manage your system from anywhere with the Smart Connect App or remote controller.
- Quiet Operation: Low indoor noise level for a peaceful environment.
- Versatile Use: Ideal for single-zone applications, suitable for any room in your home or office.
Technical Specifications
Indoor Model: OS-36SRW-230VI
| Specification | Details |
|---|---|
| System Type | Single-zone unit |
| SEER2 (up to) | 20 |
| Refrigerant Type | R32 |
| Refrigerant Piping Liquid/Gas Side (inch) | 3/8’’ / 5/8’’ |
| Packing Dimensions (W x D x H in inches) | 41.75x17.69x32.31 |
| EER2 (up to) | 9.4 |
| Controller | 52T REMOTE |
| BTU Rated (Cooling/Heating) | 36,000 |
| Unit Net/Gross Weight (lbs) | 40.8 |
| Unit Dimensions (W x H x D in inches) | 52.75x14.83x10.81 |
| Power Source | 208-230V, 1Ph, 60Hz |
| Indoor Noise Level (H/M/L) (dB) | 50/47/43/39 |
Outdoor Model: OS-SR36-230VO
| Specification | Details |
|---|---|
| SEER2 (up to) | 20 |
| Refrigerant Type | R32 |
| Refrigerant Piping Liquid/Gas Side (inch) | 3/8’’ / 5/8’’ |
| Packing Dimensions (W x D x H in inches) | 41.75x17.69x32.31 |
| Max. Pipe Length (ft) | 98.4 |
| HSPF2-5 | 8.2 |
| HSPF2-4 | 8.4 |
| EER2 (up to) | 9 |
| BTU Rated (Cooling/Heating) | 35,000 |
| Unit Net/Gross Weight (lbs) | 121.3 |
| Unit Dimensions (W x H x D in inches) | 35.43x13.38x29.5 |
| Refrigerant Precharge (ft) | 25 |
| Power Source | 208-230V, 1Ph, 60Hz |
| Outdoor Noise Level (dB) | 60 |
| Outdoor Air Flow (CFM) | 647 |
| Minimum Circuit Ampacity (A) | 26.8 |
| Max. Fuse (A) | 35 |
| Max. Height Difference (Indoor/Outdoor Unit) | 49.2 |
| Heating Capacity at 47°F (BTU) | 36,000 |
| COP | 3.01 |
| Ambient Temperature (Heating) | 5~75 |
| Ambient Temperature (Cooling) | 5~118 |
| Additional Refrigerant Charge (3/8 liquid line) | 0.32 lbs |
Warranty
Warranty: OLMO offers a 5-year limited warranty on the compressor and a 2-year warranty on parts if the product is registered within 60 days of installation and installed by a licensed HVAC professional.
Certifications![]()
Performance Data/Features
Upgrade your space with the OLMO Sierra Series mini split air conditioner and heat pump, and enjoy a comfortable, energy-efficient environment year-round. This mini split air conditioner heater is designed to meet all your cooling and heating needs with the convenience of smart controls and a sleek, modern design.
Manuals & Downloads
- Indoor Unit General Manufacturing Information (OS-36SRW / OS-R36SRW-230VI) — reference by document title
- Outdoor Unit General Manufacturing Information (OS-SR36 / OS-RSR36-230VO) — reference by document title
- Alpic Eco Leaflet — reference by document title
- Quick-Start Guide — reference by document title
- Installation Manual — reference by document title
- Rebates — reference by document title
