OLMO Smart PTAC

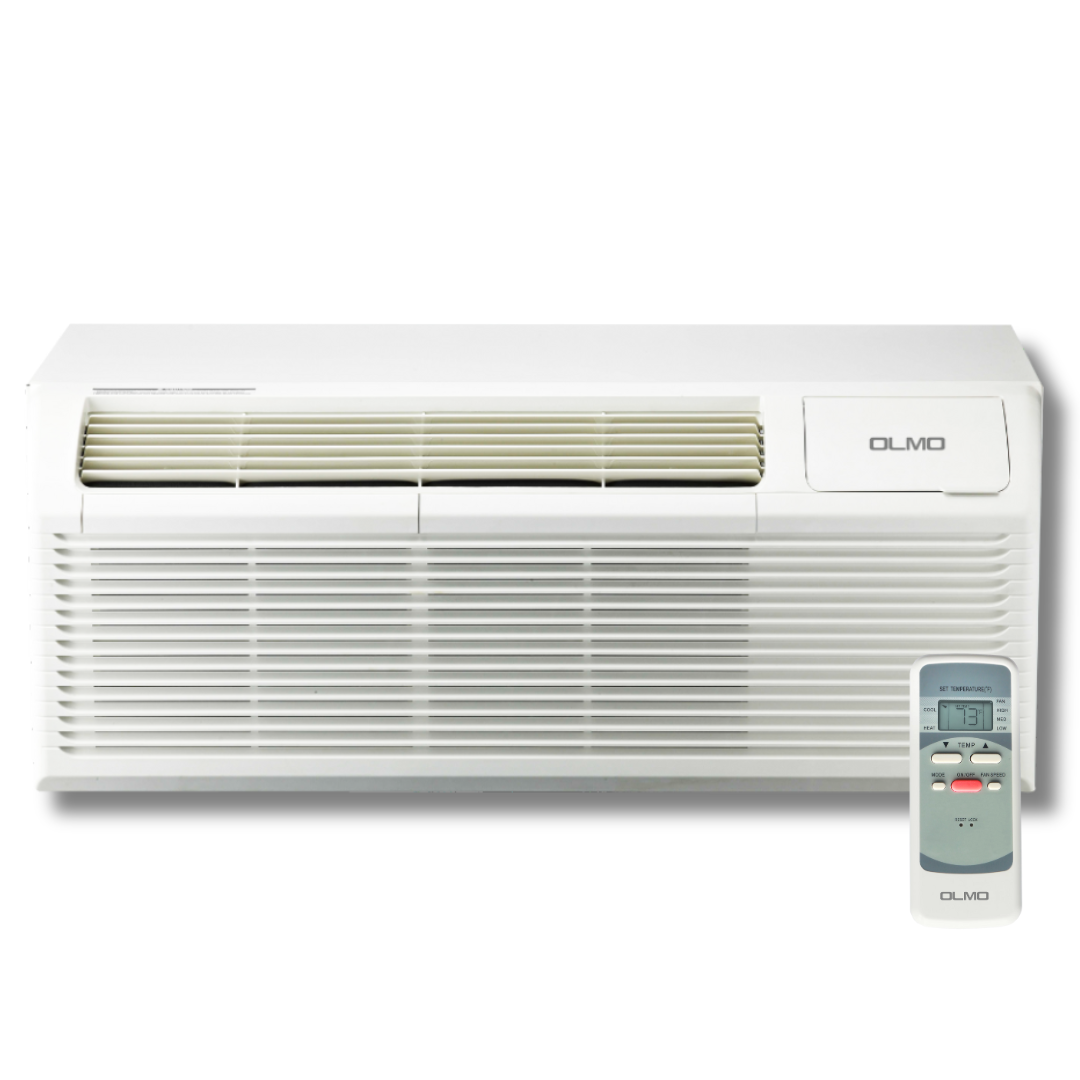

OLMO 9,000 BTU Smart PTAC Heating & Cooling AC Unit – 230V Through-Wall with Remote
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-893 FOR ANY QUESTIONS
Video
Summary
The OLMO 9,000 BTU Packaged Terminal Air Conditioner (PTAC) with Heat Pump is a powerful, energy-efficient heating and cooling solution designed for hotels, apartments, offices, and commercial spaces. Engineered for through-the-wall AC installation, this PTAC unit helps maintain consistent comfort year-round while maximizing energy savings.
Equipped with Smart Technology, this Wi-Fi-enabled PTAC system allows you to adjust settings remotely via your smartphone. The included remote control provides easy access to temperature, fan speed, and mode adjustments.
Key Features:
- 9,000 BTU cooling capacity – Ideal for rooms up to 400 sq. ft.
- Energy-efficient heat pump – Provides cost-effective heating and cooling
- Wi-Fi Smart Control – Adjust settings remotely via smartphone
- Quiet operation – Ideal for hotels, apartments, and offices
- Auto Restart & Sleep Mode – Helps ensure seamless operation and energy savings
- Easy installation – Includes a 230V power cord for quick setup
- Humidity control / Dehumidifier mode – Maintains a more comfortable indoor environment
Smart Connect technology and the user-friendly remote make it easy to adjust temperature, modes, and fan speeds from the room or remotely via smartphone. The unit also supports fresh air input and features such as Auto Restart, Auto Defrost, and an LED display.
For installation, the unit fits standard-sized wall sleeves (available separately) and is compatible with 24V thermostats for flexible control.
What's Included
- OLMO Smart PTAC Packaged Terminal Air Conditioner (9,000 BTU, 230V through-the-wall unit with Smart Connect capabilities; heating and cooling)
- Optional sleeve (MUST BE SELECTED ABOVE)
- Wireless remote control
- Installation Manual
- User’s Manual
- Manufacturer Warranty (1-year limited warranty)
Warranty and Performance Features
- Available in 9K BTU, 12K BTU, and 15K BTU capacities
- Remote control included
- Smart Connect built-in for smartphone control
- Auto Defrost and dual fan speed options for energy-efficient performance
- Fresh air input for enhanced air quality
- Compatible with 24V thermostat
- Auto restart function and LED display
Other Through The Wall Units
OLMO PTAC Units (Packaged Terminal Air Conditioner)
| Capacity | SKU |
| 9,000 BTU 230V Heating and Cooling PTAC | OS-MBW-09HS |
| 12,000 BTU 230V Heating and Cooling PTAC | OS-MBW-12HS |
| 15,000 BTU 230V Heating and Cooling PTAC | OS-MBW-15HS |
Cooper&Hunter PTAC (Packaged Terminal Air Conditioner)
| Capacity | SKU |
| 9,000 BTU 230V Heating and Cooling PTAC | CH-PTW-09HPGF |
| 12,000 BTU 230V Heating and Cooling PTAC | CH-PTW12HPGF |
| 15,000 BTU 230V Heating and Cooling PTAC | CH-PTW-HE15HP |
OLMO TTW (Through The Wall Air Conditioner)
| Capacity | SKU |
| 8,000 BTU 115V Cooling Only | OW-P08AC115WF |
| 8,000 BTU 115V Heating and Cooling | OW-P08HS115WF |
| 12,000 BTU 115V Cooling Only | OW-P12AC115WF |
| 12,000 BTU 230V Cooling Only | OW-P12AC230WF |
| 12,000 BTU 230V Heating and Cooling | OW-P12HS230WF |
| 14,000 BTU 230V Cooling Only | OW-P14AC230WF |
| 14,000 BTU 230V Heating and Cooling | OW-P14HS230WF |
Technical Information
Model: OS-MBW-09HS
| Specification | Details |
|---|---|
| Model | OS-MBW-09HS |
| Power Supply | 208-230V, 1Ph, 60Hz |
| Cooling Capacity (Btu/h) | 9,200 / 9,000 |
| EER2 (W/W) | 11.3 |
| Cooling Input (W) | 790 / 780 |
| Cooling Current (A) | 4.3 / 4.9 |
| Heating Capacity (Btu/h) | 10,900 / 8,900 |
| Heating Rated Input (kW) | 3.5 |
| Heating Rated Current (A) | 15.3 / 13.7 |
| Refrigerant Type | R32 |
| Refrigerant Amount (OZ) | 15.16 |
| Indoor Air Flow (Hi/Lo) (ft³/min) | 430.0 / 342.3 |
| Indoor Noise Level (Hi/Lo) (dB(A)) | 50 / 49.5 |
| Outdoor Air Flow (Hi/Lo) (ft³/min) | 467.7 / 394.1 / 333.5 |
| Outdoor Noise Level (dB(A)) | 63 |
| Design Pressure (Lo/Hi) (PSI) | 300 / 580 |
| Operating Temperature Range (Indoor) | 63°F - 90°F (cooling) / 32°F - 80°F (heating) |
| Operating Temperature Range (Outdoor) | 64°F - 109°F (cooling) / 41°F - 75°F (heating) |
| Unit Dimensions (WxDxH) (in) | 42 x 21 x 16 |
| Packing Dimensions (WxDxH) (in) | 44.5 x 25 x 19.3 |
| Net/Gross Weight (lbs) | 97.0 / 105.8 |
Certifications![]()
Manuals & Downloads
- OLMO PTAC Leaflet — reference by document title
- OLMO PTAC Submittal — reference by document title
- Installation Manual — reference by document title
- General Manufacturing Information (OS-MBW-09HS) — reference by document title
