OLMO TTW • Cooling Only • 12K • 230V

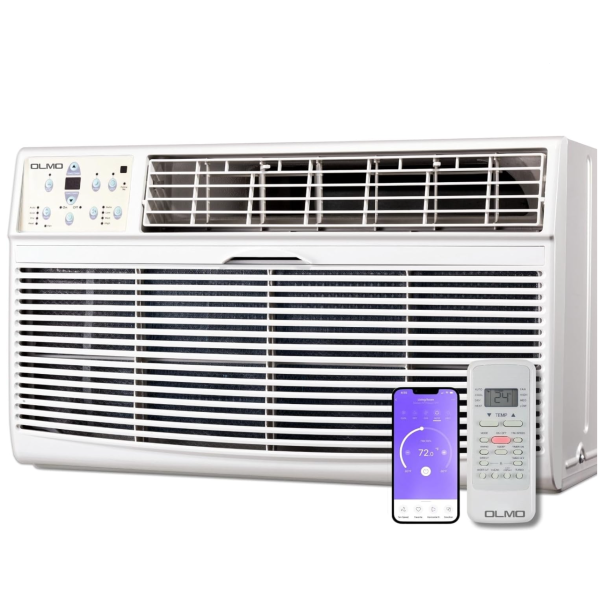

Olmo 12,000 BTU Smart Window / TTW Through-Wall AC – Cool Only 230V
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS CLICK TO CALL US 1-800-543-893 FOR ANY QUESTIONS
Video
Summary

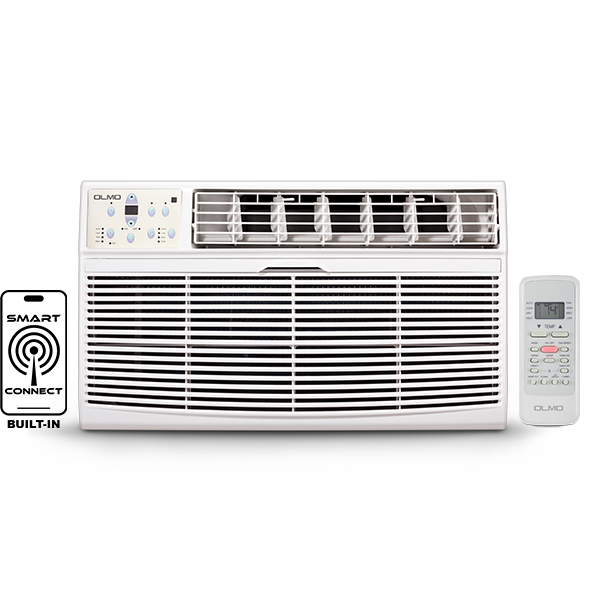

The OLMO Through-The-Wall (TTW) Air Conditioner is a versatile, high-performance cooling solution designed for homes, apartments, offices, and light commercial spaces. With a 12,000 BTU capacity, this energy-efficient wall-mounted AC unit delivers strong cooling, modern controls, and a clean built-in look.
This built-in unit includes a user-friendly remote control for temperature, fan speed, and mode settings. Smart Connect Wi-Fi compatibility lets you control the unit from your smartphone—ideal for managing your space while away.
Other advanced features include:
- Sleep Mode for quiet, energy-efficient nighttime operation
- 24-Hour Timer for customizable cooling schedules
- Auto Restart to restore settings after power interruptions
- Self-Evaporating System for simpler maintenance

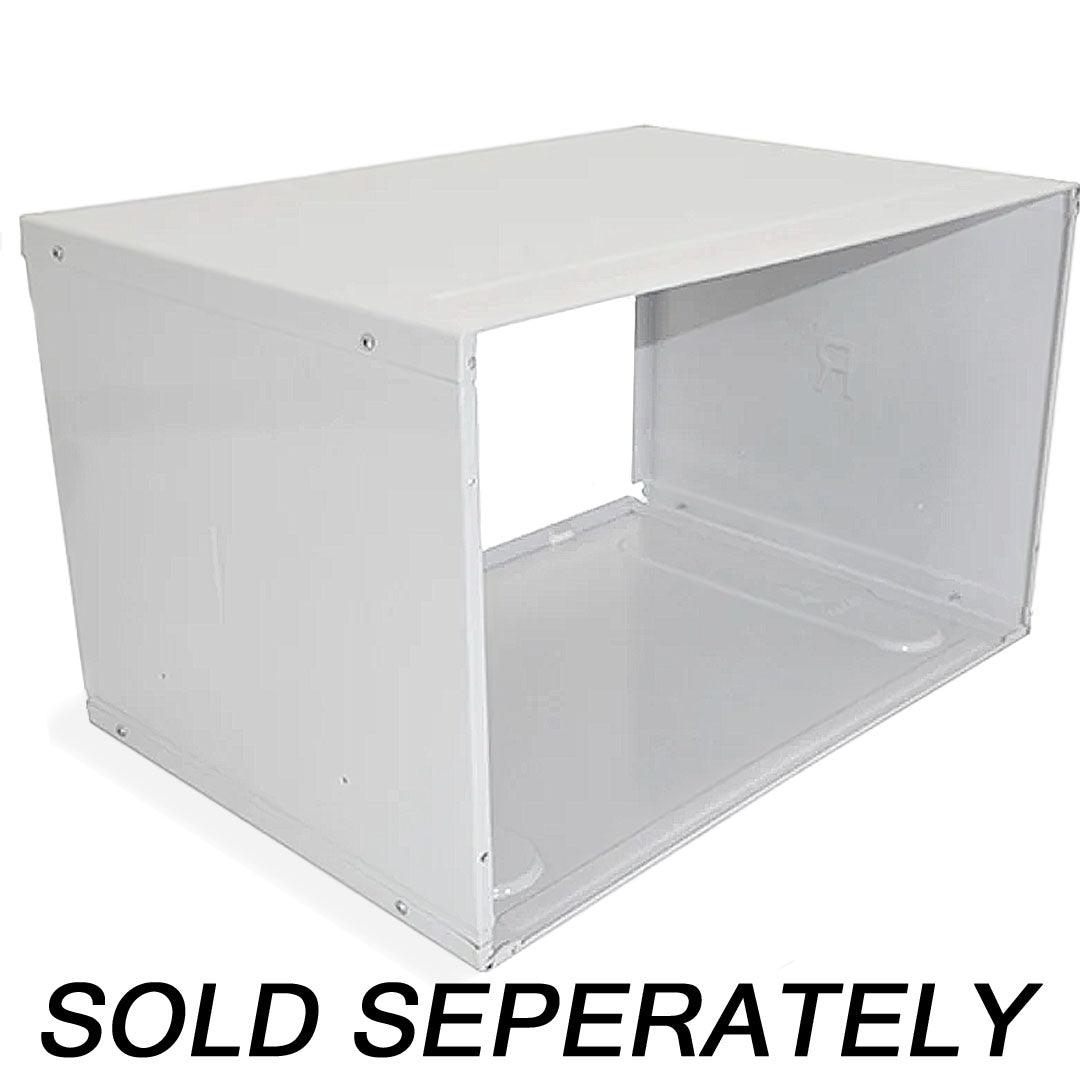

- Optional Wall Sleeve for a seamless installation
Whether you’re upgrading an existing setup, replacing an older unit, or specifying a reliable through-the-wall air conditioner for a property, the OW-A12AC230WF offers an excellent balance of performance, efficiency, and convenience.
What's Included
- OLMO TTW Air Conditioning Unit (12,000 BTU, 230V TTW unit with Smart Connect capabilities; Cooling Only)
- Optional sleeve (MUST BE SELECTED ABOVE)

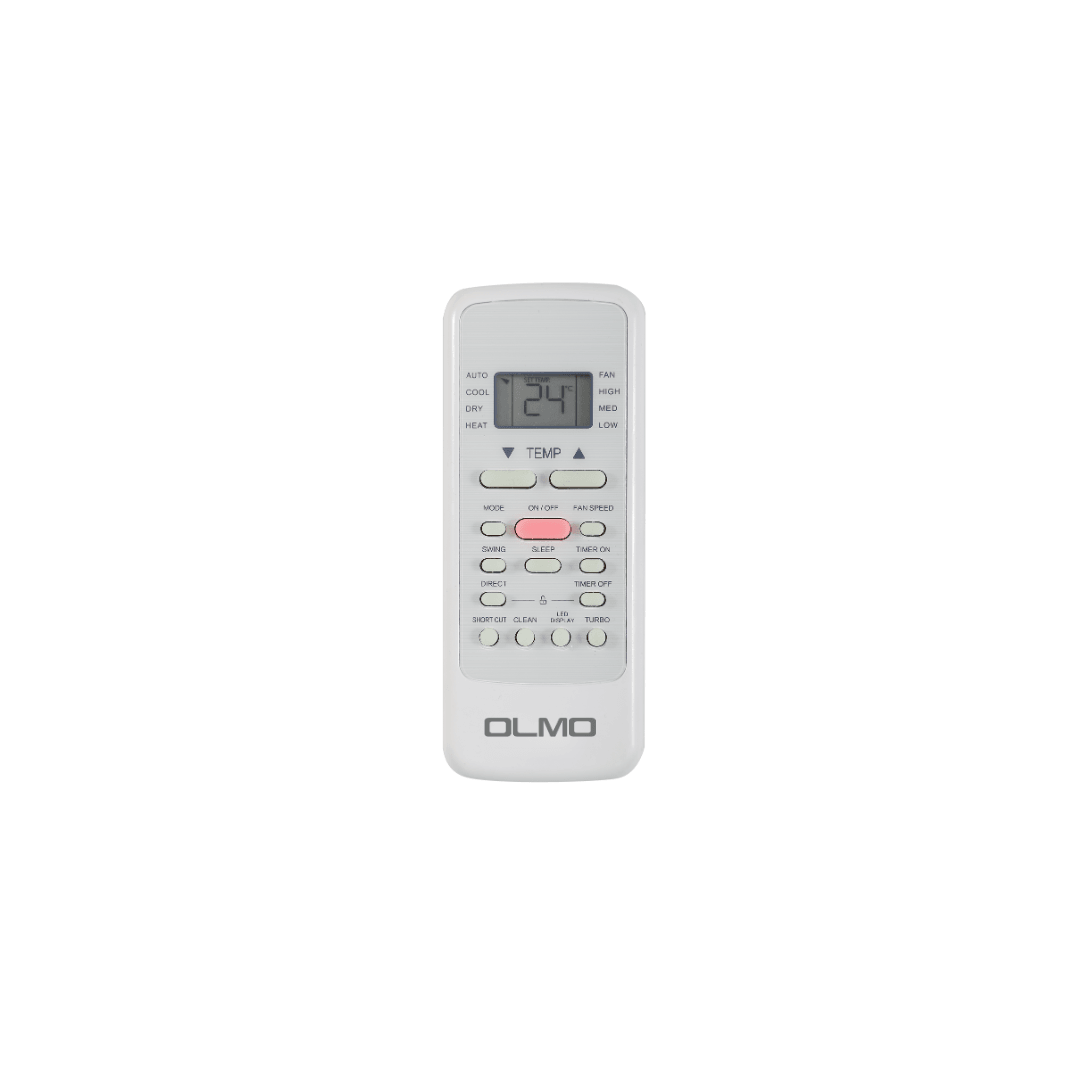

- Wireless remote control
- Installation Manual
- User’s Manual
- Manufacturer warranty
Other Through The Wall Units
OLMO PTAC Units (Packaged Terminal Air Conditioner)
| Capacity | SKU |
| 9,000 BTU 230V Heating and Cooling PTAC | OS-MBW-09HS |
| 12,000 BTU 230V Heating and Cooling PTAC | OS-MBW-12HS |
| 15,000 BTU 230V Heating and Cooling PTAC | OS-MBW-15HS |
Cooper&Hunter PTAC (Packaged Terminal Air Conditioner)
| Capacity | SKU |
| 9,000 BTU 230V Heating and Cooling PTAC | CH-PTW-09HPGF |
| 12,000 BTU 230V Heating and Cooling PTAC | CH-PTW12HPGF |
| 15,000 BTU 230V Heating and Cooling PTAC | CH-PTW-HE15HP |
OLMO TTW (Through The Wall Air Conditioner)
| Capacity | SKU |
| 8,000 BTU 115V Cooling Only | OW-P08AC115WF |
| 8,000 BTU 115V Heating and Cooling | OW-P08HS115WF |
| 12,000 BTU 115V Cooling Only | OW-P12AC115WF |
| 12,000 BTU 230V Cooling Only | OW-A12AC230WF |
| 12,000 BTU 230V Heating and Cooling | OW-P12HS230WF |
| 14,000 BTU 230V Cooling Only | OW-P14AC230WF |
| 14,000 BTU 230V Heating and Cooling | OW-P14HS230WF |
Technical Information
Model Number: OW-A12AC230WF
| Specification | Details |
|---|---|
| Waterproof Class | IP24 |
| SEER2 Rating | Up to 10.5 |
| Refrigerant Type | R32 |
| Refrigerant Oil / Oil Charge | VG68 / 10.1 |
| Plug Type | LCDI (6-15P) |
| Packing Dimensions (WxDxH) | 27.95 x 26.57 x 16.93 inches |
| Outdoor Fan Input (W) | 170 |
| Outdoor Fan Capacitor (uF) | 6 |
| Locked Rotor (LRA) (A) | 28.5 |
| EER Rating | Up to 3.08 |
| Compressor Type | Rotary |
| Compressor Input (W) | 850 / 875 |
| Compressor Capacity (W) | 3,590 / 3,620 |
| Capacitor | 35 |
| Unit Net/Gross Weight (lbs) | 74.52 / 86.86 |

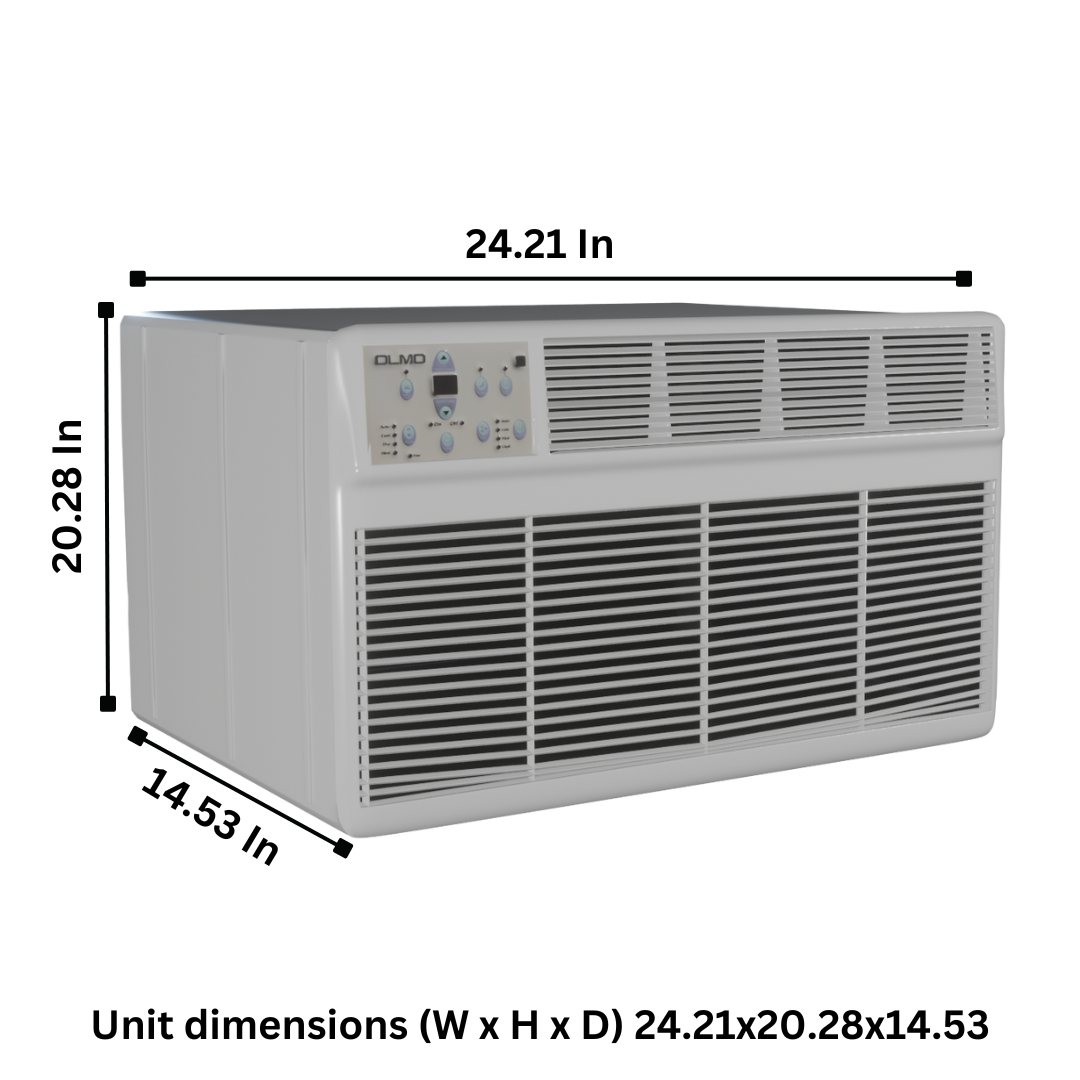

| Unit Dimensions (WxDxH) | 24.21 x 20.28 x 14.53 inches |
| Rated Current (Cooling) | 4.18 / 3.85 A |
| Power Source | 208-230V, 1Ph, 60Hz |
| Outdoor Noise Level (dB) | 68.3 / 66.7 / 63.9 |
| Outdoor Air Flow (CFM) | 275 / 259 / 237 |
| Design Pressure (PSI) | 300 / 520 |
| Cooling Capacity (Nominal) | 12,000 / 11,700 BTU |
| Cooling Power (kW) | 1,140 / 1,100 |
Note: “EER up to 3.08” looks like it may be COP-style formatting rather than traditional EER. If you intended a typical EER (often ~10+), update that line to match your spec sheet.
Certifications
Performance Data / Features
- Wi-Fi enabled (Smart Connect)
- Flexible applications: residential, hotels, and light commercial use
- Remote control included
- 1-year limited warranty
- Premium tech support
Manuals & Downloads
- OLMO TTW Leaflet — reference by document title
- User’s Manual — reference by document title
- Installation Manual — reference by document title
- General Manufacturing Information — reference by document title
