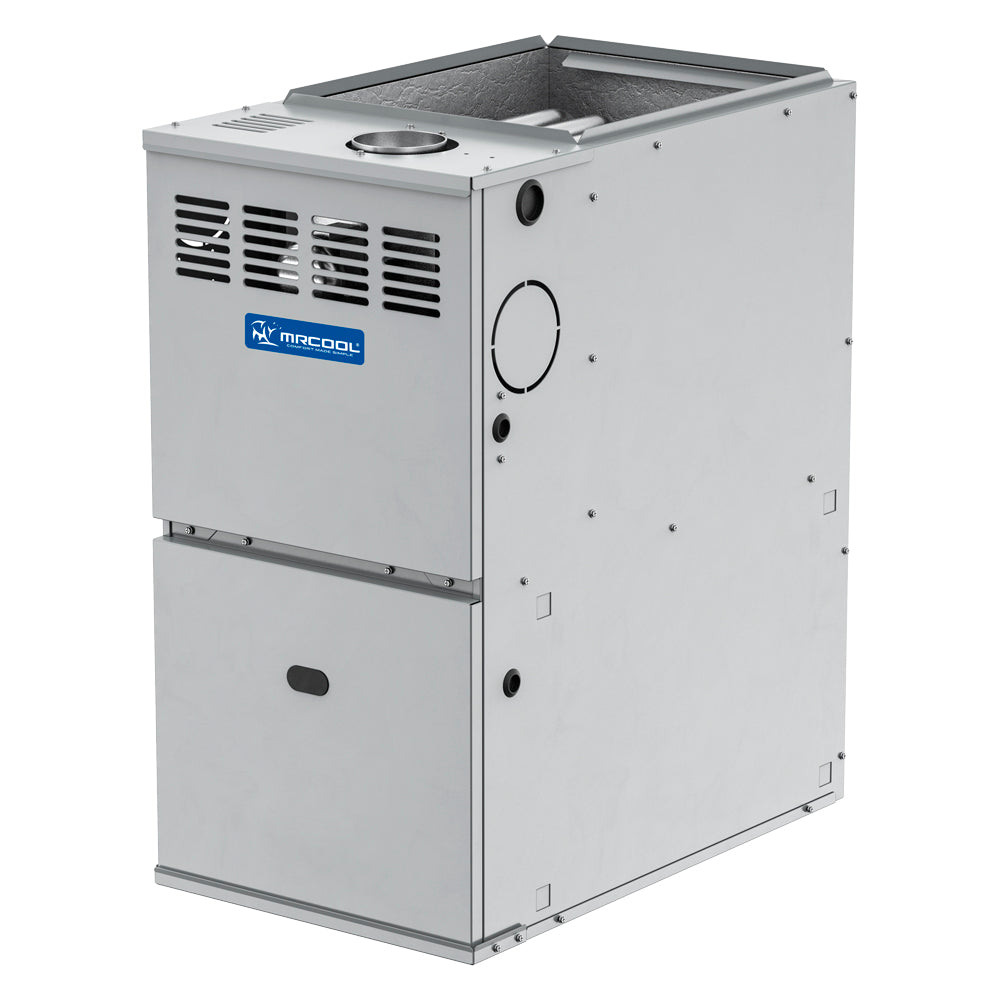

MRCOOL VersaPro 80% AFUE 60K BTU Gas Furnace| MGA80SE060B4C
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
MRCOOL® VersaPro® 60k BTU 80% AFUE Gas Furnace | MGA80SE060B4C
Summary
Meet the MRCOOL® VersaPro® 60K BTU 80% AFUE Gas Furnace, engineered to deliver reliable and efficient heating for your home all winter long. With an 80% AFUE rating, this furnace optimizes fuel usage by converting most of it into heat, ensuring cost-effective warmth while helping to lower energy bills. Designed for durability and performance, the VersaPro® is equipped with a high-efficiency ECM blower motor, which improves airflow, allows for customizable speed adjustments, and contributes to reduced energy consumption. Its compact build offers flexible installation options, making it an excellent choice for homes where space is limited.
Important
ETL listed and AHRI certified- meets highest industry standards.Register within 90 daysto activate 10-year parts warranty and heat exchanger warranty.Standard warrantyis 5 years parts and 20 years heat exchanger.Optional LP kit availablefor propane conversion.
Key Features
- 60,000 BTU input (48,000 BTU output)
- 80% AFUE efficiency rating
- Single-stage operation
- ECM blower motor (1/2 HP)
- Multi-position installation (upflow, downflow, or horizontal)
- Aluminized tubular steel heat exchanger
- Quiet operation
- Compact design fits tight spaces
- Left or right connections for gas/electric
- Removable bottom panel for side/bottom return
- ETL listed and AHRI certified
- Compatible with R-410A & R-454B refrigerants
- Optional LP conversion kit available
Complete Technical Specifications
| Brand | MRCOOL |
| Series | VersaPro R-454B 80% AFUE Gas Furnace |
| Model | MGA80SE060B4C |
| GTIN | 00840255588591 |
| UPC | 840255588591 |
| Unit Type | Gas Furnace |
| Configuration | Multi-Position |
| Certifications | ETL Listed, AHRI Certified, UL Listed |
| BTU Input | 60,000 |
| BTU Output | 48,000 |
| Efficiency Rating | 80% AFUE |
| Electrical | 115V 1 Phase 60 Hz |
| Electrical Details | 8A Min Circuit Ampacity, 15A Max Fuse Breaker |
| Operation | Single-stage |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/2 |
| Blower Motor RPM | 1050 |
| Blower Motor Speeds | 5 |
| CFM | 1300 |
| Filter Type | Replaceable |
| Filter Size | Side Return: 16x25x1, Bottom Return: varies (14x25, 16x25, 20x25, 24x25) |
| Number of Burners | 3 |
| Gas Connection Size | 3/4in |
| Ignition Type | Hot Surface |
| Net Dimensions (HxWxD) | 33.75" x 17.5" x 28.5" |
| Net Weight | 115 lbs |
| Shipping Dimensions | 41" x 20" x 31.02" |
| Shipping Weight | 141 lbs |
Performance Features
| Installation Options | Upflow, downflow or horizontal configurations |
| Heat Exchanger Construction | Aluminized tubular steel |
| Fuel Options | Natural gas (optional LP kit for propane) |
| Connection Options | Left or right connections for gas/electric |
| Return Air Options | Removable bottom panel for side or bottom return |
| Works With | R-410A & R-454B Refrigerants |
Warranty Information
- Registered Warranty(within 90 days): 10 years parts, heat exchanger
- Base Warranty: 5 years parts, 20 years heat exchanger
- Registration required for extended warranty coverage
Manuals & Certifications
- Product Brochure
- Installation Manual
- Spec Sheet
- Service Manual
- AHRI Certification
- Energy Guide Certification
Safety Information
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Advanced Technology
The MRCOOL VersaPro® 80% AFUE Gas Furnace features advanced ECM motor technology for efficient operation and energy savings. The ECM blower motor provides precise airflow control while operating quietly. The durable construction includes an aluminized tubular steel heat exchanger for efficiency and longevity. The compact design fits in tight spaces while maintaining high performance, making it ideal for residential installations where space is limited.
Installation Advantages
This efficient gas furnace offers exceptional installation flexibility with its multi-position design (upflow, downflow, or horizontal) and configurable connection options (left or right side for gas and electric). The removable bottom panel simplifies installation for either side or bottom return air applications. The unit's compact dimensions allow installation in spaces where traditional furnaces might not fit, while the comprehensive warranty coverage provides long-term peace of mind. Professional installation is recommended to ensure optimal performance and warranty compliance.
