MRCOOL — VersaPro® Central Ducted Heat Pump System
2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump System (R-454B) — MVP-30-HP-MUAH-230A00-O + MVP-30-HP-C-230A00-O
Overview
2.5 Ton • 30,000 BTU
17 SEER2
8.5 HSPF-4
R-454B
DC Inverter
Wired Thermostat + Remote
Up to 1,250 sq ft
10-Year Parts + Compressor
The 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump System pairs a 30K BTU variable-speed condenser with a matching central ducted air handler to deliver efficient, reliable comfort across seasons. With 17 SEER2 and 8.5 HSPF-4, DC inverter performance, and R-454B refrigerant, this system is built for energy savings, durability, and flexible installation.
- Variable-speed DC inverter: Smooth, quiet operation with efficient capacity control.
- Compact outdoor footprint: Side-discharge design helps fit tighter spaces.
- Service-friendly: Built-in self-diagnostics for faster troubleshooting.
- Smart convenience: Included MRCOOL® Smart thermostat and SmartHVAC app control.
- Flexible indoor install: Upflow, downflow, or horizontal configurations.
System Size
2.5 Ton
2.5 Ton
Cooling
30,000 BTU
30,000 BTU
Efficiency
17 SEER2
17 SEER2
Heating Efficiency
8.5 HSPF-4
8.5 HSPF-4
Note: Your title included “MVP-30-HP-C-230A00-O5”, but the technical table lists “MVP-30-HP-C-230A00-O”. This build uses the model number shown in the specs table.
What’s Included
- Indoor Unit: 30,000 BTU 230V Air Handler — MVP-30-HP-MUAH-230A00-O
- Outdoor Unit: 30,000 BTU 230V Condenser — MVP-30-HP-C-230A00-O

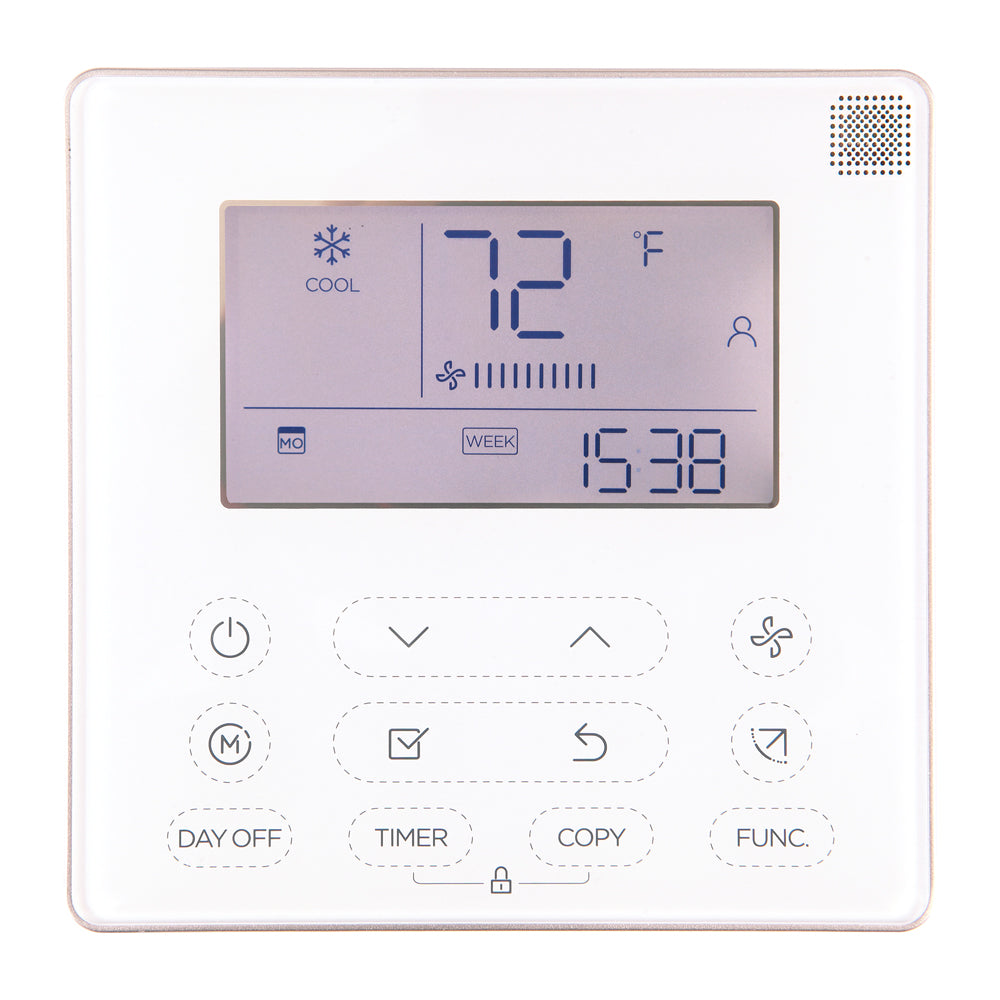

- Wired Thermostat
- Wireless Remote
- Installation Manual
- User’s Manual
- Manufacturer Warranty
- Accessories
Outdoor Specs
Model: MVP-30-HP-C-230A00-O (Condenser)
| Brand / Series | MRCOOL • VersaPro® Central Ducted Condenser |
| Type | Split System Heat Pump |
| Tonnage | 2.5 |
| Cooling Capacity | 30,000 BTU |
| Heating Capacity | 31,000 BTU |
| SEER2 / EER2 | 17 / 10.7 |
| HSPF-4 / HSPF-5 | 8.5 / 6.6 |
| Voltage / Phase / Cycle | 208–230V • 1 • 60 Hz |
| MCA / Max Breaker | 22.5A / 25A |
| Refrigerant / Charge | R-454B / 91.71 oz |
| Sound Rating | 60 dBA |
| Line Set | Liquid 3/8" • Suction 3/4" |
| WiFi / App | Yes / Yes |
| AHRI / ETL / Energy Star | Yes / Yes / No |
| Dimensions (W×H×D) | 37.24" × 31.89" × 16.14" |
| Net / Gross Weight | 141.76 lb / 152.34 lb |
GTIN: 00840255582704 • UPC: 840255582704
Indoor Specs

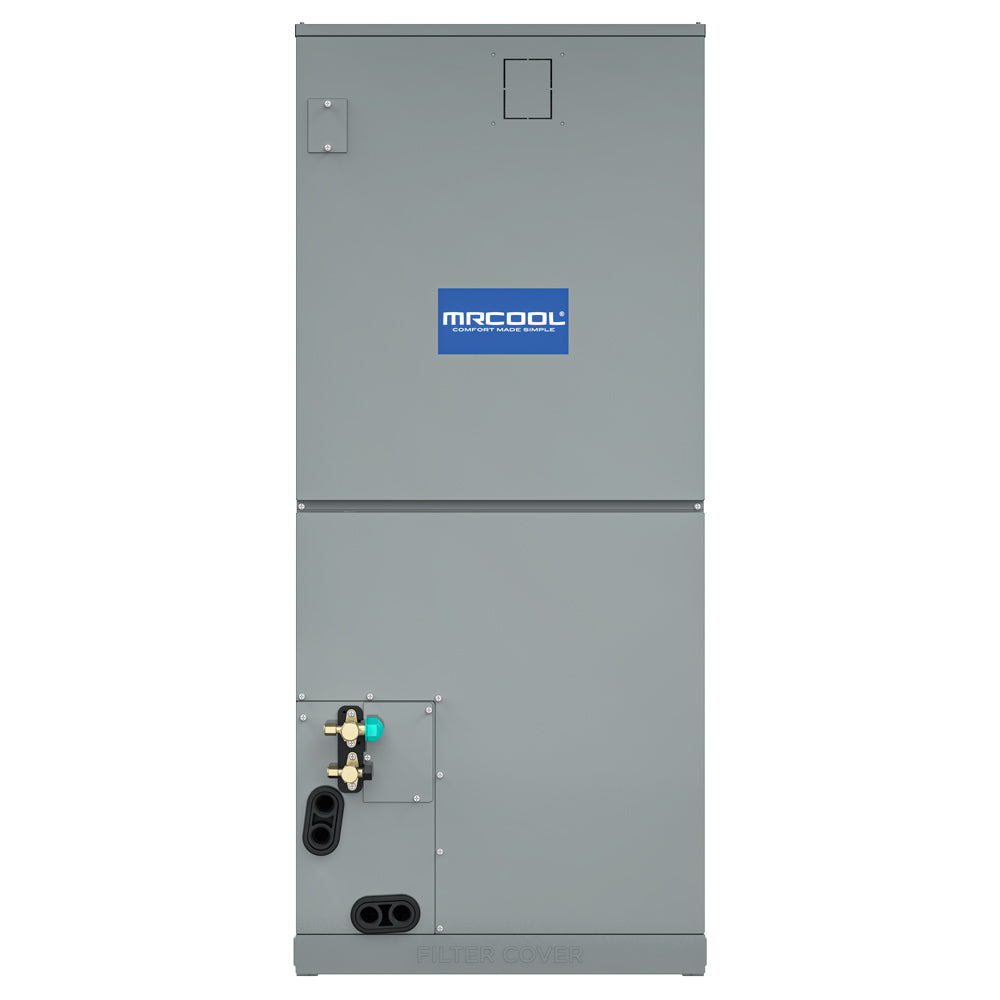

Model: MVP-30-HP-MUAH-230A00-O (Air Handler)
| Brand / Series | MRCOOL • VersaPro® Central Ducted Air Handler |
| Type | Split System Heat Pump |
| Tonnage | 2.5 |
| Cooling / Heating Capacity | 30,000 BTU / 31,000 BTU |
| Recommended Coverage | Up to 1,250 sq. ft. |
| CFM (by speed) | 988.85 / 894.67 / 806.38 / 712.21 |
| Voltage / Phase / Cycle | 115 / 208–230V • 1 • 60 Hz |
| MCA / Max Breaker | 8.0A / 6.0A • 15A max |
| Sound (Low / High) | 29 dBA / 46 dBA |
| Speeds | 3 |
| Max Line Set Length | 164 ft |
| Line Set | Liquid 3/8" • Suction 3/4" |
| Filter | Replaceable • 19×20×1 |
| Aux Heat | Not included • Optional heat kits: 5kW / 8kW / 10kW / 15kW |
| Adjustable Thermostat | Yes |
| WiFi / App | Yes / Yes |
| AHRI / ETL / Energy Star | Yes / Yes / No |
| Dimensions (W×H×D) | 21.02" × 49.02" × 21.02" |
| Net / Gross Weight | 128.97 lb / 153.44 lb |
GTIN: 00840255586467 • UPC: 840255586467
Documents & Downloads
Warranty inquiries are handled through MRCOOL: mrcool.com/contact
Important
- Central ducted system: Requires ductwork and proper HVAC sizing.
- Electrical & permits: Follow local codes and the manufacturer installation manual.
- Aux heat: Optional heat kit available if you need added electric heat.
FAQs
What size area can this system handle?
The air handler is listed for spaces up to approximately 1,250 sq. ft. (actual sizing depends on load calculations, insulation, and climate).
Does it include smart controls?
Yes. A MRCOOL® Smart thermostat is included, and the system supports SmartHVAC app control (as provided).
What electrical service is required?
Outdoor unit: 208–230V, 1-phase, 60 Hz with 22.5A MCA and 25A max breaker. Air handler lists 115/208–230V with 15A max breaker (confirm exact wiring per the install manual).
What warranty is included?
10-year compressor warranty and 10-year parts warranty.
Certifications
