MRCOOL — VersaPro® R-454B Package Heat Pump

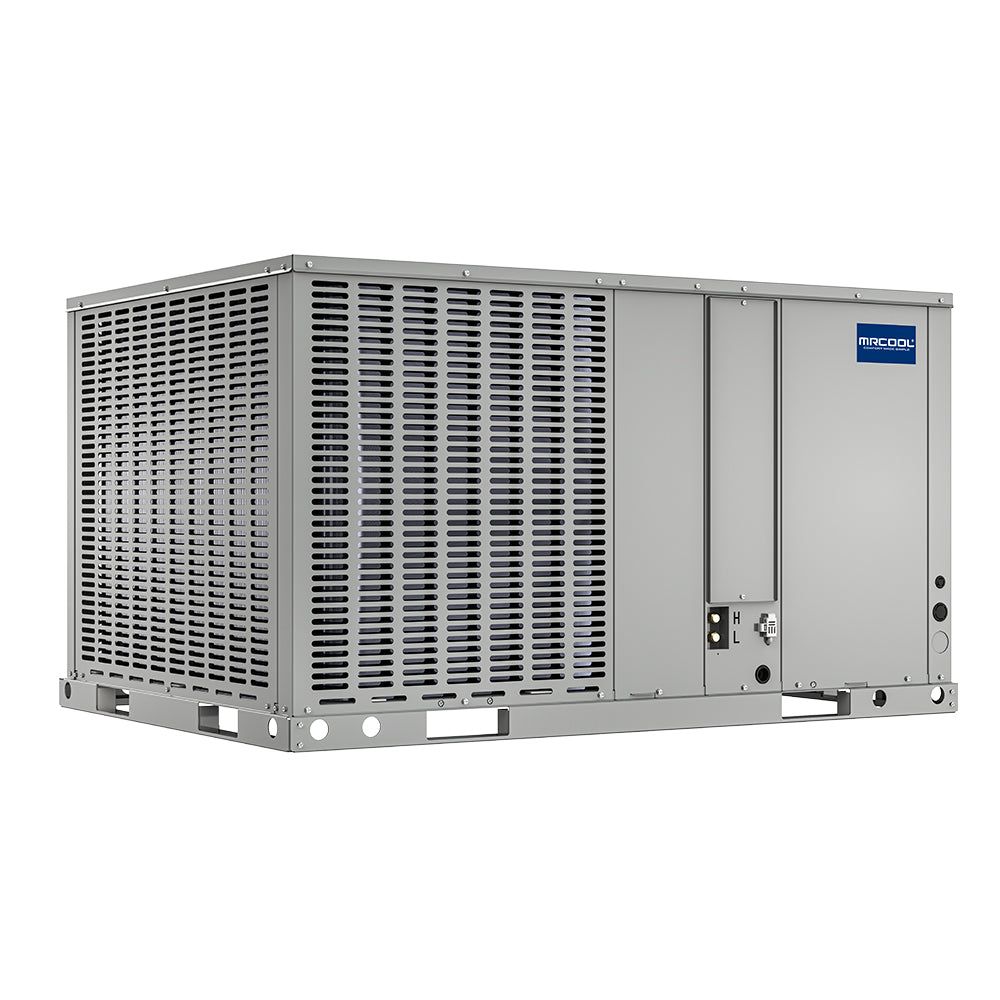

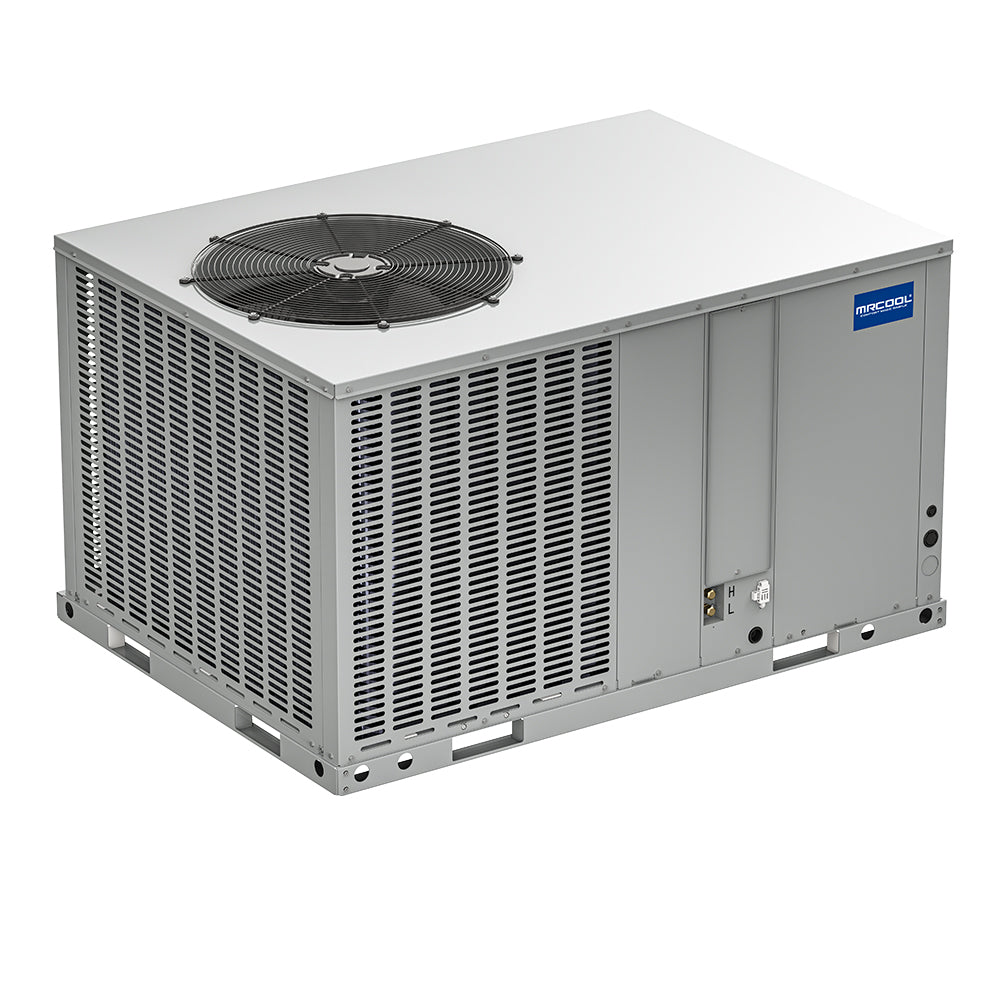

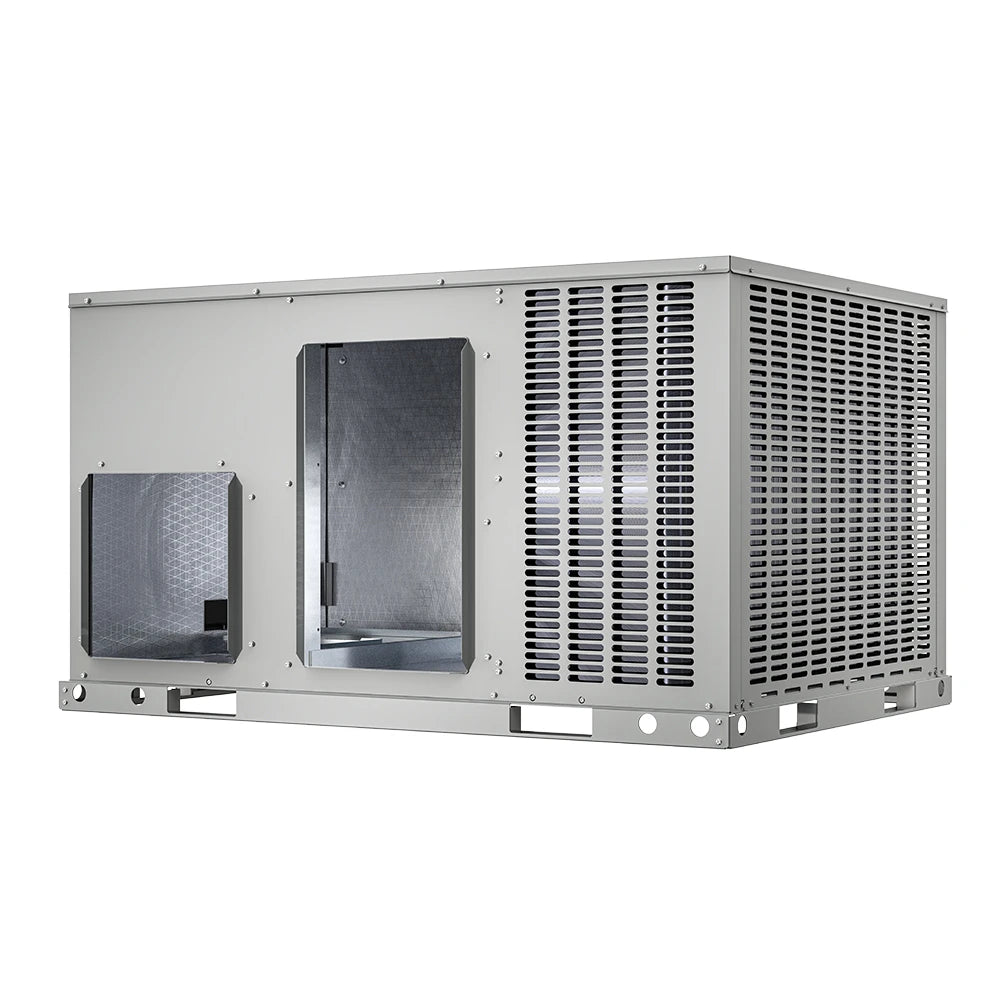

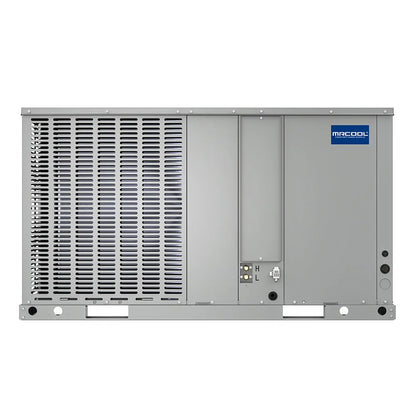

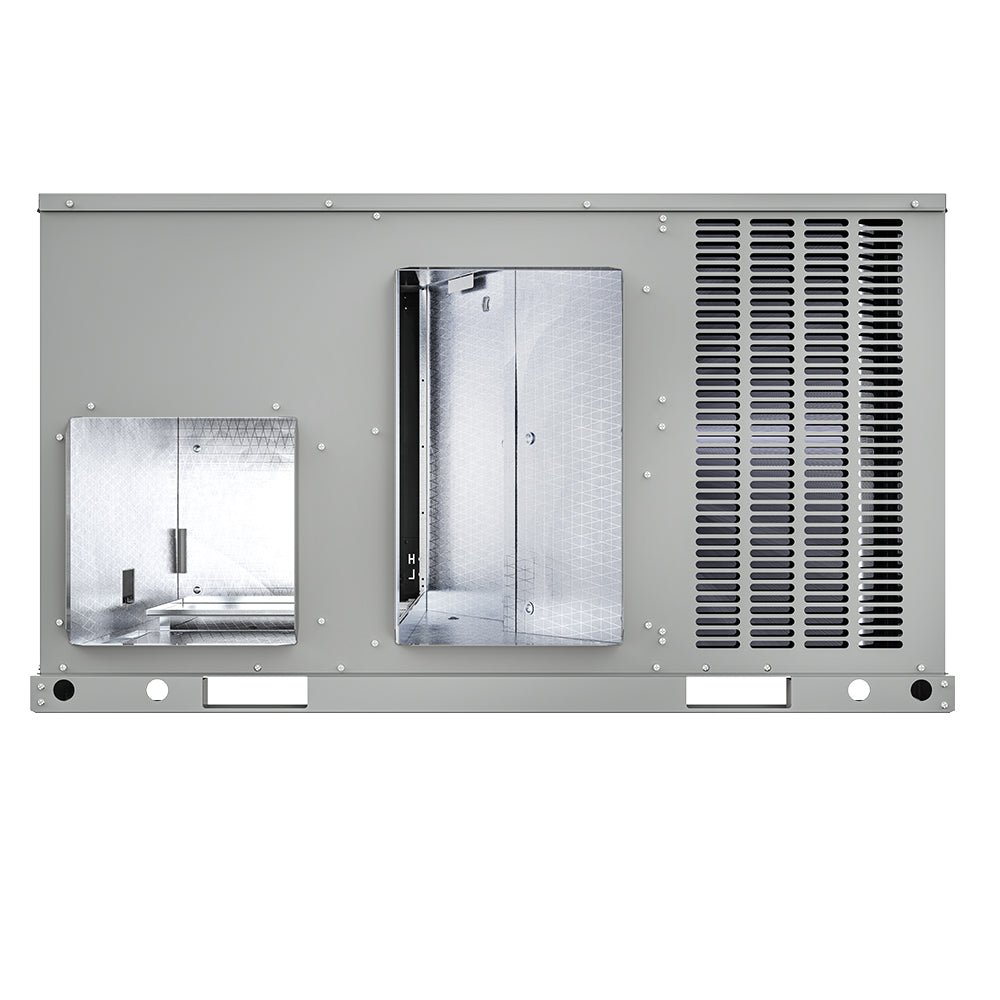

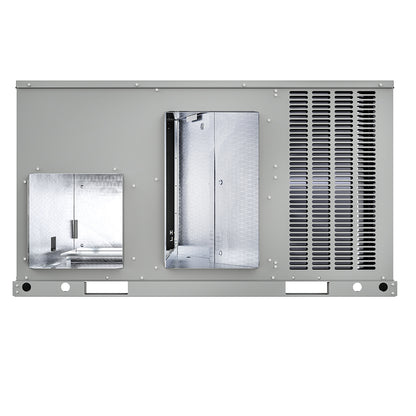

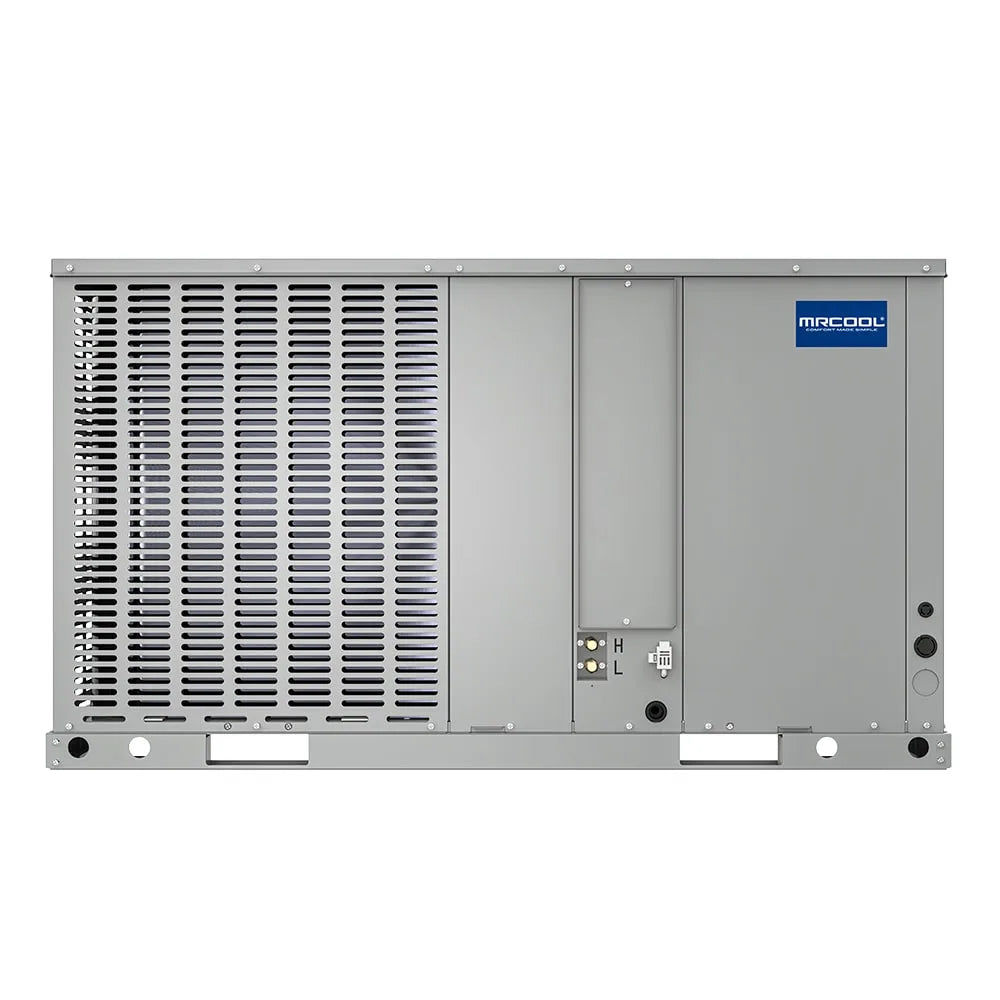

MRCOOL VersaPro® 2 Ton Horizontal Packaged Heat Pump (R-454B) — MPH241HO13C
Overview
2 Ton
Horizontal Discharge
13.4 SEER2
11 EER2
HSPF2-4 6.7
R-454B Refrigerant
24V Thermostat
AHRI Certified
The MRCOOL® VersaPro® MPH241HO13C is a compact packaged heat pump designed for dependable cooling and heating in a space-saving horizontal configuration. It’s rated at 13.4 SEER2 and uses R-454B refrigerant. A durable power-painted galvanized steel cabinet supports long-term outdoor use, while aluminum tubing and fin coils help promote efficient heat transfer and corrosion resistance. Built-in safeguards help protect against pressure extremes and coil temperature issues.
Highlights
- Efficient packaged heat pump: 13.4 SEER2 / 11 EER2.
- Heating performance: 22,400 BTU heating capacity.
- Cooling performance: 22,800 BTU cooling capacity.
- Refrigerant: R-454B (lower GWP than older refrigerants).
- Quiet horizontal discharge design suited for space- and sound-sensitive installs.
- Aux heat ready: optional heat strips available (5 kW / 7.5 kW / 10 kW).
- Controls: standard 24V thermostat.
What’s Included
- Packaged heat pump unit: MPH241HO13C
Performance & Electrical
| Capacity | 2 Ton |
| Cooling Capacity | 22,800 BTU |
| Heating Capacity | 22,400 BTU |
| Efficiency | 13.4 SEER2 • 11 EER2 • HSPF2-4: 6.7 |
| Airflow | 840 CFM |
| Power | 208/230V • 1 Phase • 60 Hz |
| Max Fuse / Breaker | 25A |
| Minimum Circuit Ampacity | 17.9A |
| Refrigerant | R-454B • 62 oz |
| Sound Level | 80 dBA |
| Min Ambient Cooling | 32°F |
| Min Ambient Heating | -0.4°F |
Connections & Components
| Control Type | 24V Thermostat |
| Drain Connection | 3/4" |
| Compressor | Rotary (non-inverter) |
| Condenser Fan | ECM • 1/4 HP |
| Blower Motor | PSC • 1/4 HP • 3 Speeds |
| Metering Device | Piston |
| Auxiliary Heat | Not included • Optional: 5 kW / 7.5 kW / 10 kW |
Dimensions & Weight
| Net | 37.75" W × 52" D × 24.81" H • 326 lb |
| Gross | 38" W × 52.76" D × 25.81" H • 340 lb |
Documents & Downloads
Important
- Install type: Horizontal packaged heat pump configuration.
- Aux heat: Optional heat strip kits are available (5 kW / 7.5 kW / 10 kW); not included with the unit.
- Warranty: Base coverage listed as 5-year parts / 5-year compressor. Registered coverage listed as 10-year parts / 10-year compressor.
- Electrical: Confirm breaker sizing, wire gauge, and disconnect requirements per local code and the install manual.
FAQs
What efficiency ratings does this unit have?
13.4 SEER2, 11 EER2, and HSPF2-4 6.7.
What size space is this unit intended to serve?
It’s a 2-ton packaged heat pump. Proper sizing depends on insulation, windows, climate, and duct design—contact us for sizing help.
Does it support auxiliary electric heat strips?
Yes. Auxiliary heat is available in 5 kW / 7.5 kW / 10 kW sizes (not included).
What thermostat/control does it use?
A standard 24V thermostat control setup.
What are the electrical requirements?
Listed as 208/230V, 1-phase, with 25A max fuse/breaker and 17.9A MCA. Always verify requirements in the installation manual and local electrical code.
