MRCOOL — VersaPro 96% Gas Furnace

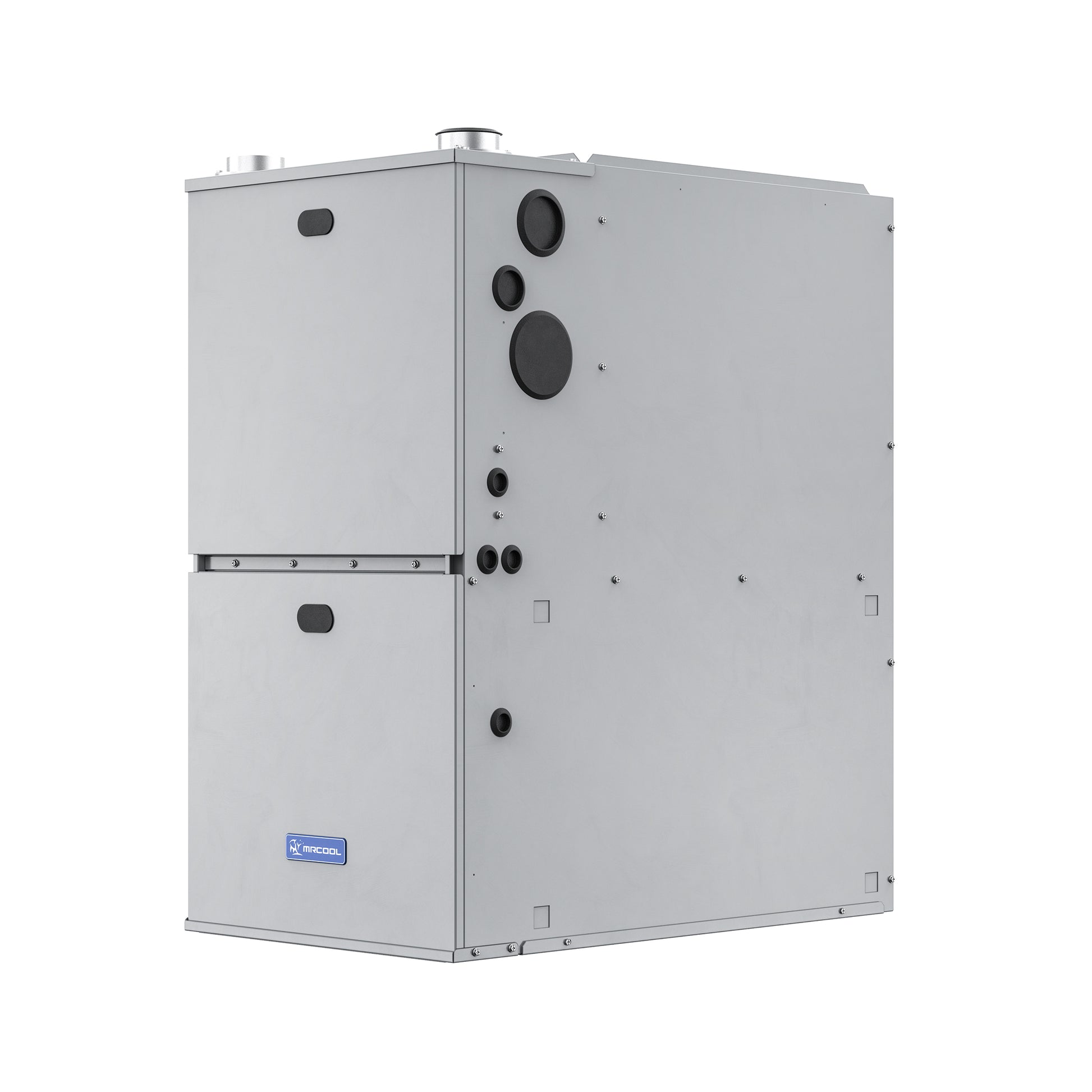

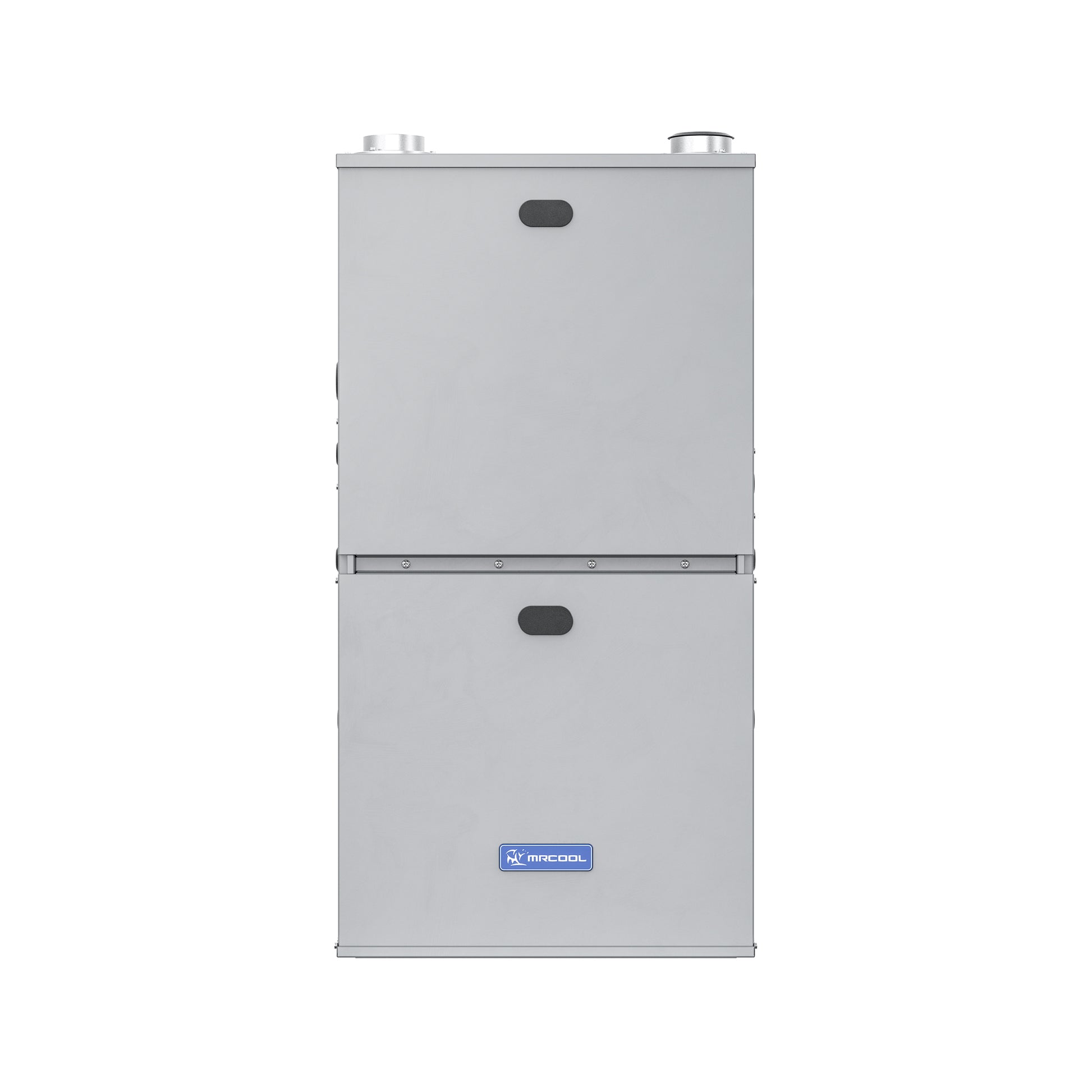

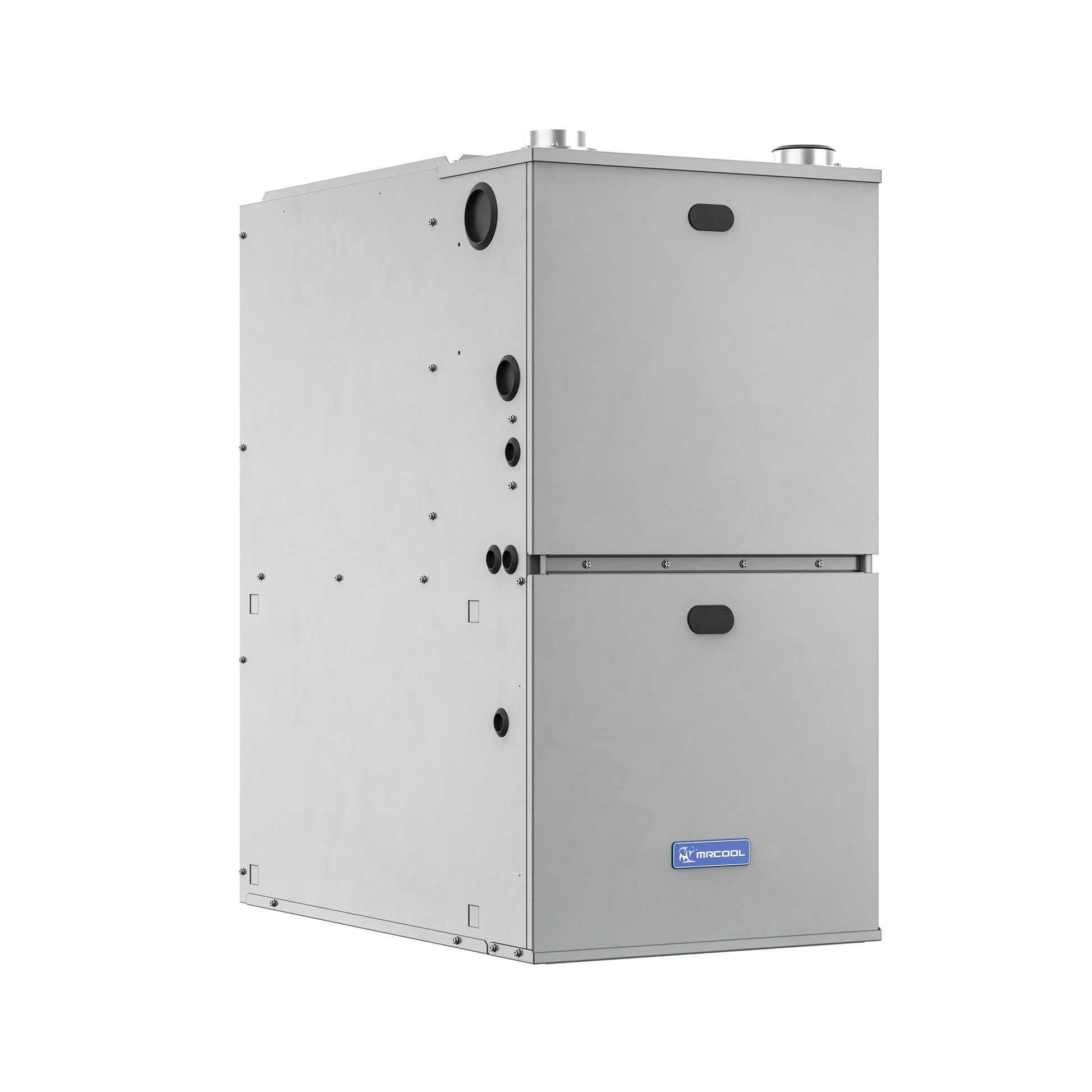

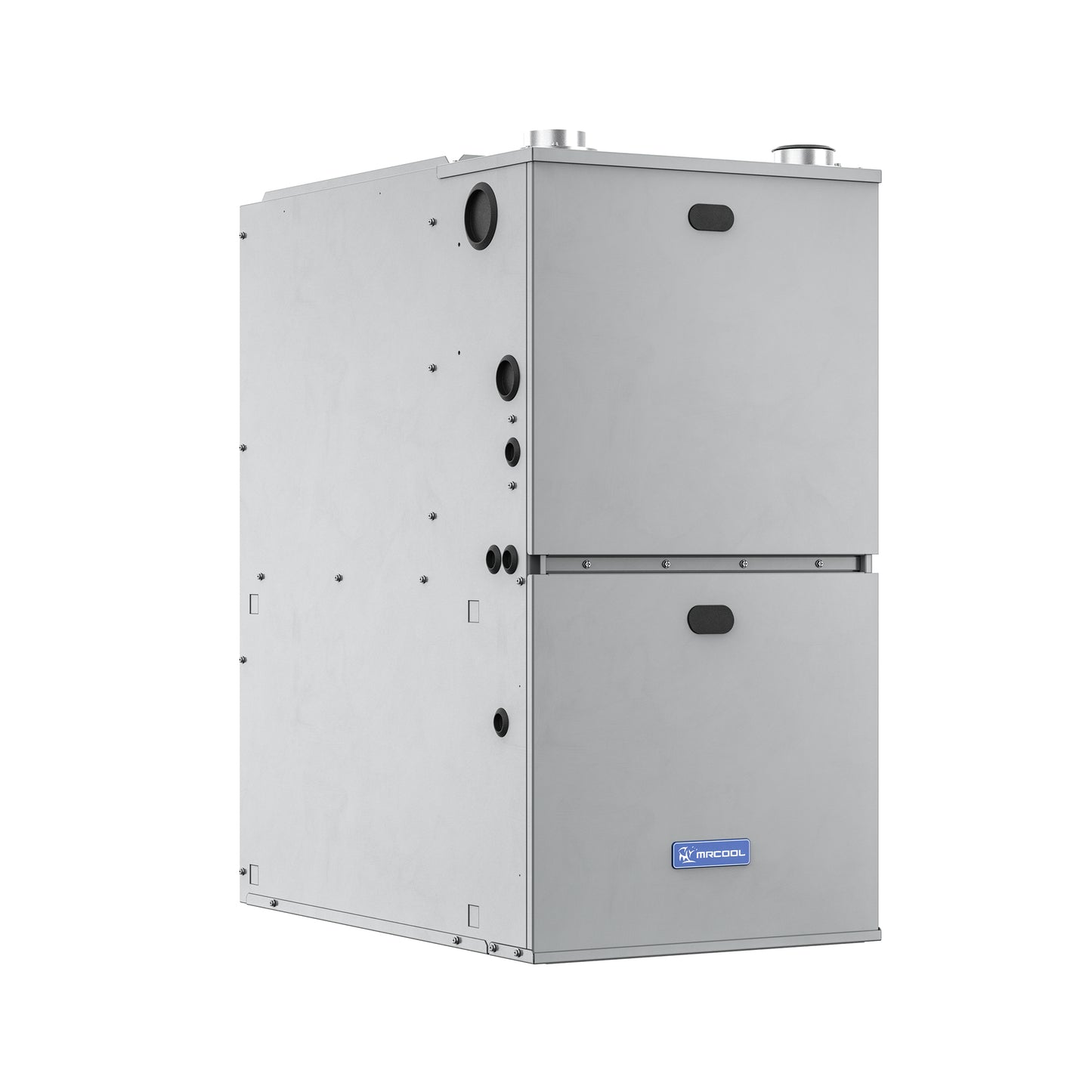

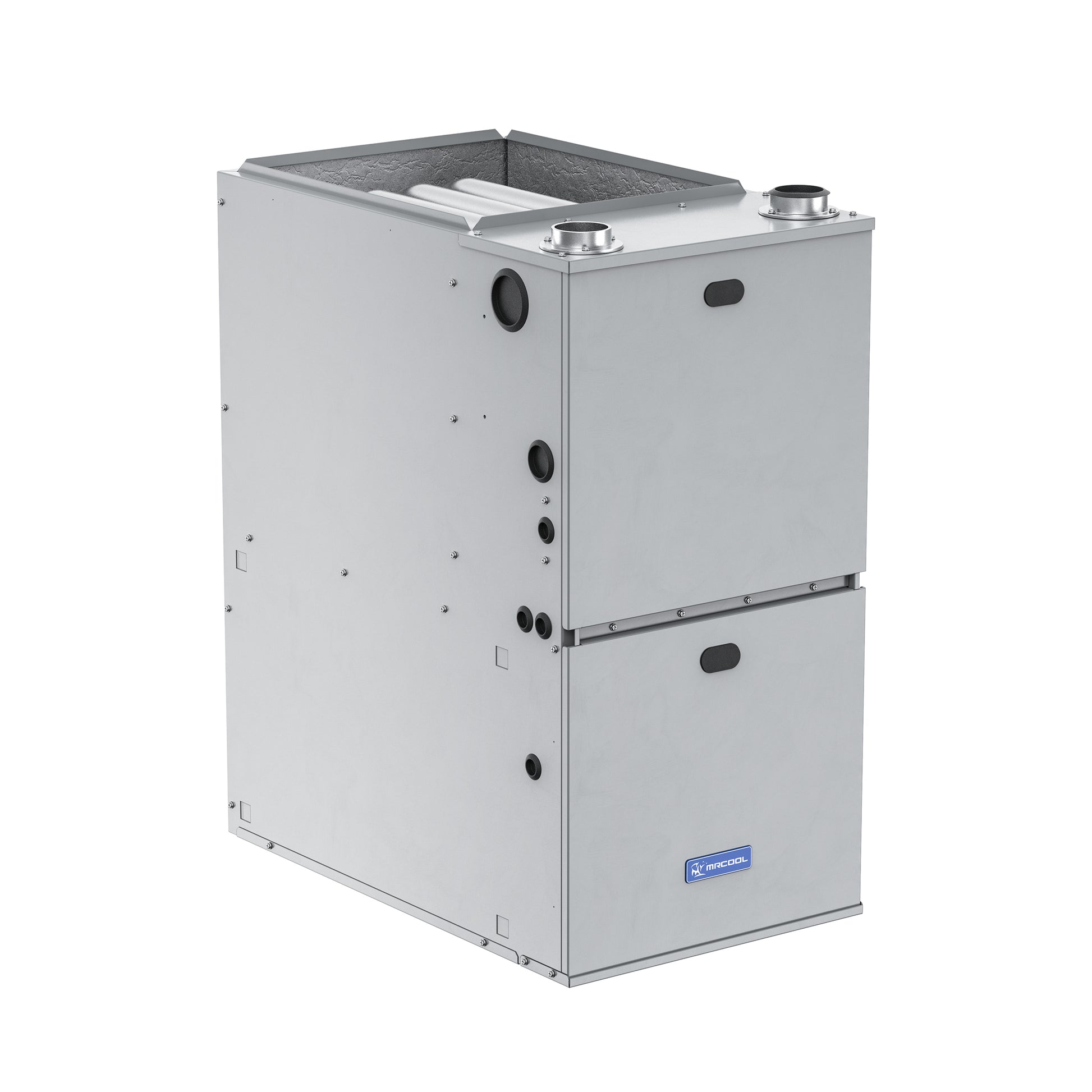

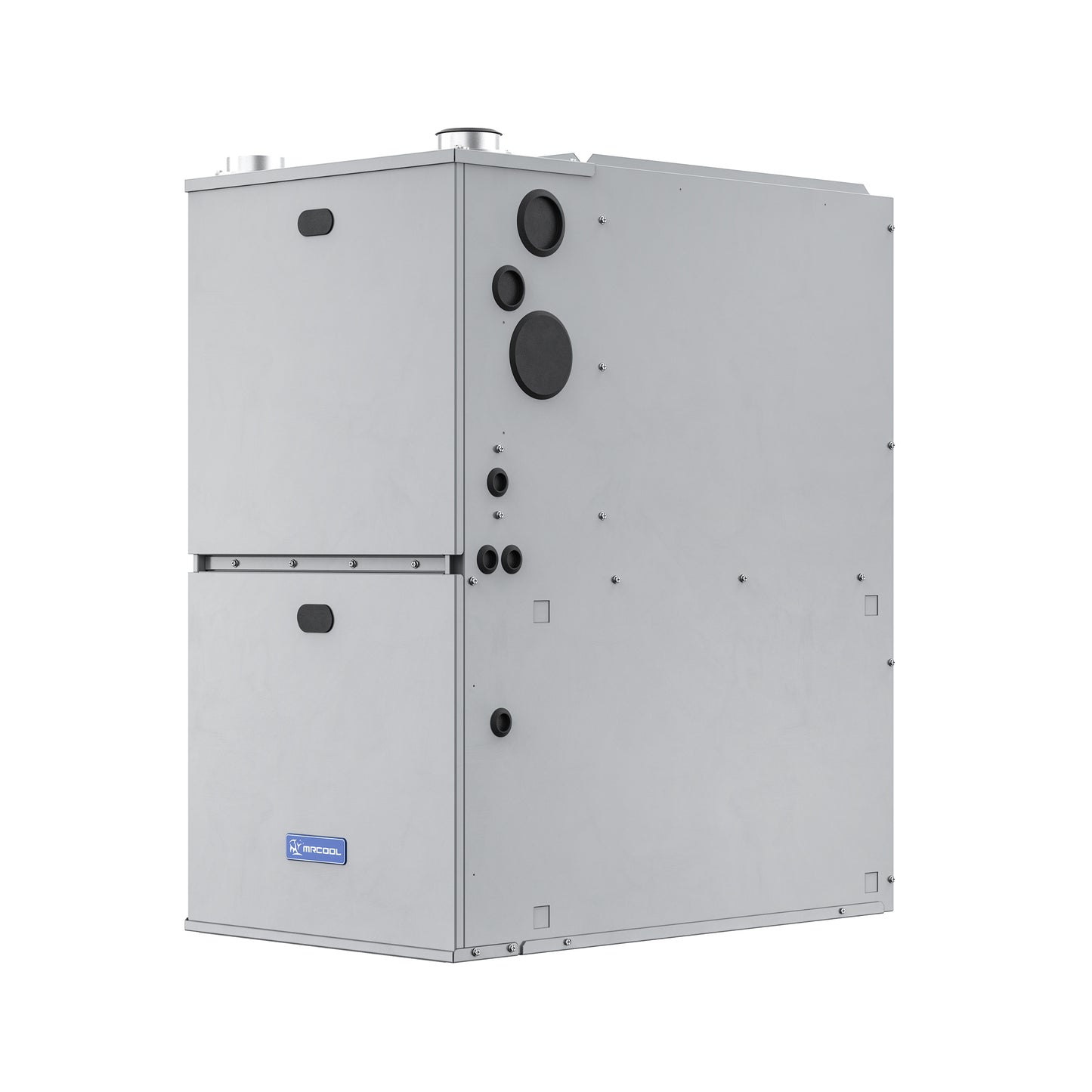

MRCOOL® VersaPro® 120k BTU 96% AFUE Gas Furnace | MGM96EE120D5NB
Summary
When faced with harsh winter conditions, theMRCOOL® VersaPro® 120k BTU 96% AFUE Gas Furnaceis designed to deliver consistent, high-performance heating with strong energy efficiency. It uses atwo-stagedesign with aconsistent-torque DC motorto help balance comfort, efficiency, and quiet operation.
Built for durability, it features analuminized steel tubular primary heat exchangerpaired with astainless steel secondary heat exchanger, supporting reliable operation in demanding heating applications.
Highlights
120,000 BTU Input
115,000 BTU Output
96% AFUE
Two-Stage Heat
ECM Variable-Speed
Multi-Position Install
Model
MGM96EE120D5NB
MGM96EE120D5NB
Power
115V / 1 Ph / 60 Hz
115V / 1 Ph / 60 Hz
Blower
1 HP ECM
1 HP ECM
Efficiency
96% AFUE
96% AFUE
- High heating capacity:120,000 BTU input (115,000 BTU output).
- Premium efficiency:96% AFUE rating for reduced fuel usage.
- Advanced operation:Two-stage heating with ECM variable-speed blower.
- Durable heat exchangers:Aluminized steel primary + stainless steel secondary.
- Flexible installation:Multi-position design with removable bottom panel for return-air options.
Technical Specifications
| Brand | MRCOOL |
| Series | VersaPro 96% Gas Furnace |
| Model Number | MGM96EE120D5NB |
| Product Type | Gas Furnace |
| Heating Capacity | 120,000 BTU Input / 115,000 BTU Output |
| Efficiency Rating | 96% AFUE |
| Electrical Requirements | 115V, 1 Phase, 60 Hz |
| Blower Motor | 1 HP ECM (Variable Speed) |
| Heat Exchanger | Aluminized steel tubular primary with stainless steel secondary |
| Cabinet Dimensions (HxWxD) | 33.74" x 24.49" x 28.74" |
| Shipping Dimensions | 40.35" x 27.05" x 31.02" |
| Weight (Net / Shipping) | 169 lbs / 210 lbs |
| Electrical Ratings | 10.5A Min Circuit Ampacity 20A Max Fuse Breaker |
| Certifications | AHRI Certified, ETL Listed (Intertek Cert: 3124627) |
Performance Features
| Two-Stage Operation | Provides more precise temperature control and supports improved efficiency. |
| ECM Blower Motor | 1 HP variable-speed motor designed for strong airflow with quiet performance. |
| Dual Heat Exchangers | Aluminized steel primary and stainless steel secondary for heat transfer and durability. |
| Multi-Position Installation | Upflow or horizontal configurations to match common install scenarios. |
| Removable Bottom Panel | Supports side or bottom return applications for added flexibility. |
| Convertible Fuel Type | Configured for natural gas; optional LP conversion kit available. |
Warranty
- Registered warranty:10-year parts warranty + heat exchanger warranty (register within 90 days)
- Base warranty:5-year parts warranty + 20-year heat exchanger warranty
- Professional installation required for warranty validation
- Optional extended labor warranties may be available through authorized dealers
Installation Requirements
This high-efficiency gas furnace must be installed by a qualified HVAC technician following:
- Applicable local building codes
- National Fuel Gas Code (ANSI Z223.1 / NFPA 54)
- Manufacturer installation instructions
- Proper combustion air and venting requirements for high-efficiency units
Documents & Downloads
|
Installation Manual
Detailed installation guide
|
|
Technical Specifications
Engineering data
|
|
Service Manual
Maintenance procedures
|
Safety & Compliance
PROPOSITION 65 WARNING:This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
This furnace meets or exceeds applicable safety standards including:
- ANSI Z21.47 / CSA 2.3 Gas-Fired Central Furnaces
- UL 1995 Heating and Cooling Equipment
- AHRI Standard 260-2021 Performance Rating
Ideal Applications
- Large homes in cold climates:Often used for larger residences needing high heating output.
- Energy-conscious owners:96% AFUE supports lower fuel consumption.
- Replacement projects:Strong fit for existing ducted systems when properly sized.
- Dual-fuel systems:Can pair well with heat pumps in hybrid configurations.
- Demanding applications:Built for reliable performance in tough winter conditions.
Final sizing and application suitability should be verified by a qualified HVAC professional using approved load calculations.
