1 4

MRCOOL

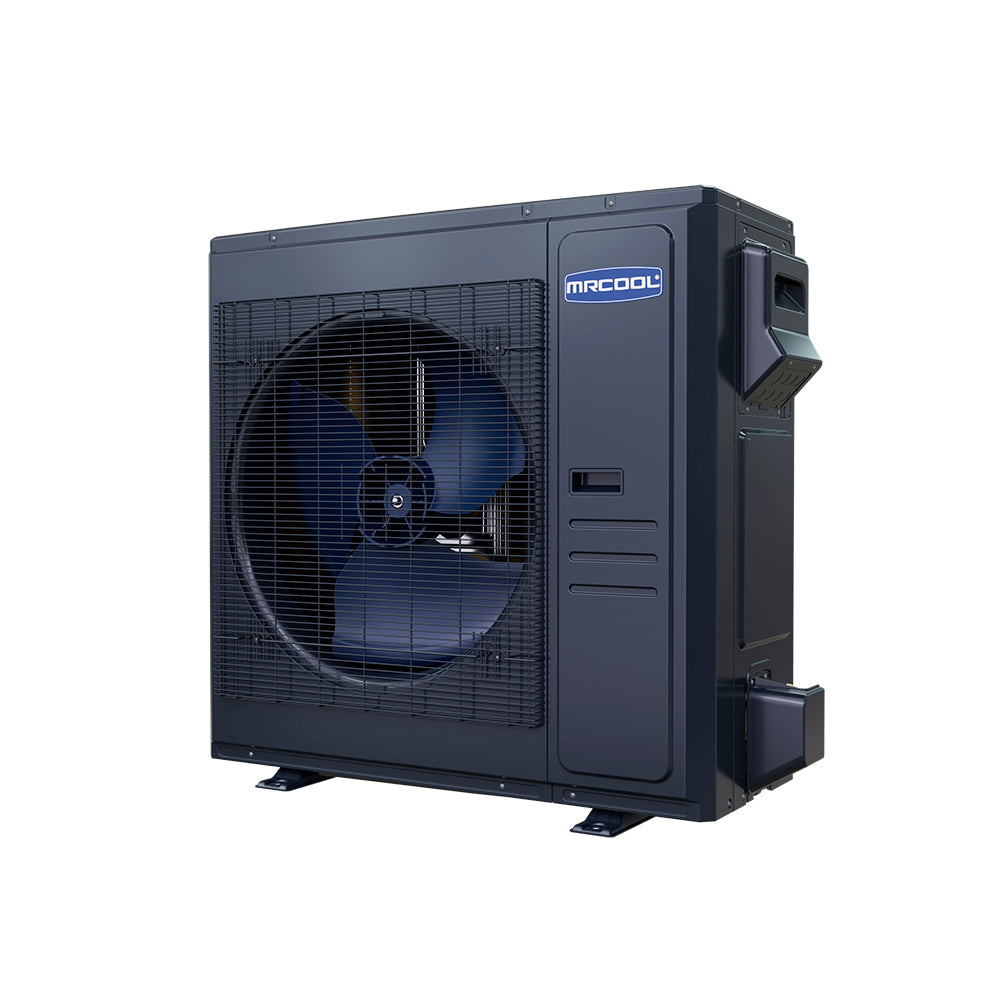

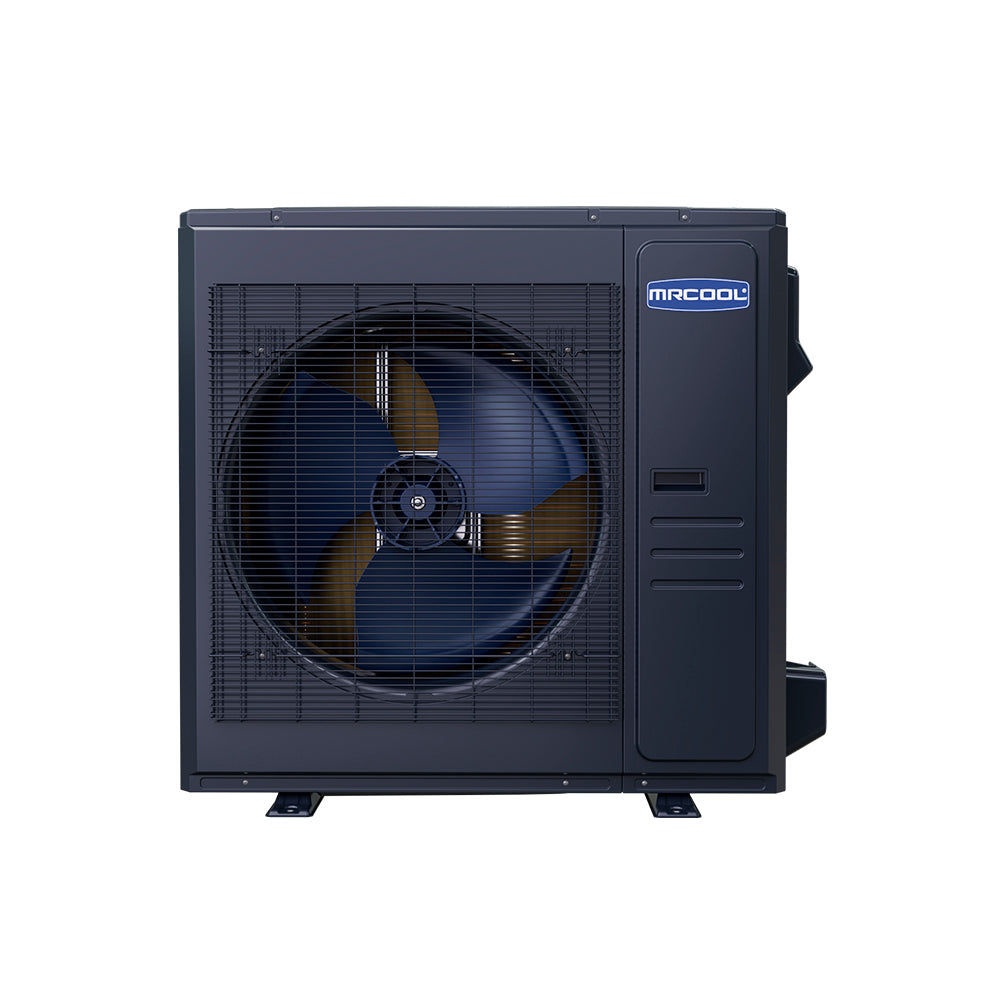

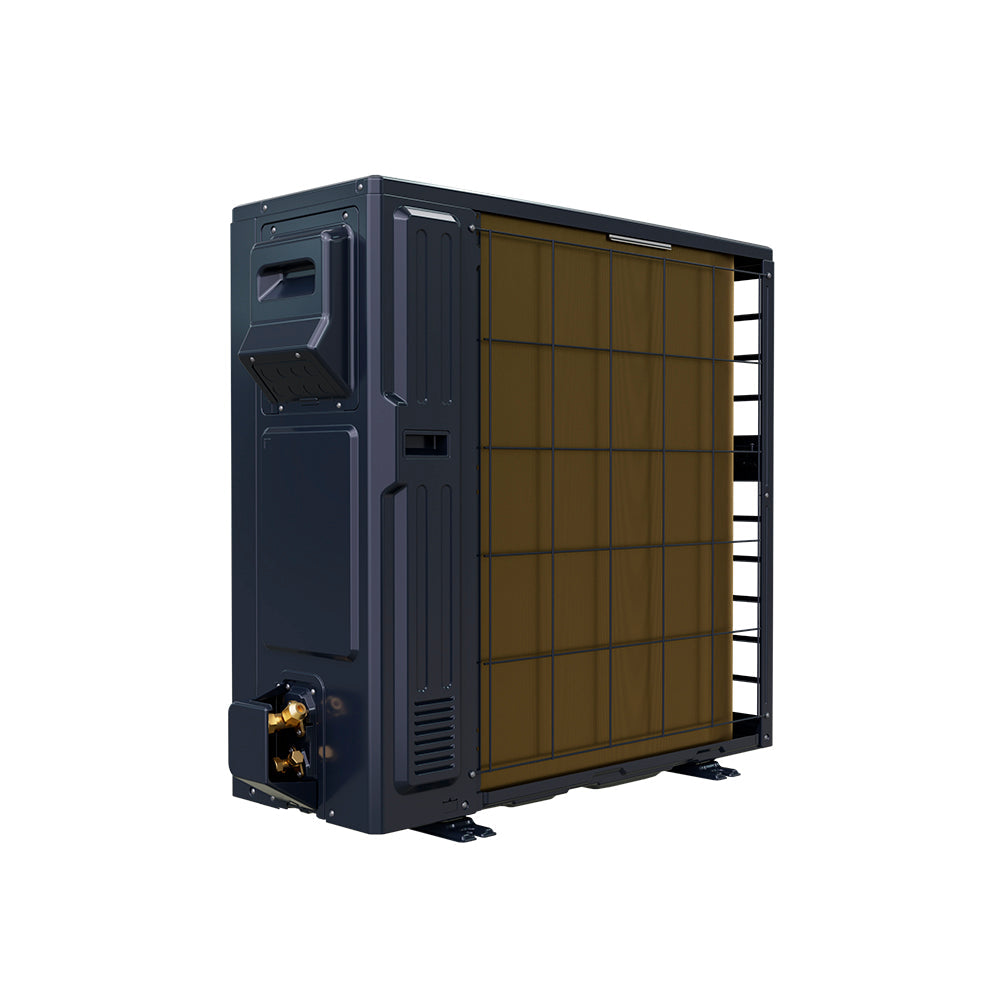

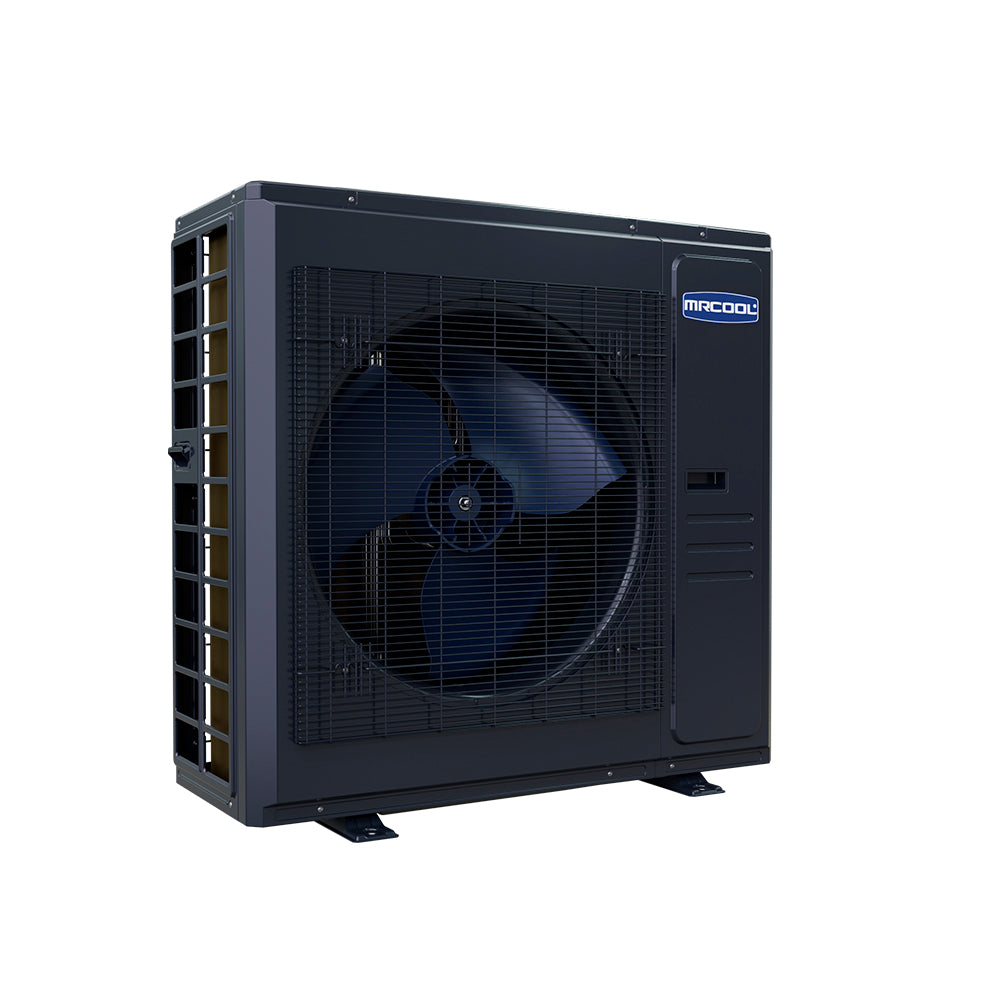

MRCOOL Universal R-454B 3 Ton Inverter Heat Pump Condenser – UHP18036-O

SKU: UHP18036-O

System highlights
AC Type
Air Conditioner Condenser Units
Refrigerant Type
R454B
Brand
MRCOOL
Outdoor Unit
36000 BTU VO (3.0 TON)
Voltage
208-230V
Looking For
Heat Pump Condensers
Series
Universal Series
SEER2 Rating
18.0

Price

$2,680.00
Shipping calculated at checkout.
View full details
MRCOOL — Wall Mount

MRCOOL Universal R-454B 3 Ton Inverter Heat Pump Condenser – UHP18036-O

Contact for custom quotes Call 800-543-8933

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS

MRCOOL Universal R-454B 3 Ton Inverter Heat Pump Condenser – UHP18036-O

Summary

The MRCOOL® Universal® 36K DC Inverter Heat Pump Condenser provides strong, year-round comfort with up to 18 SEER2 efficiency. A compact, side-discharge design simplifies placement, while optional NO-VAC® Quick Connect® line sets speed up installation.

Important

Up to 18 SEER2 efficiency. DC inverter variable speed. Low-GWP R-454B refrigerant. Optional NO-VAC® Quick Connect® line sets.

What's Included

  • Universal® Series Inverter Condenser (UHP18036-O)
  • Installation & Owner’s Manual
  • Warranty Information

Features

  • Inverter modulation for precise temperature control and quiet comfort
  • Compact footprint suited for tight outdoor spaces
  • Pairs with Universal® air handlers and optional auxiliary heat kits
  • Designed for full output to −13°F heat and 110°F cooling (see brochure notes)

Technical Specifications

Brand / Series MRCOOL / Universal R-454B
Model UHP18036-O
GTIN 00840255587891
UPC 840255587891
Unit Type Universal Series Heat Pump
Equipment Type Condenser
SEER2 / EER2 Up to 18 / Up to 12
HSPF2-4 / HSPF2-5 10 / 8.2
Tonnage 3
Cooling / Heating Capacity (BTU) 36,000 / 37,000
Voltage / Phase / Cycle 208/230V / 1 / 60 Hz
Max Fuse Breaker / Min Circuit Ampacity (A) 30 / 29
Color Dark Grey
Refrigerant / Charge R-454B / 126.99 oz
Sound Level 63 dBA
Inverter DC
Max Line Set Length 246 ft
Liquid / Suction Line Sizes 3/8" / 3/4"
Compressor Type Twin-Rotary
Condenser Fan Motor RPM 800 / 750 / 650
Metering Device EXV
Listings UL, CSA, ETL
Energy Star Yes
Base Warranty 10-Year Parts / 10-Year Compressor / 2-Year Labor
Contains Electronics / Chemicals / Compressed Gas Yes / Yes / Yes
Prop 65 Warning Yes
Net Dimensions (W × D × H) 38.58" × 16.34" × 38.39"
Net / Gross Weight 204.15 lbs / 235.23 lbs
Gross Dimensions (W × D × H) 45.08" × 19.68" × 42.52"

Airflow & Operating Range

Outdoor Airflow (CFM) 3001.9
Cooling Output Up to 100% at 110°F (see brochure)
Heating Output Up to 100% at −13°F (see brochure)

Compatibility & Pairing

  • Pairs with MRCOOL® Universal® Air Handler UAH18036-O (heat kits optional)
  • Optional NO-VAC® Quick Connect® line sets

Warranty Information

  • Parts: 10 Years (limited)
  • Compressor: 10 Years (limited)
  • Labor: 2 Years (limited)

Manuals & Downloads

Safety & Install Notes

  • Professional installation required; follow all codes and clearances.
  • Use matched air handler and correctly sized line sets for rated performance.

Environmental & Efficiency Features

R-454B refrigerant plus inverter compression maximizes efficiency and comfort while reducing energy consumption.
