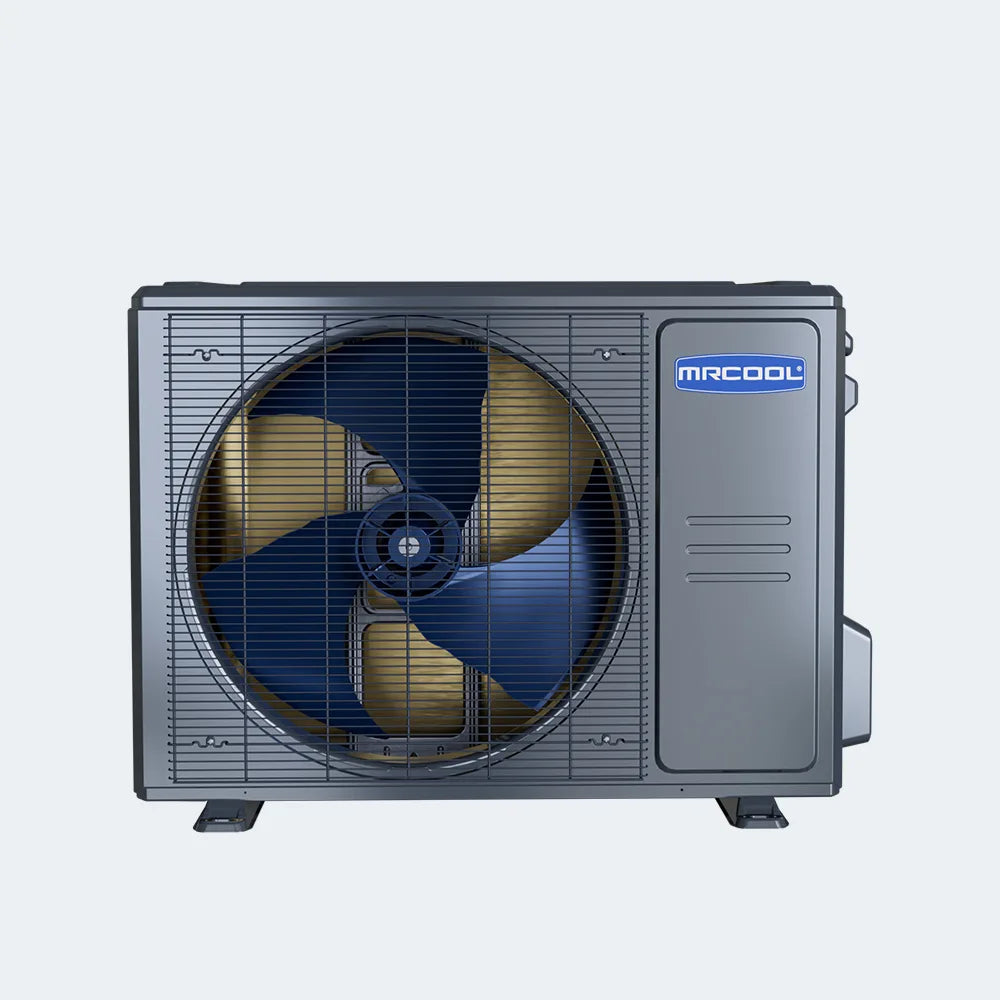

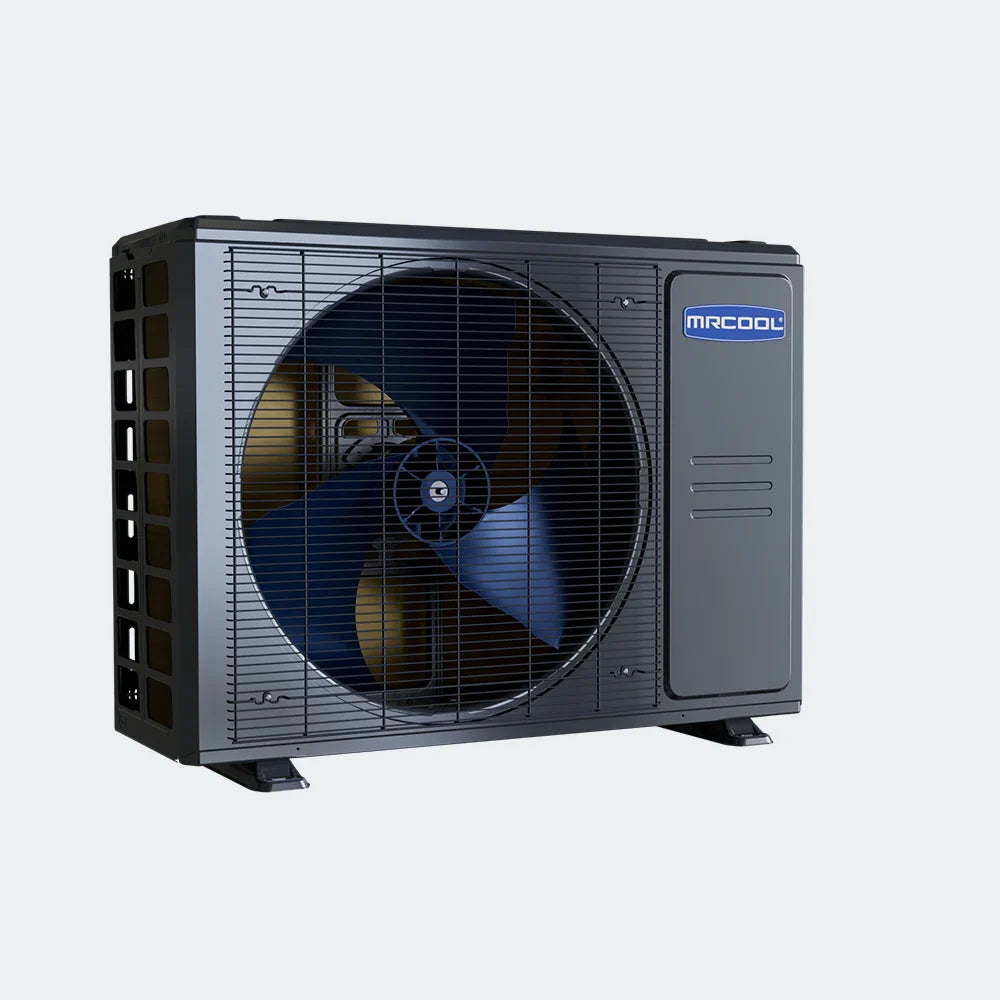

MRCOOL Universal R-454B 2 Ton Inverter Heat Pump Condenser – UHP18024-O
Summary
The MRCOOL® Universal® 24K DC Inverter Heat Pump Condenser delivers dependable, high-efficiency comfort in all seasons. With up to 18.6 SEER2 performance, variable-speed inverter technology, and a compact footprint, it’s ideal for space-restricted installs. Optional NO-VAC® Quick Connect® line sets simplify installation, and R-454B refrigerant supports eco-forward operation.
Important
Up to 18.6 SEER2 efficiency. DC inverter variable speed. Uses low-GWP R-454B. Optional NO-VAC® Quick Connect® line sets.
What's Included
- Universal® Series Heat Pump Inverter Condenser (UHP18024-O)
- Installation & Owner’s Manual
- Warranty Information
Features
- Advanced DC inverter for smooth, quiet, energy-saving operation
- Compact, side-discharge design for tight spaces
- Compatible with MRCOOL® Universal® air handlers and optional heat kits
- Optional NO-VAC® Quick Connect® pre-charged line sets (sold separately)
- 100% heating output down to −13°F and 100% cooling output up to 110°F (see brochure notes)
Technical Specifications
| Brand / Series | MRCOOL / Universal R-454B |
| Model | UHP18024-O |
| GTIN | 00840255587877 |
| UPC | 840255587877 |
| Unit Type | Universal Series Heat Pump |
| Equipment Type | Condenser |
| SEER2 / EER2 | Up to 18.6 / Up to 12 |
| HSPF2-4 / HSPF2-5 | 10 / 8.1 |
| Tonnage | 2 |
| Cooling / Heating Capacity (BTU) | 24,000 / 24,000 |
| Voltage / Phase / Cycle | 208/230V / 1 / 60 Hz |
| Max Fuse Breaker / Min Circuit Ampacity (A) | 20 / 19 |
| Color | Dark Grey |
| Refrigerant / Charge | R-454B / 74.08 oz |
| Sound Level | 59 dBA |
| Inverter | DC |
| Max Line Set Length | 164 ft |
| Liquid / Suction Line Sizes | 3/8" / 3/4" |
| Compressor Type | Rotary |
| Condenser Fan Motor RPM | 810 / 700 / 450 |
| Metering Device | EXV |
| Listings | UL, CSA, ETL |
| Energy Star | Yes |
| Base Warranty | 10-Year Parts / 10-Year Compressor / 2-Year Labor |
| Contains Electronics / Chemicals / Compressed Gas | Yes / Yes / Yes |
| Prop 65 Warning | Yes |
| Net Dimensions (W × D × H) | 35.04" × 13.46" × 26.5" |
| Net / Gross Weight | 102.29 lbs / 109.13 lbs |
| Gross Dimensions (W × D × H) | 39.17" × 15.67" × 29.13" |
Airflow & Operating Range
| Outdoor Airflow (CFM) | 1765.8 |
| Cooling Output | Up to 100% at 110°F (see brochure) |
| Heating Output | Up to 100% at −13°F (see brochure) |
Compatibility & Pairing
- Pairs with MRCOOL® Universal® Air Handler UAH18024-O (and Universal heat kits, optional)
- Optional NO-VAC® Quick Connect® line sets for faster installs
Warranty Information
- Parts: 10 Years (limited)
- Compressor: 10 Years (limited)
- Labor: 2 Years (limited)
Manuals & Downloads
Safety & Install Notes
- Follow national and local codes; installation should be performed by qualified personnel.
- Provide adequate clearances and a solid, level mounting surface.
- Use matched air handler and properly sized line sets for best performance.
Environmental & Efficiency Features
Uses low-GWP R-454B and inverter technology to optimize performance and reduce energy consumption.
