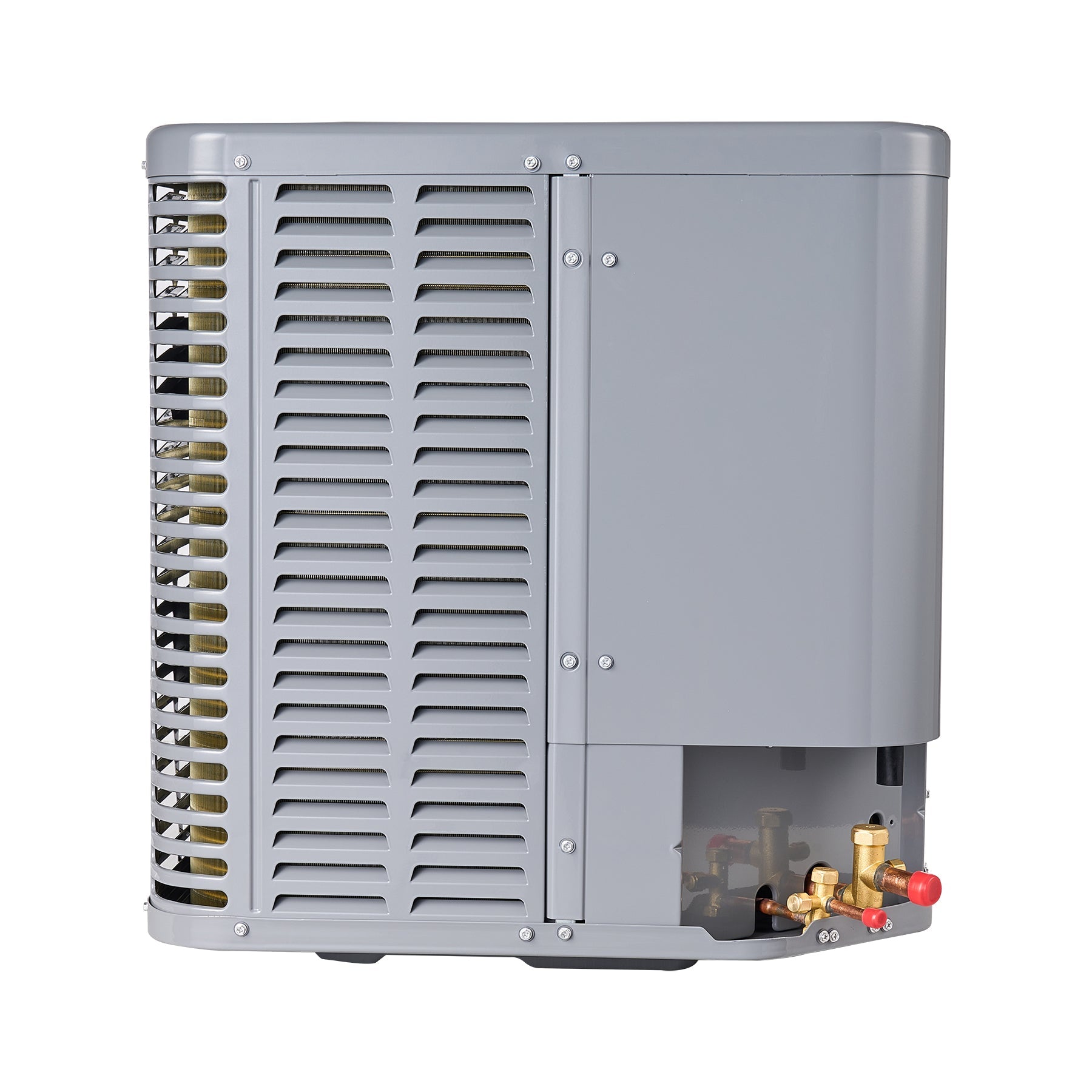

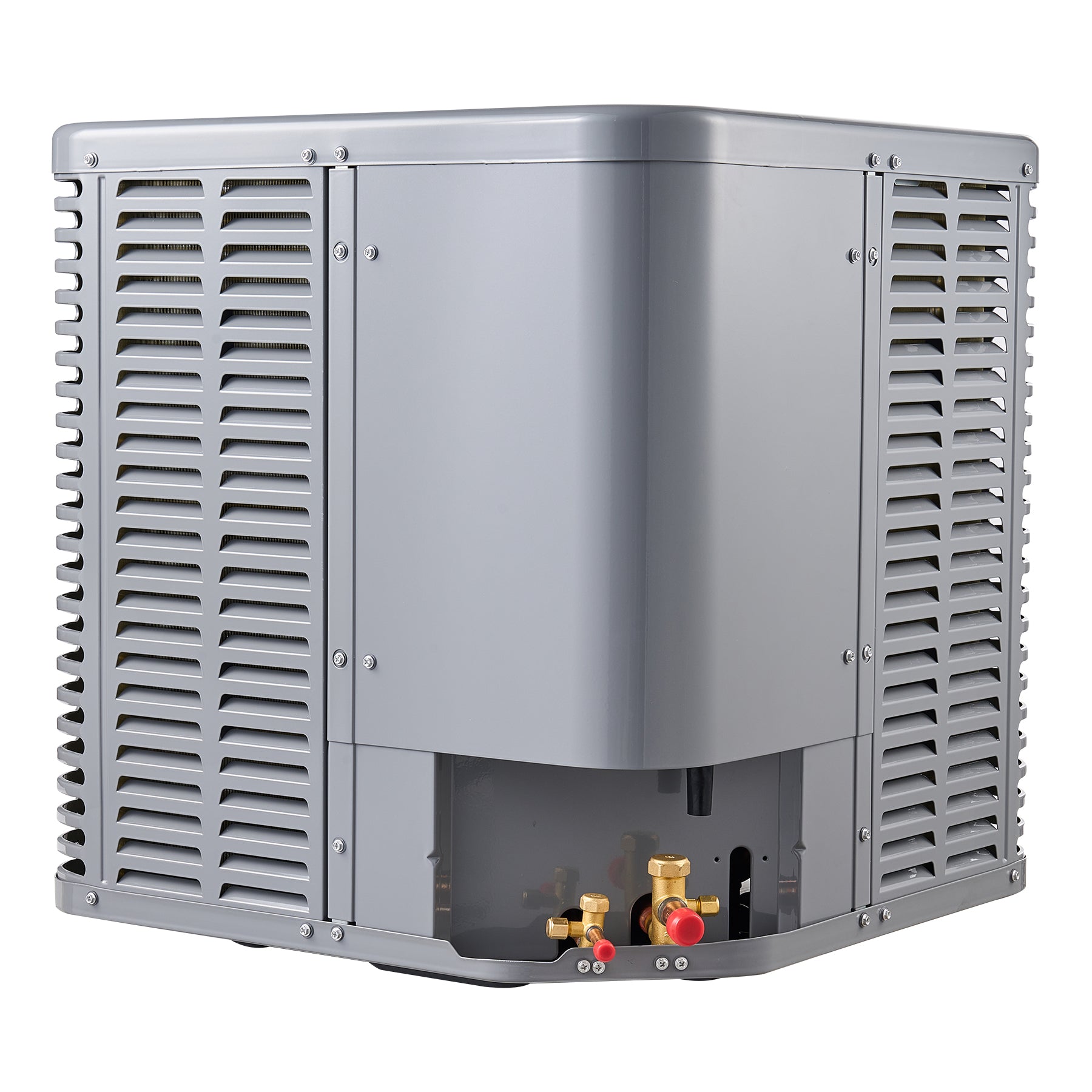

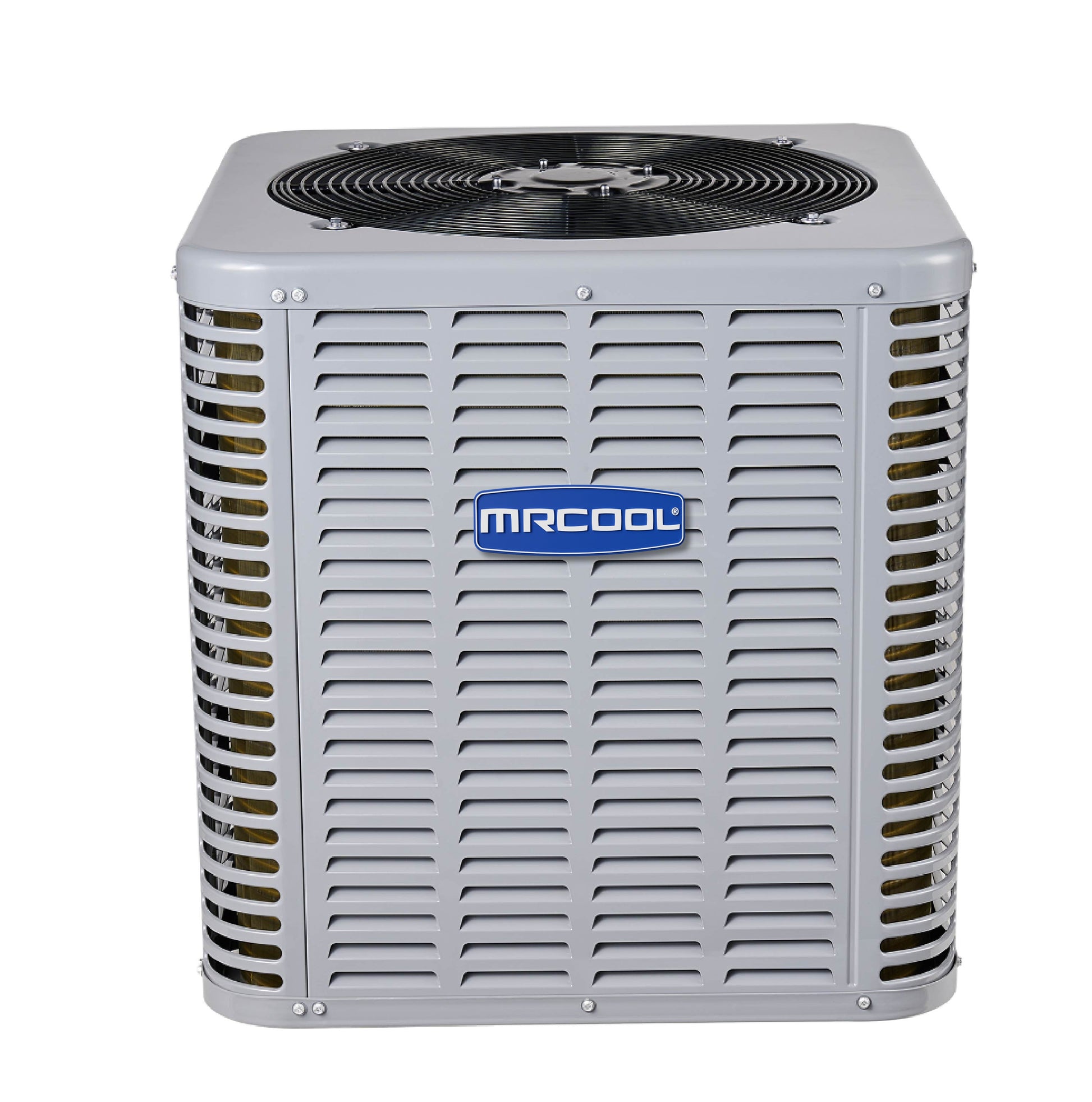

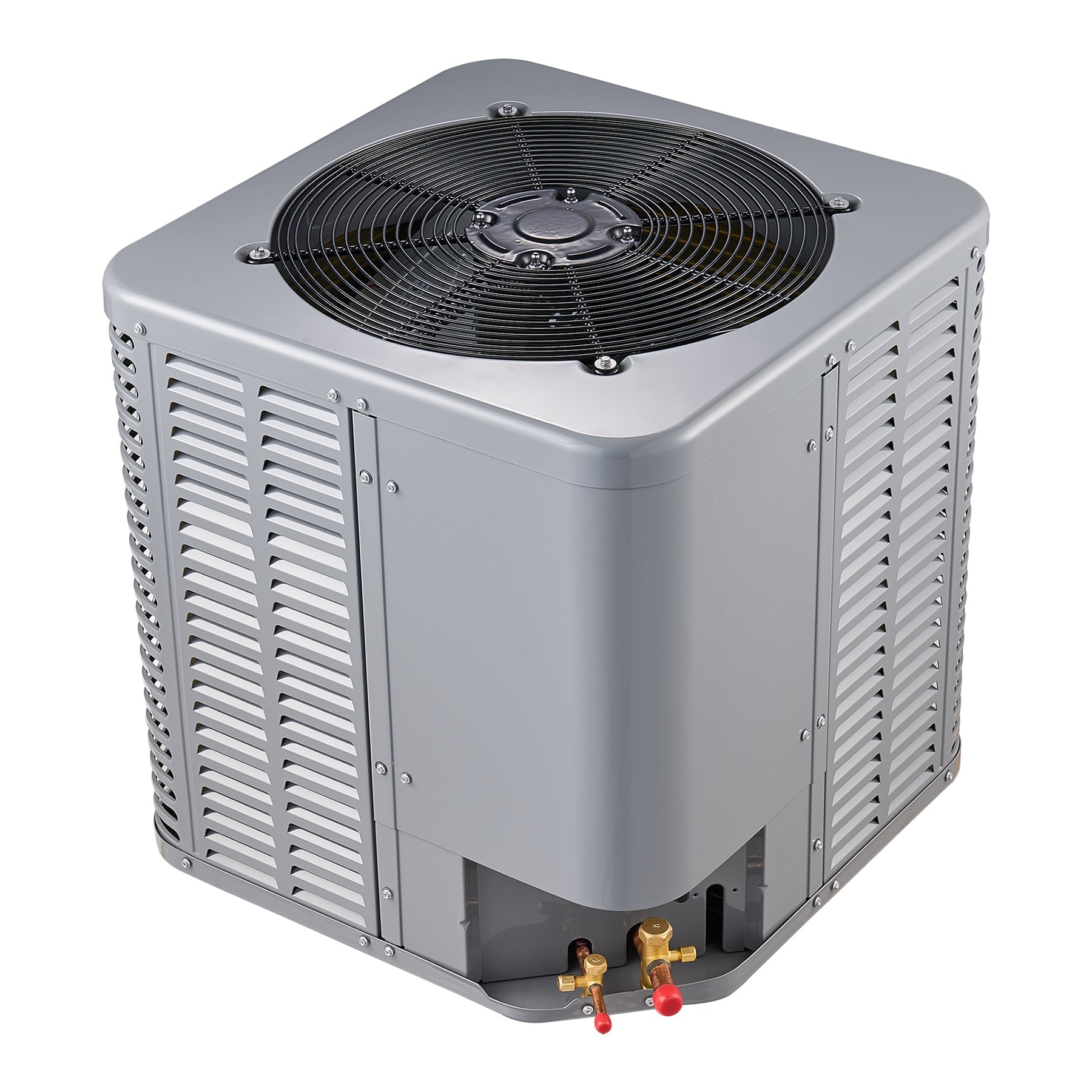

MRCOOL Signature Series 2.5 Ton 14.3 SEER2 Air Conditioner Condenser | MCAESAS4T3021AA

Summary

The MRCOOL® Signature Series 30k Cooling Only Condenser is engineered to deliver reliable, energy-efficient cooling performance for modern homes. With a 14.3 SEER2 and 11.7 EER2 rating, this system is designed to reduce energy usage while maintaining consistent indoor comfort during the hottest months of the year. This unit comes pre-charged with R-454B refrigerant, a next-generation, low-GWP solution that aligns with modern environmental regulations while still delivering reliable, high-performance heating and cooling. The factory-charged design streamlines installation, saving both time and labor costs for contractors and homeowners alike. At its core, the system is powered by a durable scroll compressor, engineered for consistent, long-lasting performance. To enhance overall efficiency, it also incorporates inner-groove copper tubing, which improves heat transfer and supports rapid temperature regulation throughout the system. Despite its powerful capabilities, this unit operates at a remarkably quiet 63 decibels, thanks to a thoughtfully designed sound-dampening top that reduces operational noise without limiting airflow. This makes it particularly well-suited for homes in residential neighborhoods or settings where maintaining a peaceful environment is important. For added durability, the unit is equipped with a steel louver coil guard and a wire fan discharge grille, both of which provide critical protection against debris and external damage. For long-term peace of mind, this system includes a 10-year limited parts warranty and a limited lifetime compressor warranty. This MRCOOL® Signature Series 30k Cooling Only Condenser offers efficient cooling, lasting durability, and quiet comfort in a compact, easy-to-install package.

Important

AHRI certified - meets industry standards. Register your product to activate warranty coverage. This condenser contains R-454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R-454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.

Key Features

• 30,000 BTU cooling capacity (2.5 Ton)
• 14.3 SEER2 efficiency rating
• 11.7 EER2 efficiency rating
• Durable scroll compressor for reliable operation
• Quiet operation (63 dBA)
• Pre-charged with R-454B refrigerant
• Factory pre-charged for 15-foot line set
• Compact design for easy installation
• Steel louver coil guard for component protection
• AHRI certified
• Extended 100 ft maximum line set length
• 2200 CFM airflow

Complete Technical Specifications

Performance Features

Warranty Information

• Registered Warranty: 10 years parts, limited lifetime compressor
• Base Warranty: 10 years parts, limited lifetime compressor
• Registration may be required for full warranty coverage

Manuals & Certifications

• Product Brochure
• Installation Manual
• Warranty Information
• AHRI Certification
• Energy Guide

Safety Information

PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Advanced Technology

The MRCOOL Signature Series 30k Cooling Only Condenser features a durable scroll compressor designed for maximum durability and energy-efficient operation. The high-efficiency inner-groove copper tubing enhances heat transfer efficiency while the specially designed sound-dampening top reduces operational noise to just 63 decibels. Built with quality components and protective features including a steel louver coil guard, this 2.5-ton air conditioner condenser delivers reliable performance for consistent comfort in residential spaces. With its 14.3 SEER2 cooling efficiency, this unit provides energy-saving operation without compromising on cooling power.

Installation Advantages

This 2.5-ton air conditioner condenser simplifies installation with its pre-charged R-454B refrigerant system. The unit supports extended line set lengths up to 100 feet, providing flexibility for various installation scenarios. The compact cabinet design allows for easy placement in tight spaces while maintaining accessibility to service valves and gauge ports for straightforward maintenance. The unit is designed to work with Signature Series Multi-Position or Stud Mount Air Handlers for complete system compatibility. With its efficient 2200 CFM airflow and durable construction, this condenser is an ideal cooling solution for residential applications requiring reliable and quiet operation.
