MRCOOL

MRCOOL Mini Split - Advantage Series 5th Gen 115V (0.75 TON) 21.5 SEER2 Ductless Air Conditioner and Heat Pump wit Gen 9,000 BTUh Quiet Wall Mount, Wi-Fi and Complete Inverter High Wall System, 16FT Installation Kit Included - A-09-HP-115D-O

SKU: A-09-HP-115D-O

System highlights
AC Type
Wall Mount
Refrigerant Type
R454B
Brand
MRCOOL
Outdoor Unit
9000 BTU VO (0.75 TON)
Indoor Unit
9000 BTU (0.75 TON)
Voltage
115V
Looking For
Wall Mount
Cooling Area (sq.ft.)
250-400
Series
5th Gen Advantage
SEER2 Rating
21.5
Includes 16FT line set with purchase.
Additional Installation Kit (Comes with 16ft)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$987.00
Shipping calculated at checkout.
Quantity
View full details
MRCOOL — Wall Mount

MRCOOL Mini Split - Advantage Series 5th Gen 115V (0.75 TON) 21.5 SEER2 Ductless Air Conditioner and Heat Pump wit Gen 9,000 BTUh Quiet Wall Mount, Wi-Fi and Complete Inverter High Wall System, 16FT Installation Kit Included - A-09-HP-115D-O

MRCOOL Mini Split - Advantage Series 5th Gen 9,000 BTU 115V (0.75 TON) 21.5 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and Complete Inverter High Wall System - A-09-HP-115D-O


Summary

The 5th Gen MRCOOL® 9k BTU 115V Advantage Air Handler now features eco-friendly R-454B refrigerant, reducing emissions and improving efficiency. This ductless mini-split delivers quiet, reliable heating and cooling, with Wi-Fi control for remote access. Enjoy energy savings, smart home compatibility, and MRCOOL®’s warranty, including 2 years on parts and 1 year on the compressor.

The 9k BTU 115V Advantage Condenser offers high efficiency with up to 21.5 SEER2 and a low GWP refrigerant. Covering up to 400 sq. ft., it provides smart controls via Alexa, Google Assistant, or a mobile app. Easy to install and cost-effective, it’s the ideal choice for energy-conscious homeowners.

Upgrade to the 5th Gen MRCOOL® Advantage Series for year-round comfort, energy efficiency, and smart climate control. Backed by industry-leading warranties, this ductless system is the perfect solution for home heating and cooling.

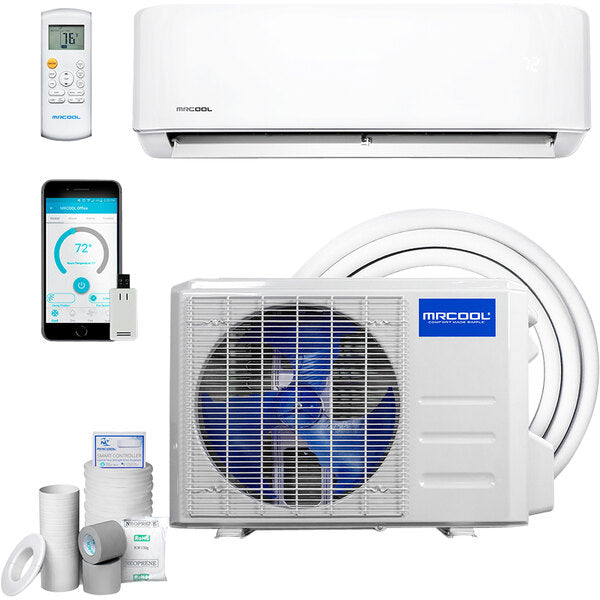

What's Included

  • Indoor Unit 9,000 BTU 115V Wall Mount, Air Handler
  • Outdoor Condenser 9,000 BTU 115V
  • Wireless Remote Controls
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Warranty

  • 1-Year Compressor
  • 2-Year Parts
  • 1-Year Remote

Warranty Information

Warranty Inquiries are handled through MRCOOL athttps://mrcool.com/contact/


Technical Information

Model Number: A-09-HP-C-115D-O (Advantage Series 4th Gen Condenser)

BRAND NAME

MRCOOL

SERIES

Advantage 5th gen

MODEL

A-09-HP-C-115D-O

GTIN

00840255586801

UPC

840255586801

UNIT TYPE

Mini-Split

EQUIPMENT TYPE

Condenser

SHORT DESCRIPTION

Advantage 5th Gen 9k BTU 115V Condenser

LONG DESCRIPTION

The highly efficient 5th Generation 9k BTU 115V Advantage condenser is a powerful, eco-friendly mini-split unit that allows you to directly control the temperature of the space it’s installed in. This system must be installed by an HVAC professional, but since it is a ductless system, the process is much less time consuming and expensive than a central system! With the capacity to achieve up to a 21.5 SEER2 rating and an HSPF2-4 of 9.0, this system will decrease energy usage while increasing how much money you save. This new generation uses R-454B refrigerant instead of R-410A, making it a much more sustainable and environmentally friendly choice, as R-454B has a GWP (global warming potential) that is nearly 80% lower than the previous refrigerant. Because of this, you can save the world just by sitting and enjoying perfect comfort in your living room! Able to cover spaces up to 400 sq.ft., the Advantage is perfect for those in need of a quiet, convenient, and proficient system that gives you all the features you need. One of those features is the Wi-Fi control module, which simplifies system setup and gives you access to operate your system through your phone and Amazon Alexa or Google Assistant. On top of these features, the Advantage has a 2 year parts warranty and a 1 year compressor warranty, meaning you can rest easy in perfect comfort knowing we’ve got your back. The 5th Generation 9k BTU Advantage condenser is clearly the right choice for anyone in need of efficient and practical comfort.

FEATURE LIST

  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Includes features such as timer mode, refrigerant leakage detection, and more
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
  • R-454B refrigerant
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

SEER2

21.5

EER2

12.5

HSPF2-4

9

HSPF2-5

7

TONNAGE

0.75

COOLING CAPACITY (BTU)

9000

HEATING CAPACITY (BTU)

10000

VOLTAGE (V)

115

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

20

MIN CIRCUIT AMPACITY (A)

18

ZONE CAPACITY

1

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

21.52

DECIBEL RATING (DBA)

52.5

INVERTER

DC

MAX LINESET LENGTH (FT)

82

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

3/8

COMPRESSOR MOTOR TYPE

ROTARY

OVERLOAD PROTECTION

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

UL LISTED

Yes

CSA LISTED

Yes

ETL LISTED

Yes

ENERGY STAR CERTIFIED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Extended Limited

BASE PARTS WARRANTY

1 Year

BASE COMPRESSOR WARRANTY

2 Years

HAS BATTERIES

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

11.93

NET HEIGHT (IN)

21.85

NET WIDTH (IN)

30.12

NET WEIGHT (LBS)

56.66

GROSS DEPTH (IN)

13.27

GROSS HEIGHT (IN)

24.02

GROSS WIDTH (IN)

34.92

GROSS WEIGHT (LBS)

62.17

INSTALL MANUAL

Open

REMOTE MANUAL

Open

Model Number:
A-09-HP-WMAH-115D-O(Advantage Series 5th Gen Air Handler)

BRAND NAME

MRCOOL

SERIES

Advantage 5th gen

MODEL

A-09-HP-WMAH-115D-O

GTIN

00840255586870

UPC

840255586870

UNIT TYPE

Mini-Split

EQUIPMENT TYPE

Air Handler

SHORT DESCRIPTION

Advantage 5th Gen 9k BTU 115V Air Handler

LONG DESCRIPTION

The 5th Generation MRCOOL® 9k BTU 115V Advantage Air Handler now comes equipped with R454B refrigerant, the latest eco-friendly solution offering enhanced energy efficiency, reduced greenhouse gas emissions, and a lower Global Warming Potential (GWP). Designed for quiet operation, this Advantage mini-split unit delivers reliable heating and cooling for your home without the need for ductwork, ensuring an efficient and cost-effective solution for any space. Ideal for homeowners seeking an affordable yet powerful climate control system, the sleek Advantage air handler will give you the comfort you need all year long. With built-in Wi-Fi, you can conveniently control the unit via remote access, allowing it to automatically adjust the temperature overnight for optimal comfort and energy savings. Register your unit online and enjoy peace of mind with MRCOOL®’s robust warranty: 2 years on parts, 1 years on the compressor, and 1 year on the remote control. For further peace of mind, enroll in the MRCOOL® Care Program and enjoy our Limited warranty. Say goodbye to comfort concerns with the MRCOOL® Advantage Air Handler!

FEATURE LIST

  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Includes features such as timer mode, refrigerant leakage detection, and more
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
  • R-454B refrigerant
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

CFM

282.5 / 235.4 / 206.0 / 164.8 / 117.7

TONNAGE

0.75

VOLTAGE (V)

115

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

3

MOUNT TYPE

Wall

COLOR

White

DECIBEL RATING (DBA)

33.5

DECIBEL RATING LOW (DBA)

18

DECIBEL RATING HIGH (DBA)

43

NUMBER OF SPEEDS

5

MAX LINESET LENGTH (FT)

82

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

3/8

FILTER TYPE

Reusable

OVERLOAD PROTECTION

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

UL LISTED

Yes

CSA LISTED

Yes

ETL LISTED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Extended Limited

BASE PARTS WARRANTY

1 Year

BASE COMPRESSOR WARRANTY

2 Years

HAS BATTERIES

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

7.36

NET HEIGHT (IN)

11.42

NET WIDTH (IN)

28.43

NET WEIGHT (LBS)

17.42

GROSS DEPTH (IN)

10.63

GROSS HEIGHT (IN)

14.76

GROSS WIDTH (IN)

31.1

GROSS WEIGHT (LBS)

22.93

INSTALL MANUAL

Open

REMOTE MANUAL

Open

Certifications
