MRCOOL Mini Split - Advantage Series 5th Gen 230V (0.75TON) 21.2 SEER2 Ductless Air Conditioner and Heat Pump wit Gen 9,000 BTU Quiet Wall Mount, Wi-Fi and 16ft Installation Kit Included Complete Inverter High Wall System - A-09-HP-230D-O
MRCOOL Mini Split - Advantage Series 5th 230V (.75TON) 21.3 SEER2 Ductless Air Conditioner and Heat Pump wit Gen 9,000 BTUh Quiet Wall Mount, Wi-Fi and Installation Kit Included Complete Inverter High Wall System - A-09-HP-230D-O
Summary
The 5th Gen MRCOOL® 9k BTU 230V Advantage Air Handlernow featureseco-friendly R-454B refrigerant, enhancing efficiency while reducing emissions with an80% lower GWPthan traditional refrigerants. Thisductless mini-splitprovidesquiet, reliable heating and coolingfor spaces up to400 sq. ft., withWi-Fi controlfor remote adjustments via smartphone,Alexa, or Google Assistant. Enjoyenergy savings,smart home integration, andMRCOOL®’s warranty, including2 years on parts, 1 year on the compressor, and 1 year on the remote.
The 9k BTU 230V Advantage Condenserdelivershigh efficiency (up to 21.2 SEER2, 9.1 HSPF2)andsustainable operationwithR-454B refrigerant. Designed for easy professional installation, it offerssmart climate controlandlow-noise performance. Backed by a2-year parts and 1-year compressor warranty, this system is built forlong-term comfort and energy savings.
Upgrade to the 5th Gen MRCOOL® Advantage Seriesforeco-conscious, high-efficiency heating and coolingwith smart technology andindustry-leading warranties. The perfectductless solutionfor year-round comfort in any home.

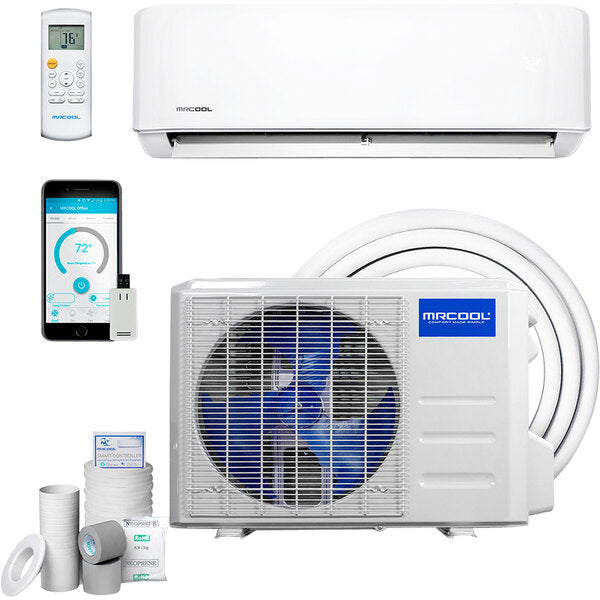

What's Included
- Indoor Unit 9,000 BTU 230V Wall Mount, Air Handler
- Outdoor Condenser 9,000 BTU 230V
- Wireless Remote Controls
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Warranty
- 1-Year Compressor
- 2-Year Parts
- 1-Year Remote
Warranty Inquiries are handled through MRCOOL athttps://mrcool.com/contact/
Technical Information

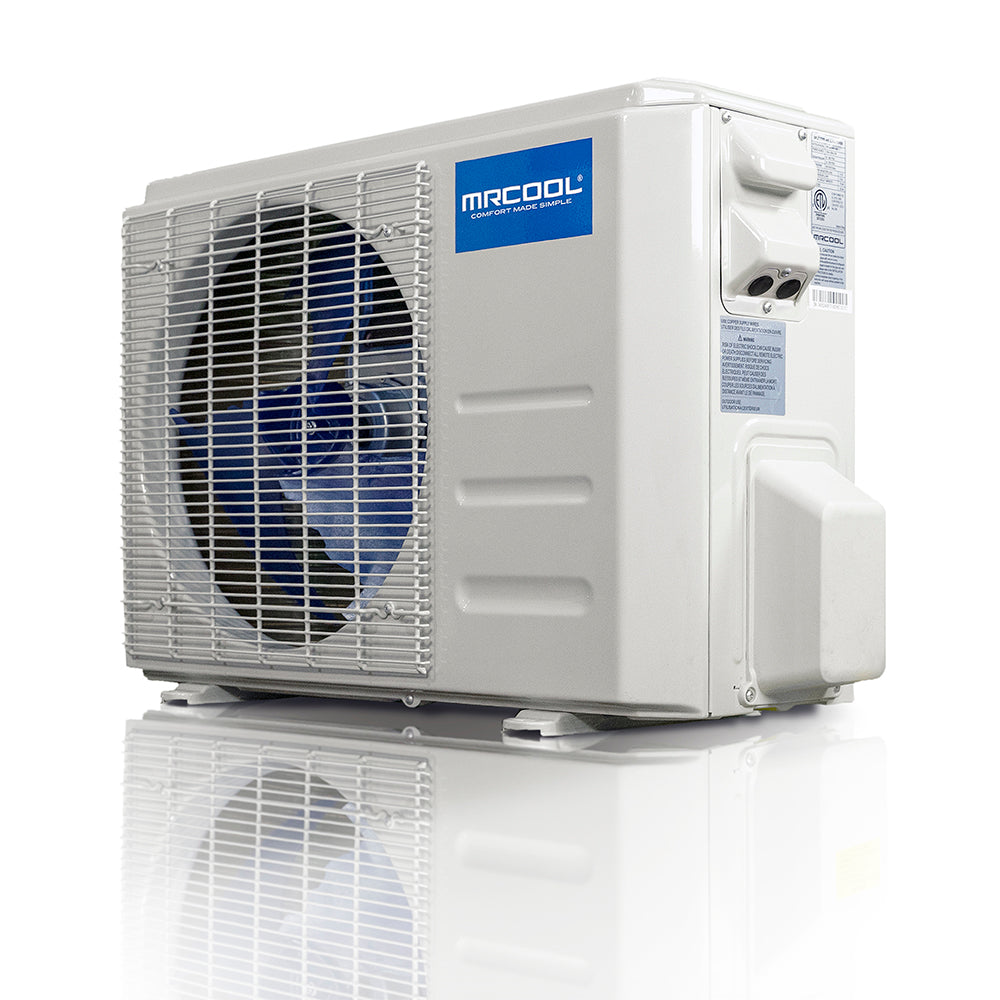

Model Number: A-09-HP-C-230D-O (Advantage Series 5th Gen Condenser)
|
BRAND NAME |
MRCOOL |
|
SERIES |
Advantage 5th gen |
|
MODEL |
A-09-HP-C-230D-O |
|
GTIN |
00840255586825 |
|
UPC |
840255586825 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
Advantage 5th Gen 9k BTU 230V Condenser |
|
LONG DESCRIPTION |
We’re excited to announce our 5th Generation 9k BTU 230V Advantage condenser, which is a sustainable and economic system ready to provide the comfort you need and deserve. This system can achieve up to a 21.2 SEER2 rating as well as an HSPF2-4 of 9.1 thanks to its incredibly innovative design. This system, which must be installed by an HVAC professional, utilizes a much more environmentally friendly refrigerant than R-410A, which its previous generation used: R-454B. This choice ensures that the unit operates efficiently and effectively throughout its entire lifespan, reducing your carbon footprint in the process due to the GWP (global warming potential) of R-454B being almost 80% lower than its predecessor. If you need a system for a space around or up to 400 sq. ft. that is convenient, quiet, and chock full of features that create an ideal user experience, the Advantage 9k will be perfect for you. This system comes with a Wi-Fi module that, when installed, allows you to control the temperature of your room through your phone and Amazon Alexa or Google Assistant. You won’t even have to lift a finger to experience the best comfort you’ve ever felt! Once registered, the Advantage has a 2 year parts warranty and a 1 year compressor warranty, so you can rest easily with the knowledge that we’ve got your back and your comfort! The 5th Generation 9k BTU Advantage condenser truly lives up to its name when it comes to perfect, efficient, interior comfort! |
|
FEATURE LIST |
|
|
SEER2 |
21.2 |
|
EER2 |
12.6 |
|
HSPF2-4 |
9.1 |
|
HSPF2-5 |
7 |
|
TONNAGE |
0.75 |
|
COOLING CAPACITY (BTU) |
9000 |
|
HEATING CAPACITY (BTU) |
10000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
12 |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
21.52 |
|
DECIBEL RATING (DBA) |
53.5 |
|
INVERTER |
DC |
|
MAX LINESET LENGTH (FT) |
82 |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
3/8 |
|
COMPRESSOR MOTOR TYPE |
ROTARY |
|
OVERLOAD PROTECTION |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
11.93 |
|
NET HEIGHT (IN) |
21.85 |
|
NET WIDTH (IN) |
30.12 |
|
NET WEIGHT (LBS) |
54.23 |
|
GROSS DEPTH (IN) |
13.27 |
|
GROSS HEIGHT (IN) |
24.02 |
|
GROSS WIDTH (IN) |
34.92 |
|
GROSS WEIGHT (LBS) |
59.74 |
Model Number:

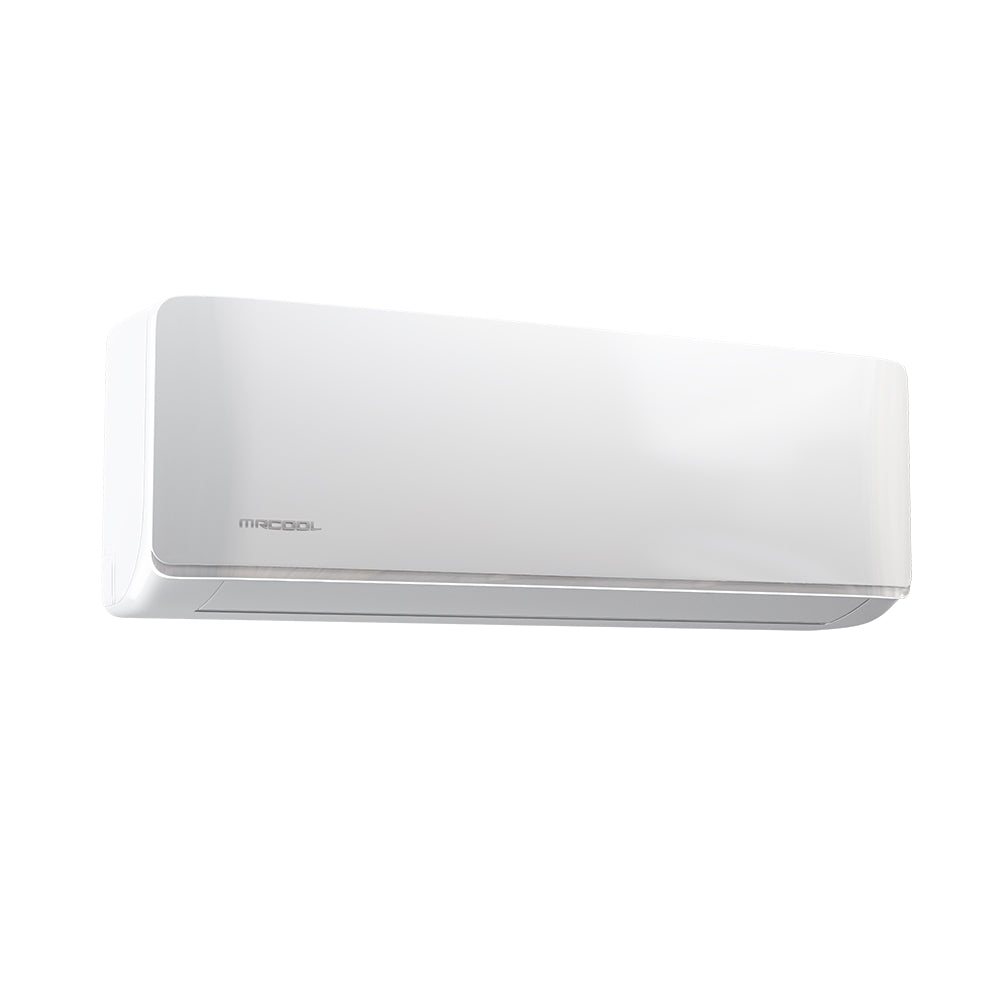

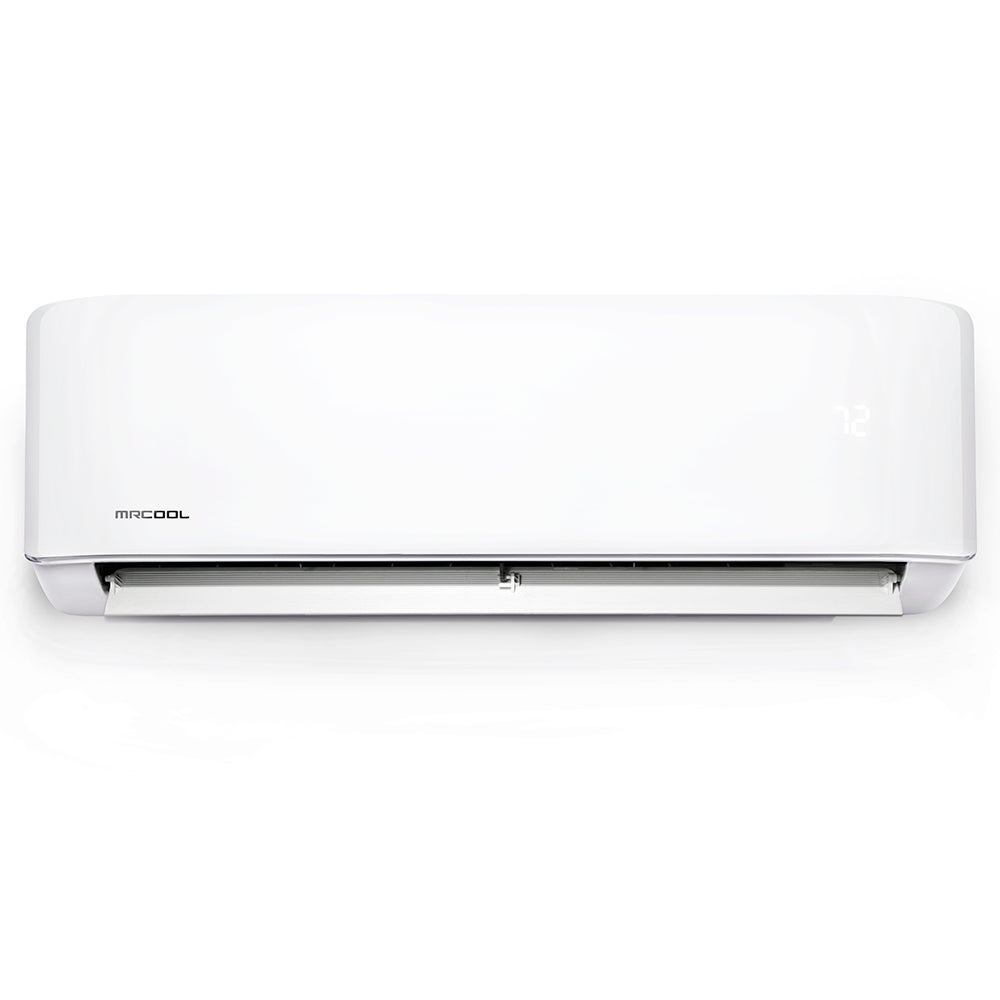

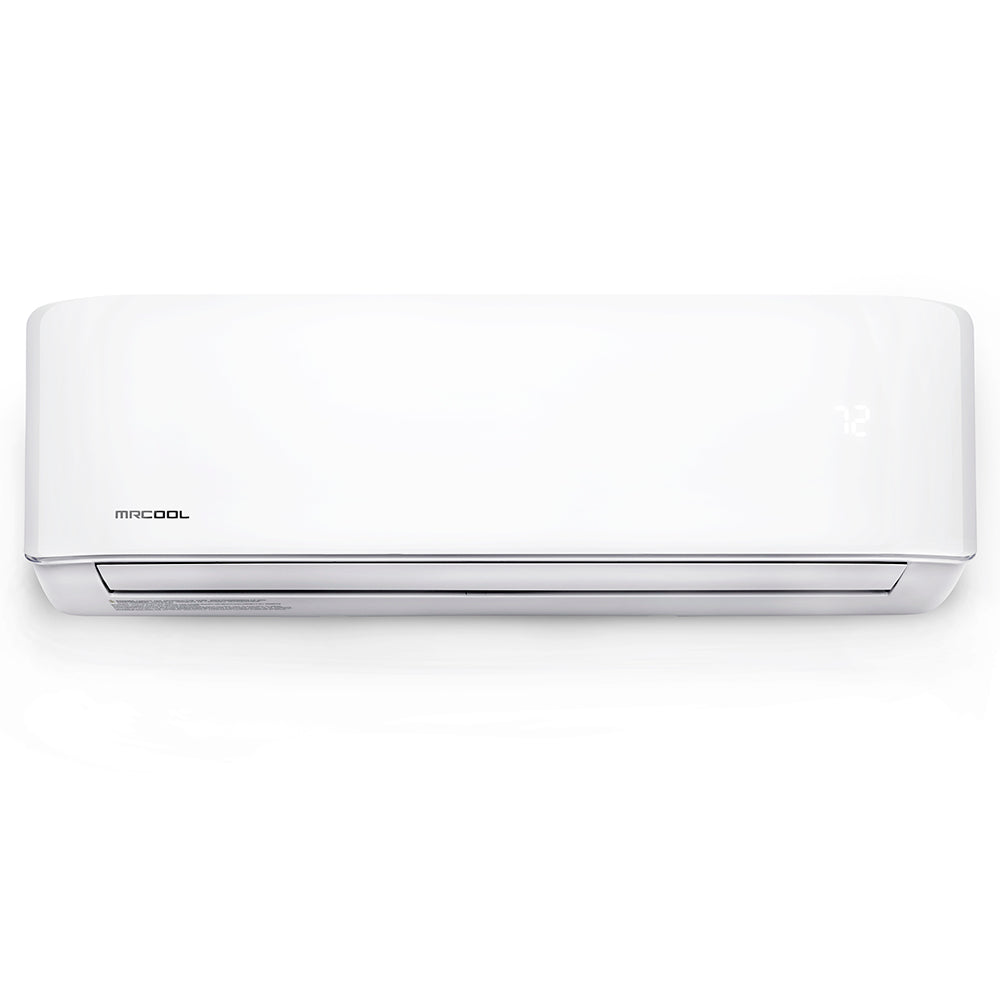

A-09-HP-WMAH-230D-O(Advantage Series 5th Gen Air Handler)
|
BRAND NAME |
MRCOOL |
|
SERIES |
Advantage 5th gen |
|
MODEL |
A-09-HP-WMAH-230D-O |
|
GTIN |
00840255586894 |
|
UPC |
840255586894 |
|
UNIT TYPE |
Mini-Split |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
Advantage 5th Gen 9k BTU 230V Air Handler |
|
LONG DESCRIPTION |
The 5th Generation MRCOOL® 9k BTU 230V Advantage Air Handler now comes equipped with R454B refrigerant, the latest eco-friendly solution offering enhanced energy efficiency, reduced greenhouse gas emissions, and a lower Global Warming Potential (GWP). Designed for quiet operation, the Advantage series mini-split unit delivers reliable heating and cooling for your home without the need for ductwork, ensuring an efficient and cost-effective solution for any space. This sleek Advantage Air Handler is ideal for homeowners seeking an affordable yet powerful climate control system. With built-in Wi-Fi, you can conveniently control the unit via remote access, allowing it to automatically adjust the temperature overnight for optimal comfort and energy savings. Register your unit and enjoy peace of mind with MRCOOL®’s robust warranty: 2 years on parts, 1 years on the compressor, and 1 year on the remote control. You can also subscribe to the MRCOOL® Care Program and enjoy our Limited warranty. Say goodbye to comfort concerns with the MRCOOL® Advantage Air Handler! |
|
FEATURE LIST |
|
|
CFM |
312.0 / 264.9 / 194.2 / 153.0 / 105.9 |
|
TONNAGE |
0.75 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
3 |
|
MOUNT TYPE |
Wall |
|
COLOR |
White |
|
DECIBEL RATING (DBA) |
31.5 |
|
DECIBEL RATING LOW (DBA) |
18.5 |
|
DECIBEL RATING HIGH (DBA) |
40.5 |
|
NUMBER OF SPEEDS |
5 |
|
MAX LINESET LENGTH (FT) |
82 |
|
LIQUID LINE SIZE |
1/4 |
|
SUCTION LINE SIZE |
3/8 |
|
FILTER TYPE |
Reusable |
|
OVERLOAD PROTECTION |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
UL LISTED |
Yes |
|
CSA LISTED |
Yes |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited |
|
BASE PARTS WARRANTY |
1 Year |
|
BASE COMPRESSOR WARRANTY |
2 Years |
|
HAS BATTERIES |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
7.36 |
|
NET HEIGHT (IN) |
11.42 |
|
NET WIDTH (IN) |
28.43 |
|
NET WEIGHT (LBS) |
16.98 |
|
GROSS DEPTH (IN) |
10.63 |
|
GROSS HEIGHT (IN) |
14.76 |
|
GROSS WIDTH (IN) |
31.1 |
|
GROSS WEIGHT (LBS) |
22.27 |
