MRCOOL

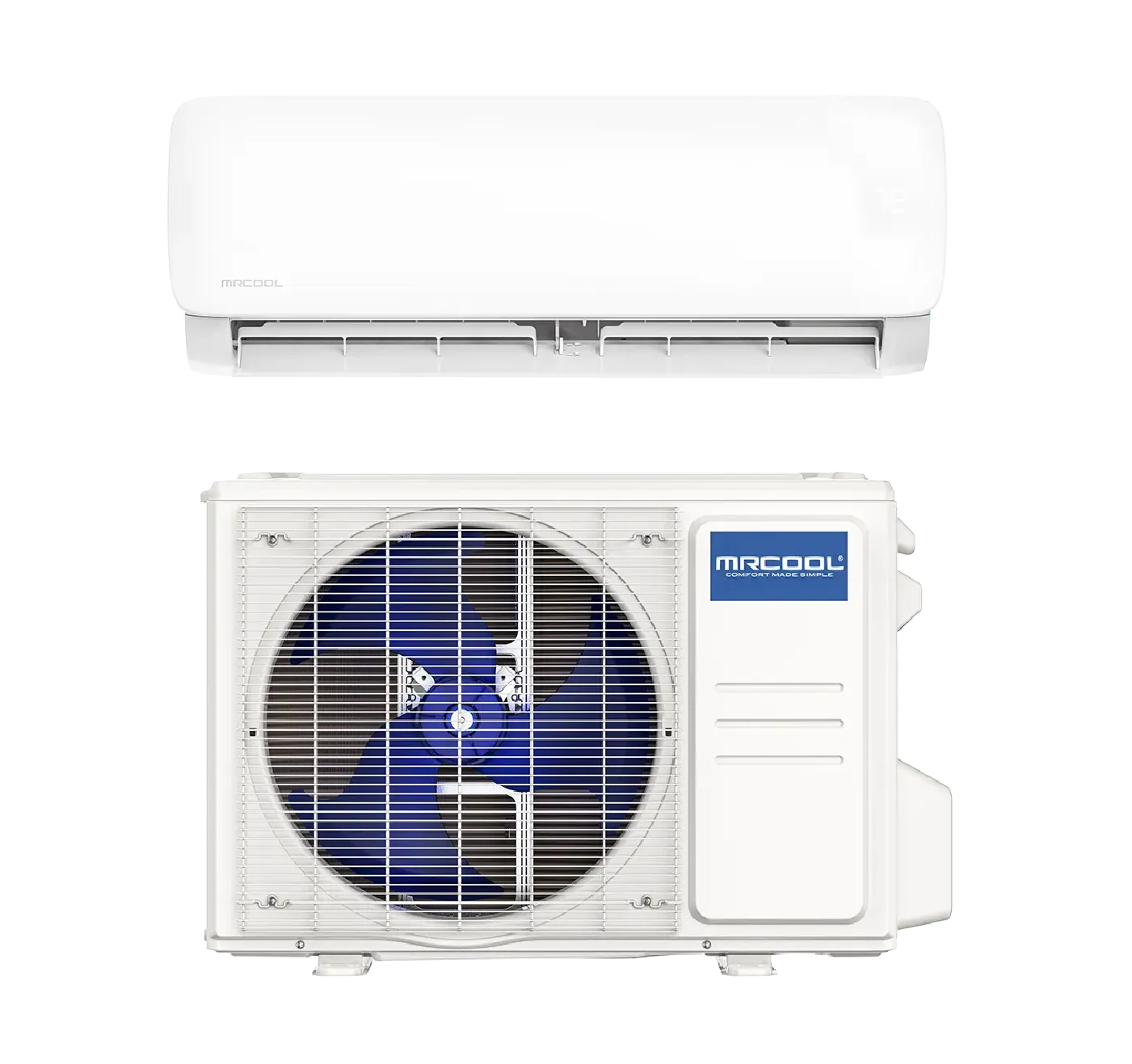

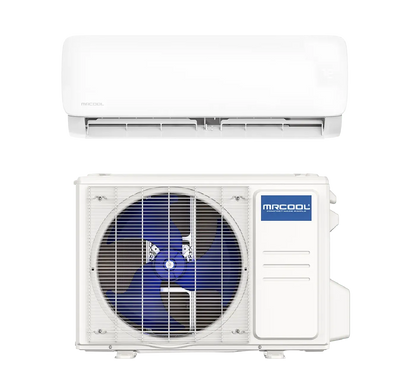

MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 9,000 BTU (0.75TON) 20.2 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System -EZPRO-09-HP-11516D-O

SKU: EZPRO-09-HP-11516D-O

System highlights
AC Type
Wall Mount
Refrigerant Type
R454B
Brand
MRCOOL
Outdoor Unit
9000 BTU VO (0.75 TON)
Indoor Unit
9000 BTU (0.75 TON)
Voltage
115V
Looking For
Wall Mount
Cooling Area (sq.ft.)
250-400
Series
DIY 5th Gen EasyPro
SEER2 Rating
20.2
Includes 16FT line set with purchase.

Price

$1,569.00
Shipping calculated at checkout.
Quantity
View full details
MRCOOL — Wall Mount

MRCOOL DIY Mini Split - EZPRO 5th Gen R454B 9,000 BTU (0.75TON) 20.2 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System -EZPRO-09-HP-11516D-O

MRCOOL DIY Mini Split - EZPRO 5th Gen 9,000 BTU (0.75TON) 20 SEER2 Ductless Air Conditioner and Heat Pump with Quiet Wall Mount, Wi-Fi and includes Pre-Charged 16FT Installation Kit Complete Inverter High Wall System -EZPRO-09-HP-11516D-O


Summary

The MRCOOL® EASY Pro™ Series 9k BTU Mini-Split Systemdelivers affordable, professional-grade comfort for spaces up to 400 sq. ft., combining easy DIY installation with impressive 20.2 SEER2 efficiency. The condenser features a 16' pre-charged Fast Connection® line set for quick, tool-free setup without needing an HVAC technician, while the matching air handler offers sleek, space-saving design with user-friendly smart controls. Together, they create a complete climate solution that's perfect for bedrooms, offices, or specialty spaces like server rooms and greenhouses.

Smart features elevate your comfort with WiFi connectivity for smartphone control, Auto Restart after power outages, and whisper-quiet 54 dB(A) operation. The system excels in extreme conditions with Low Ambient Cooling down to 5°F, while Active Clean Technology and washable filters maintain air quality. Energy-saving Sleep Mode automatically adjusts temperatures overnight, and the 9.2 HSPF2 rating ensures efficient heating performance. Installation is simplified with the pre-charged line set and straightforward electrical connections.

Backed by MRCOOL's reliable warranty coverage (2-year parts, 1-year compressor with registration), this budget-friendly system proves you don't need to sacrifice quality for value. Whether you need year-round comfort for a small space or specialized cooling for sensitive environments, the EASY Pro™ Series delivers professional results with DIY simplicity – making premium comfort truly accessible.

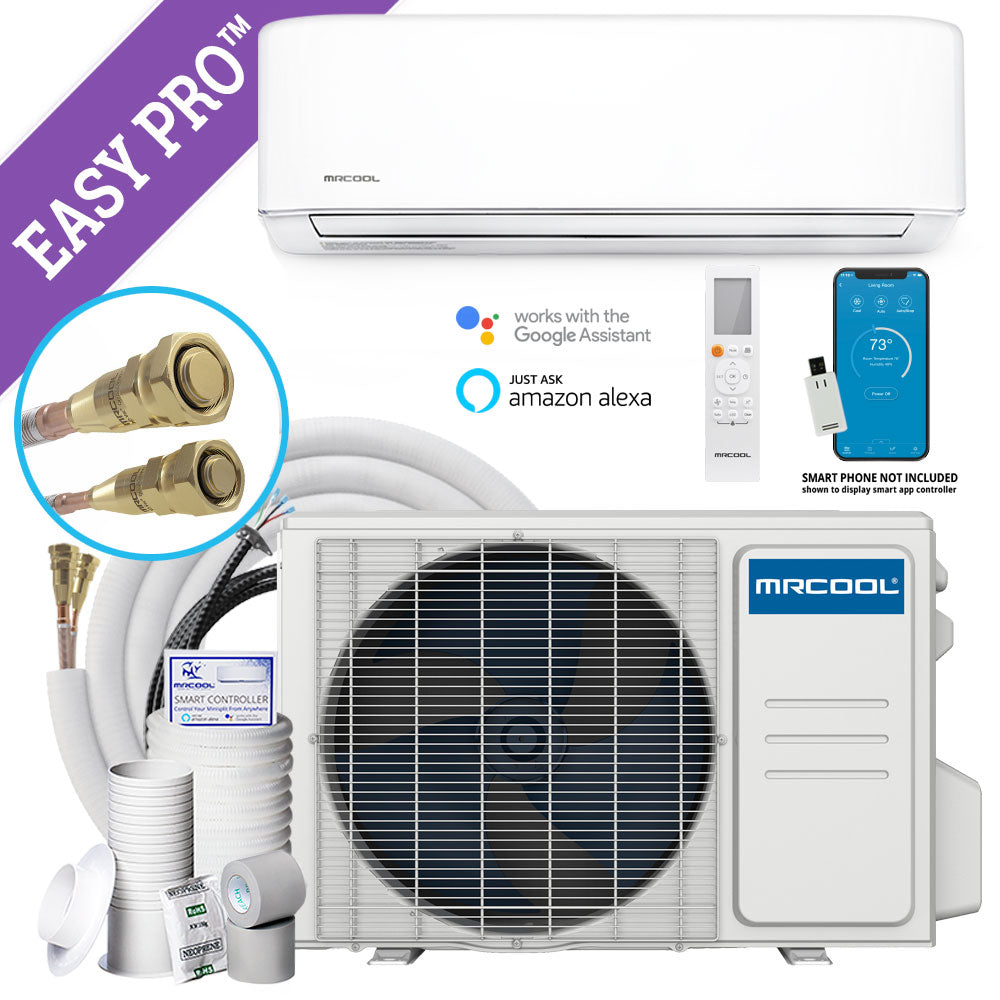

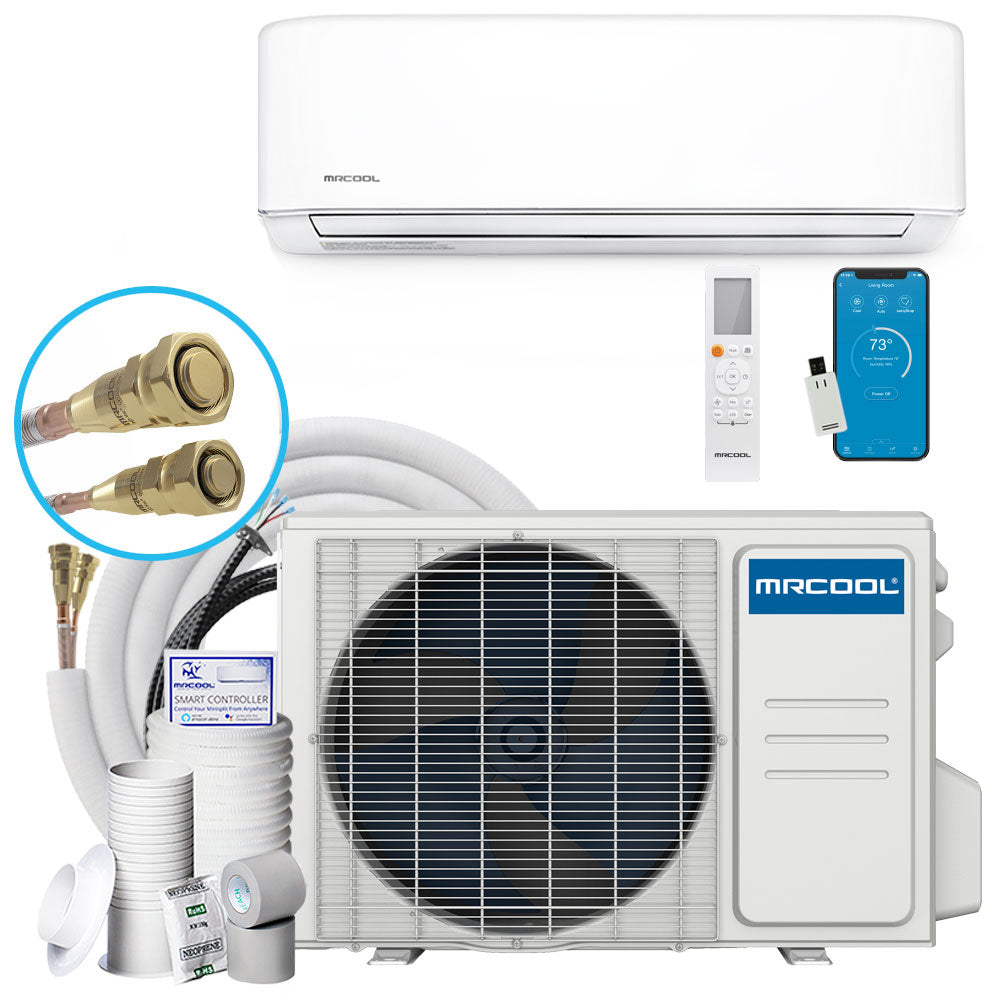

What's Included

  • Indoor Units(MRCOOL® DIY Easy Pro® 09k BTU Ductless Mini-Split Heat Pump Air Handler)
  • Outdoor Unit (MRCOOL® DIY Easy Pro® 09k BTU Ductless Mini-Split Heat Pump Condenser)
  • 16FT Pre-Charged Installation Kit Included
  • Wireless Remote Controls
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Warranty

  • 1 year compressor limited warranty
  • 2 year parts limited warranty

Warranty Information

Warranty Inquiries are handled through MRCOOL athttps://mrcool.com/contact/


Technical Information

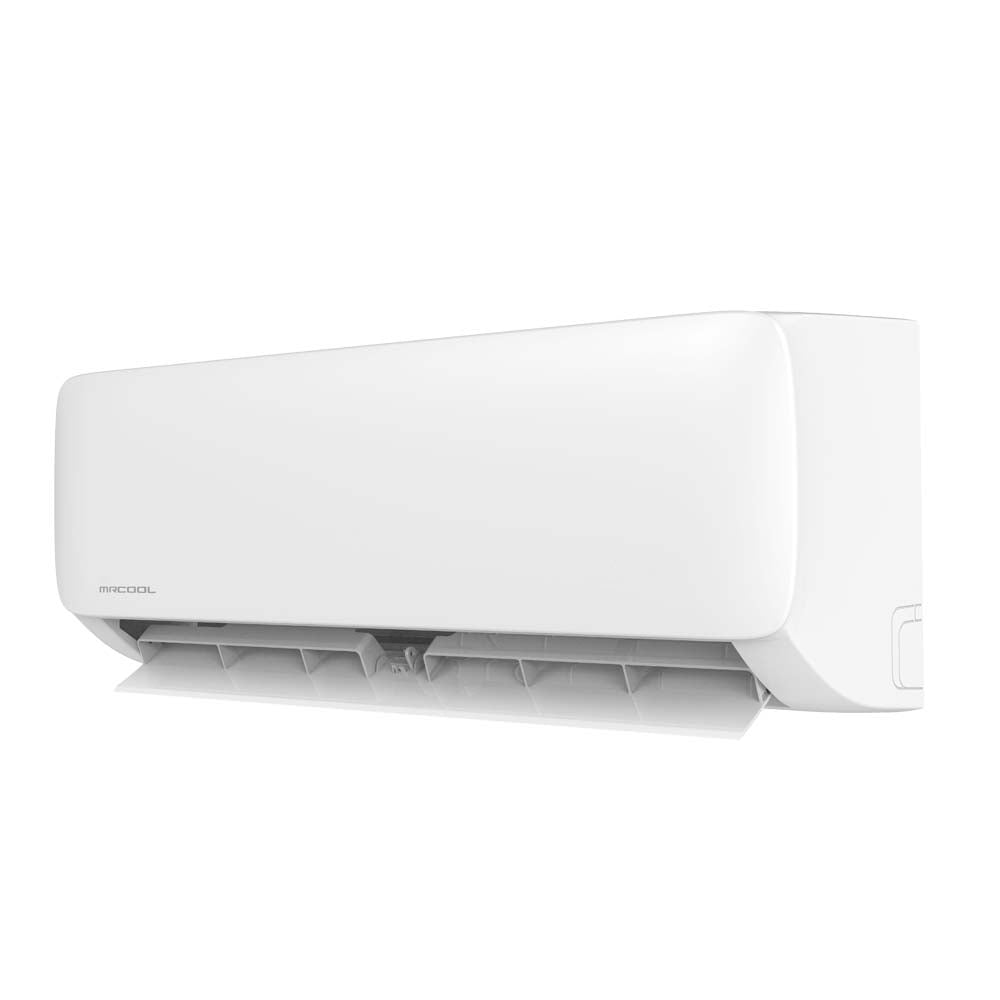

Model Number:EZPRO-09-HP-WMAH-115D-O

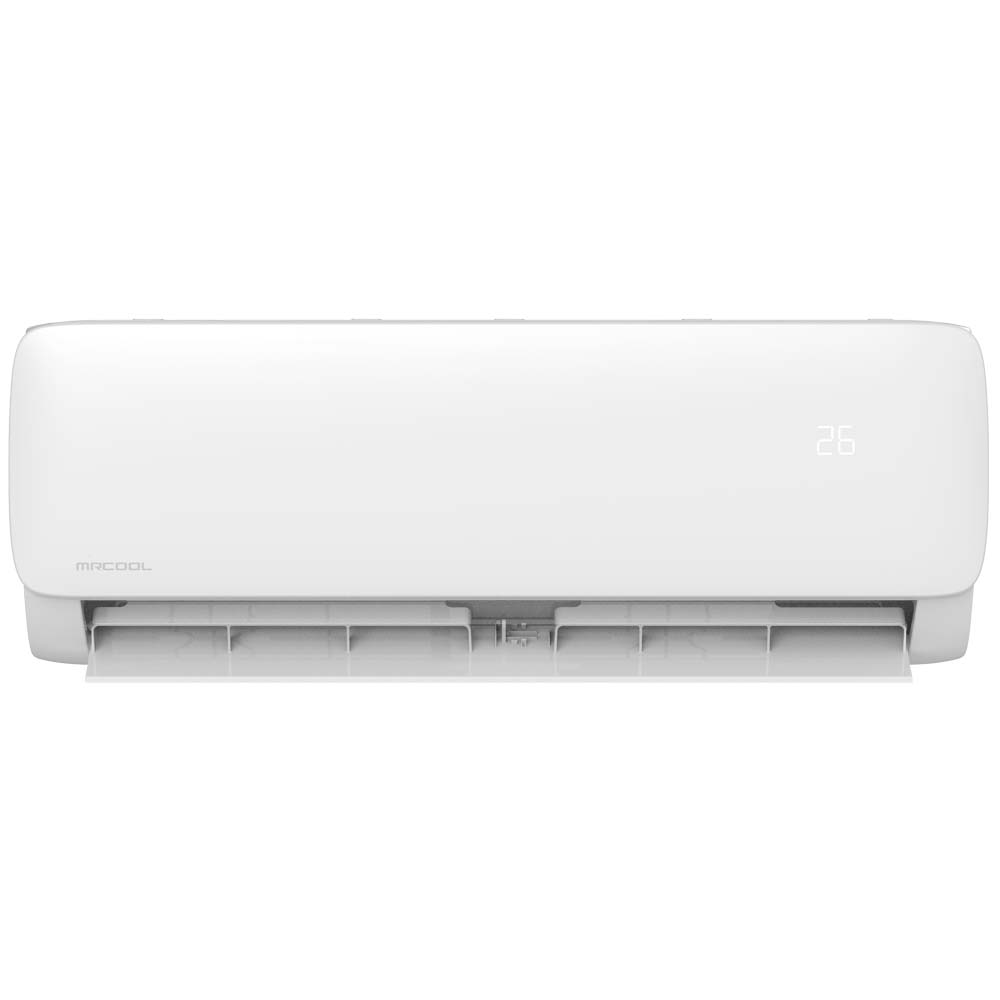

(MRCOOL® DIY Easy Pro® 9k BTU Ductless Mini-Split Heat Pump Air Handler)

BRAND NAME

MRCOOL

SERIES

EasyPro 5th Gen

MODEL

EZPRO-09-HP-WMAH-115D-O

GTIN

00840255586764

UPC

840255586764

UNIT TYPE

Mini-Split

EQUIPMENT TYPE

Air Handler

SHORT DESCRIPTION

EasyPro 5th Generation 9k BTU 115V Air Handler

LONG DESCRIPTION

The MRCOOL® EASY PRO™ Series Mini-Split Air Handler offers a cost-effective, user-friendly solution for those who want reliable heating and cooling without breaking the bank. This DIY mini-split air handler is designed to simplify installation with its innovative, budget-friendly setup, making it the most affordable choice in MRCOOL’s lineup. The sleek EASY PRO™ air handler is ideal for spaces up to 400 square feet, perfect for single rooms, small offices, or server rooms. It’s not just easy to install; it’s also smart. The system is WiFi connected, allowing control from your smartphone, and Active Clean Technology keeps the unit fresh, protecting indoor air quality with easy-to-clean filters. The Auto Restart function ensures continuous comfort by automatically turning the unit back on after a power outage. Additionally, the Sleep Function saves energy overnight, adjusting temperature settings to optimize comfort and efficiency. With whisper quiet operation, this unit runs smoothly without disruption, maintaining comfort without noise. Built to operate even in extreme conditions, it provides Low Ambient Cooling to 5°F, making it perfect for applications that require year-round cooling, such as server rooms or greenhouses. Complete with a 2-year parts warranty and a 1-year compressor warranty, the MRCOOL® EASY PRO™ is a top choice for anyone looking for a budget-friendly, quiet, and efficient air handler they can install themselves. Experience comfort made easy, anytime and anywhere!

FEATURE LIST

  • Easy DIY installation
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Includes features such as timer mode, refrigerant leakage detection, and more
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
  • R-454B refrigerant
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

CFM

312.0 / 235.4 / 170.7 / 135.4 / /

TONNAGE

0.75

COOLING CAPACITY (BTU)

9000

HEATING CAPACITY (BTU)

10000

VOLTAGE (V)

115

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

3

MOUNT TYPE

Wall

COLOR

White

MAX COVERAGE AREA

400 sqft

DECIBEL RATING (DBA)

31

DECIBEL RATING LOW (DBA)

18

DECIBEL RATING HIGH (DBA)

43

NUMBER OF SPEEDS

5

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

3/8

BLOWER MOTOR SPEEDS

3

BLOWER MOTOR RPM

1050/810/690

FILTER TYPE

Reusable

FAN ONLY OPTION

Yes

SLEEP MODE

Yes

AUTO COOL

Yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

UL LISTED

Yes

CSA LISTED

Yes

ETL LISTED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Extended Limited

BASE PARTS WARRANTY

1 Year

BASE COMPRESSOR WARRANTY

2 Years

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

7.87

NET HEIGHT (IN)

11.5

NET WIDTH (IN)

28.7

NET WEIGHT (LBS)

23.81

GROSS DEPTH (IN)

16.14

GROSS HEIGHT (IN)

13.58

GROSS WIDTH (IN)

32.68

GROSS WEIGHT (LBS)

33.95

Model Number:

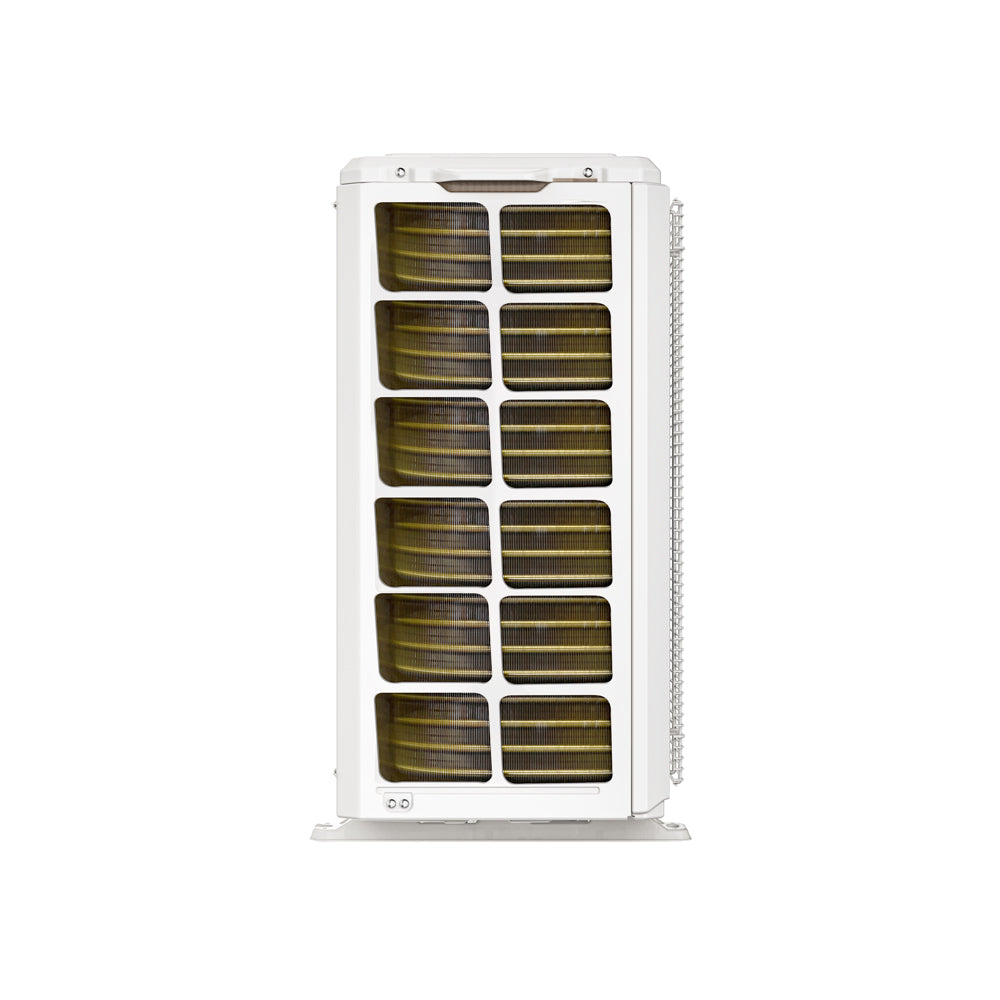

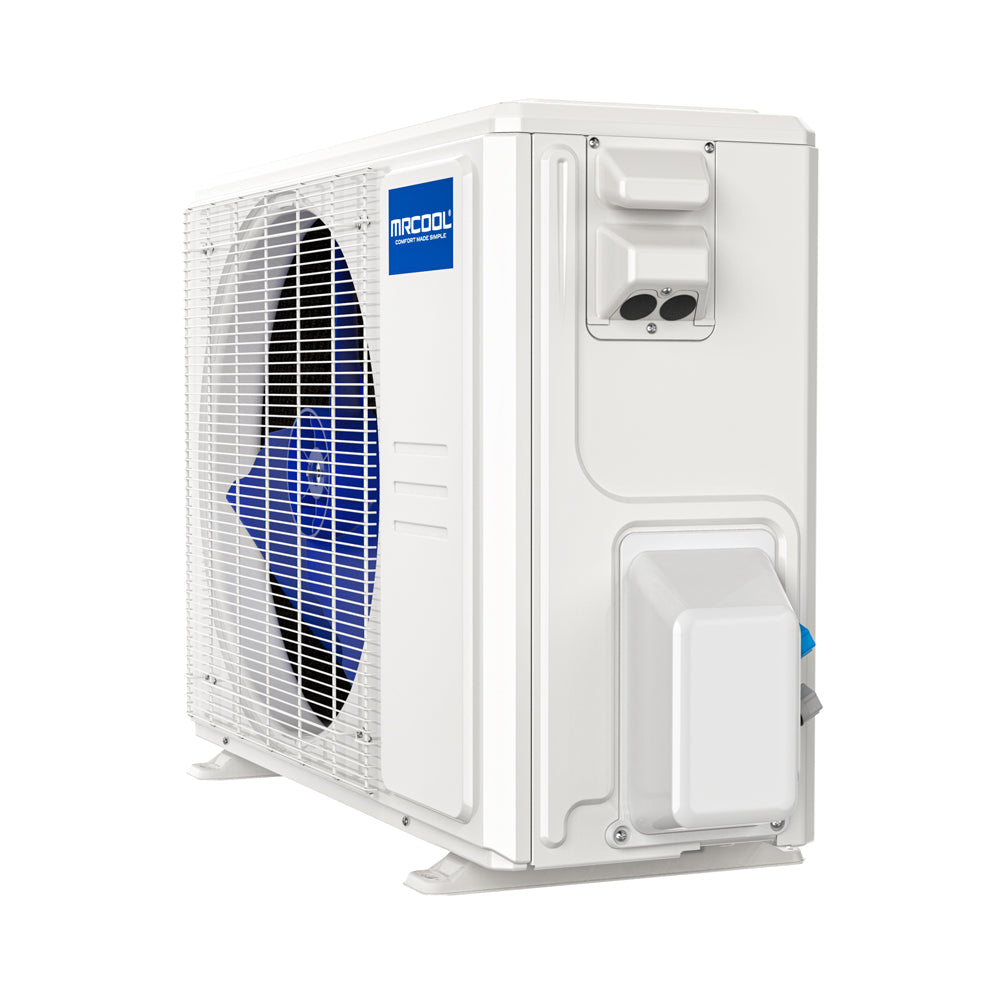

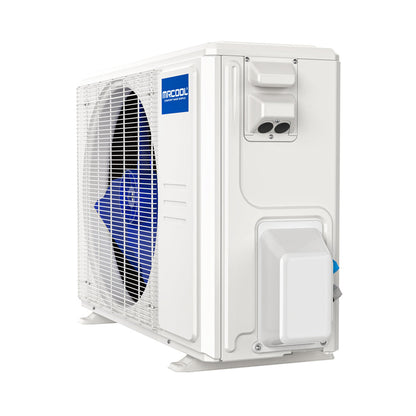

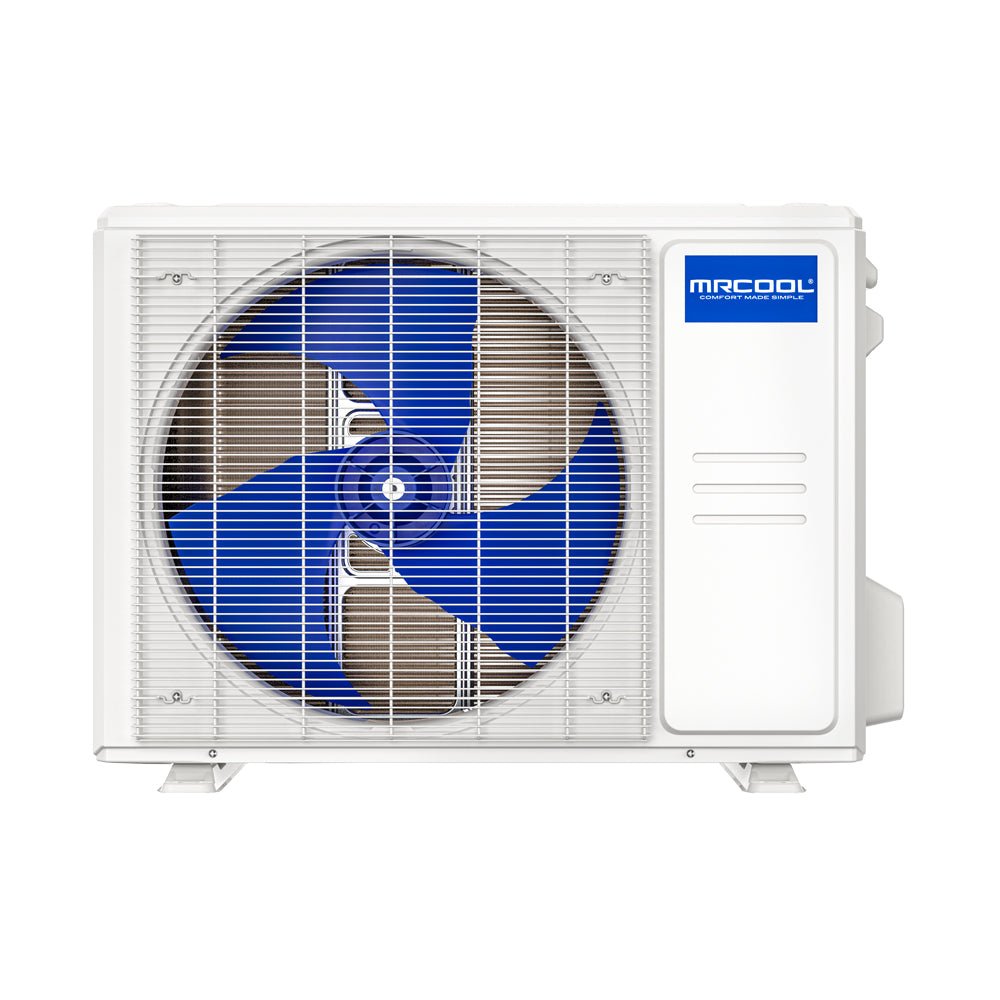

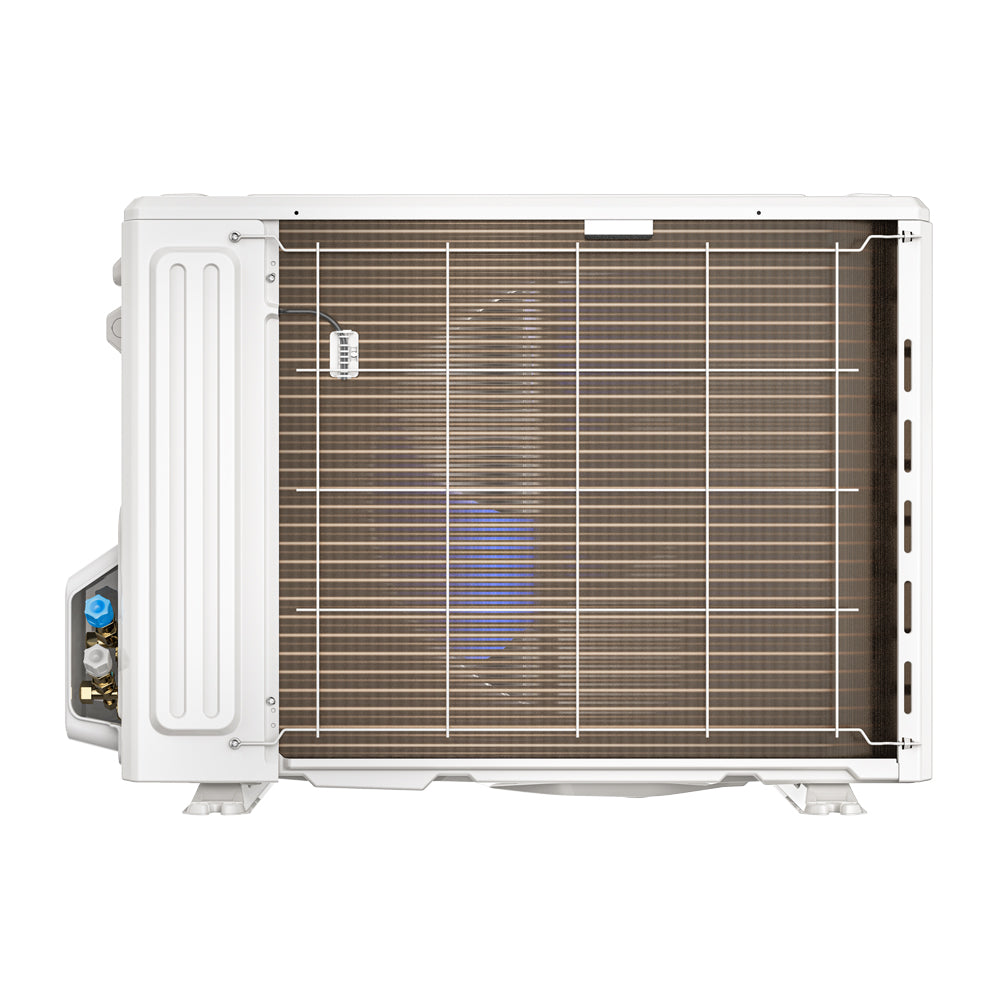

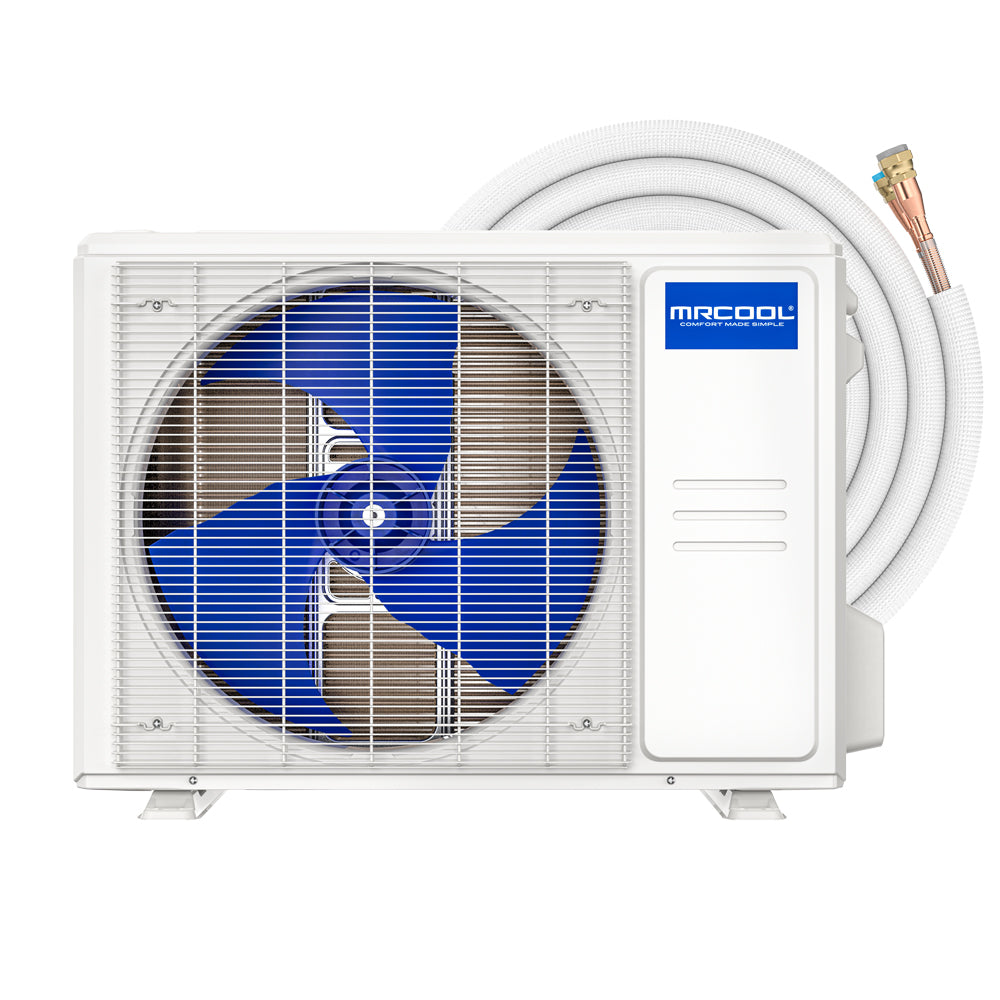

EZPRO-09-HP-C-11516D-O(MRCOOL® DIY Easy Pro® 9k BTU Ductless Mini-Split Condenser)

BRAND NAME

MRCOOL

SERIES

EasyPro 5th Gen

MODEL

EZPRO-09-HP-C-11516D-O

GTIN

00840255586726

UPC

840255586726

UNIT TYPE

Mini-Split

EQUIPMENT TYPE

Condenser

SHORT DESCRIPTION

EasyPro 5th Generation 9k BTU 115V Condenser

LONG DESCRIPTION

The MRCOOL® EASY Pro™ Series 9k BTU Mini-Split Heat Pump Condenser is a budget friendly, convenient and impressive heating and cooling solution for spaces around 400 square feet. Due to the innovative nature of the unit’s do-it-yourself installation, you can have this system operating and bringing you comfort in no time. This capable and durable 20.2 SEER2 and 9.2 HSPF2-4 condenser comes with a 16’ pre-charged Fast Connection® line set, enabling you to install this system in a matter of hours without the assistance of an HVAC professional. You can save time and money with this Easy Pro™ condenser’s accommodating and ingenious design. The Easy Pro™ condenser comes with a variety of features that will help you make the comfort you experience from this system the best heating and air you’ve ever felt. You can connect your system to Wi-Fi, which lets you operate your system from your phone. The system also features an Auto Restart function, allowing you to get right back to enjoying the comfort you want after a power outage. This whisper-quiet unit will deliver comfort to your space without making a racket, as it only reaches 54 dB(A), and due to its Low Ambient Cooling feature, it can provide cooling even when it’s 5°F outside, making it perfect for use in a greenhouse or server room. MRCOOL® has got your back with a 2 year warranty for parts and 1 year warranty for the compressor once you register this condenser online. For a system to enhance your comfort without breaking the bank, choose the MRCOOL® Easy Pro™ condenser. Experience comfort made easy, anytime and anywhere!

FEATURE LIST

  • Easy DIY installation
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Includes features such as timer mode, refrigerant leakage detection, and more
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
  • R-454B refrigerant
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

SEER2

20.2

EER2

11.3

HSPF2-4

9.2

HSPF2-5

7.1

TONNAGE

0.75

COOLING CAPACITY (BTU)

9000

HEATING CAPACITY (BTU)

10000

VOLTAGE (V)

115

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

20

MIN CIRCUIT AMPACITY (A)

17

COLOR

White

ZONE CAPACITY

1

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

17.28

DECIBEL RATING HIGH (DBA)

54

INVERTER

DC

MIN AMBIENT COOL (F)

5

LINESET INCLUDED

Yes

LINE SET LENGTH

16ft

MAX LINESET LENGTH (FT)

82

LIQUID LINE SIZE

1/4

SUCTION LINE SIZE

3/8

COMPRESSOR MOTOR TYPE

Rotary

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

UL LISTED

Yes

CSA LISTED

Yes

ETL LISTED

Yes

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Extended Limited

BASE PARTS WARRANTY

1 Year

BASE COMPRESSOR WARRANTY

2 Years

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

10.63

NET HEIGHT (IN)

19.49

NET WIDTH (IN)

28.35

NET WEIGHT (LBS)

54.67

GROSS DEPTH (IN)

10.63

GROSS HEIGHT (IN)

21.26

GROSS WIDTH (IN)

32.87

GROSS WEIGHT (LBS)

66.58

INSTALL MANUAL

Open

REMOTE MANUAL

Open
