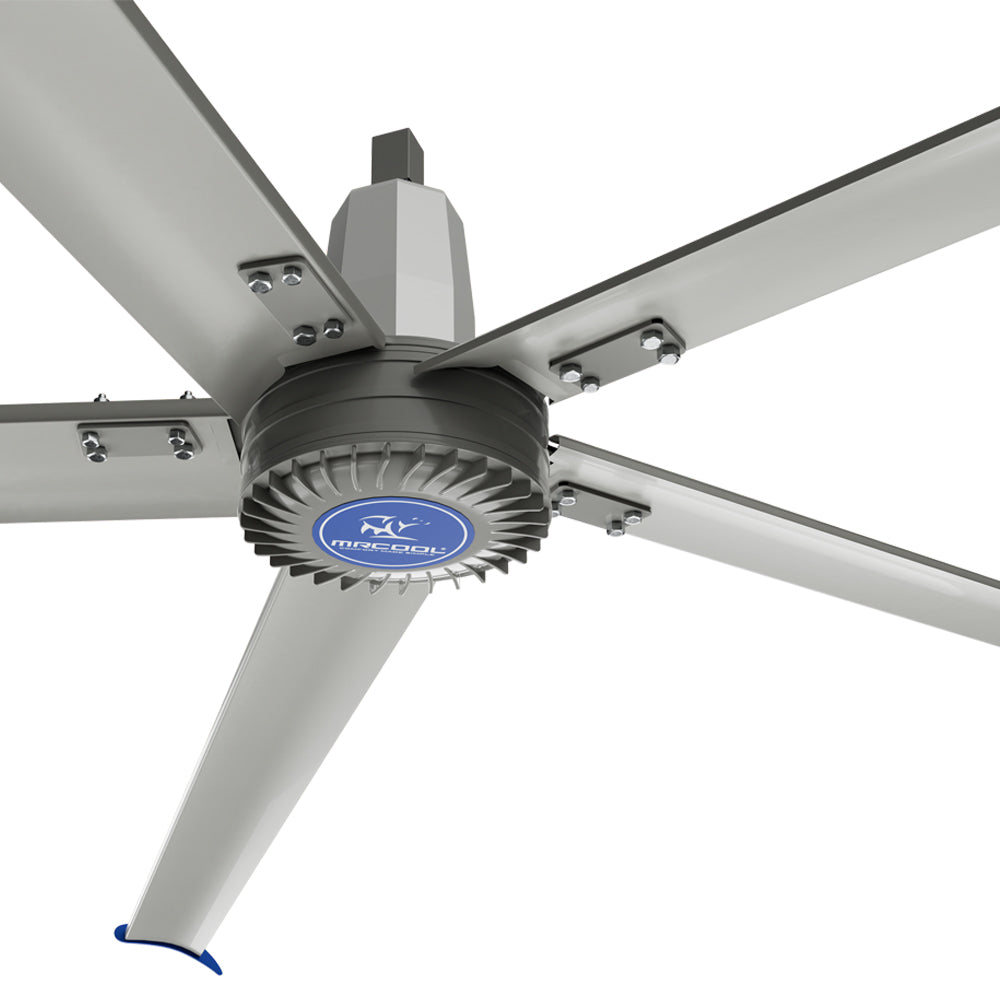

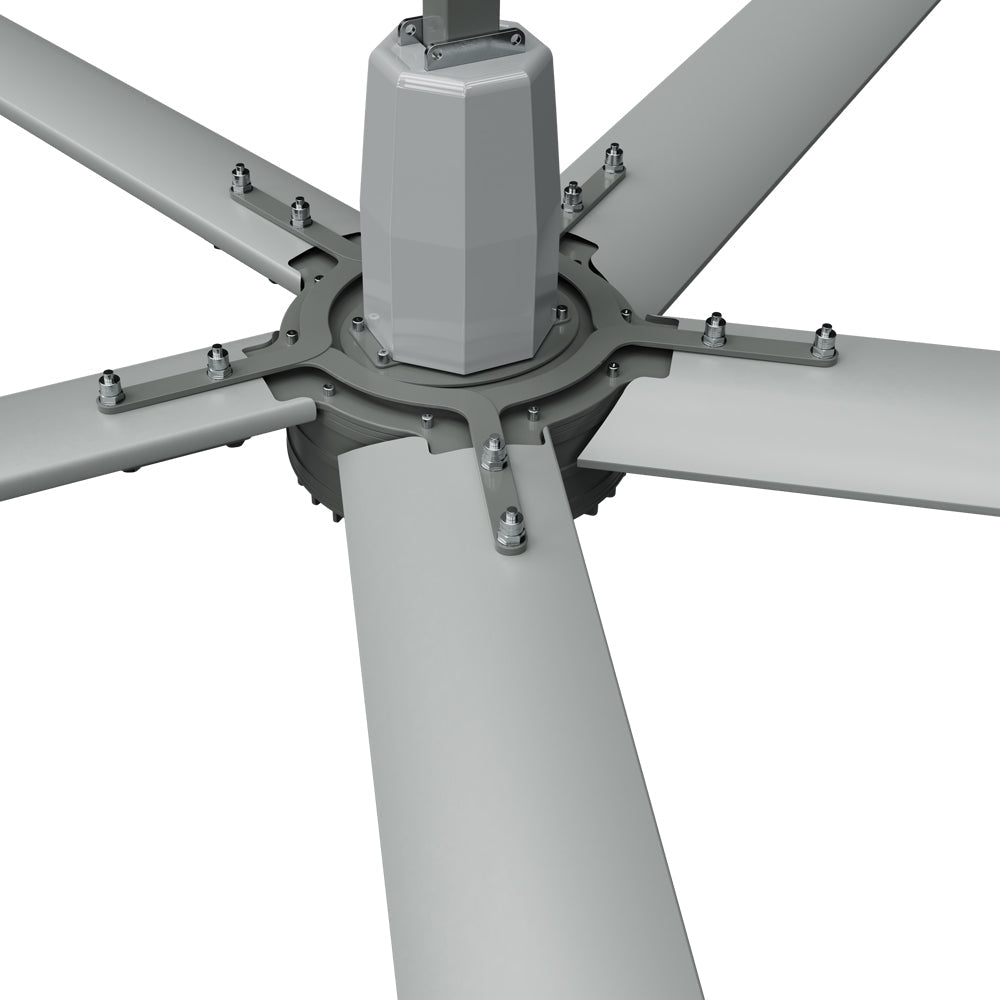

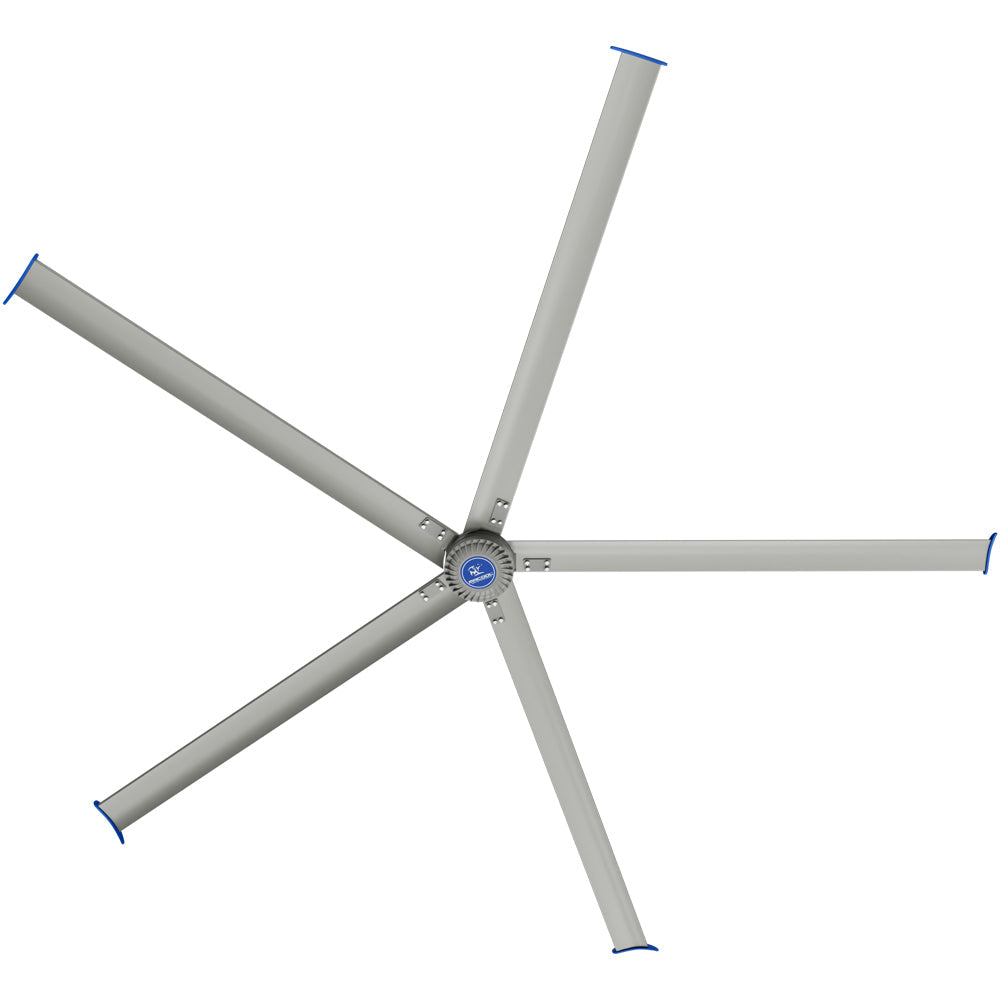

MRCOOL CoolBlade Industrial HVLS 16 Foot Diameter Commercial Fan | MCFAN16PBGR
CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS
CLICK TO CALL US 800-543-8933 FOR ANY QUESTIONS
MRCOOL CoolBlade Industrial HVLS Fan | MCFAN16PBGR
Summary
The MRCOOL® CoolBlade Industrial HVLS Fan delivers powerful air circulation for large spaces with whisper-quiet operation at only 38 dBA. Designed with a rugged magnesium alloy blade structure, advanced safety mechanisms, and IP66-rated controls, it ensures reliable performance in demanding industrial environments. With a maximum coverage area of 1,640 sq. ft., this high-volume, low-speed fan provides energy-efficient comfort while maintaining a sleek and durable build. Backed by a 2-year base parts warranty, it’s the ideal solution for warehouses, factories, gyms, and more.
Important
Professional installation recommended. Compatible with multiple mounting options including I-beam, square steel, and concrete. Ensure compliance with local electrical codes. IP66-rated controls provide added protection against dust and moisture.
What's Included
- CoolBlade Industrial HVLS Fan (Model MCFAN16PBGR)
- Mounting Bracket (for I-beam, square steel, or concrete)
- Digital Display Control Box
- Push-Button Speed Controller
- Installation Manual
- Warranty Information
Key Features
- Reinforced Magnesium Alloy Blades for durability
- Integrated Motor Bracket and Anti-Falling Expansion Sleeve
- Steel Wire Safety Rope for added protection
- Electrical Overload Protection
- Locking Control Box with Emergency Stop
- Push-Button Speed Control with Four-Button Operation
- Digital Display with IP66-rated Protection
- Mounting versatility – I-beam, square steel, or concrete
- Quiet Performance – only 38 dBA
Complete Technical Specifications
| Brand | MRCOOL |
| Series | CoolBlade Industrial HVLS Fan |
| Model | MCFAN16PBGR |
| UPC | 840255582735 |
| Voltage | 220-240V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Coverage Area | 1,640 sq. ft. |
| Decibel Rating | 38 dBA |
| Number of Blades | 5 |
| Motor Weight | 48.5 lbs |
| Fan Weight | 136.7 lbs |
| Air Volume | 10,000 m³/min |
| Mounting Options | I-beam, square steel, concrete |
Warranty Information
- Base Parts Warranty: 2 Years
Manuals & Certifications
Advanced Design
Engineered with industrial-grade materials, the CoolBlade HVLS Fan combines high airflow efficiency with minimal noise. Its reinforced magnesium alloy blades are designed to withstand demanding environments, while the steel wire safety rope and anti-falling expansion sleeve enhance operational safety.
Control System
The integrated push-button speed control with four-button operation allows precise airflow adjustment. The IP66-rated digital display ensures long-lasting protection against dust and moisture, making it ideal for warehouses, gyms, and manufacturing facilities.
