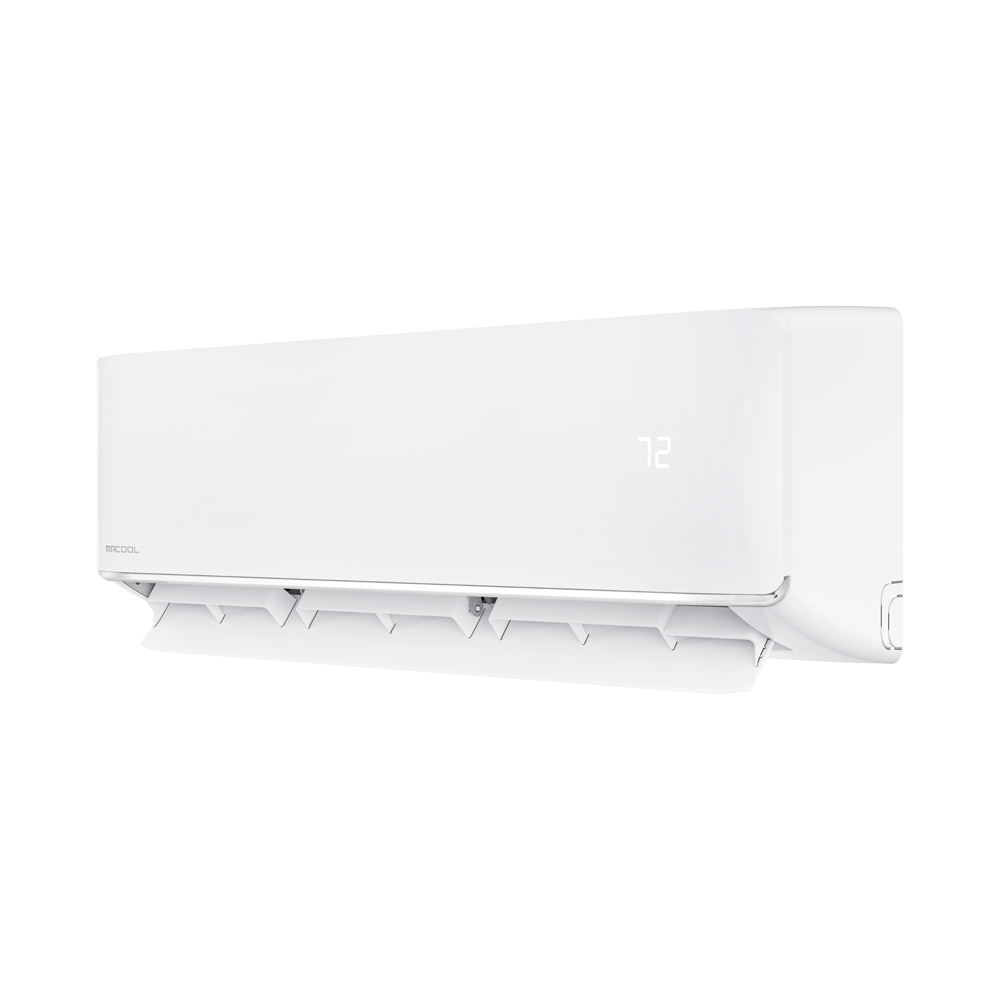

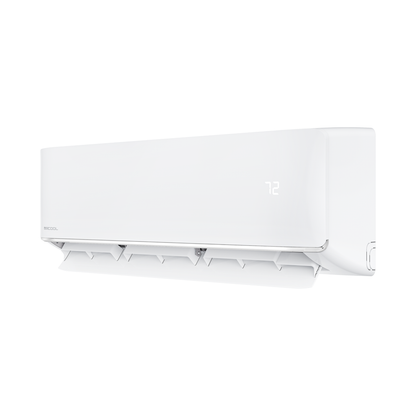

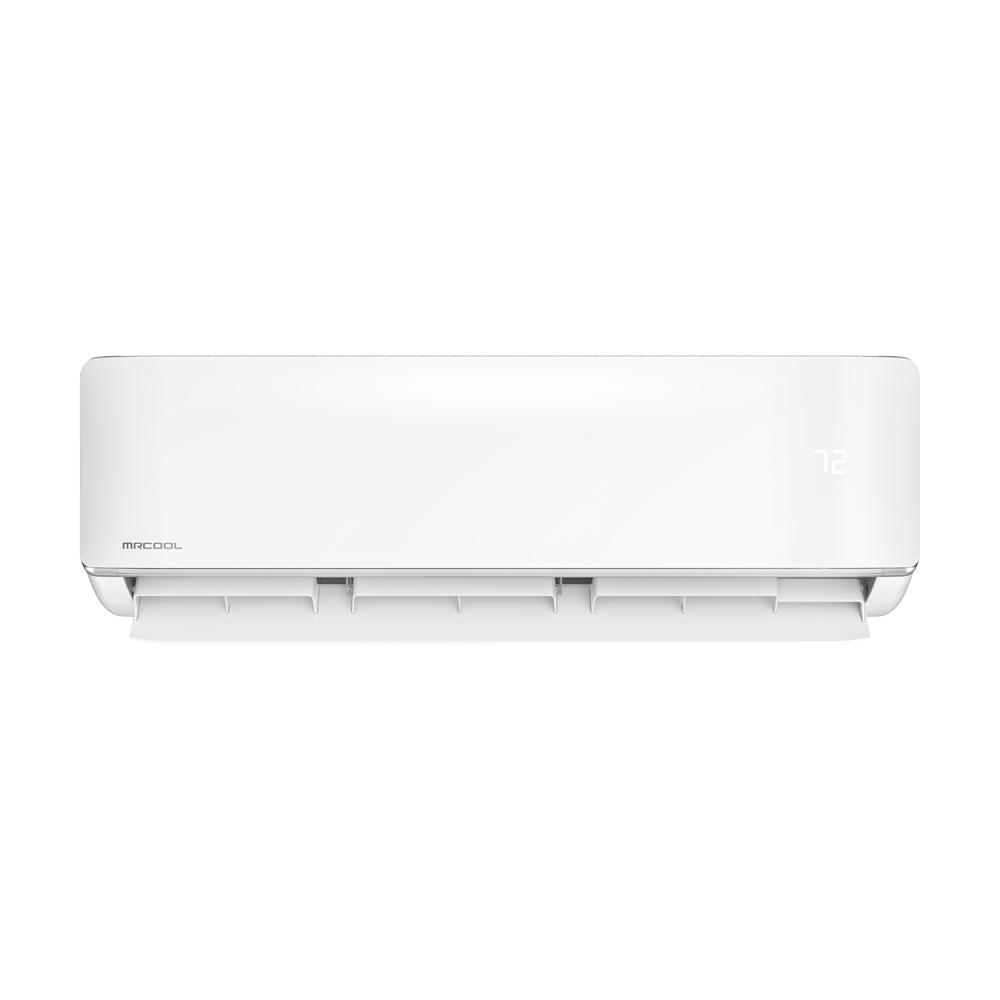

MRCOOL 9,000 BTU 5th Gen DIY Multi-Zone Wall Mounted Air Handler | R-454B - DIY-09-HP-WMAH-230D25-O
Summary
The 5th Generation MRCOOL® DIY® 9K BTU 22.5 SEER Ductless Mini-Split Heat Pump is a highly efficient solution for heating and cooling areas up to 400 sq. ft. Designed for easy DIY installation, this system eliminates the need for specialized tools or professional help, featuring a pre-charged 25-foot DIY® QuickConnect® line set (sold separately) with R-454B refrigerant that removes the need for vacuuming. With multiple control options including wireless remote, SmartHVAC app, and voice commands via Amazon Alexa/Google Assistant, this system offers year-round comfort with innovative features.
Important
This DIY system is designed for easy installation without professional help. Registration is recommended to activate the extended limited lifetime warranty. This air handler must be installed with a compatible condenser and line set for proper operation.
What's Included
- 9,000 BTU Wall Mounted Air Handler (Model DIY-09-HP-WMAH-230D25-O)
- Wireless Remote Control
- DIYPRO® Cable
- Installation Manual
- User's Manual
- Manufacturer Warranty Information
Features
- True DIY installation - no specialized tools or professional help needed
- WiFi capable using SmartHVAC app, Google Home, or Alexa
- Follow Me® function tracks remote location for optimal comfort
- Dry Mode for humidity control
- Gold Fin® Condenser for superior corrosion resistance
- Pre-charged QuickConnect® line set compatible (sold separately)
- 22.5 SEER rating for high efficiency
Technical Specifications
| SKU | DIY-09-HP-WMAH-230D25-O |
| UPC | 840255587020 |
| Weight | 24.47 lbs |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Maximum Coverage | 400 sq. ft. |
| Refrigerant | R-454B |
| Electrical | 208/230V 1 Phase 60 Hz |
| Dimensions (HxWxD) | 11.69" x 31.57" x 7.44" |
Performance Data
| SEER Rating | 22.5 SEER |
| Heating Type | Heat Pump |
| Noise Level | Quiet Mode Available |
Warranty
- Extended Limited Lifetime warranty with registration
- 7 year compressor warranty
- 5 year parts warranty
Manuals & Downloads
Safety Information
PROPOSITION 65 WARNING
Smart Control Options
The MRCOOL DIY® system offers multiple ways to control your comfort. Use the included wireless remote with its LCD display, the SmartHVAC app for iOS and Android devices, or voice commands through Amazon Alexa and Google Assistant. The Follow Me® function enhances comfort by adjusting airflow based on the remote's location, ensuring even temperature distribution throughout your space.
DIY Installation
This 5th Generation MRCOOL DIY® system is designed for easy installation without professional help. The DIYPRO® cable eliminates the need for electrical conduit, while the pre-charged QuickConnect® line set (sold separately) removes the need for vacuuming during installation. The Gold Fin® condenser provides superior corrosion resistance, making it ideal for coastal environments and ensuring long-term durability.
