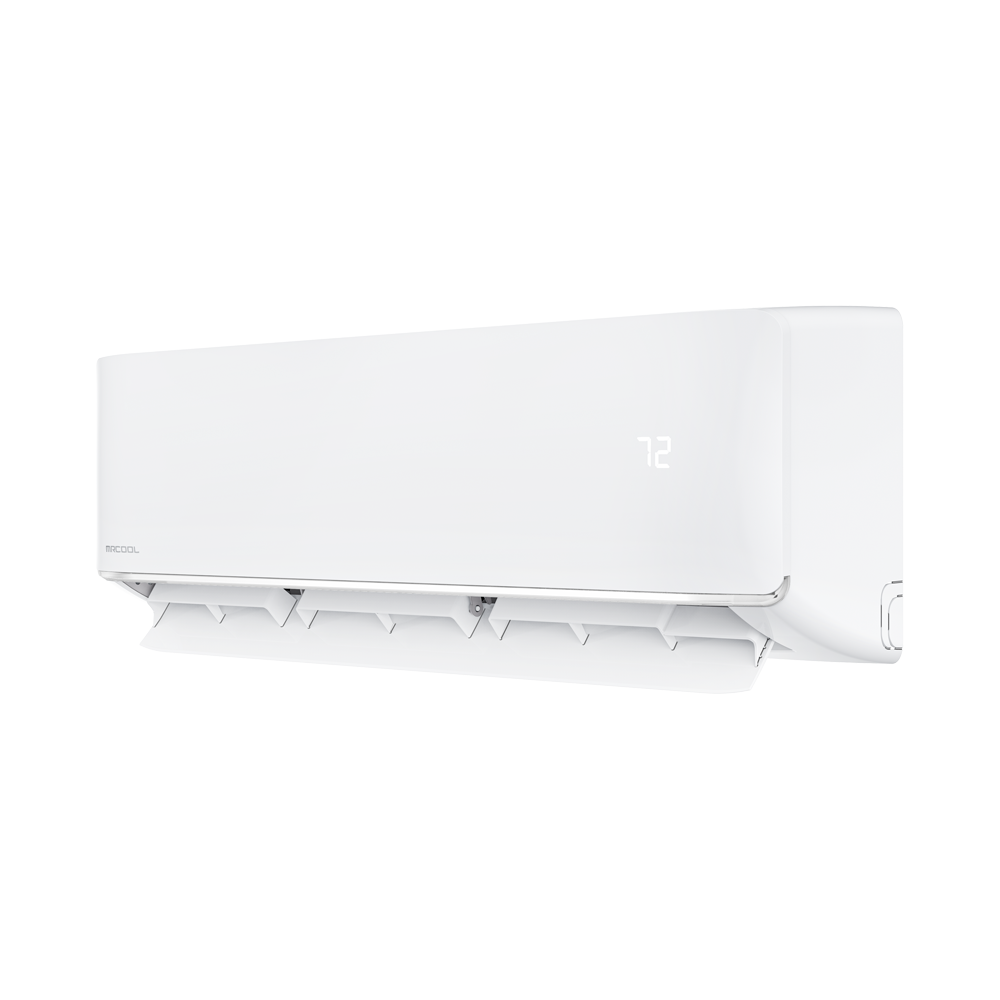

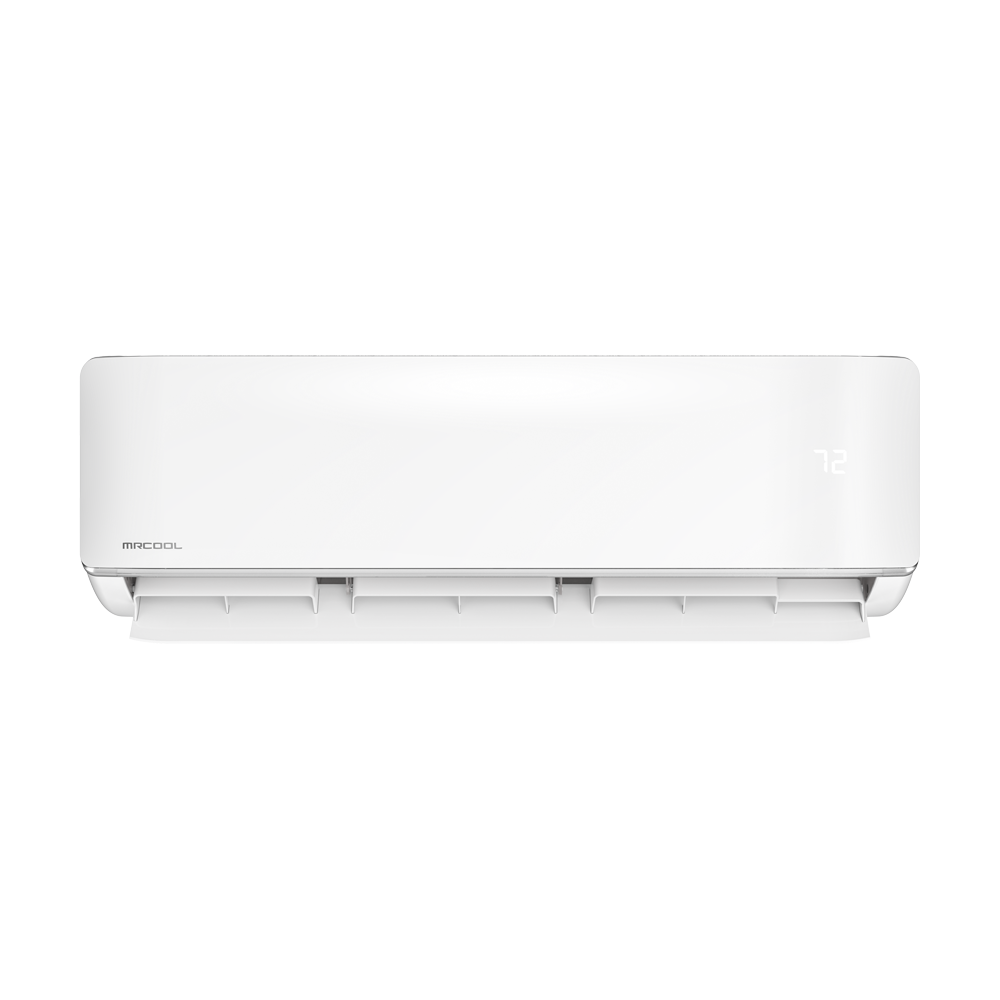

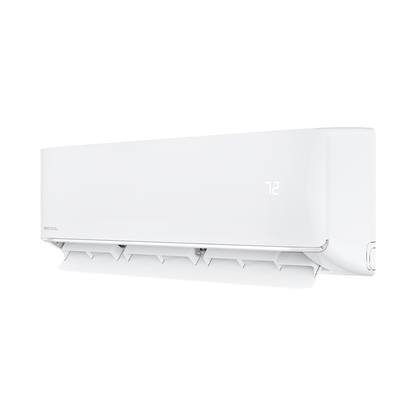

MRCOOL 6k BTU DIY 5th Generation Wall Mounted Multi-Zone Air Handler 230V | DIY-06-HP-WMAH-230D25-O
Summary
The MRCOOL® DIY® 5th Generation 6K BTU Ductless Heat Pump Mini-Split Air Handler is designed for easy installation with no special tools or prior experience required. This system effectively heats or cools spaces up to 200 sq. ft. and features the innovative Follow Me function that adjusts airflow temperature based on the remote's location. With SmartHVAC app compatibility and voice control via Amazon Alexa and Google Assistant, this unit offers modern convenience and year-round comfort.
Important
This DIY system is designed for homeowner installation but must be installed according to all local codes and regulations. The pre-charged 25-foot DIY® QuickConnect® line set is sold separately. Registration is recommended to activate your warranty coverage.
What's Included
- 6,000 BTU Wall Mounted Air Handler (Model DIY-06-HP-WMAH-230D25-O)
- Wireless Remote Control with Follow Me function
- DIYPRO® cable (eliminates need for electrical conduit)
- Installation Manual
- User's Manual
- Manufacturer Warranty Documentation
Features
- True DIY installation with no special tools or vacuum pump required
- SmartHVAC app compatible (iOS and Android)
- Voice control via Amazon Alexa and Google Assistant
- Follow Me function adjusts temperature based on remote location
- Dry Mode acts as a dehumidifier
- Gold Fin® Condenser for superior corrosion resistance
- Quiet operation with multiple fan speeds
- Auto Cool and Fan Only options
Technical Specifications
| SKU | DIY-06-HP-WMAH-230D25-O |
| GTIN/UPC | 00840255587013 / 840255587013 |
| Weight | 24.47 lbs (Net), 35.05 lbs (Gross) |
| Cooling BTU | 6,000 BTU |
| Coverage Area | Up to 200 sq. ft. |
| Voltage | 208/230V |
| Phase | 1 |
| Frequency | 60 Hz |
| Refrigerant | R-454B |
| Dimensions (HxWxD) | 11.69" x 31.57" x 7.44" |
Certifications
- Intertek listed (5031495)
- UL Listed
- ETL Listed
- AHRI Certified
Warranty
- Limited Lifetime Warranty*
- 7-year compressor warranty
- 5-year parts warranty
*With proper registration
Manuals & Downloads
Safety Information
PROPOSITION 65 WARNING
Smart Control Options
The MRCOOL DIY 5th Generation system offers multiple control options including the included wireless remote with Follow Me technology, the SmartHVAC app for iOS and Android devices, and voice control through Amazon Alexa and Google Assistant. The Follow Me function uses the remote's built-in temperature sensor to adjust airflow based on your exact location in the room, ensuring personalized comfort wherever you are.
Easy Installation
Designed specifically for DIY installation, this system eliminates the need for specialized tools or a vacuum pump. The included DIYPRO® cable provides durable protection against outdoor elements while removing the need for electrical conduit. While the pre-charged 25-foot QuickConnect line set is sold separately, it makes installation faster and more cost-effective by eliminating the need for refrigerant charging during setup.
