MRCOOL Signature Series 5 kW Heat Kit with Circuit Breaker - MCAEHFD5X1BA
Overview
5 kW
208/230/240V
Single Phase
60 Hz
Circuit Breaker Included
TruInverter Compatible

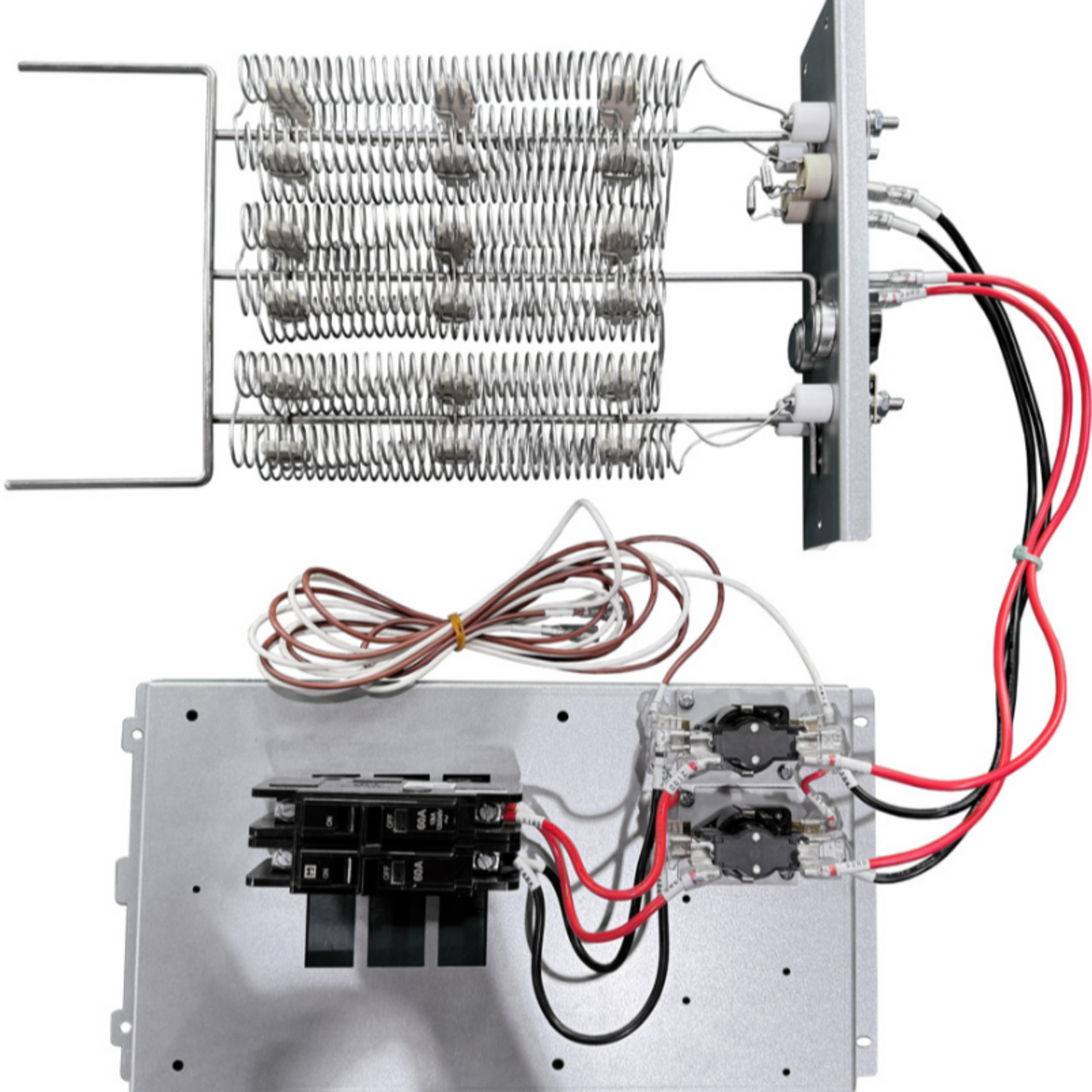

5kW Heat Kit with Circuit Breaker for TruInverter series. This electric heat kit adds supplemental heat capacity for compatible MRCOOL Signature Series TruInverter air handlers.
Key Specs
Heat Output
5 kW
5 kW
Electrical
208/230V - 1 Phase - 60 Hz
208/230V - 1 Phase - 60 Hz
MCA (230V)
24.95A @230V
24.95A @230V
Max Fuse / Breaker
30A
30A
Electrical Data
| Model | MCAEHFD5X1BA |
| Heat Capacity | 5 kW |
| Staging | Single-stage |
| Min Circuit Ampacity (MCA) | 22.6A @208V - 24.95A @230V - 26A @240V |
| Max Fuse / Breaker (HACR) | 25A @208V - 30A @230V - 30A @240V |
| Supply Voltage | 208/230/240V, 1 Phase, 60Hz |
| Installation Type | Multi-position air handler applications |
Compatible Air Handlers
- MCAEAMPVT24D21BA
- MCAEAMPVT36D21BA
- MCAEAMPVT48F21BA
- MCAEAMPVT60F21BA
Confirm final selection using load calculations and electrical service capacity.
Installation Notes
- Installation and wiring should be completed by qualified personnel.
- Disconnect all power before service or installation.
- Use copper supply conductors and follow local electrical code.
- Verify breaker terminal torque and wiring diagram before startup.
Documents & Downloads
FAQs
Does this include a circuit breaker?
Yes. This heat-kit model includes circuit breaker provisioning for the listed configuration.
Can this be used with any air handler?
Use only with compatible Signature Series TruInverter air handlers listed on this page.
How should I select the correct kW size?
Choose the kW size based on design heating load, equipment compatibility, and available electrical service.
