MRCOOL — VersaPro® R-454B Package Gas
MRCOOL VersaPro® 5 Ton 110,000 BTU Packaged A/C & Gas Unit (R-454B) — MPG60S110MO13C
Overview
5 Ton Cooling
110,000 BTU Gas Heat
13.4 SEER2
81% AFUE
R-454B Refrigerant
Downflow / Horizontal
LP Kit Included
ECM Blower
TheMRCOOL® VersaPro® MPG60S110MO13Cis a packaged A/C & gas unit built for dependable year-round comfort. It pairs a13.4 SEER2cooling section with an81% AFUEgas furnace and usesR-454Brefrigerant. A power-painted galvanized steel cabinet supports long-term durability, while the horizontal discharge design helps reduce perceived outdoor noise. Internally,microchannel coilconstruction and anECM blower motorhelp promote efficient heat transfer, consistent airflow, and steady temperature control.
Fuel type:Natural Gas / Propane (LP conversion kit included).
Highlights
- Cooling efficiency:13.4 SEER2 / 11 EER2.
- Heating efficiency:81% AFUE gas heat with 110,000 BTU input.
- Refrigerant:R-454B (lower GWP than older refrigerants).
- Blower:ECM motor for smoother airflow and comfort consistency.
- Coil design:microchannel aluminum construction for corrosion resistance and durability.

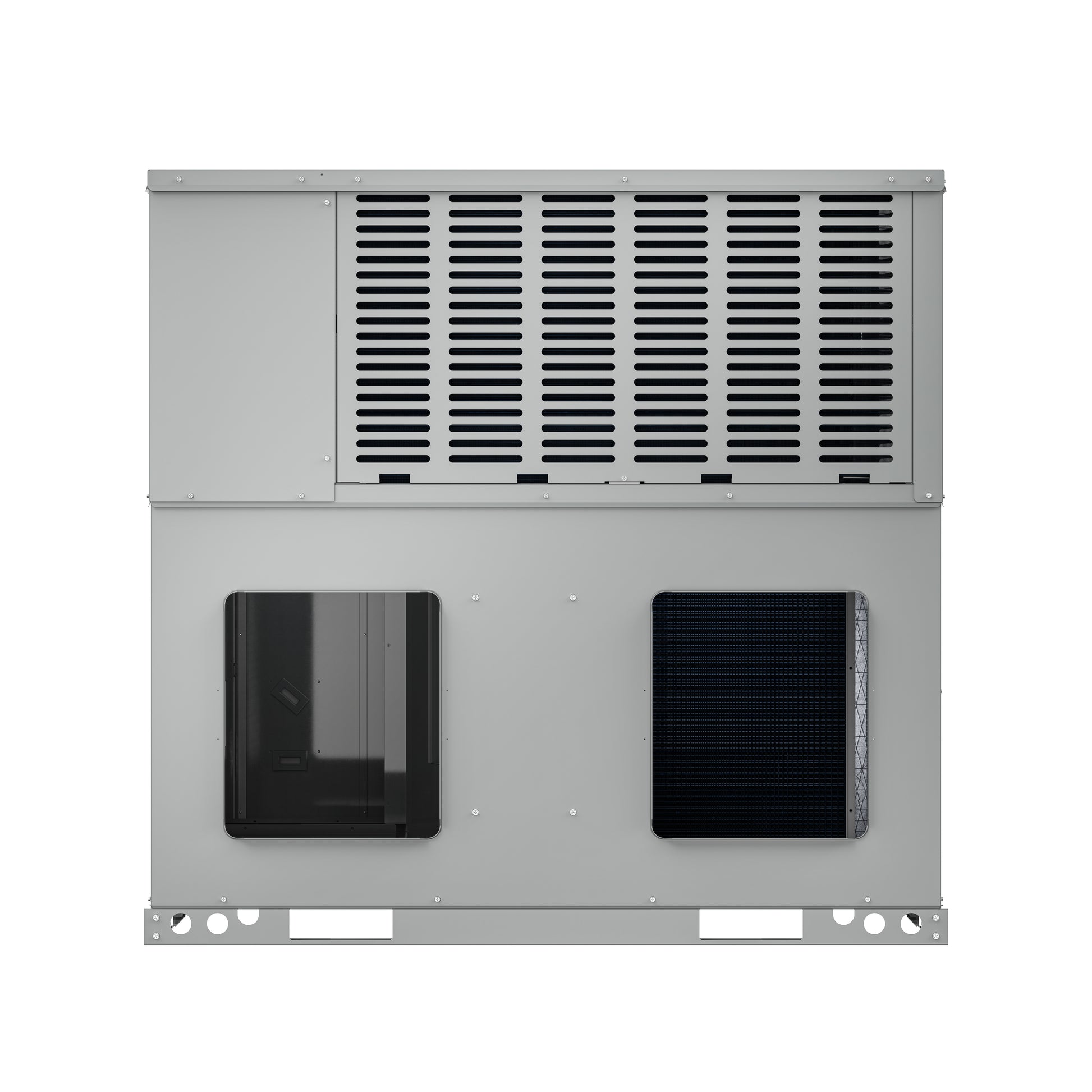

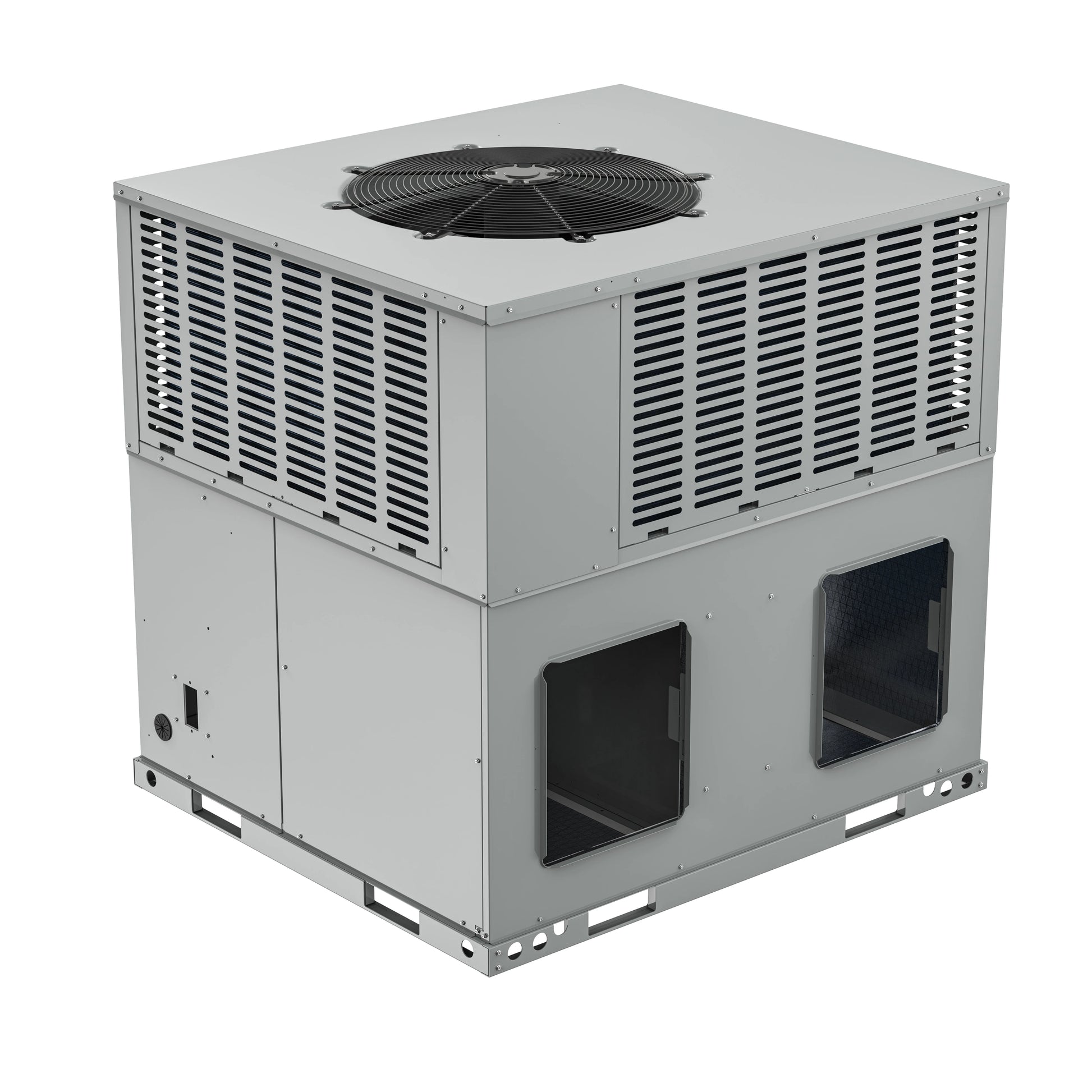

- Install flexibility:downflow or horizontal configurations.
- Propane capable:LP kit included.
What’s Included
- Packaged A/C & gas unit:MPG60S110MO13C
- LP conversion kit(included)
Performance & Electrical
| Cooling | 5 Ton • 57,000 BTU |
| Heating | 110,000 BTU Input • 88,000 BTU Output • 81% AFUE • 1 Stage |
| Efficiency | 13.4 SEER2 • 11 EER2 |
| Airflow | 1800 CFM |
| Power | 208/230V • 1 Phase • 60 Hz |
| Max Fuse / Breaker | 60A |
| Minimum Circuit Ampacity | 41.4A |
| Refrigerant | R-454B • 60 oz |
| Sound Level | 80 dBA |
| Min Ambient Cooling | 64.4°F |
Connections & Components
| Control Type | 24V Thermostat |
| Gas Connection | 1/2" |
| Drain Connection | 3/4" |
| Compressor | Scroll (non-inverter) |
| Condenser Fan | PSC • 1/3 HP • 1070 RPM |
| Blower Motor | ECM • 3/4 HP • 4 Speeds |
| Ignition | Direct Spark Ignition |
| Metering Device | Piston |
| Burners | 7 |
Dimensions & Weight
| Net | 51.56" W × 49.75" D × 44.81" H • 562 lb |
| Gross | 52.125" W × 52.375" D × 45.25" H • 584 lb |
Documents & Downloads
Important
- Fuel:Natural gas or propane (LP kit included).
- Install orientation:Downflow or horizontal.
- Warranty:Base coverage listed as5-year parts / 20-year heat exchanger. Registered coverage listed as10-year parts / heat exchanger.
- Electrical:208/230V single phase; confirm breaker sizing and local code requirements before installation.
FAQs
Is this unit compatible with natural gas and propane?
Yes—this model supportsnatural gasandpropane, and anLP conversion kit is included.
What installation orientations are supported?
Supportsdownflowandhorizontalinstallation configurations.
What thermostat does it use?
It’s designed for a standard24V thermostatcontrol setup.
What are the key efficiency ratings?
Rated at13.4 SEER2and11 EER2for cooling, with81% AFUEfor the gas furnace.
What electrical circuit is typically required?
The unit is listed at208/230V, with a60A max fuse/breakerand41.4A minimum circuit ampacity. Always size wiring and protection per local code and the installation manual.
