MRCOOL 4 Ton VersaPro® Central Ducted Heat Pump Condenser | R-454B – MVP-48-HP-C-230A00-O
Summary

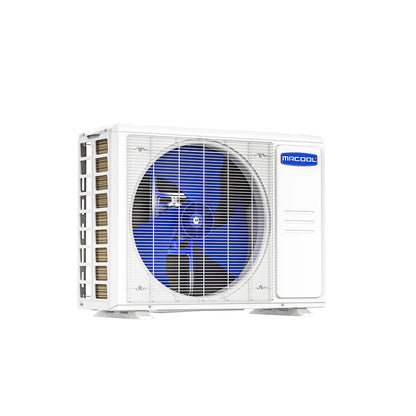

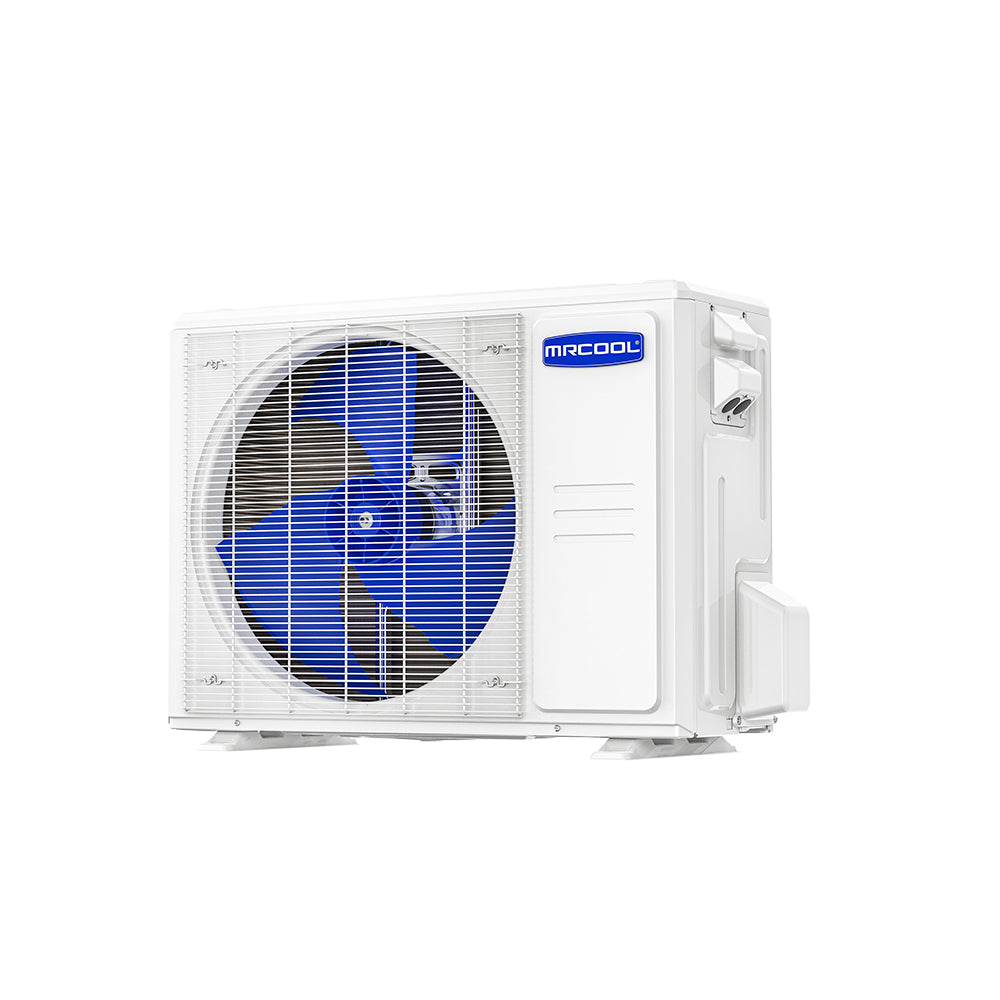

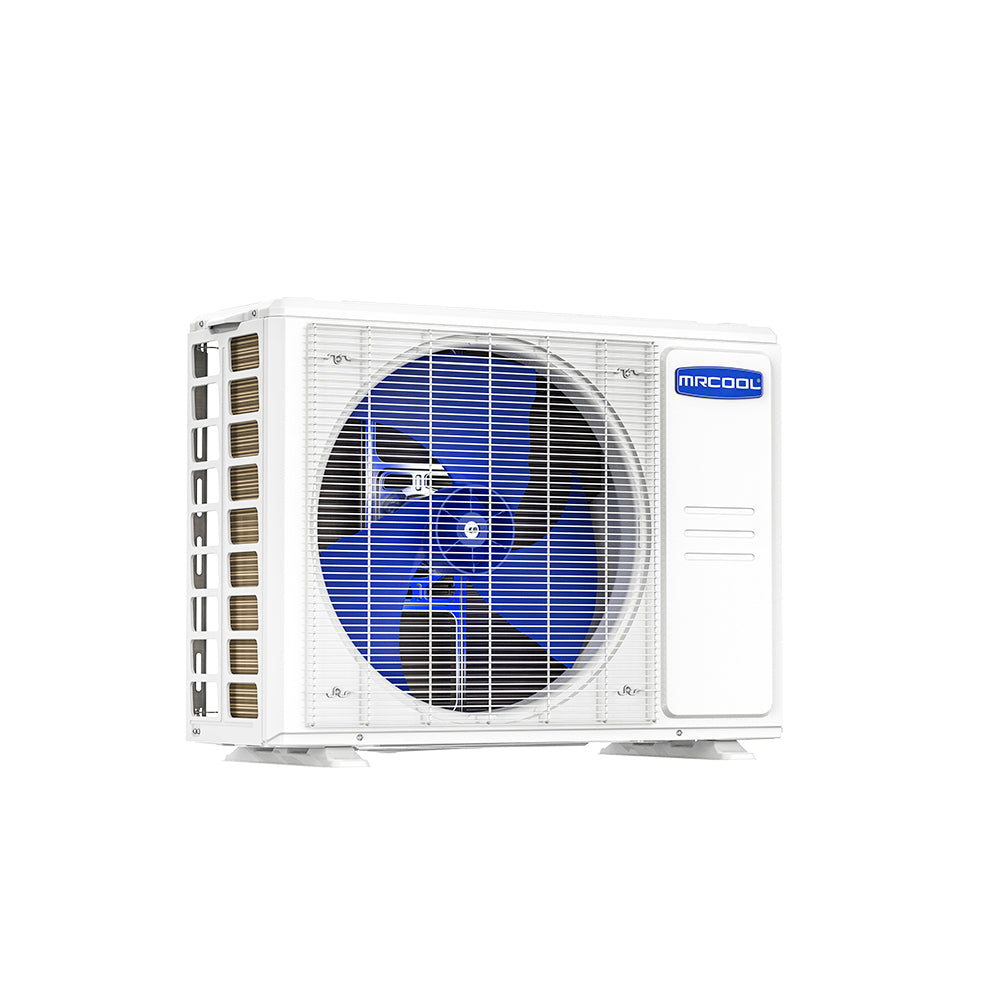

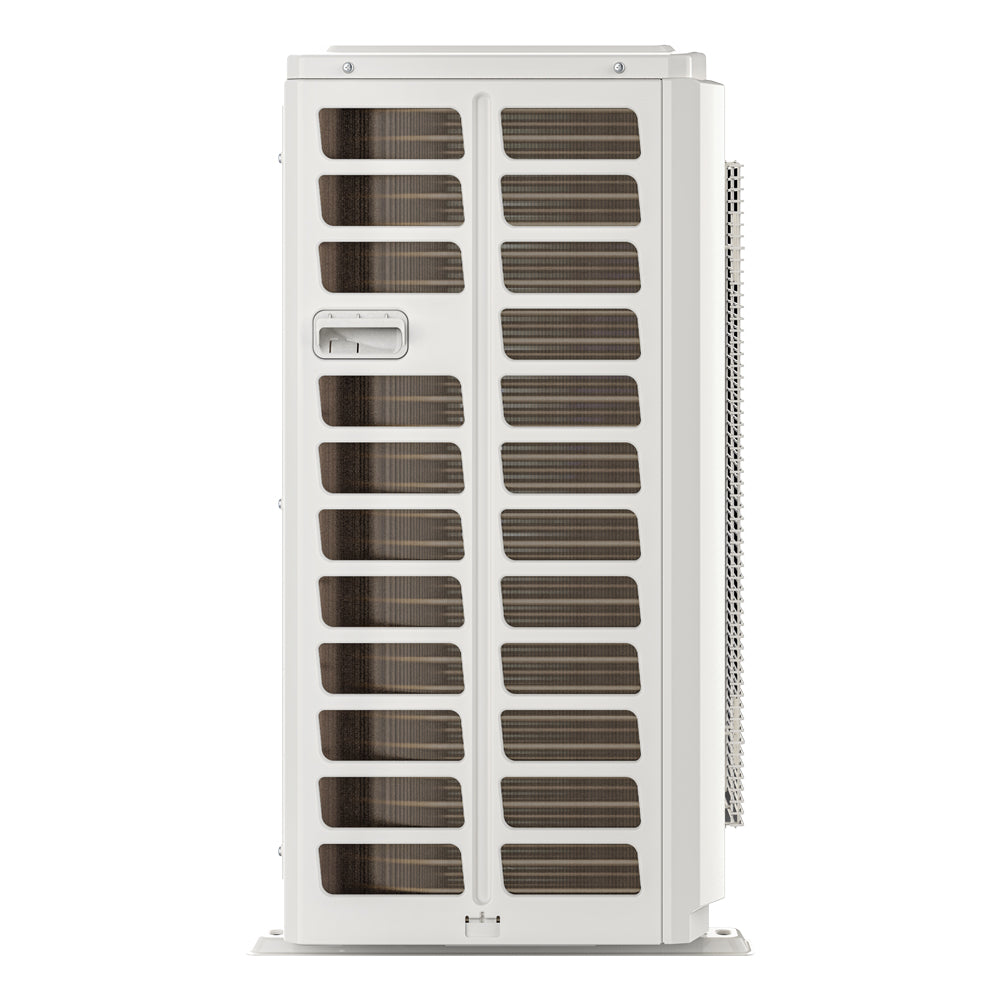

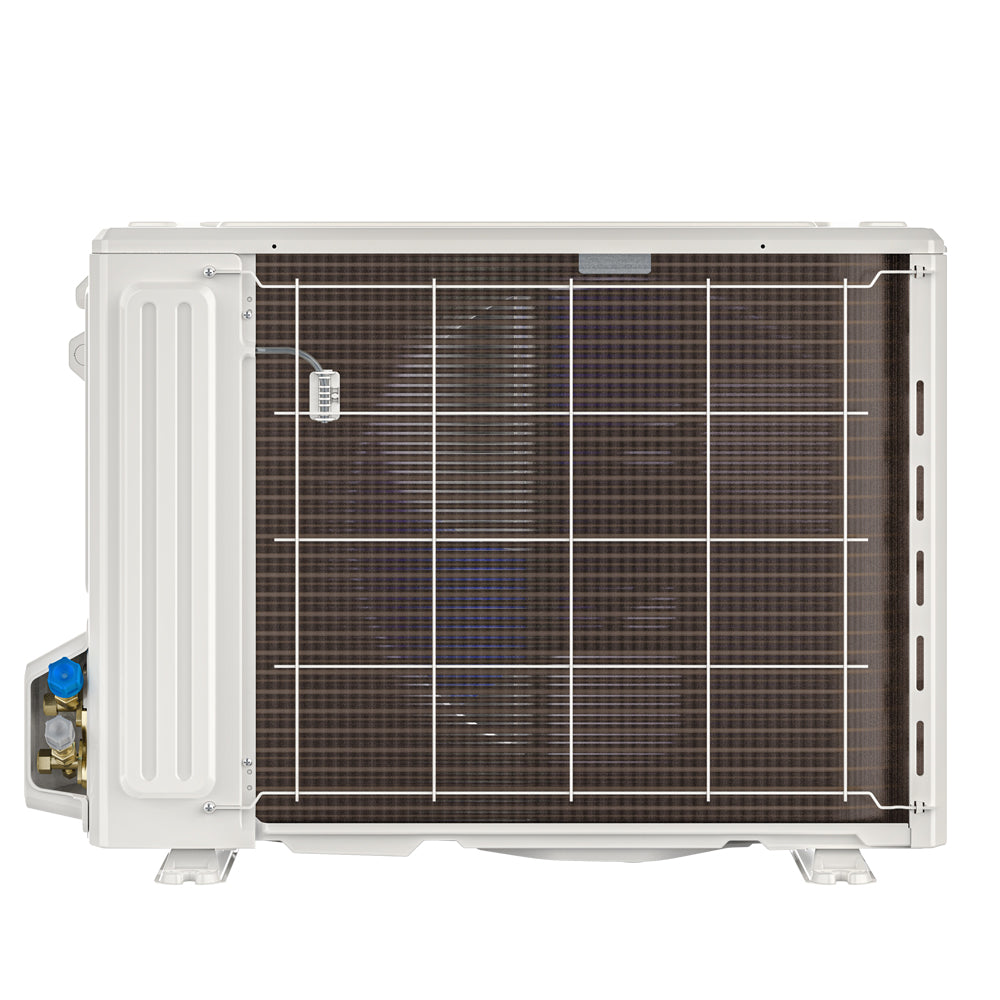

The 4 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser (Model MVP-48-HP-C-230A00-O) combines dependable performance with efficient, variable-speed operation. Its DC inverter helps optimize energy use and comfort, while the side-discharge cabinet eases placement in tight spaces. Pairs with the VersaPro® Central Ducted Air Handler and includes a MRCOOL® Smart Thermostat. Uses low-GWP R-454B.
Important
R-454B refrigerant. Variable-speed inverter. Side-discharge, compact footprint. Smart thermostat included.
What's Included
- Outdoor Condenser (MVP-48-HP-C-230A00-O)
- MRCOOL® Smart Thermostat
- Installation & Owner’s Manual
- Service Manual
- Warranty Information
Features
- SEER2 16 / EER2 10; HSPF4 8.5 / HSPF5 7.2
- Eco-forward R-454B refrigerant
- Quiet operation (~65 dBA), side-discharge
- Painted galvanized steel construction
- Self-diagnostics for easier service
Technical Specifications
| Brand / Series | MRCOOL / VersaPro® Central Ducted Condenser |
| Model | MVP-48-HP-C-230A00-O |
| GTIN | 00840255586429 |
| UPC | 840255586429 |
| Unit Type | Split System Heat Pump |
| Equipment Type | Condenser |
| SEER2 | 16 |
| EER2 | 10 |
| HSPF-4 | 8.5 |
| HSPF-5 | 7.2 |
| CFM (Outdoor Airflow) | 3037.1 |
| Tonnage | 4 |
| Cooling Capacity (BTU) | 48,000 |
| Heating Capacity (BTU) | 48,000 |
| Voltage / Phase / Cycle | 208–230 V / 1-Phase / 60 Hz |
| Max Fuse / Breaker (A) | 40 |
| Min Circuit Ampacity (A) | 36 |
| Color | Gray |
| Refrigerant | R-454B |
| Factory Charge (oz) | 134.04 |
| Decibel Rating (dBA) | ~65 |
| Liquid / Suction Line Sizes | 3/8" / 3/4" |
| Wi-Fi / App Compatibility | Yes / Yes (Smart Thermostat included) |
| Certifications | ETL Certified; AHRI Certified; ENERGY STAR®: Yes |
| Net Dimensions (W × D × H) | 38.58" × 16.34" × 38.39" |
| Net / Gross Weight | 192.9 lbs / 224.21 lbs |
| Gross Dimensions (W × D × H) | 45.08" × 19.68" × 42.52" |
| Contains Electronics / Chemicals / Compressed Gas | Yes / Yes / Yes |
Airflow, Refrigerant & Installation Limits
| Outdoor Airflow | 3037.1 CFM |
| Line Set Sizes | Liquid 3/8" • Suction 3/4" |
| Line Length & Elevation | See Installation/Service Manual for rated & max lengths and elevation limits. |
| Additional Refrigerant | See manual for charge adjustment per added line length. |
Compatibility & Pairing
| Works With | VersaPro® Central Ducted Air Handler (matching capacity) |
Warranty Information
- Base Parts Warranty: 10 Years (limited)
- Base Compressor Warranty: 10 Years (limited)
Manuals & Downloads
- Brochure (Gen 2)
- Installation & Owner’s Manual
- Performance Specs
- Condenser Service Manual
- Heat Kit Manual (optional accessory)
Safety & Install Notes
- Install on a solid, level base; follow clearances and anchoring guidance.
- Dedicated 208/230V, 1-phase circuit; include proper disconnect and follow wiring/torque specifications.
- Use specified line sizes; evacuate, leak-check, and charge per R-454B procedures.
- Comply with national/local codes; qualified personnel only.
Environmental & Efficiency Features
Low-GWP R-454B and inverter technology support efficient operation and steady comfort in all seasons.
