MRCOOL 4 Ton Central VersaPro Air Conditioner and 96% AFUE, 100K BTU 21" Gas Furnace Split System - Upflow or Horizontal
Overview
The 4 Ton MRCOOL Central Heat Pump and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system pairs the MRCOOL outdoor unit with a gas furnace delivering 96% AFUE with 100,000 BTU (8.33 Ton) heating. Dual-fuel capable: in milder cold the heat pump provides efficient electric heat, and during extreme cold the system can switch to gas furnace backup heat for dependable comfort.
- Capacity: 4 Ton
- Furnace efficiency: 96% AFUE
- Furnace output: 100,000 BTU (8.33 Ton)
- Refrigerant: R454B
- Voltage: 115V,208-230V
- Efficiency: 16 SEER
- EER: 10
Highlights
- Pre-charged coil design for a simpler, safer install with MRCOOL No-Vac® pre-charged line sets.
- CoolGuard® corrosion-resistant coil for long service life.
- Pre-installed TXV and multi-position application for flexible installs.
- Next-generation, low‑GWP R‑454B refrigerant support with A2L leak detection compatibility.
- Compact footprint designed to fit modern, high-efficiency homes.
- 96% AFUE high-efficiency heating designed to reduce gas usage and operating cost.
- Two-stage performance for smoother temperature control and quieter cycles.
- Advanced heat exchanger design for long-lasting reliability.
- Multi-position installation support (upflow/horizontal depending on model).
- Included LP conversion kit on many models (confirm per model/spec).
Comfort & Operation
MRCOOL® Pre‑Charged Coils are built for straightforward upgrades: they’re designed to pair with MRCOOL No‑Vac® pre‑charged line sets, helping reduce install time while keeping the system sealed.
MRCOOL® VersaPro® 96% AFUE furnaces focus on high-efficiency comfort with staged operation that helps maintain steadier indoor temperatures and quieter run cycles.
How dual fuel works: the system can favor efficient electric heat in milder weather, then switch to gas heat during extreme cold.

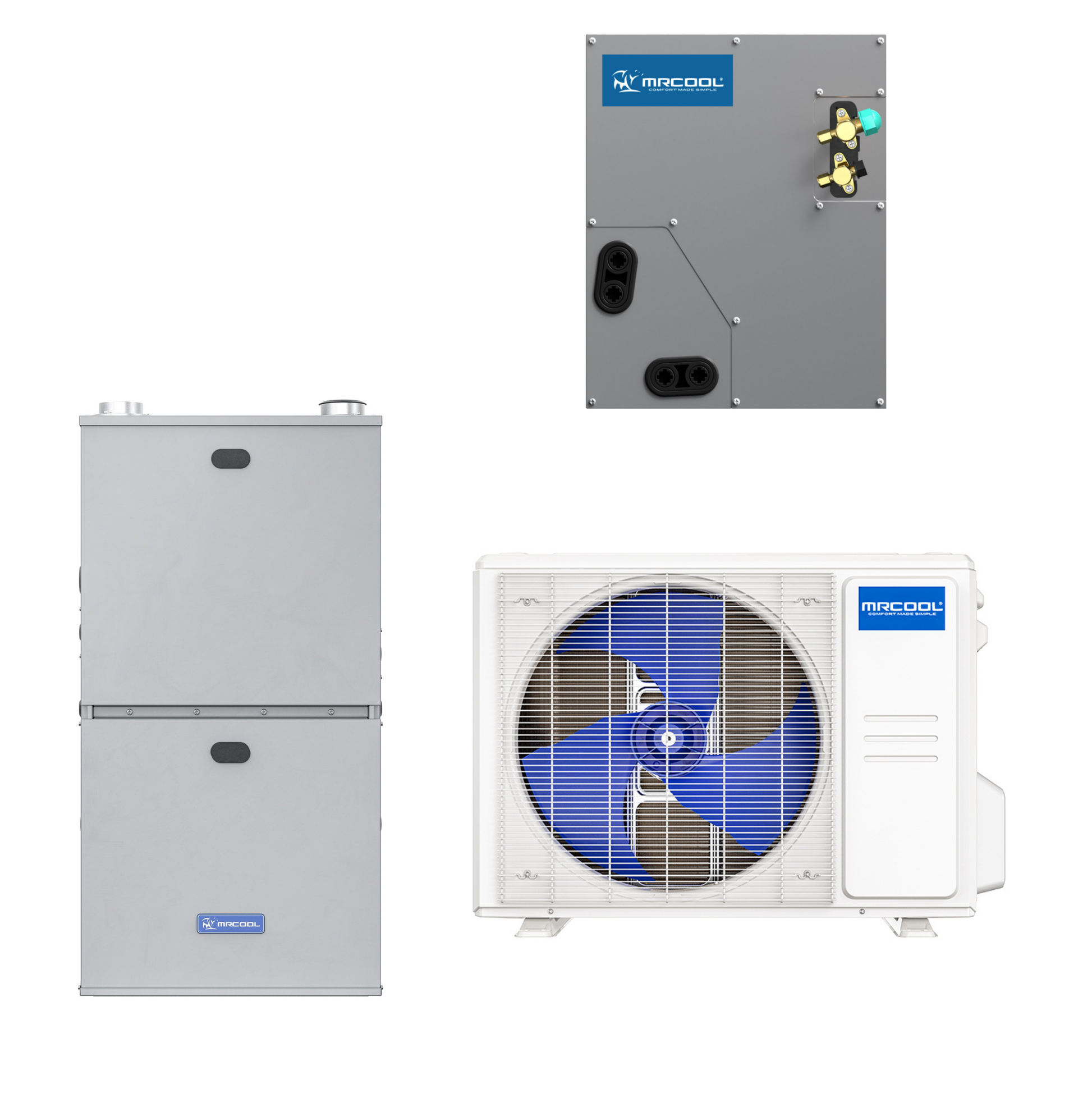

What’s Included

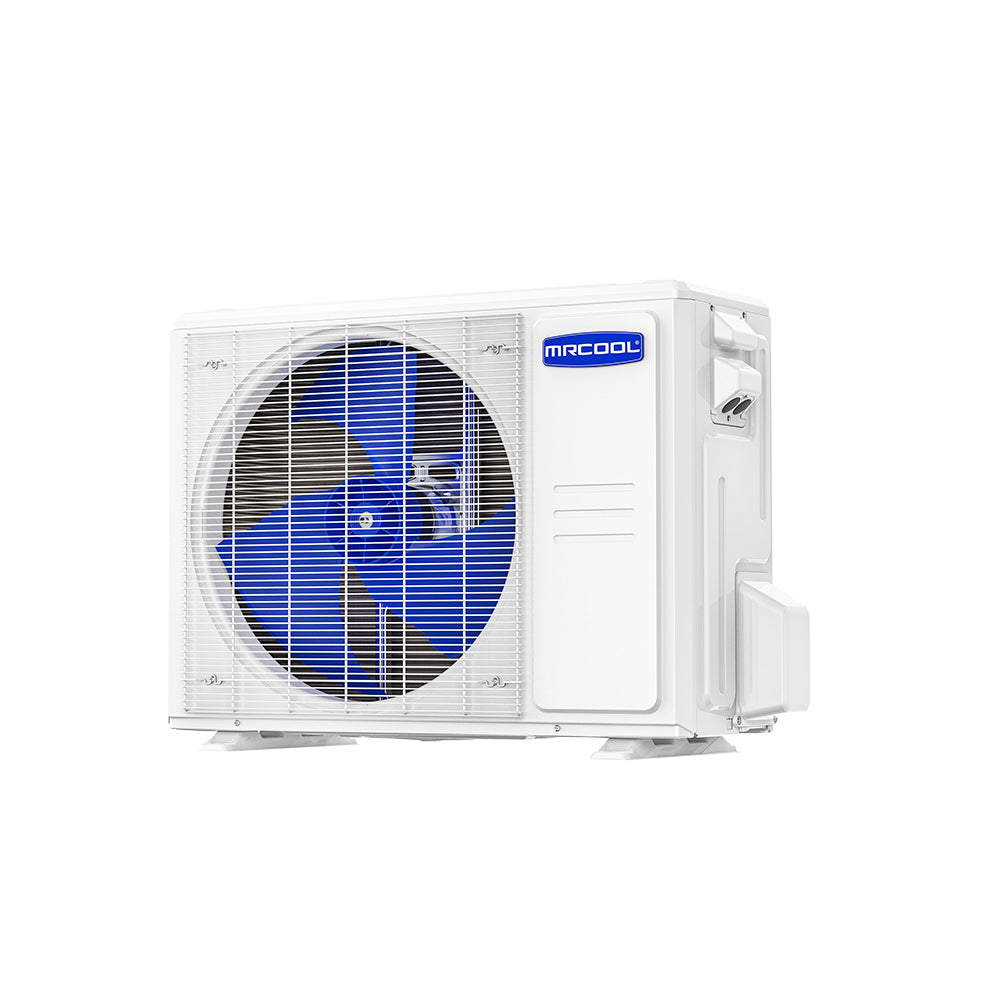

- Outdoor unit: MVP-48-HP-C-230A00-O — 4 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser

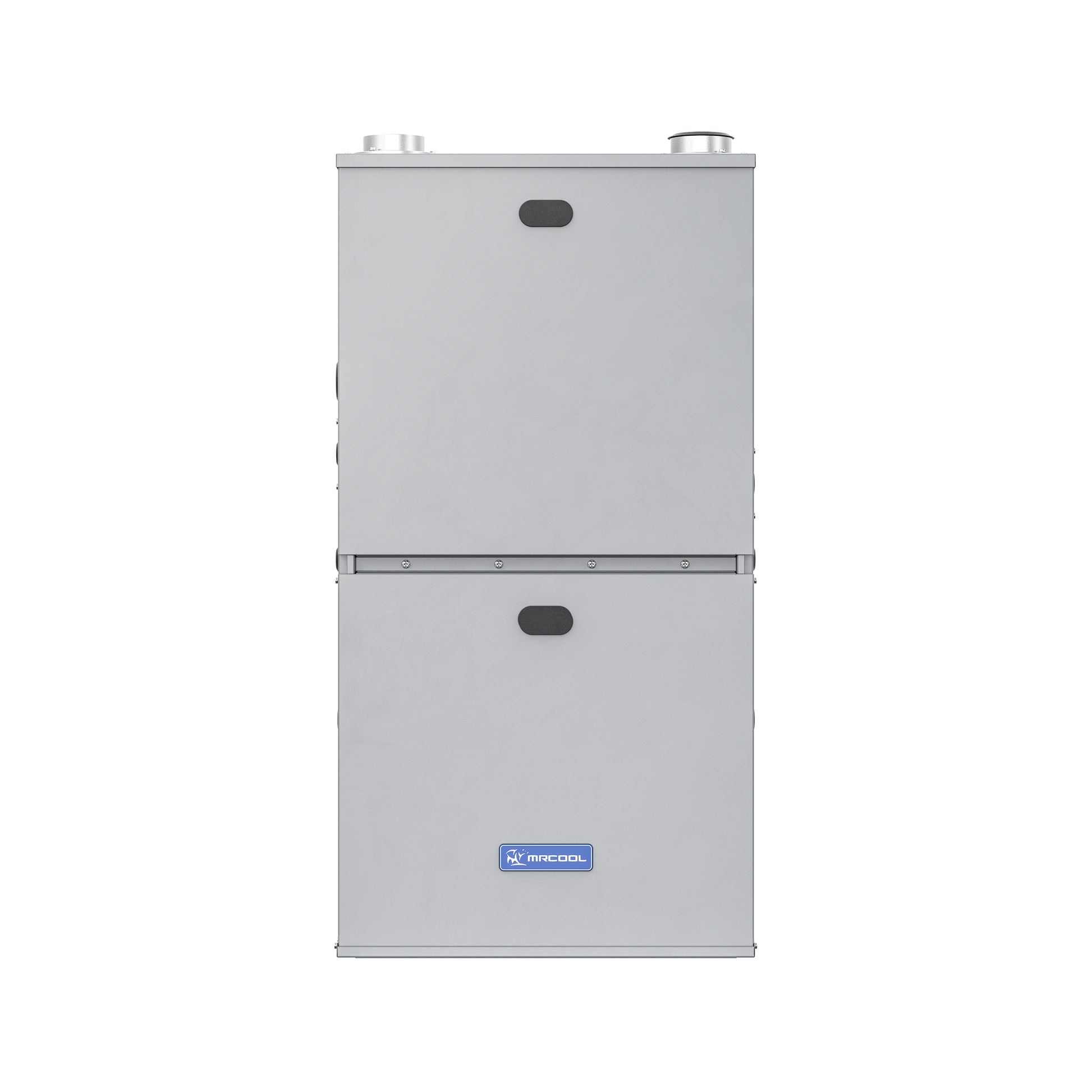

- Gas furnace: MGM96EE100C5NB — MRCOOL® VersaPro® 100k BTU 96% AFUE Gas Furnace

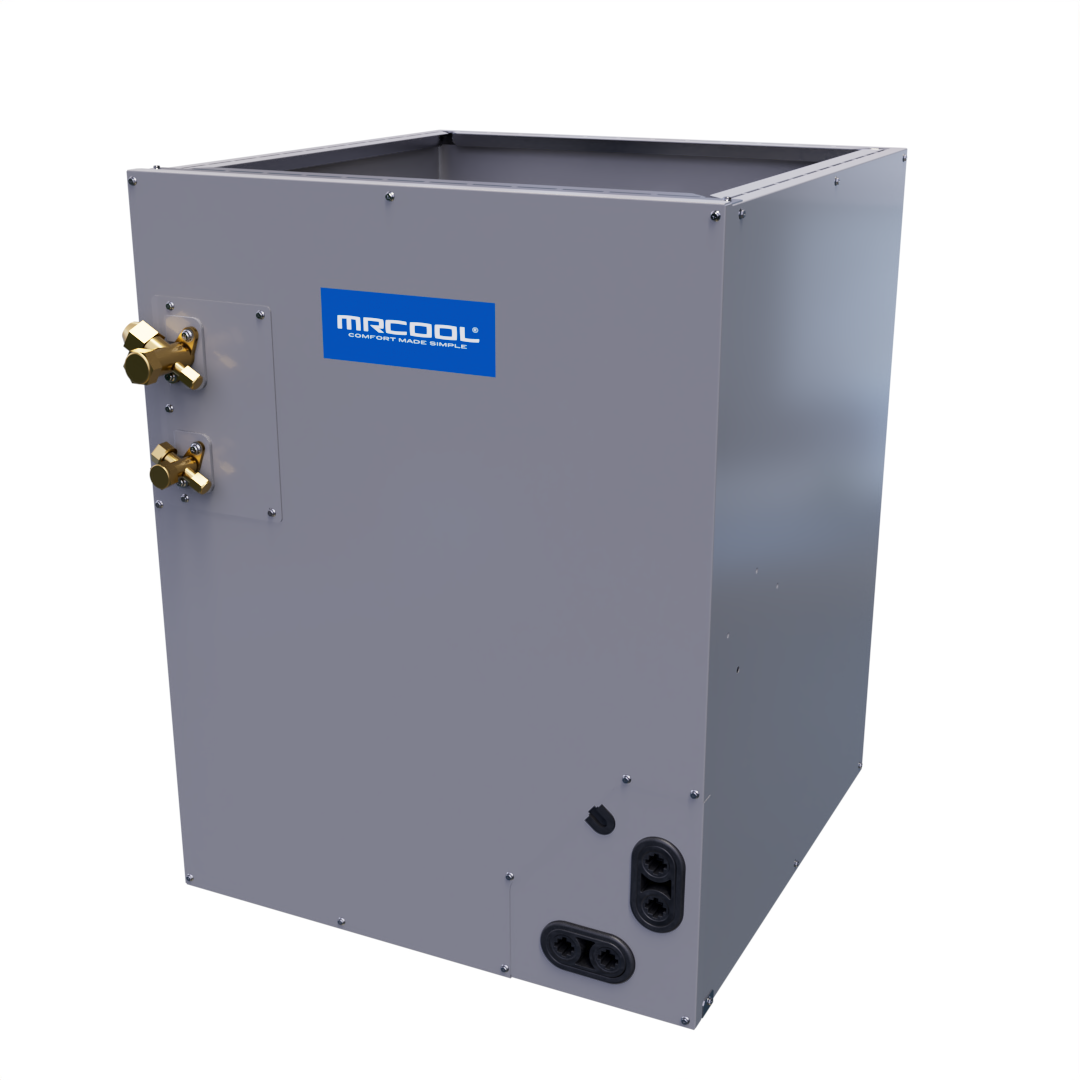

- Indoor coil: MCMP4860COTB — 4-5 Ton MultiPositional 21" Cased Coil - Pre-Charged R454B
- Line set: choose length in the options (If no installation kit is selected will not be included).
Technical Specifications — Outdoor Unit
| Brand | MRCOOL |
|---|---|
| Model | MVP-48-HP-C-230A00-O |
| Unit type | Split System Heat Pump |
| Equipment type | Condenser |
| Tonnage | 4 |
| Cooling capacity (BTU) | 48000 |
| Heating capacity (BTU) | 48000 |
| SEER2 | 16 |
| EER2 | 10 |
| Refrigerant | R454B |
| Sound rating (dBA) | 65 |
| Electrical | 208-230 • 1 ph • 60 Hz |
| Line set sizes | Liquid: 3/8 • Suction: 3/4 |
| Dimensions (W×H×D) | 38.58 × 38.39 × 16.34 in |
Technical Specifications — Gas Furnace
| Brand | MRCOOL |
|---|---|
| Model | MGM96EE100C5NB |
| AFUE | 96 |
| Fuel type | Natural/Propane Gas |
| BTU input | 100000 |
| BTU output | 95000 |
| Stage | Two |
| Electrical | 115 • 1 ph • 60 Hz |
| Dimensions (W×H×D) | 20.98 × 33.74 × 28.74 in |
| Net weight | 153.5 |
| Warranty | Parts: 5 Years |
Technical Specifications — Indoor Coil
| Brand | MRCOOL |
|---|---|
| Model | MCMP4860COTB |
| Unit type | Split System Coil |
| Tonnage | 4-5 Ton |
| Configuration | Multi-Position |
| Cased | Yes |
| Refrigerant | R-454B |
| Line set sizes | Liquid: 3/8 • Suction: 3/4 |
| Dimensions (W×H×D) | 21.625 × 27.75 × 21.5 in |
| Net weight | 97 |
| Warranty | Parts: 10 Year |
Documents & Downloads
4 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser (MVP-48-HP-C-230A00-O)
MRCOOL® VersaPro® 100k BTU 96% AFUE Gas Furnace (MGM96EE100C5NB)
4-5 Ton MultiPositional 21" Cased Coil - Pre-Charged R454B (MCMP4860COTB)
FAQs
Does this bundle include a line set?
The bundle uses a line set length option. Select the length you want in the product options; the variant SKU will reflect that selection.
Can this system run as dual fuel?
Yes, it can provide efficient electric heat in mild cold and switch to gas furnace backup heat in extreme cold (with compatible controls).
What refrigerant does this system use?
This system uses R454B.
What installation orientations are supported?
Furnace orientation depends on the model. It can be installed in any of the following orientations: Upflow,Downflow,Horizontal,Multi-Positional.
Is propane conversion supported?
Often included (confirm per model). Always verify with the furnace documentation for the exact model.
How do I confirm cabinet width / coil style?
Coil style: M-Coil. Use the model numbers in “What’s Included” and reference the spec tables / documents to confirm fitment.
