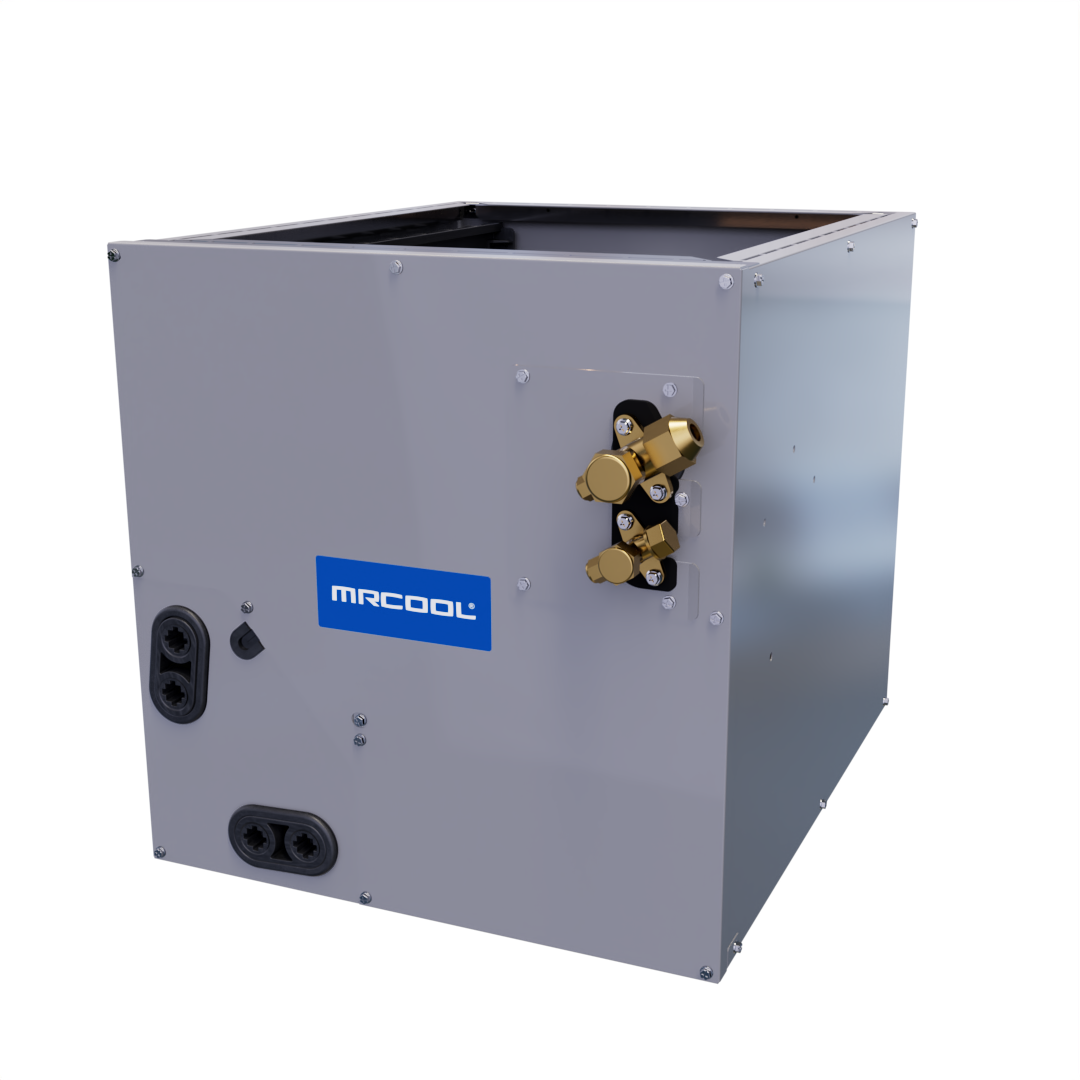

MRCOOL 4–5 Ton Pre-Charged Cased A-Coil (24.5") | R-454B – MCMP4860DOTB
Summary
The MRCOOL® MCMP4860DOTB Pre-Charged A-Coil is built for fast, clean installs and dependable comfort. It ships factory-charged with low-GWP R-454B, includes a pre-installed TXV, and connects with MRCOOL® No-Vac® pre-charged line sets or standard flare/sweat connections. A CoolGuard® corrosion-resistant aluminum coil and an integrated A2L refrigerant leak-detection sensor add durability and safety.
Important
Pre-charged with R-454B for faster installs. Multi-position (upflow, downflow, horizontal L/R). Pre-installed TXV metering device. Works with MRCOOL® No-Vac® pre-charged line sets.
What's Included
- Pre-Charged Cased A-Coil (Model MCMP4860DOTB)
- Pre-installed TXV
- Installation & Owner’s Manual
- Service Manual
- Warranty Information
Features
- Factory R-454B charge; eco-forward, low-GWP refrigerant
- Compatible with MRCOOL® No-Vac® Quick Connect® line sets or standard flare/sweat
- Multi-position cabinet (upflow, downflow, horizontal L/R)
- Pre-installed TXV for precise refrigerant control
- CoolGuard® corrosion-resistant aluminum coil
- Built-in A2L leak-detection sensor for added safety
Technical Specifications
| Brand / Series | MRCOOL / MRCOOL Coils |
| Model | MCMP4860DOTB |
| GTIN | 00840255582827 |
| UPC | 840255582827 |
| Unit Type | Split System Coil (Cased) |
| Configuration | Multi-Position |
| Tonnage | 4–5 Ton |
| Refrigerant | R-454B (A2L), Factory Pre-Charged |
| Metering Device | TXV |
| Net Dimensions (W × D × H) | 24.5" × 21" × 28" |
| Net / Gross Weight | 81 lbs / 92 lbs |
| Cabinet Color | Grey |
| Liquid / Suction Line Sizes | 3/8" / 3/4" |
| Contains Electronics / Chemicals / Compressed Gas | Yes / Yes / Yes |
Airflow & Installation Limits
| Outdoor Capacity | Minimum (CFM) | Maximum (CFM) |
| 4 Ton | 1400 | 1600 |
| 5 Ton | 1575 | 1800 |
Compatibility & Pairing
| Works With | Hyper Heat Condensers, Universal Split Condensers, and VersaPro 2nd-Generation Furnaces |
| Outdoor Models | MVP-48-HP-C-230A00-O, MVP-60-HP-C-230A00-O, CENTRAL-48-HP-C-230B00-O, CENTRAL-60-HP-C-230B00-O |
Warranty Information
- Base Parts Warranty: 10 Years (limited)
Manuals & Downloads
Safety & Install Notes
- Provide clearances for service, refrigerant piping, and condensate line; set on a solid, level site.
- Level the coil for proper drainage; if the coil is wider than the furnace, use a field-fabricated adapter/transition.
- For downflow, use a 4" minimum adapter if high airflow may cause water blow-off; seal all joints to prevent leakage.
- Connect the refrigerant leak sensor to the leak-mitigation control kit; avoid heat-exchanger temps > 200°F that could affect the sensor.
- Follow national/local codes. Installation and servicing should be performed by qualified personnel.
Environmental & Efficiency Features
Uses low-GWP R-454B refrigerant and includes a pre-installed TXV for optimized performance; CoolGuard® aluminum construction enhances longevity in demanding conditions.
