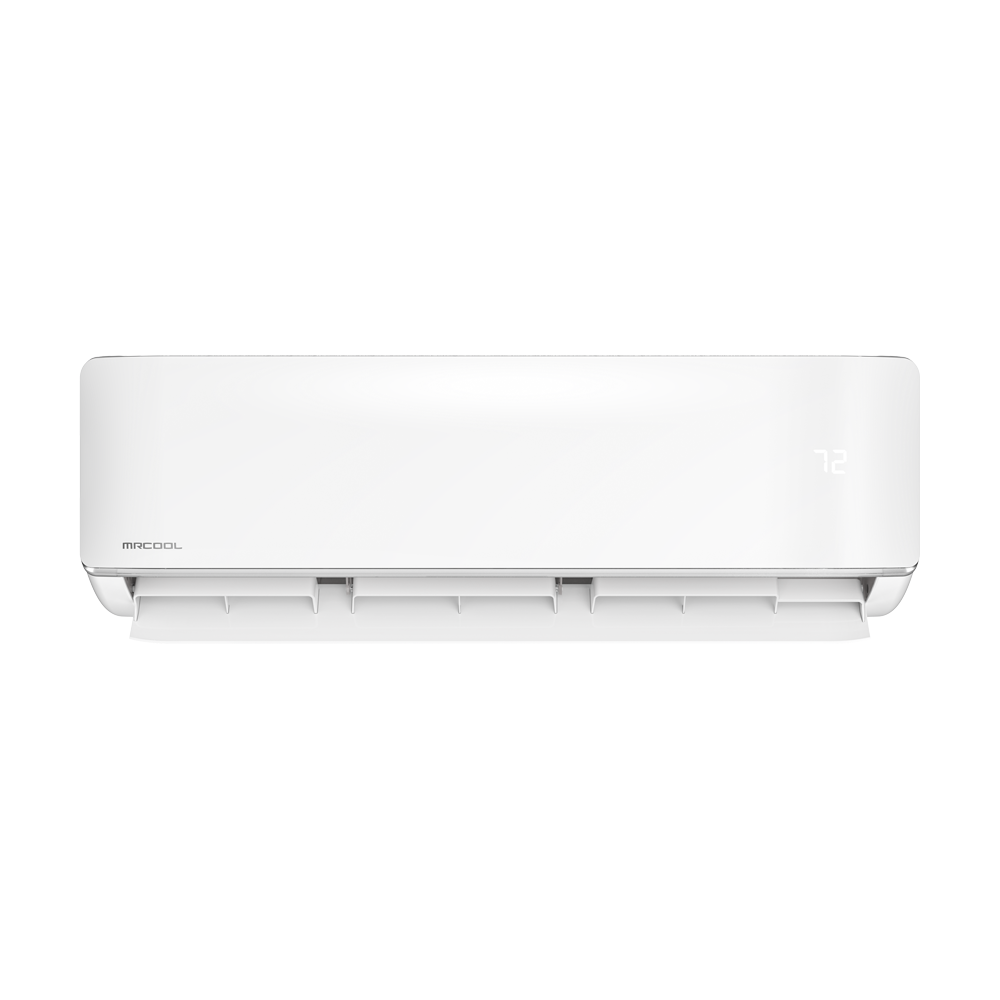

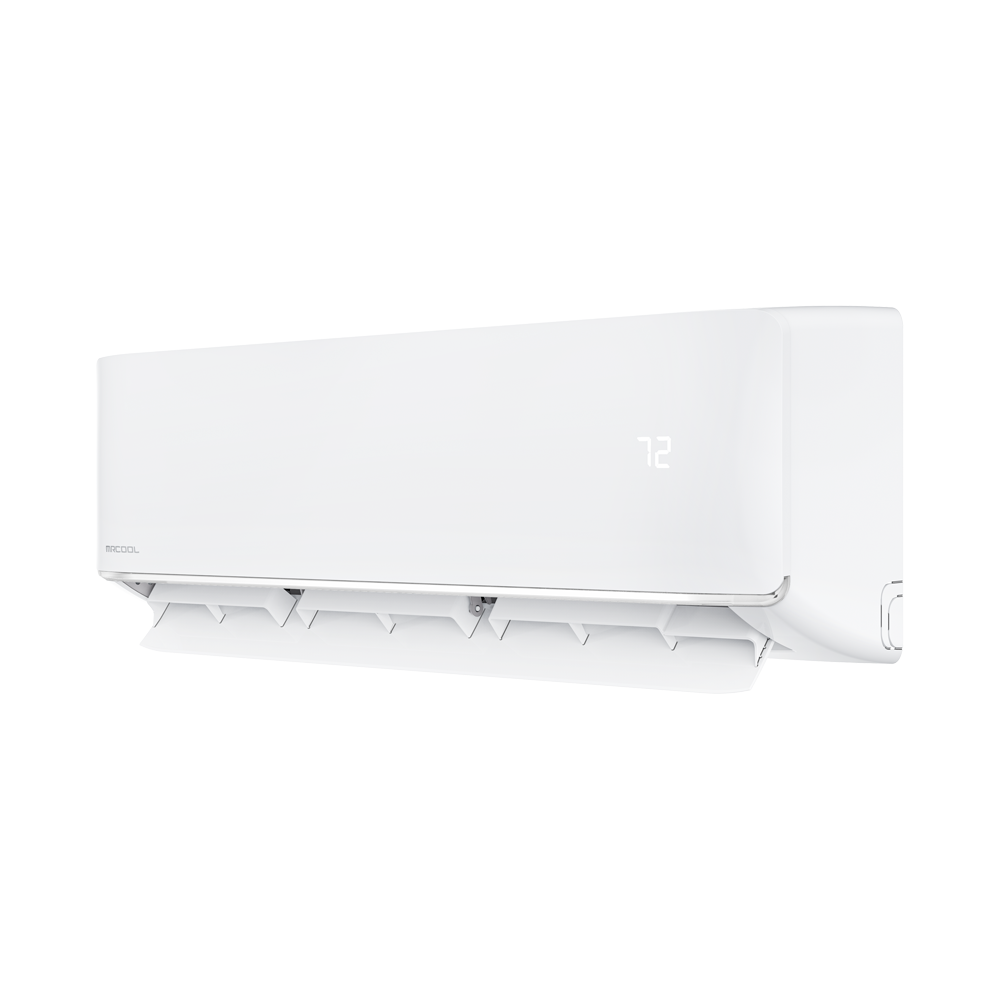

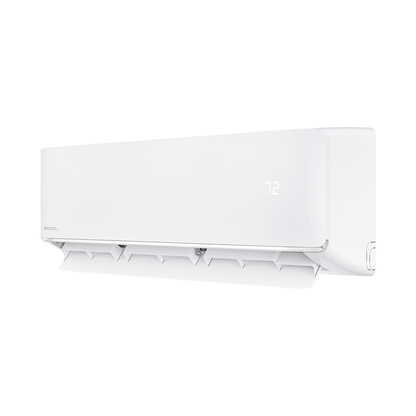

MRCOOL 24,000 BTU 5th Gen DIY Multi-Zone Wall Mounted Air Handler | R-454B - DIY-24-HP-WMAH-230D25-O
Summary
The 5th Generation MRCOOL® DIY® 24K BTU Ductless Mini-Split Heat Pump is a highly efficient solution for heating and cooling spaces up to 1,050 sq. ft. Designed for hassle-free DIY installation, it eliminates the need for special tools or professional assistance. Features include a pre-charged 25-foot DIY® QuickConnect® line set (sold separately) with R-454B refrigerant that removes vacuuming requirements, wireless remote control, SmartHVAC app compatibility, and voice control via Alexa/Google Assistant.
Important
True DIY installation requires no HVAC technician. Registration activates extended limited lifetime warranty. Compatible condenser and line set required (sold separately).
What's Included
- 24,000 BTU Wall Mounted Air Handler (Model DIY-24-HP-WMAH-230D25-O)
- Wireless Remote Control
- DIYPRO® Cable
- Installation Manual
- User's Manual
- Manufacturer Warranty Information
Features
- NEEP ccASHP and Intertek listed (5031495)
- Complete DIY installation system
- WiFi control via SmartHVAC app (iOS/Android)
- Voice commands through Google Assistant & Amazon Alexa
- Follow Me® function for personalized comfort
- Dry Mode for humidity control
- Gold Fin® Condenser for corrosion resistance
- Energy Star Certified
- AHRI Certified
- 5 fan speeds with oscillation
Technical Specifications
| SKU | DIY-24-HP-WMAH-230D25-O |
| UPC | 840255587051 |
| Weight | 35.93 lbs |
| Cooling BTU | 24,000 BTU |
| Heating BTU | 24,000 BTU |
| Maximum Coverage | 1,050 sq. ft. |
| Refrigerant | R-454B |
| Electrical | 208/230V 1 Phase 60 Hz |
| Dimensions (HxWxD) | 13.19" x 42.52" x 8.9" |
| Line Sizes | 3/8" (liquid), 5/8" (suction) |
Performance Data
| SEER Rating | High Efficiency |
| Noise Level | 20-54 dB |
| Certifications | UL, ETL, Energy Star, AHRI |
Warranty
- Extended Limited Lifetime warranty with registration
- 7 year compressor warranty
- 5 year parts warranty
Manuals & Downloads
Safety Information
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Smart Control Features
The MRCOOL DIY® 24K system offers wireless remote control with LCD display, SmartHVAC app compatibility for iOS and Android devices, and voice command integration with Amazon Alexa and Google Assistant. The Follow Me® function automatically adjusts temperatures based on the remote's location, while Dry Mode maintains optimal humidity levels for your 1,050 sq. ft. space.
Installation Advantages
This 5th Generation system features the DIYPRO® cable that eliminates electrical conduit requirements and the QuickConnect® line set with R-454B refrigerant that removes vacuuming needs. The Gold Fin® condenser provides exceptional protection against coastal corrosion, ensuring long-term durability for your investment.
