Overview
The 2 Ton MRCOOL Central Heat Pump and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system pairs the MRCOOL outdoor unit with a gas furnace delivering 96% AFUE with 60,000 BTU (5.00 Ton) heating. Dual-fuel capable: in milder cold the heat pump provides efficient electric heat, and during extreme cold the system can switch to gas furnace backup heat for dependable comfort.
- Capacity: 2 Ton
- Furnace efficiency: 96% AFUE
- Furnace output: 60,000 BTU (5.00 Ton)
- Refrigerant: R454B
- Voltage: 115V,208-230V
- Efficiency: 18.1 SEER
- EER: 11
Highlights
- Pre-charged coil design for a simpler, safer install with MRCOOL No-Vac® pre-charged line sets.
- CoolGuard® corrosion-resistant coil for long service life.
- Pre-installed TXV and multi-position application for flexible installs.
- Next-generation, low‑GWP R‑454B refrigerant support with A2L leak detection compatibility.
- Compact footprint designed to fit modern, high-efficiency homes.
- 96% AFUE high-efficiency heating designed to reduce gas usage and operating cost.
- Two-stage performance for smoother temperature control and quieter cycles.
- Advanced heat exchanger design for long-lasting reliability.
- Multi-position installation support (upflow/horizontal depending on model).
- Included LP conversion kit on many models (confirm per model/spec).
Comfort & Operation
MRCOOL® Pre‑Charged Coils are built for straightforward upgrades: they’re designed to pair with MRCOOL No‑Vac® pre‑charged line sets, helping reduce install time while keeping the system sealed.
MRCOOL® VersaPro® 96% AFUE furnaces focus on high-efficiency comfort with staged operation that helps maintain steadier indoor temperatures and quieter run cycles.
How dual fuel works: the system can favor efficient electric heat in milder weather, then switch to gas heat during extreme cold.

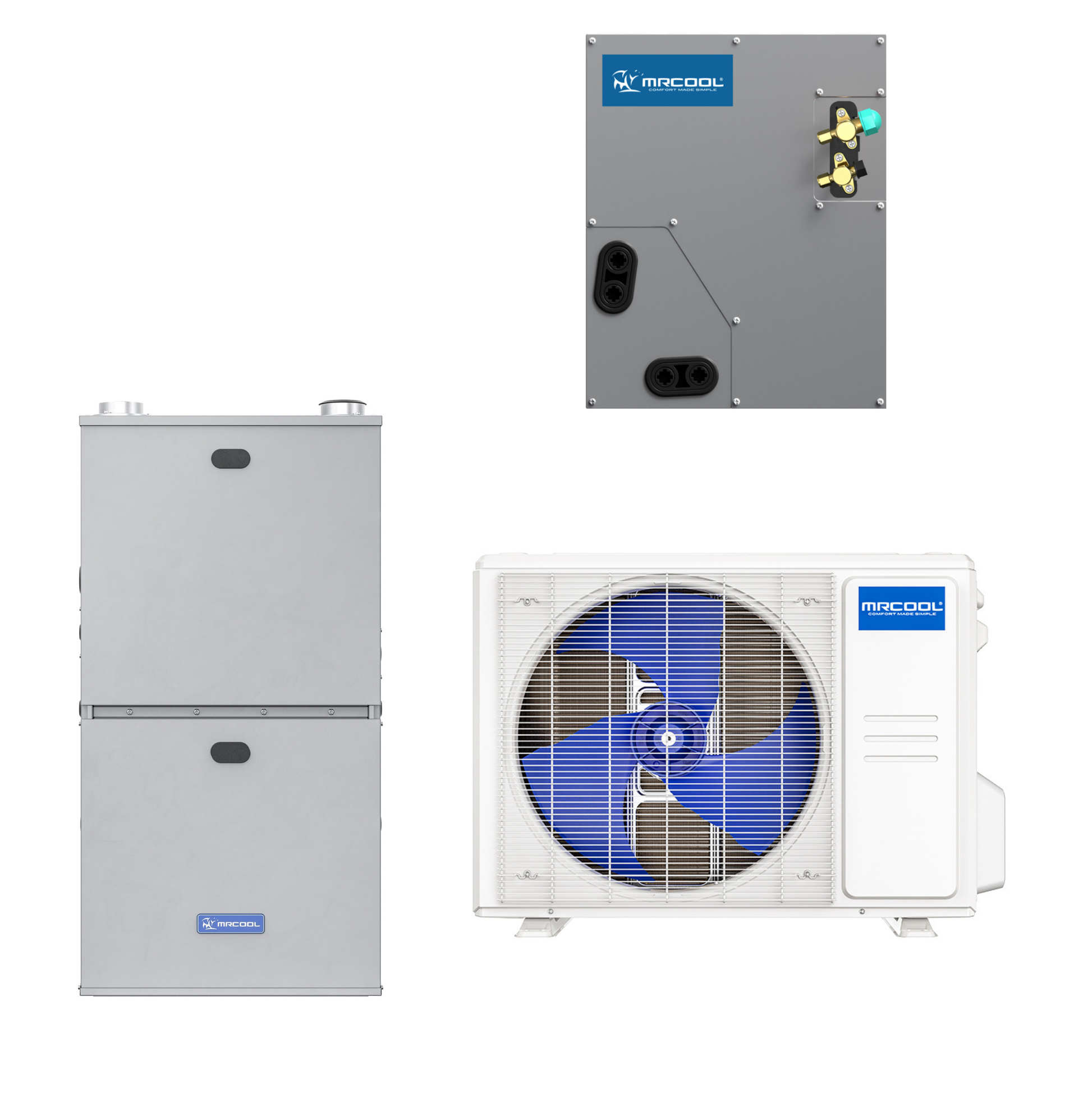

What’s Included

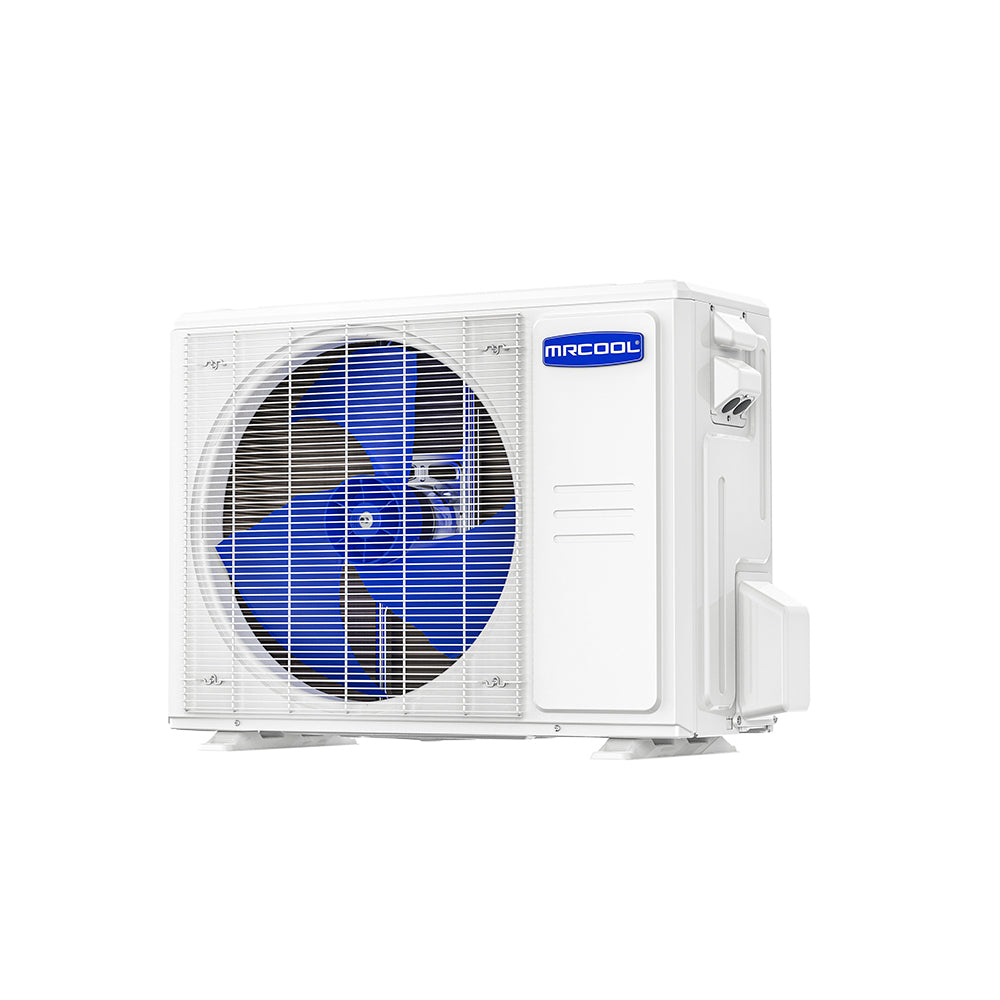

- Outdoor unit: MVP-24-HP-C-230A00-O — 2 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser

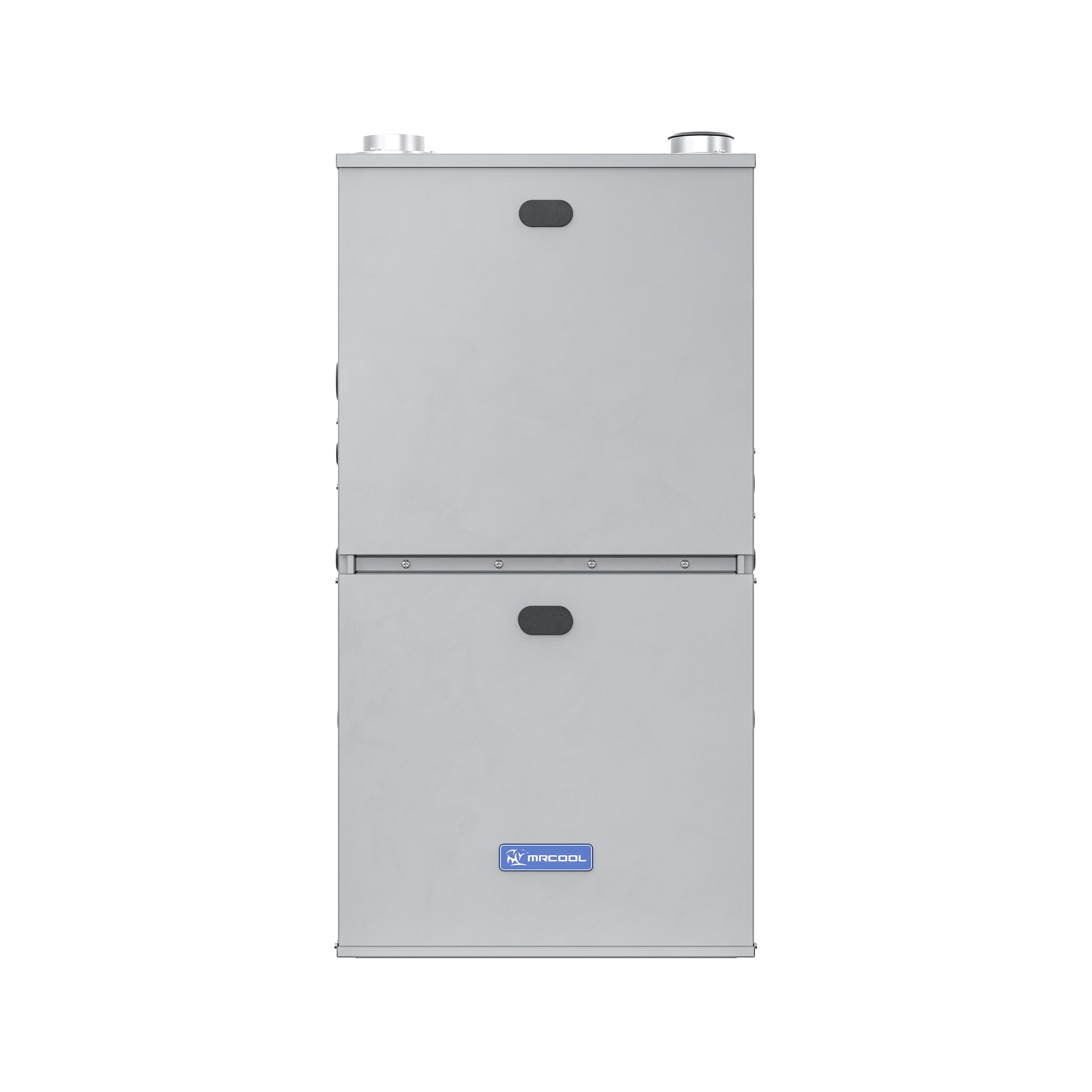

- Gas furnace: MGM96EE060B3NB — MRCOOL® VersaPro® 60k BTU 96% AFUE Gas Furnace

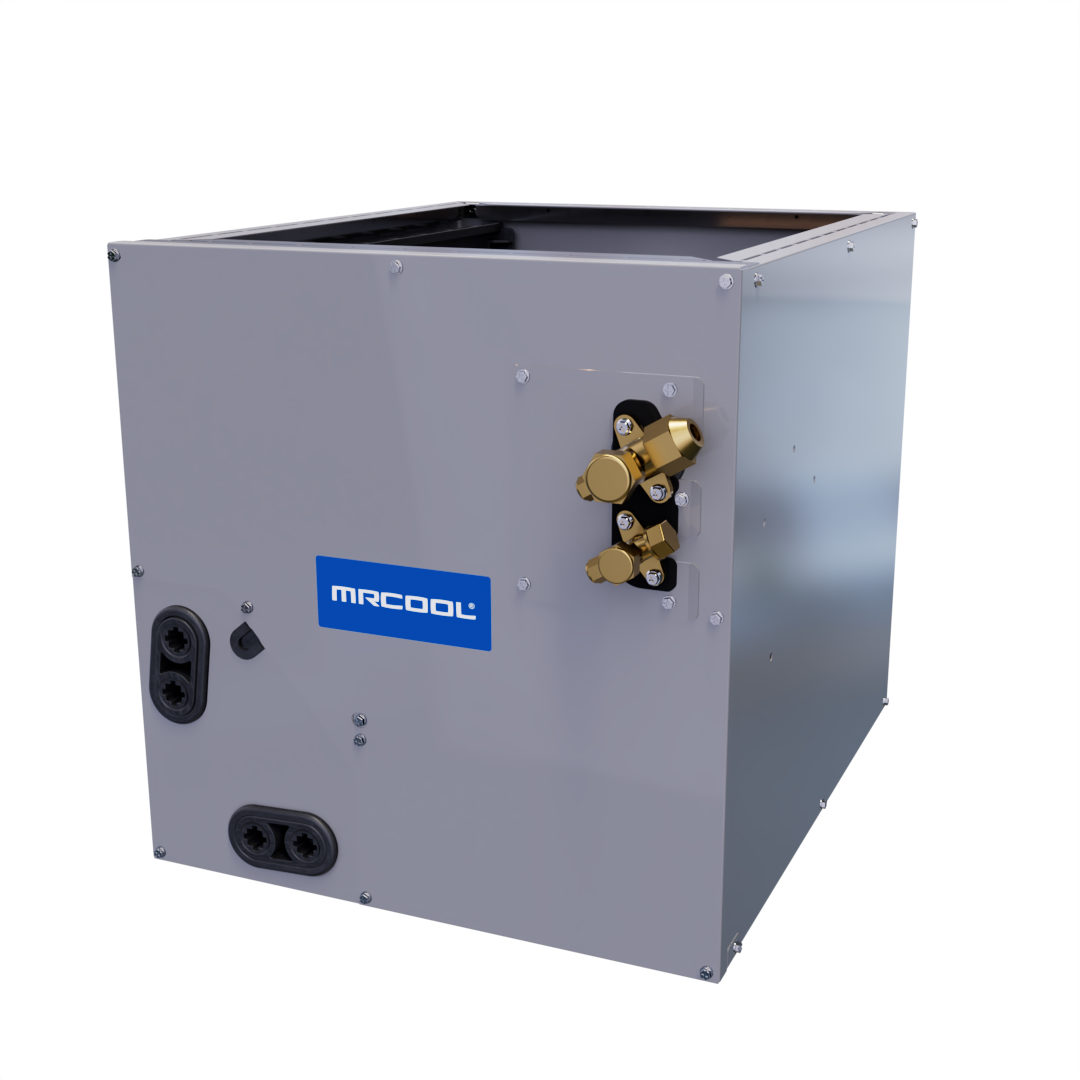

- Indoor coil: MCMP1824BOTB — 1.5-2 Ton MultiPositional 17.5" Cased Coil - Pre-Charged R454B
- Line set: choose length in the options (If no installation kit is selected will not be included).
Technical Specifications — Outdoor Unit
| Brand | MRCOOL |
|---|---|
| Model | MVP-24-HP-C-230A00-O |
| Unit type | Split System Heat Pump |
| Equipment type | Condenser |
| Tonnage | 2 |
| Cooling capacity (BTU) | 24000 |
| Heating capacity (BTU) | 26000 |
| SEER2 | 18.1 |
| EER2 | 11 |
| Refrigerant | R454B |
| Sound rating (dBA) | 60 |
| Electrical | 208-230 • 1 ph • 60 Hz |
| Line set sizes | Liquid: 3/8 • Suction: 3/4 |
| Dimensions (W×H×D) | 35.04 × 26.5 × 13.46 in |
Technical Specifications — Gas Furnace
| Brand | MRCOOL |
|---|---|
| Model | MGM96EE060B3NB |
| AFUE | 96 |
| Fuel type | Natural/Propane Gas |
| BTU input | 60000 |
| BTU output | 57000 |
| Stage | Two |
| Electrical | 115 • 1 ph • 60 Hz |
| Dimensions (W×H×D) | 17.52 × 33.74 × 28.74 in |
| Net weight | 131 |
| Warranty | Parts: 5 Years |
Technical Specifications — Indoor Coil
| Brand | MRCOOL |
|---|---|
| Model | MCMP1824BOTB |
| Unit type | Split System Coil |
| Tonnage | 1.5-2 Ton |
| Configuration | Multi-Position |
| Cased | Yes |
| Refrigerant | R-454B |
| Line set sizes | Liquid: 3/8 • Suction: 3/4 |
| Dimensions (W×H×D) | 17.5 × 18 × 21 in |
| Net weight | 42 |
| Warranty | Parts: 10 Year |
Documents & Downloads
2 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser (MVP-24-HP-C-230A00-O)
MRCOOL® VersaPro® 60k BTU 96% AFUE Gas Furnace (MGM96EE060B3NB)
1.5-2 Ton MultiPositional 17.5" Cased Coil - Pre-Charged R454B (MCMP1824BOTB)
FAQs
Does this bundle include a line set?
Can this system run as dual fuel?
What refrigerant does this system use?
What installation orientations are supported?
Is propane conversion supported?
How do I confirm cabinet width / coil style?
