Overview
The 2.5 Ton MRCOOL Central Heat Pump and Gas Furnace System is the advanced heating and cooling solution designed to keep you comfortable year-round. This system pairs the MRCOOL outdoor unit with a gas furnace delivering 80% AFUE with 60,000 BTU (5.00 Ton) heating. Dual-fuel capable: in milder cold the heat pump provides efficient electric heat, and during extreme cold the system can switch to gas furnace backup heat for dependable comfort.
- Capacity: 2.5 Ton
- Furnace efficiency: 80% AFUE
- Furnace output: 60,000 BTU (5.00 Ton)
- Refrigerant: R454B
- Voltage: 115V,208-230V
- Efficiency: 17 SEER
- EER: 10.7
Highlights
- Pre-charged coil design for a simpler, safer install with MRCOOL No-Vac® pre-charged line sets.
- CoolGuard® corrosion-resistant coil for long service life.
- Pre-installed TXV and multi-position application for flexible installs.
- Next-generation, low‑GWP R‑454B refrigerant support with A2L leak detection compatibility.
- Compact footprint designed to fit modern, high-efficiency homes.
- 80% AFUE performance with a single-stage design built for dependable heat.
- Quiet operation and compact cabinet sizes for easier replacement and service.
- Multi-position installation support (upflow/downflow/horizontal depending on model).
- Hot-surface ignition for consistent starts and reliable operation.
- Leak detection sensor adaptability for R‑454B system compatibility.
Comfort & Operation
MRCOOL® Pre‑Charged Coils are built for straightforward upgrades: they’re designed to pair with MRCOOL No‑Vac® pre‑charged line sets, helping reduce install time while keeping the system sealed.
In the face of harsh winter conditions, MRCOOL® VersaPro® 80% AFUE furnaces are designed to deliver reliable warmth with a space-efficient layout that’s easier to install and maintain.
How dual fuel works: the system can favor efficient electric heat in milder weather, then switch to gas heat during extreme cold.

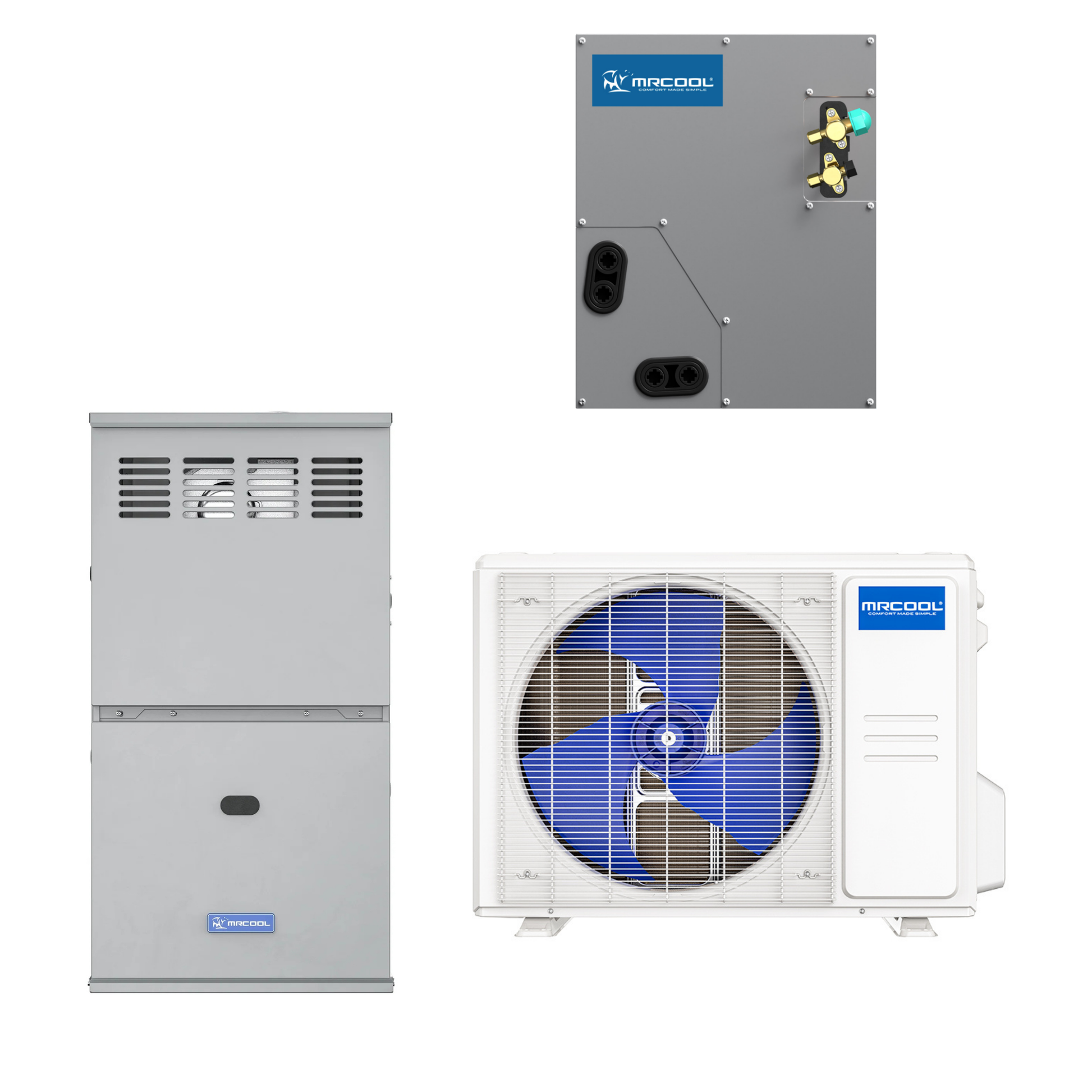

What’s Included

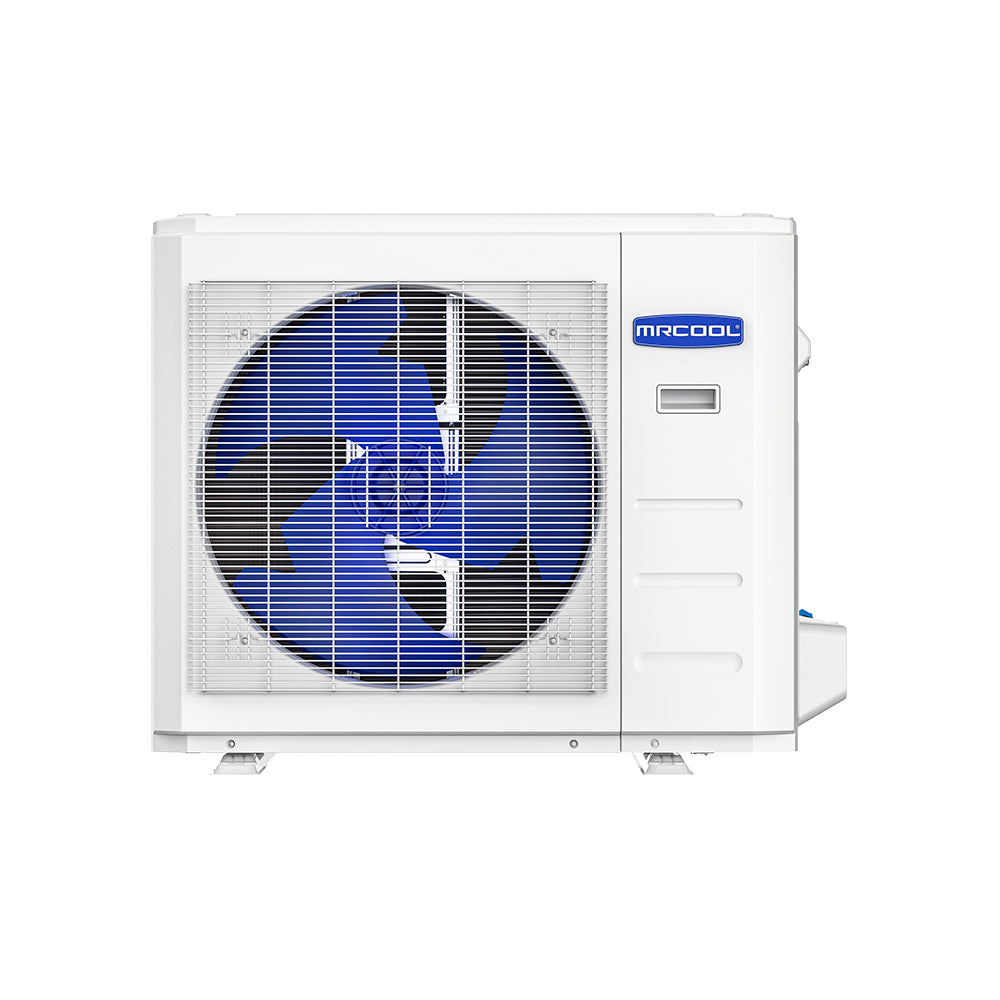

- Outdoor unit: MVP-30-HP-C-230A00-O — 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser

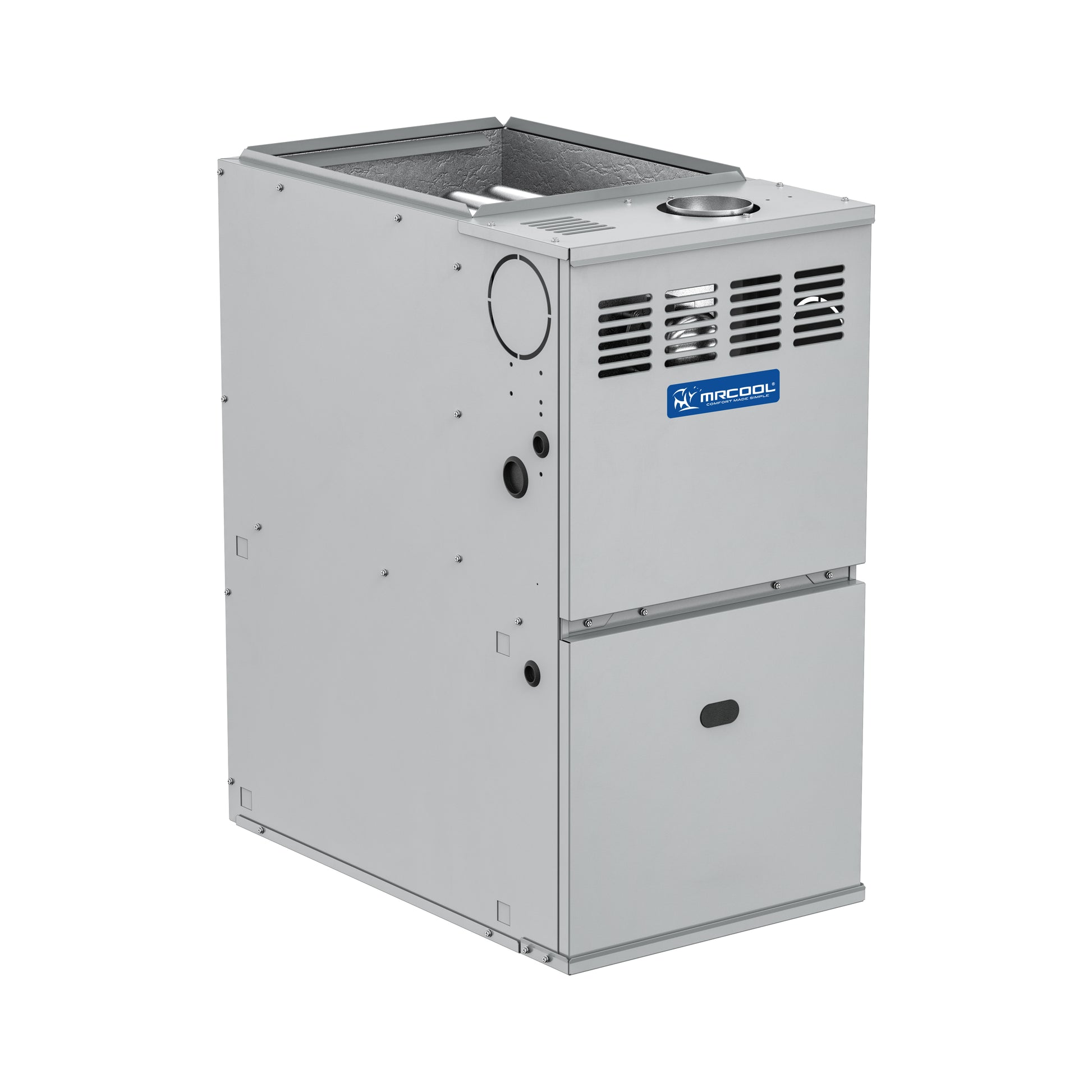

- Gas furnace: MGA80SE060B4C — 80% AFUE 60K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with B Cabinet

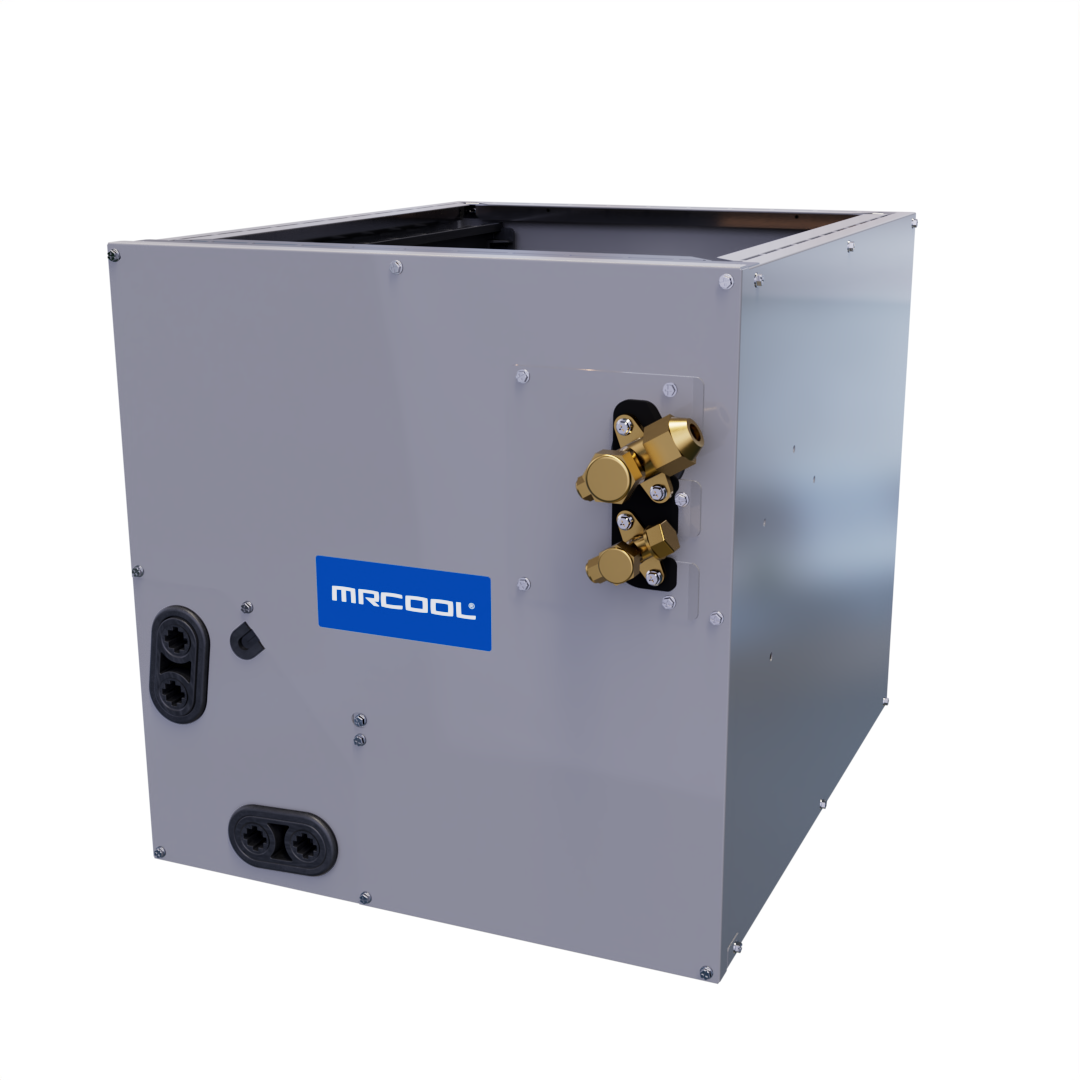

- Indoor coil: MCMP3036BOTB — 2.5-3 Ton MultiPositional 17.5" Cased Coil - Pre-Charged R454B
- Line set: choose length in the options (If no installation kit is selected will not be included).
Technical Specifications — Outdoor Unit
| Brand | MRCOOL |
|---|---|
| Model | MVP-30-HP-C-230A00-O |
| Unit type | Split System Heat Pump |
| Equipment type | Condenser |
| Tonnage | 2.5 |
| Cooling capacity (BTU) | 30000 |
| Heating capacity (BTU) | 31000 |
| SEER2 | 17 |
| EER2 | 10.7 |
| Refrigerant | R454B |
| Sound rating (dBA) | 60 |
| Electrical | 208-230 • 1 ph • 60 Hz |
| Line set sizes | Liquid: 3/8 • Suction: 3/4 |
| Dimensions (W×H×D) | 37.24 × 31.89 × 16.14 in |
Technical Specifications — Gas Furnace
| Brand | MRCOOL |
|---|---|
| Model | MGA80SE060B4C |
| AFUE | 80 |
| Fuel type | Natural/Propane Gas |
| BTU input | 60000 |
| BTU output | 48000 |
| Stage | Single |
| Airflow (CFM) | 1300 |
| Electrical | 115 • 1 ph • 60 Hz |
| Gas connection | 3/4in |
| Dimensions (W×H×D) | 17.5 × 33.75 × 28.5 in |
| Net weight | 115 |
| Warranty | Parts: 5 Years |
Technical Specifications — Indoor Coil
| Brand | MRCOOL |
|---|---|
| Model | MCMP3036BOTB |
| Unit type | Split System Coil |
| Tonnage | 2.5-3 Ton |
| Configuration | Multi-Position |
| Cased | Yes |
| Refrigerant | R-454B |
| Line set sizes | Liquid: 3/8 • Suction: 3/4 |
| Dimensions (W×H×D) | 17.5 × 23.5 × 21 in |
| Net weight | 59.5 |
| Warranty | Parts: 10 Year |
Documents & Downloads
2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser (MVP-30-HP-C-230A00-O)
80% AFUE 60K BTU Upflow/Horizontal/Downflow Single-Stage DC Motor VersaPro Natural Gas Furnace with B Cabinet (MGA80SE060B4C)
2.5-3 Ton MultiPositional 17.5" Cased Coil - Pre-Charged R454B (MCMP3036BOTB)
FAQs
Does this bundle include a line set?
Can this system run as dual fuel?
What refrigerant does this system use?
What installation orientations are supported?
Is propane conversion supported?
How do I confirm cabinet width / coil style?
