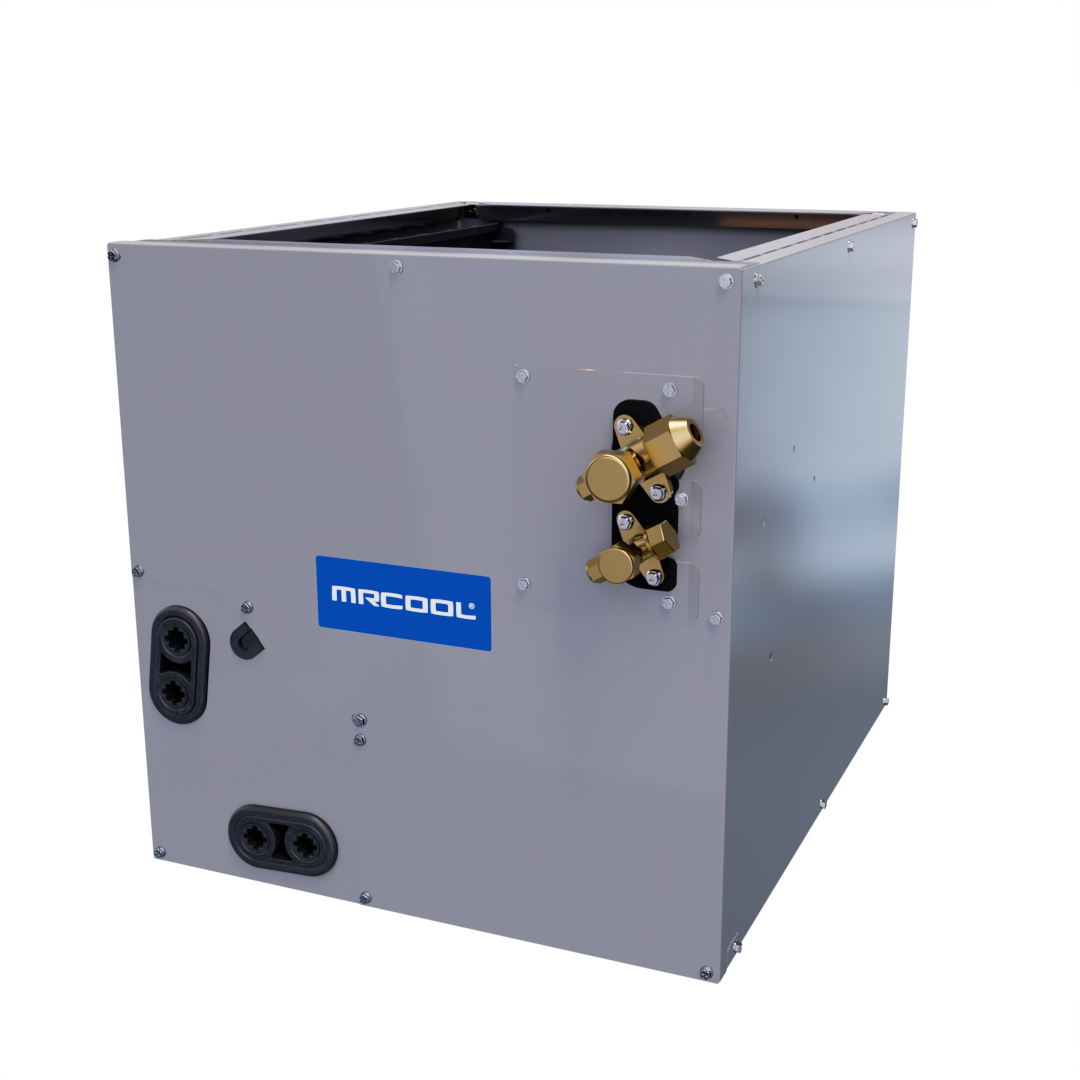

MRCOOL 2.5–3 Ton Pre-Charged Cased A-Coil (17.5") | R-454B – MCMP3036BOTB
Summary
The MRCOOL® MCMP3036BOTB Pre-Charged A-Coil speeds up installs and upgrades: it ships factory-charged with next-gen R-454B, integrates a pre-installed TXV, and is designed to work with MRCOOL® No-Vac® pre-charged line sets or standard flare/sweat connections. CoolGuard® corrosion-resistant construction and a built-in A2L refrigerant leak-detection sensor add durability and safety for dependable year-round comfort.
Important
Pre-charged with R-454B for faster installs. Multi-position (upflow, downflow, horizontal left/right). Pre-installed TXV metering device. Works with MRCOOL® No-Vac® pre-charged line sets.
What's Included
- Pre-Charged Cased A-Coil (Model MCMP3036BOTB)
- Pre-installed TXV
- Installation & Owner’s Manual
- Service Manual
- Warranty Information
Features
- Factory R-454B charge; eco-forward, low-GWP refrigerant
- Compatible with MRCOOL® No-Vac® Quick Connect® line sets or standard flare/sweat
- Multi-position cabinet (upflow, downflow, horizontal L/R)
- Pre-installed TXV for precise refrigerant control
- CoolGuard® corrosion-resistant aluminum coil
- Built-in A2L leak-detection sensor for added safety
- Compact 17.5" cased footprint; service-friendly panels
Technical Specifications
| Brand / Series | MRCOOL / MRCOOL Coils |
| Model | MCMP3036BOTB |
| GTIN | 00840255582803 |
| UPC | 840255582803 |
| Unit Type | Split System Coil (Cased) |
| Configuration | Multi-Position |
| Tonnage | 2.5–3 Ton |
| Refrigerant | R-454B (A2L), Factory Pre-Charged |
| Metering Device | TXV |
| Net Dimensions (W × D × H) | 17.5" × 21" × 23.5" |
| Net / Gross Weight | 59.5 lbs / 68 lbs |
| Cabinet Color | Grey |
| Liquid / Suction Line Sizes | 3/8" / 3/4" |
| Contains Electronics / Chemicals / Compressed Gas | Yes / Yes / Yes |
Airflow & Installation Limits
| Outdoor Capacity | Minimum (CFM) | Maximum (CFM) |
| 2.5 Ton | 875 | 1000 |
| 3 Ton | 1050 | 1200 |
Compatibility & Pairing
| Works With | Hyper Heat Condensers, Universal Split Condensers, and VersaPro 2nd-Generation Furnaces |
| Outdoor Models | MVP-30-HP-C-230A00-O, MVP-36-HP-C-230A00-O, CENTRAL-30-HP-C-230B00-O, CENTRAL-36-HP-C-230B00-O |
Warranty Information
- Base Parts Warranty: 10 Years (limited)
Manuals & Downloads
Safety Information
A2L Leak Sensor & Response: If a refrigerant leak is detected, the indoor unit will run the fan and the outdoor compressor will stop; the leak sensor’s service life is approximately 15 years (see manual for details).
Install & Wiring: Follow national and local codes, provide clearances for service, piping, and condensate lines, and observe all electrical safety and grounding requirements.
PROPOSITION 65 WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Installation Advantages
Supports MRCOOL® No-Vac® Quick Connect® line-set installation (see manual for torque/connection steps), or conventional flare/sweat with proper evacuation, brazing, and leak checking. Provide level placement and seal all duct transitions to prevent air leakage; maintain service clearances.
Environmental & Efficiency Features
Uses low-GWP R-454B refrigerant and includes a pre-installed TXV to help optimize performance; CoolGuard® aluminum construction enhances longevity in demanding conditions.
