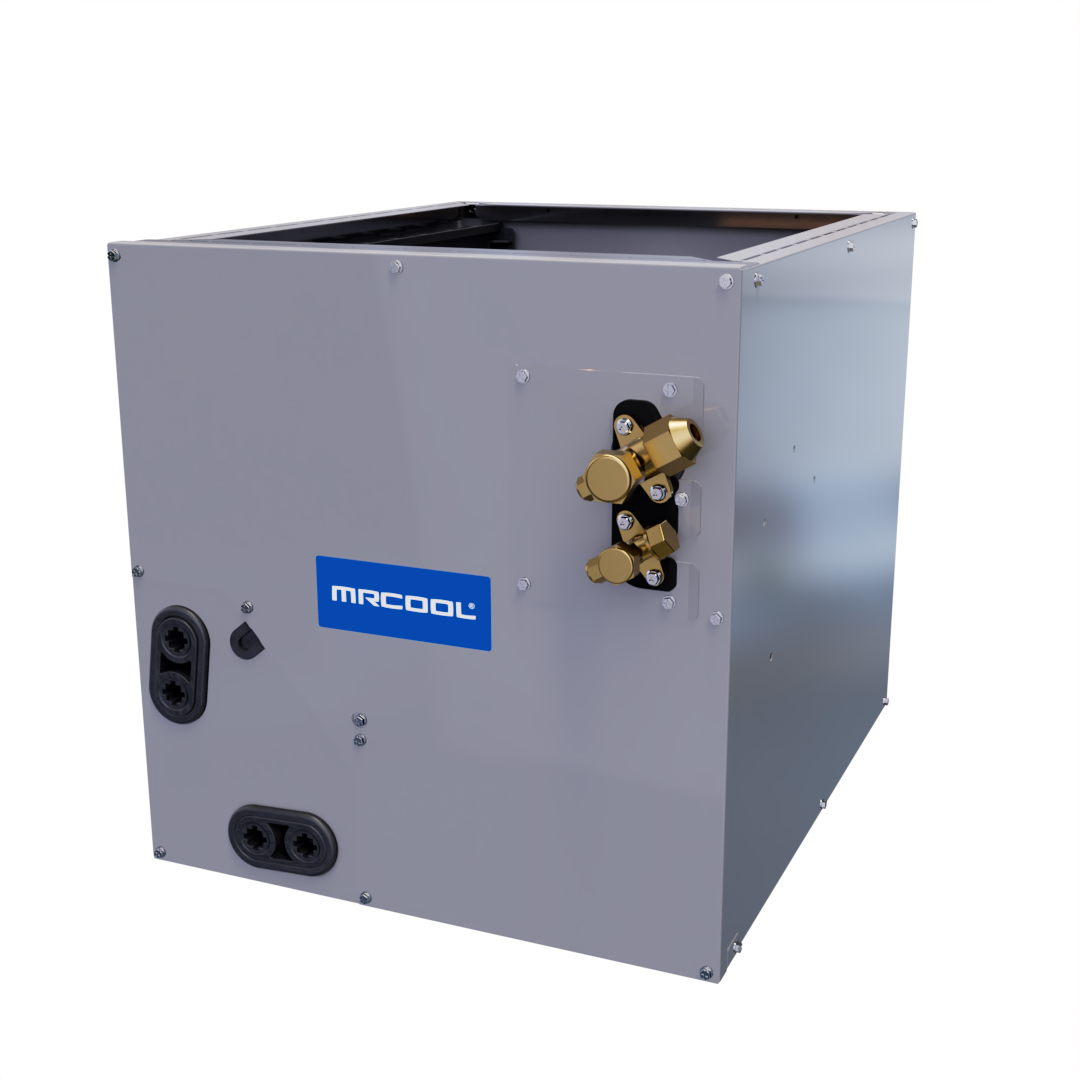

MRCOOL 1.5–2 Ton Pre-Charged Cased A-Coil (17.5") | R-454B – MCMP1824BOTB
Summary
The MRCOOL® MCMP1824BOTB Pre-Charged A-Coil streamlines installs and upgrades with a factory R-454B charge and flexible connection options. Designed for No-Vac® Quick Connect® line sets or standard flare/sweat, this 17.5" cased, multi-position coil fits tight spaces and pairs with compatible MRCOOL® systems. CoolGuard® corrosion-resistant construction and an integrated A2L leak-detection sensor add durability and safety for reliable, year-round comfort.
Important
Pre-charged with R-454B for faster installs. Multi-position (upflow, downflow, horizontal left/right). Pre-installed TXV metering device. Compatible with MRCOOL Hyper Heat & Universal Split condensers and VersaPro 2nd-Gen furnaces.
What's Included
- Pre-Charged Cased A-Coil (Model MCMP1824BOTB)
- Pre-installed TXV
- Installation & Owner’s Manual
- Service Manual
- Warranty Information
Features
- Pre-charged R-454B refrigerant for simplified, eco-forward installs
- Works with MRCOOL® No-Vac® Quick Connect® line sets or standard flare/sweat
- Multi-position cabinet: upflow, downflow, horizontal L/R (dual front drains; side drain pan for horizontal)
- Pre-installed TXV for precise refrigerant control
- CoolGuard® corrosion-resistant aluminum coil
- Integrated A2L refrigerant leak-detection sensor
- Compact 17.5" cased footprint; field-serviceable panels
Technical Specifications
| Brand / Series | MRCOOL / MRCOOL Coils |
| Model | MCMP1824BOTB |
| GTIN | 00840255582797 |
| UPC | 840255582797 |
| Unit Type | Split System Coil (Cased) |
| Configuration | Multi-Position (Upflow / Downflow / Horizontal L/R) |
| Tonnage | 1.5–2 Ton |
| Refrigerant | R-454B (A2L), Factory Pre-Charged |
| Metering Device | TXV (Thermostatic Expansion Valve) |
| Net Dimensions (W×D×H) | 17.5" × 21" × 18" |
| Net / Gross Weight | 42 lbs / 50 lbs |
| Cabinet Color | Grey |
| Liquid / Suction Line Sizes | 3/8" (liquid) / 3/4" (suction) |
| Line Set Compatibility | MRCOOL® No-Vac® Quick Connect® or standard flare/sweat |
| Contains Electronics / Chemicals / Compressed Gas | Yes / Yes / Yes |
Airflow & Installation Notes
| Drainage | Dual front drains; side drain pan provided for horizontal installs |
| Clearances | Provide service access and space for refrigerant and condensate connections |
| Orientation | Upflow, Downflow, Horizontal Left/Right |
Compatibility
| Works With | Hyper Heat Condensers, Universal Split Condensers, VersaPro 2nd-Generation Furnaces |
| Dual-Fuel Ready | Yes — with compatible heat pump & furnace |
Warranty Information
- Base Parts Warranty: 10 Years (limited)
Manuals & Downloads
Safety Information
PROPOSITION 65 WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Product Contains: Electronics, Chemicals, Compressed Gas
Installation Advantages
Pre-charge and a TXV shorten install time, while the multi-position cabinet and Quick Connect® compatibility simplify retrofits. Horizontal installs benefit from dual drains and the integrated side drain pan.
Environmental & Efficiency Features
R-454B offers a lower GWP than legacy refrigerants. CoolGuard® corrosion-resistant construction supports long-term reliability, and the A2L leak-detection sensor adds safety during operation and service.
Notes: For airflow, clearances, condensate routing, and safety/charging requirements, always follow the installation manual.
