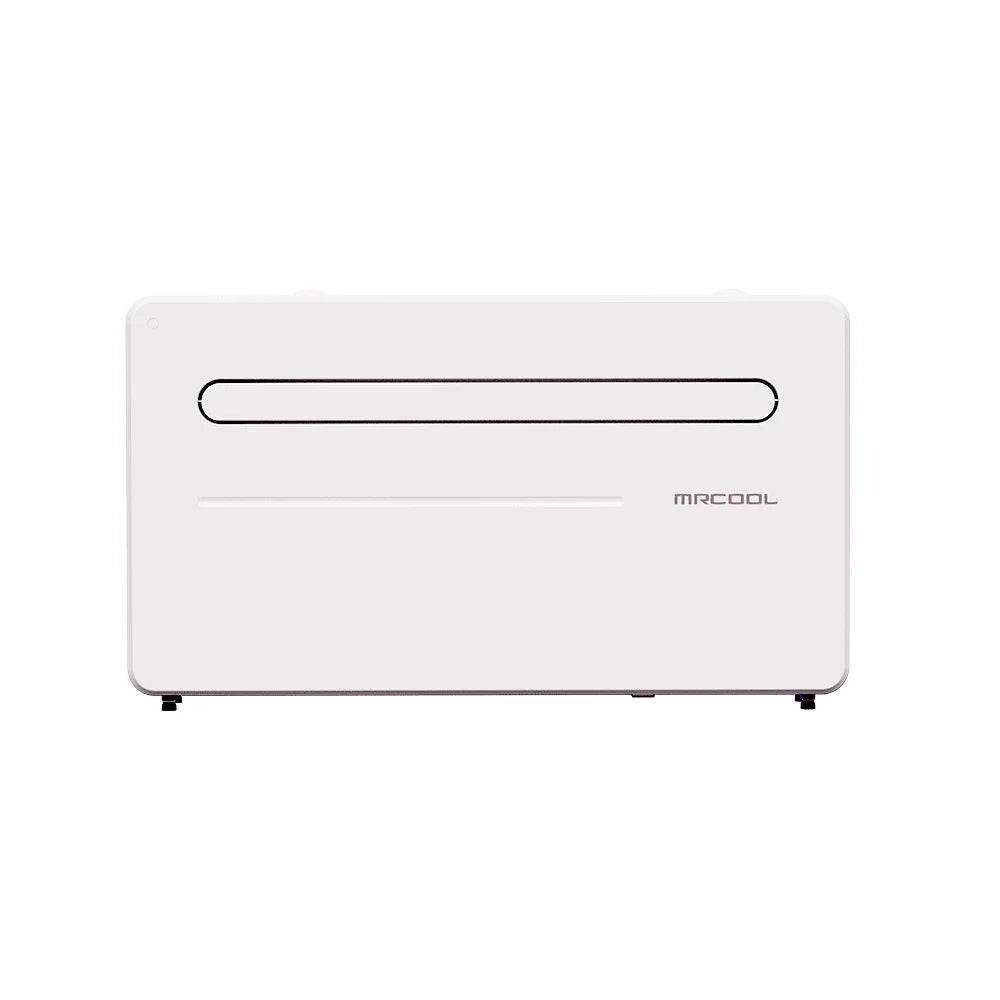

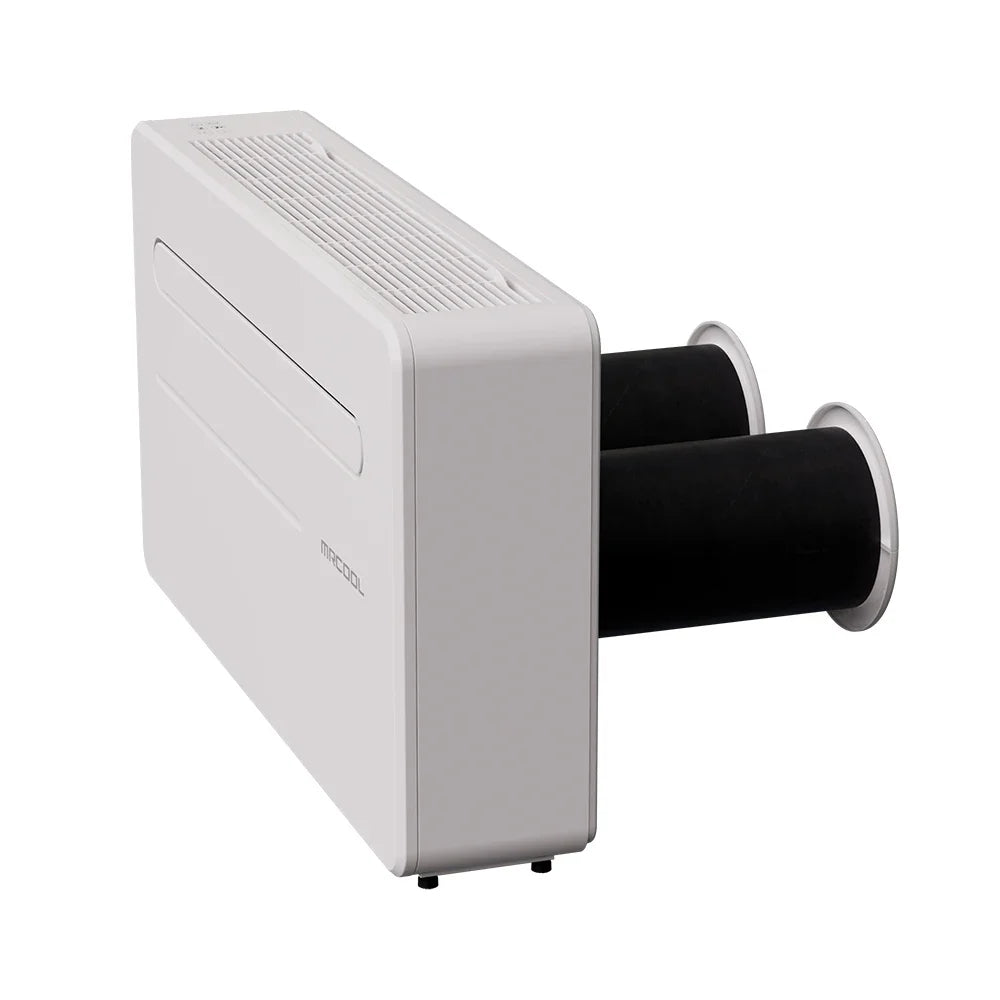

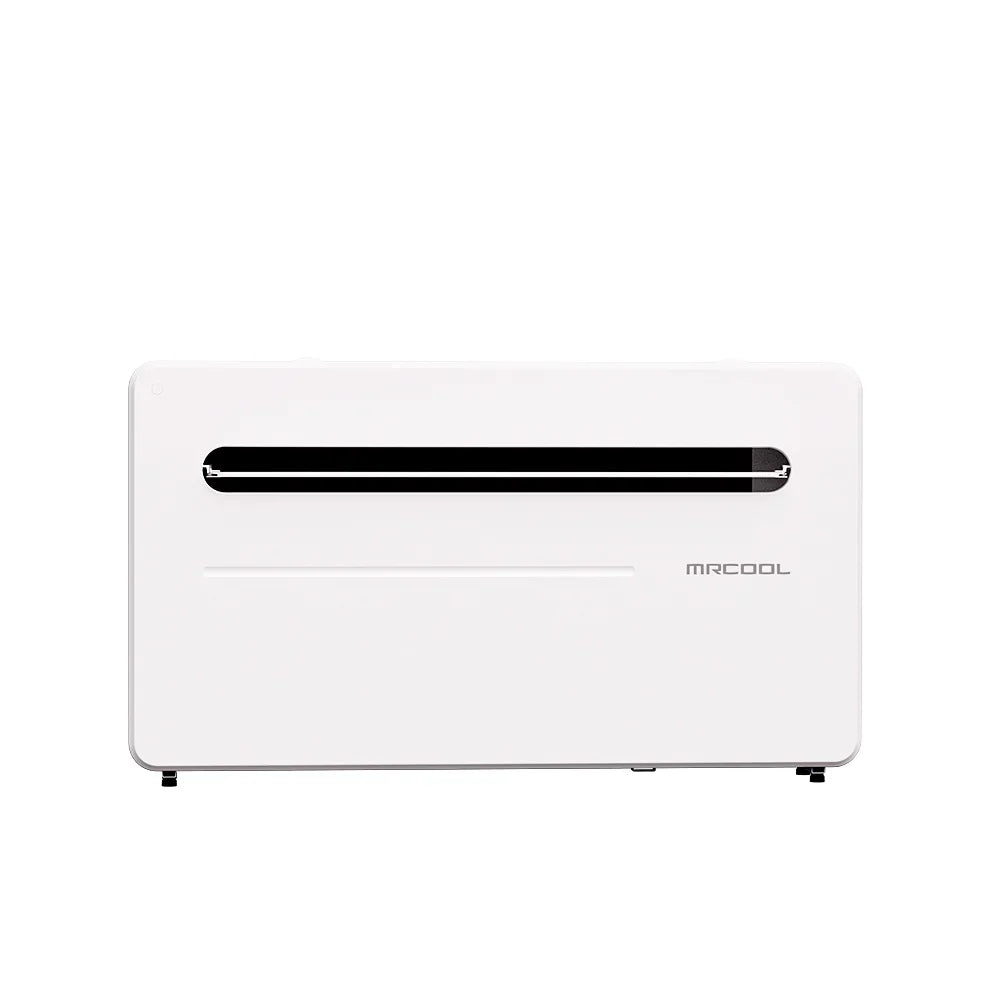

MRCOOL Monoblock MTHP White 10,000 BTU 115V R-32 Wall Mounted Heat Pump, MDM10115D
Overview
```
10,000 BTU Cooling
9,000 BTU Heating
115V
R-32 Refrigerant
15 SEER2
DC Inverter
No Outdoor Condenser
Wall Mounted
Wi-Fi Compatible
Quiet Mode
Reusable Filter

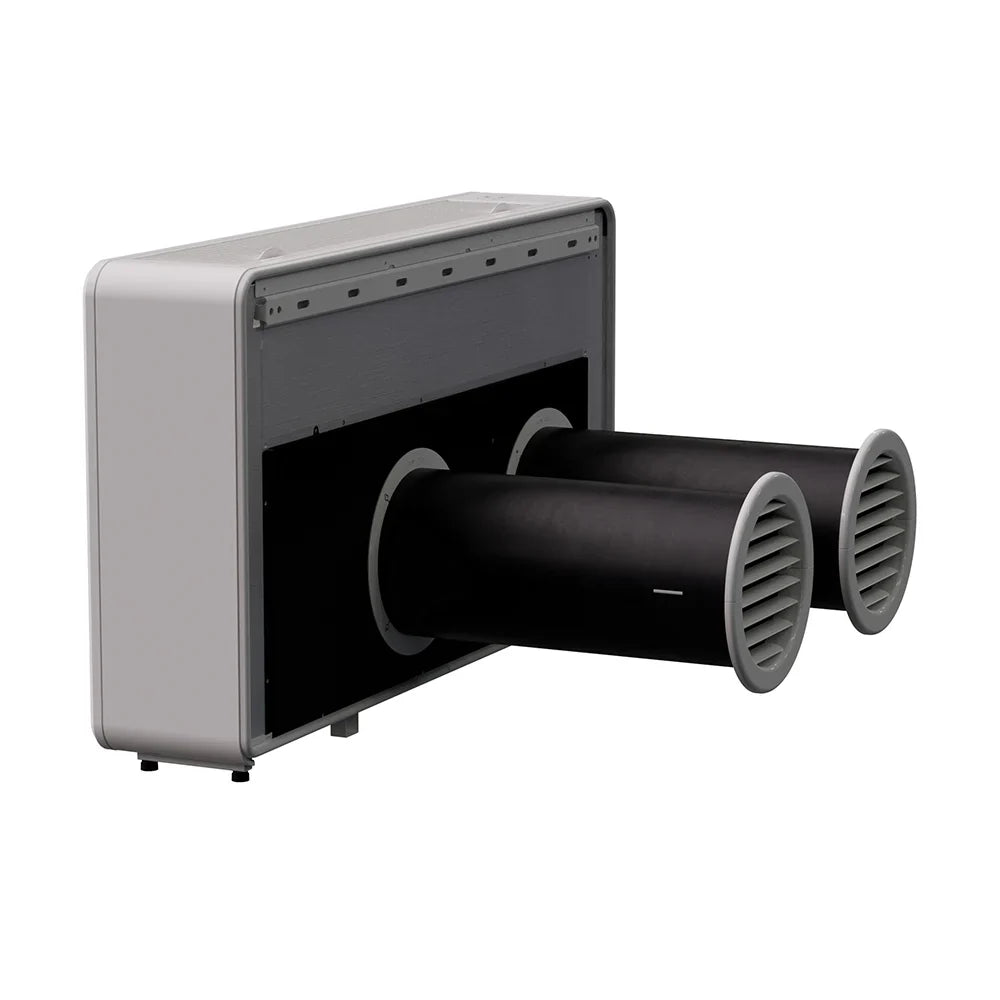

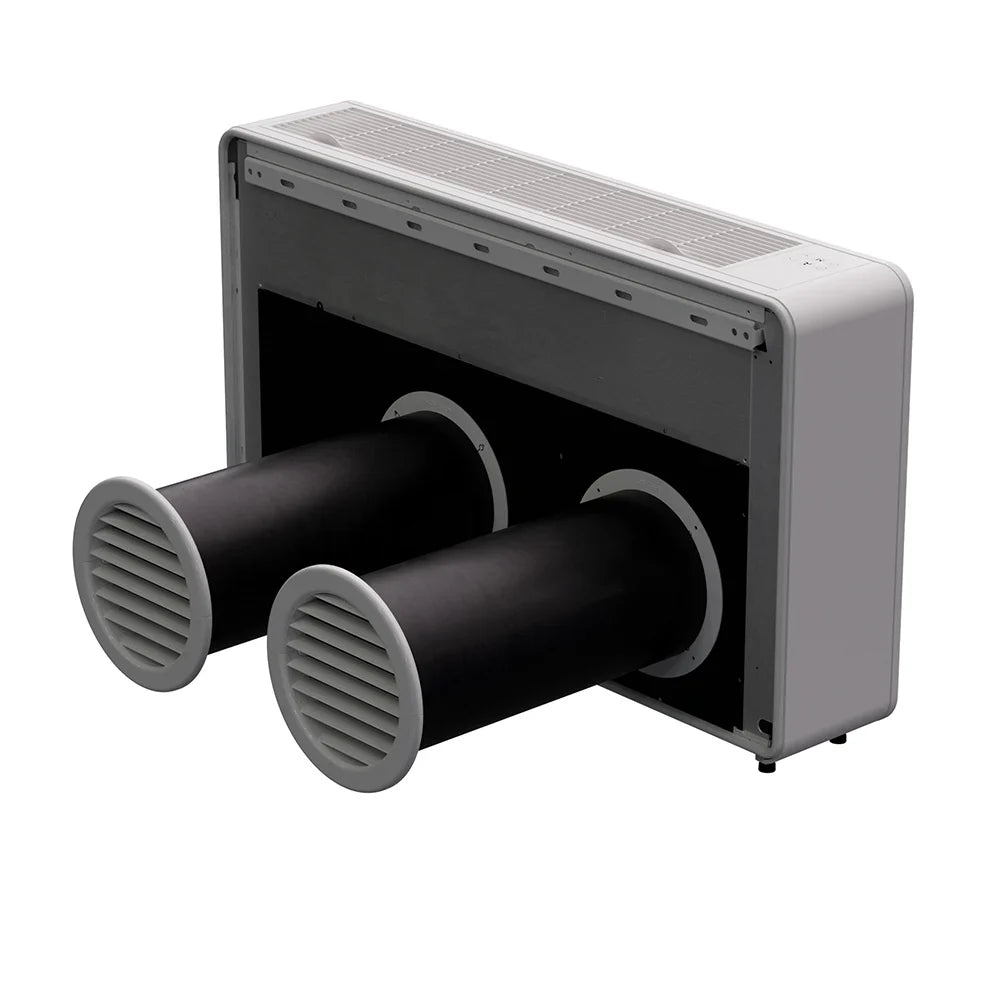

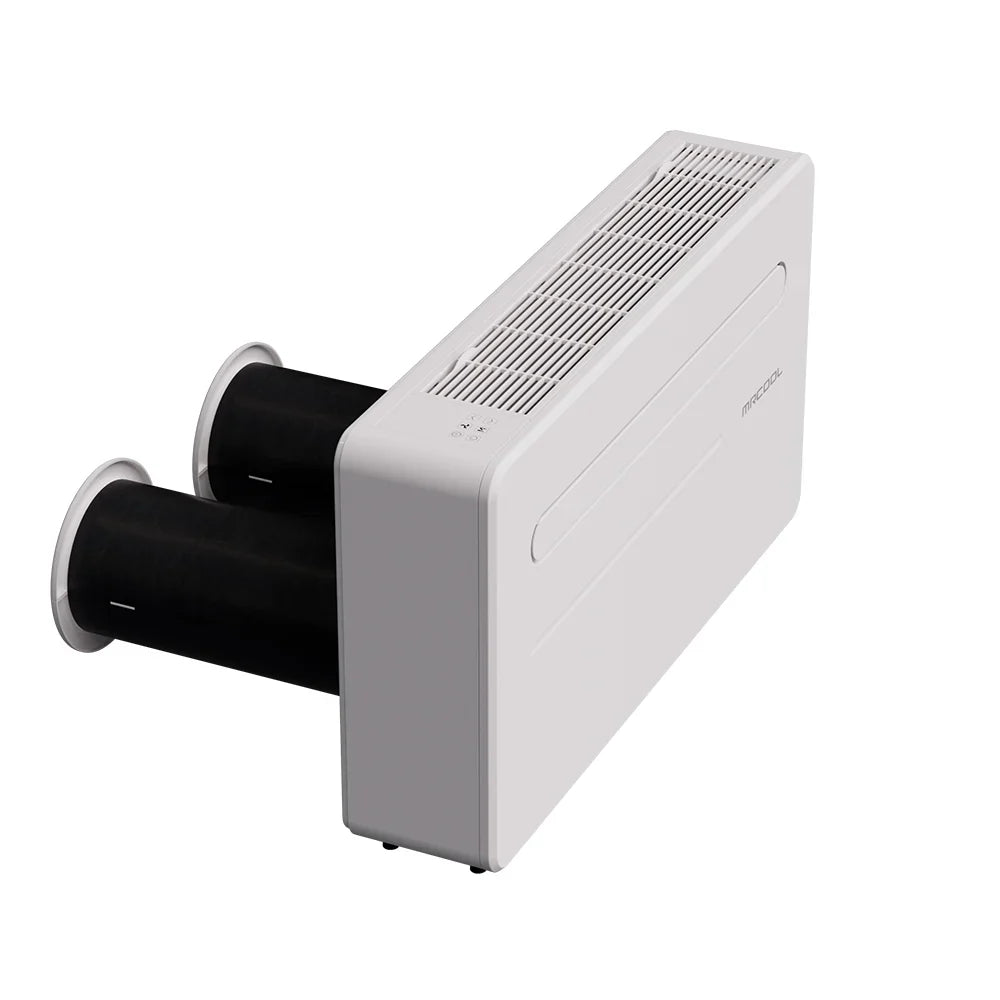

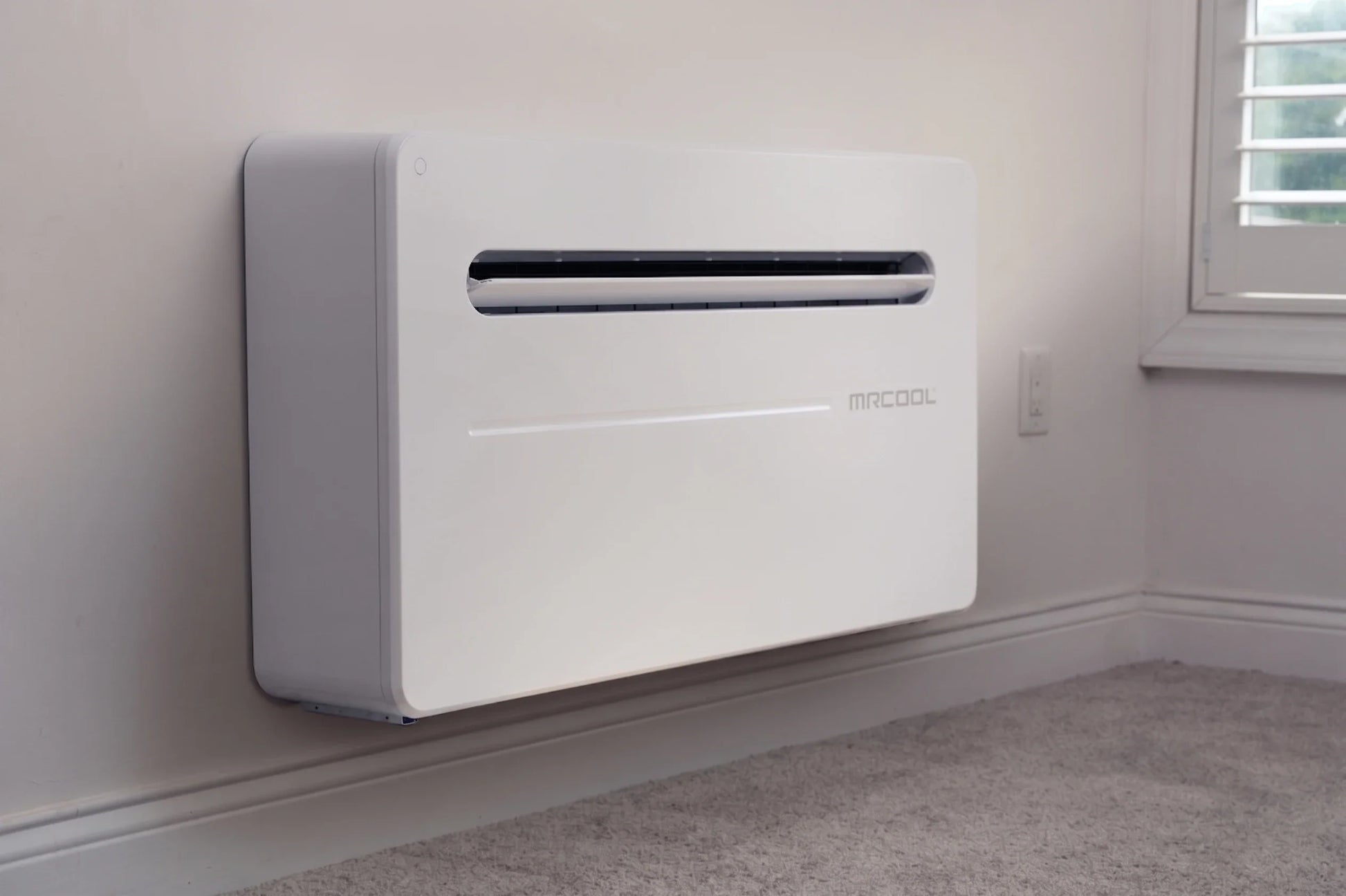

The MRCOOL® Monoblock MTHP Series 10,000 BTU 115V Wall Mounted Heat Pump is a compact all-in-one heating and cooling solution designed for small spaces where traditional mini-split installation may not be practical. Instead of using a separate outdoor condenser, the Monoblock MTHP houses the system components inside one wall mounted indoor unit, helping save space while simplifying installation.
Designed for year-round comfort, this unit provides 10,000 BTU of cooling and 9,000 BTU of heating with DC inverter technology for smoother temperature control, quieter operation, and improved efficiency compared with basic fixed-speed systems. It uses R-32 refrigerant, a modern lower-GWP refrigerant option, and includes cooling, heating, fan, and dry operating modes.

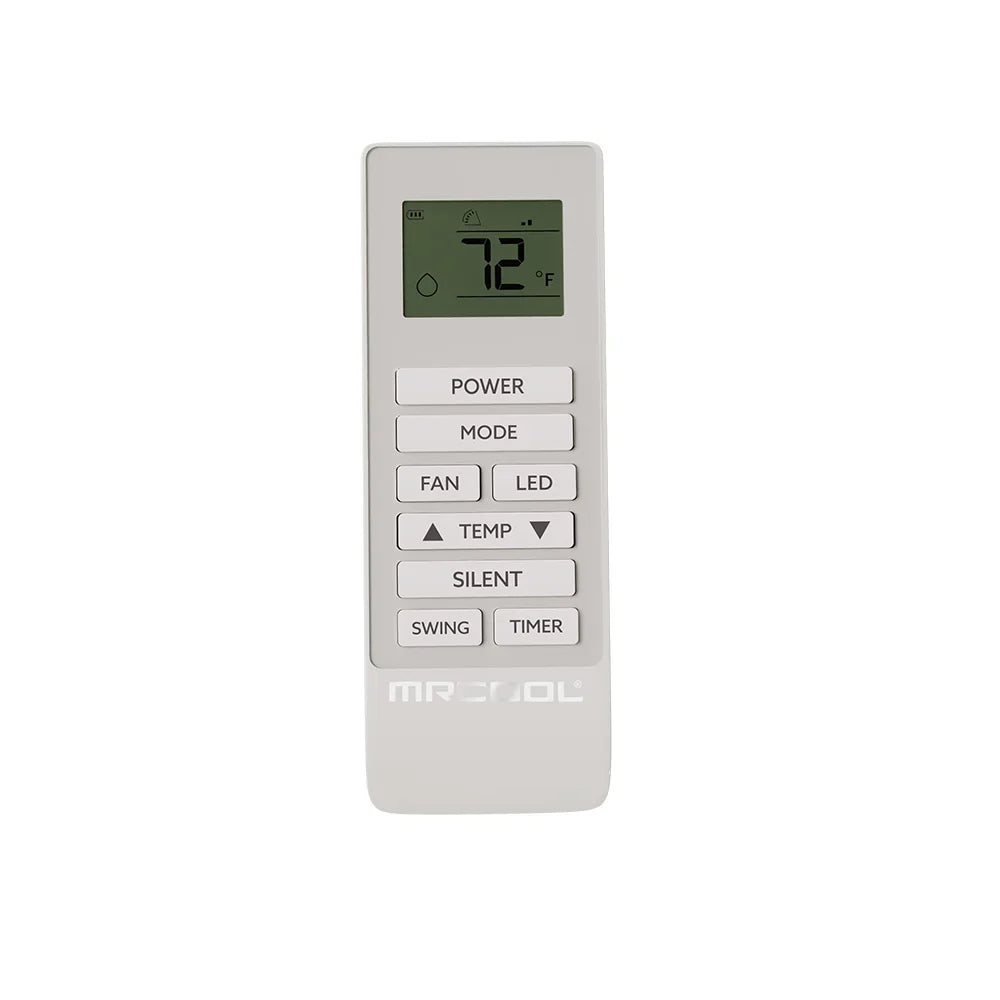

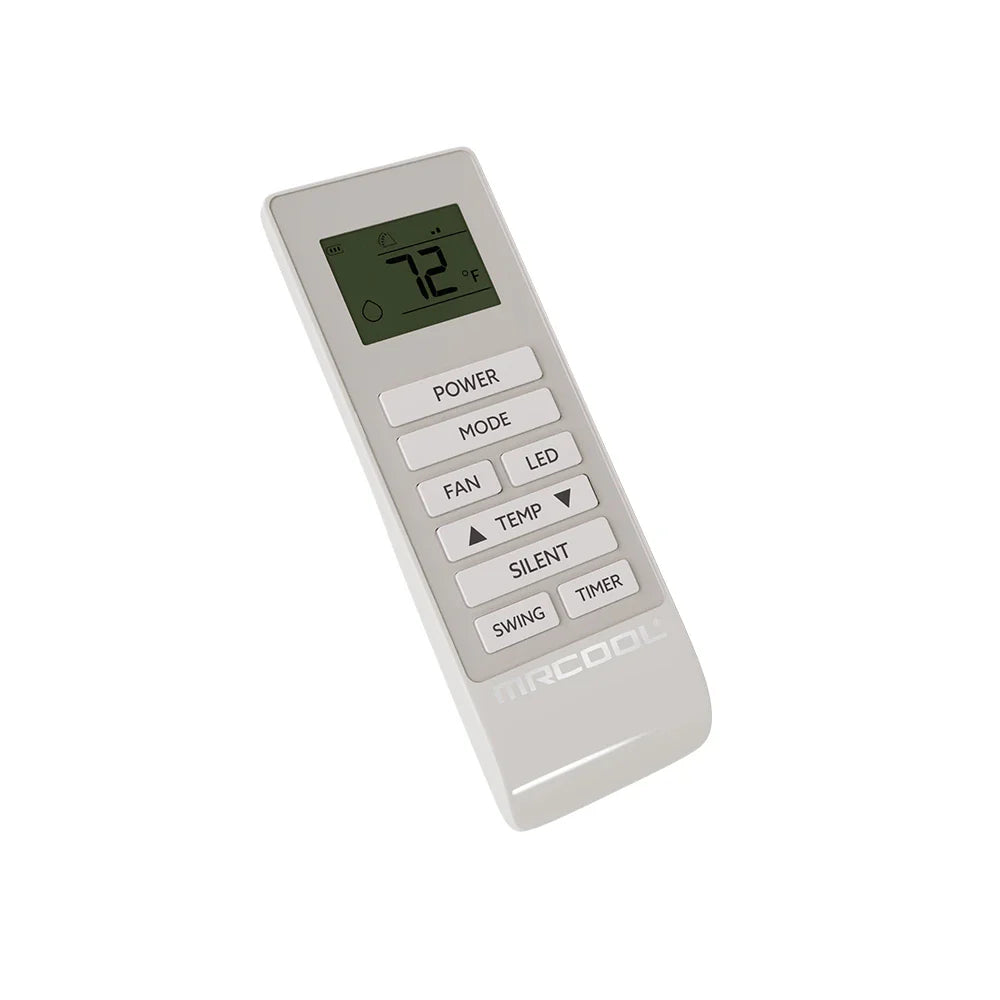

Everyday control is simple through the bright LED display, included remote control, and optional Wi-Fi control through the MRCOOL® Connect app. Features such as swing, silent operation, timer control, reusable filtration, and self-evaporative operation with water-full alarms and auto-stop protection make this a practical choice for apartments, additions, offices, bedrooms, cabins, and other small comfort zones.
```Highlights
- All-in-one design: No traditional outdoor condenser is required, making it useful where exterior equipment placement is limited.
- Compact wall mounted comfort: Designed for small rooms, offices, additions, apartments, cabins, and similar spaces.
- DC inverter operation: Variable-speed performance helps improve comfort, reduce cycling, and lower operating noise.
- Year-round modes: Cooling, heating, fan-only, dry mode, quiet mode, swing, and timer functions.
- Modern refrigerant: Uses R-32 refrigerant with a listed charge of 19.4 oz.
- Simple control: Includes remote control and supports app-based control for iOS and Android devices.
- Durable build: Full metal body and housing panel help support long-term reliability.
- Self-evaporative operation: Includes water-full alarms and auto-stop protection.
Cooling10,000 BTU
Heating9,000 BTU
Efficiency15 SEER2
Sound32 to 46 dB(A)
Electrical115V 1 Phase
RefrigerantR-32
Installation requirements, wall opening details, drainage setup, electrical requirements, and code compliance should be verified in the installation manual and local codes.
```What’s Included
- MRCOOL® Monoblock MTHP Wall Mounted Heat Pump: MDM10115D
- Integrated all-in-one indoor heat pump system
- Reusable filter
- Remote control with batteries
- Documentation listed below in Documents & Downloads
Auxiliary heat is not included and is not listed as available for this model.
Warranty
- 1-year base warranty
- 1-year parts warranty
- 1-year remote warranty
Warranty terms, registration requirements, and coverage limitations are controlled by MRCOOL®. Review the warranty document before installation.
System Specs
Model: MDM10115D | Series: Monoblock MTHP
```| Brand Name | MRCOOL |
| Series | Monoblock MTHP |
| Model | MDM10115D |
| GTIN | 00840433615736 |
| UPC | 840433615736 |
| Unit Type | MTHP |
| Short Description | Monoblock MTHP White, 10,000 BTU, 115V, R32 |
| SEER2 | 15 |
| EER2 | 9.9 |
| HSPF2 | 7.5 |
| Tonnage | 0.83 Ton |
| Cooling Capacity | 10,000 BTU |
| Heating Capacity | 9,000 BTU |
| Voltage / Phase / Cycle | 115V | 1 Phase | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 13A |
| Mount Type | Wall |
| Color | White |
| Refrigerant Type | R-32 |
| Refrigerant Volume | 19.4 oz |
| Sound Rating | 32 to 46 dB(A) |
| Oscillation | Yes |
| Inverter | Yes |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Type | DC |
| Blower Motor Type | DC |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Wi-Fi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Base Warranty | 1 Year |
| Base Parts Warranty | 1 Year |
| Base Remote Warranty | 1 Year |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Net Dimensions | 39.4"W x 23.1"H x 8.07"D |
| Net Weight | 93.5 lbs |
| Gross Dimensions | 44.1"W x 26.19"H x 13.19"D |
| Gross Weight | 106.7 lbs |
Documents & Downloads
| Brochure | Open Brochure |
| Install Manual | Open Install Manual |
| Service Manual | Open Service Manual |
| Warranty Document | Open Warranty Document |
| French Install Manual | Open French Install Manual |
| French Warranty Document | Open French Warranty Document |
| Spanish Install Manual | Open Spanish Install Manual |
| Spanish Warranty | Open Spanish Warranty |
Important
- All-in-one design: This Monoblock MTHP does not use a traditional outdoor condenser.
- Electrical: 115V, 1 phase, 60 Hz, with 13A minimum circuit ampacity and 20A max fuse breaker.
- Installation: No refrigerant handling is required, but wall mounting, exterior venting, drainage, and electrical requirements must still be installed correctly.
- Auxiliary heat: Auxiliary heat is not included and is not listed as available for this model.
- Control: Wi-Fi and app compatibility are listed as available for iOS and Android devices.
- Handling: This product contains electronics, chemicals, compressed gas, and carries a Proposition 65 warning.
FAQs
```Does this unit need an outdoor condenser?
No. This is a monoblock all-in-one system, so the main components are housed in a single wall mounted indoor unit instead of a separate outdoor condenser.
Does installation require refrigerant handling?
No refrigerant handling is required for normal installation. The system is designed to simplify setup compared with traditional split systems.
What size space is this best for?
This 10,000 BTU cooling and 9,000 BTU heating unit is best suited for small comfort zones such as bedrooms, offices, additions, apartments, cabins, and similar spaces.
Can I control it from my phone?
Yes. Wi-Fi compatibility and app compatibility are listed, with support for iOS and Android devices through the MRCOOL® Connect app.
Does it include auxiliary heat?
No. Auxiliary heat is not included and is not listed as available for this model.
What warranty is included?
The base warranty, parts warranty, and remote warranty are each listed as 1 year.
