HVAC Replacement Part | Induced Draft Motors | SKU 20002301S

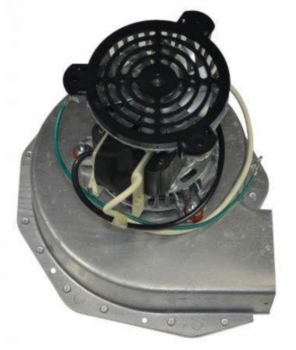

Induced Draft Motor, 1/30 Hp
Product Description
The Induced Draft Motor, 1/30 Hp is an HVAC replacement motor. It is used for induced draft motors service and replacement work. Key details include Induced Draft Motor, Frame C, 1/30 Hp, 115 V, 1 Ph, Class B, 1.5 A, Ball Bearing, Direct Drive, Counter Clockwise, OAO, 1 Speed, 3000 rpm, 8.25 in Wd x 6.1 in Ht x 8.5 in Dp.
Order by part number 20002301S and compare it with the label on your existing component before purchasing.
Technical Specifications - 20002301S
| Part Number | 20002301S |
|---|---|
| Full SKU | MHVC-RES-PMF-20002301S |
| Part Type | Induced Draft Motors |
| Category | Motors and Fans |
| Catalog Detail | Induced Draft Motor, Frame C, 1/30 Hp, 115 V, 1 Ph, Class B, 1.5 A, Ball Bearing, Direct Drive, Counter Clockwise, OAO, 1 Speed, 3000 rpm, 8.25 in Wd x 6.1 in Ht x 8.5 in Dp |
| Country of Origin | Mexico |
| Unit Height | 6.1 in |
| Unit Width | 8.25 in |
| Unit Depth | 8.5 in |
| Power Phase | 1 Ph |
| Power Voltage | 115 V |
