Goodman

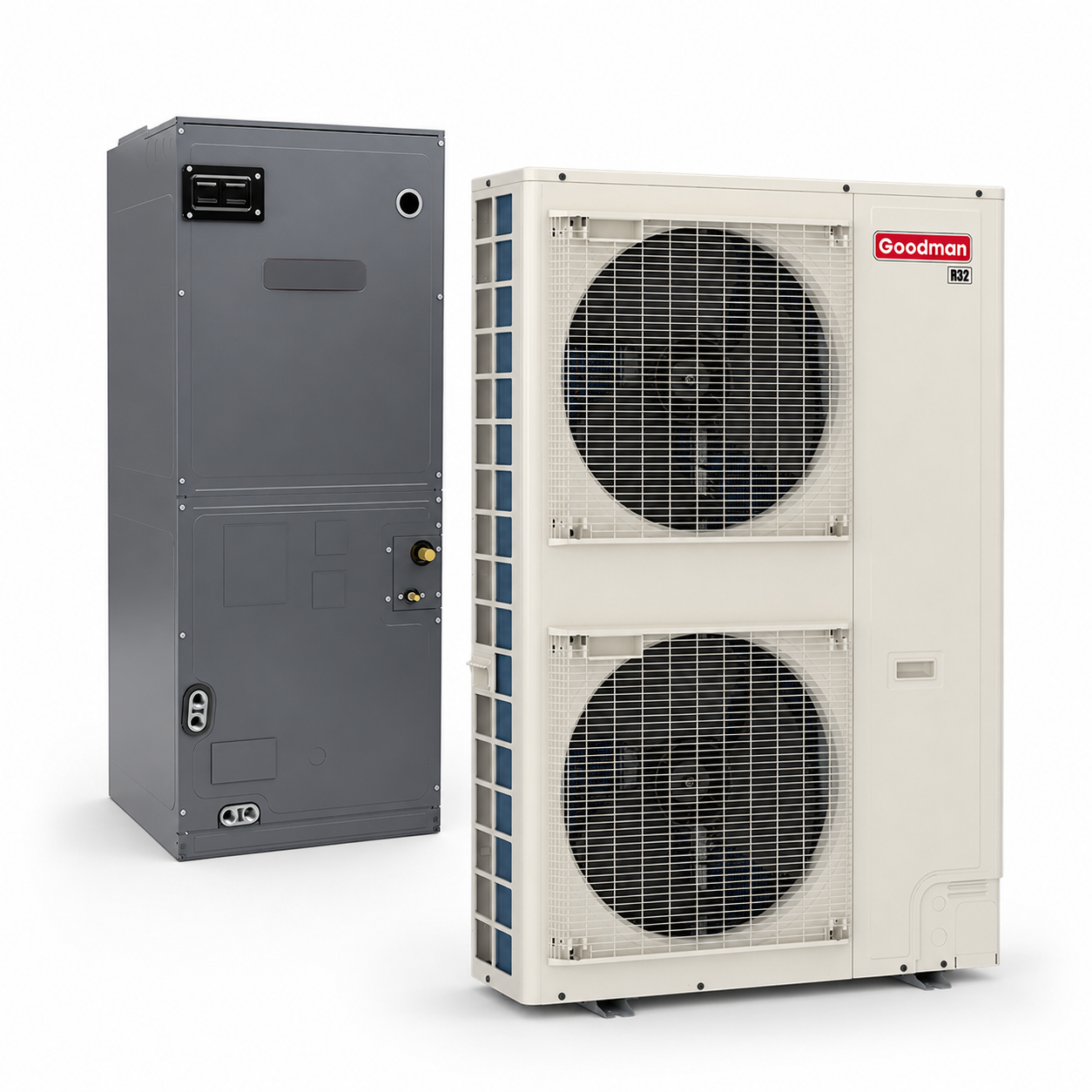

Goodman 60,000 BTU 18.0 SEER2 High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R32 230V

SKU: AHVE60DP0300 + GZV7SA6010

System highlights
AC Type
Air Handler
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
60000 BTU VO (5.0 TON)
Indoor Unit
60000 BTU (5.0 TON)
Voltage
120V, 208-230V
Looking For
Ducted
SEER2 Rating
18.0
Airflow Direction
Multi-Positional
Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 120V R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$8,586.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 60,000 BTU 18.0 SEER2 High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R32 230V

Product Overview

Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 115V R32 AHVE60DP0300

This 115V AHVE ducted multi-position air handler is a 5-ton unit with a variable-speed ECM blower motor in a compact 24.5-inch cabinet designed for horizontal or vertical installation. It features an electronic expansion valve (EEV) for cooling and heat pump applications, an all-aluminum 7 mm evaporator coil, and delivers constant CFM across a wide range of static pressures for consistent comfort and improved humidity control. The unit is ComfortNet compatible, works with the Daikin One+ smart thermostat, and is built with a low-leakage, insulated cabinet to reduce air loss and condensation. It is AHRI certified, ETL listed, and includes a 21-inch cabinet depth for easier attic access.

Key Features & Cabinet Features:

  • Electronic Expansion Valve (EEV) for cooling and heat pump applications
  • Variable-speed ECM blower motor with constant CFM control
  • All-aluminum 7 mm evaporator coil
  • ComfortNet compatible; supports Daikin One+ smart thermostat
  • Low cabinet air leakage per ASHRAE Standard 193
  • Improved humidity control and adjustable low CFM fan-only operation
  • Horizontal or vertical installation capability
  • 21" cabinet depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back to help reduce condensation in humid environments
  • Foil-faced internal insulation to minimize cabinet condensation
  • Galvanized, leather grain-embossed cabinet finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

Goodman 5 Ton Ducted Air Handler Multi-Position Variable-Speed 115V R32 AHVE60DP0300

Warranty Type Parts
Standard Warranty 5 years
Registered Warranty 10 years

Goodman 5 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA6010

The Goodman GZV7SA6010 is a high-efficiency, 5-ton variable-speed heat pump designed for year-round heating and cooling in large homes. Equipped with an inverter-driven compressor and environmentally friendly R-32 refrigerant, this system delivers consistent comfort, quiet operation, and reliable performance. Its advanced technology and durable construction make it ideal for homeowners seeking energy-efficient and sustainable HVAC solutions.

Product Features

  • Variable-speed inverter-driven compressor for precise temperature and humidity control
  • Quiet operation with digitally commutated fan motor and high-density compressor sound blanket
  • High efficiency with SEER2 rating up to 17.5 for reduced energy costs
  • Communicating technology compatible with Goodman GTST smart thermostat and other communicating equipment
  • Durable outdoor unit construction with heavy-gauge galvanized steel and powder-coated finish
  • Hurricane wind-compliant design when properly anchored, meeting Florida Building Code standards
  • Environmentally friendly R-32 refrigerant with lower Global Warming Potential (GWP)
  • Reliable year-round heating and cooling performance for large residential spaces

Goodman 5 Ton 17.5 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV7SA6010

Warranty Type Parts
Standard Warranty 5 years
Registered Warranty 10 years

Product Features (AHVE60DP0300)

  • Electronic Expansion Valve (EEV) for cooling and heat pump applications
  • 7 mm evaporator coil tube size
  • Variable-speed ECM blower motor
  • Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Thermostat provides adjustable low CFM for efficient fan-only operation
  • All-aluminum evaporator coil
  • Fault recall of six most recent faults
  • Improved humidity and comfort control
  • AHRI certified
  • ETL listed
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

Cabinet Features (AHVE60DP0300)

  • Cabinet air leakage less than 2.0% at 1.0 inch H₂O when
  • tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H₂O when
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan
  • with secondary drain connections
  • Screw-less sides and back helps to reduce
  • condensation when installed in humid locations
  • Foil-faced insulation covers the internal
  • casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

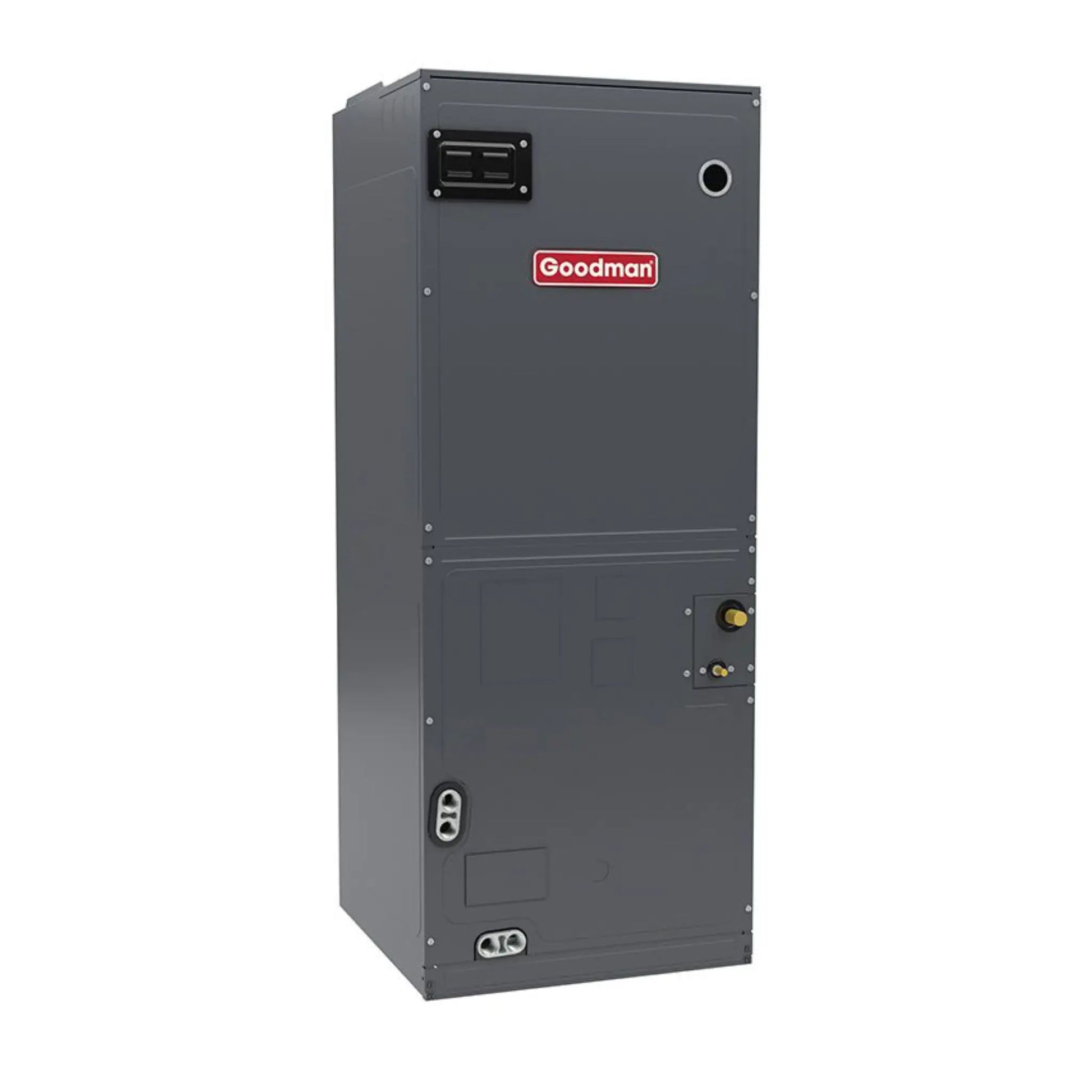

Technical Specifications - AHVE60DP0300

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AHVE115V_32
series name 115V AHVE
installation type Ducted Multi-position
communication feature Yes
communication feature type ComfortNet Compatible
export control classification number eccn EAR99
universal product code upc 663051735286
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
cooling capacity nominal 60000 Btu/H
produced in us No
indoor blower fla 6.9 A
max overcurrent protection 15/15 A
max voltage 126 V
min circuit amps 6.8/6.5 A
min voltage 103 V
power frequency 60 Hz
power phase 1 Ph
power voltage 120 V
dimensions blower diameter 12 in
dimensions blower width 10.625 in
dimensions unit depth 21 in
dimensions unit height 58 in
dimensions unit width 26 in
evap motor rpm 1250 r/min
expansion device EEV
indoor orifice size 0.172 in
motor speed type Variable Speed ECM
number of speeds Variable
weight unit 167 lb
blower motor horsepower 1 metric hp
tonnage 5
tonnage range 5
condensate drain outlet 3/4 in
factory std refrigerant charge 0 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 24.50 in
dimensions case height 62.00 in
dimensions case width 26.00 in
dimensions distribution unit depth 24.5 in
dimensions distribution unit height 62 in
dimensions distribution unit width 26 in
dimensions pallet depth 49.00 in
dimensions pallet height 62.00 in
dimensions pallet width 52.00 in
dimensions shipping unit depth 24.50 in
dimensions shipping unit height 62.00 in
dimensions shipping unit width 26.00 in
distribution shipping volume unit 39494 in³
shipping volume unit 39494.000 in³
truck factor 0.0000
volume case 39494.000 in³
volume distribution shipping unit 39494 in³
weight case 165.000 lb
weight distribution shipping unit 163.09 lb
weight shipping unit 165.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GZV7SA6010)

  • Meets the 2023 M1 Test Standards

Product Features (GZV7SA6010)

  • Variable-speed swing compressors
  • Strong heating capacity
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman GTST connected thermostat and otherGoodman communicating equipment
  • Proprietary control algorithmic logic
  • In communicating mode, only two low-voltage wires to outdoor unit required
  • Diagnostic indicator lights, seven-segmentLED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
  • Field-selectable boost mode increases compressor speed during unusually high loads
  • Field-installed bi-flow filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves with easyaccess to gauge ports

Cabinet Features (GZV7SA6010)

  • Heavy-gauge galvanized steel cabinet with grille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion (ZAM®), unpainted steel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

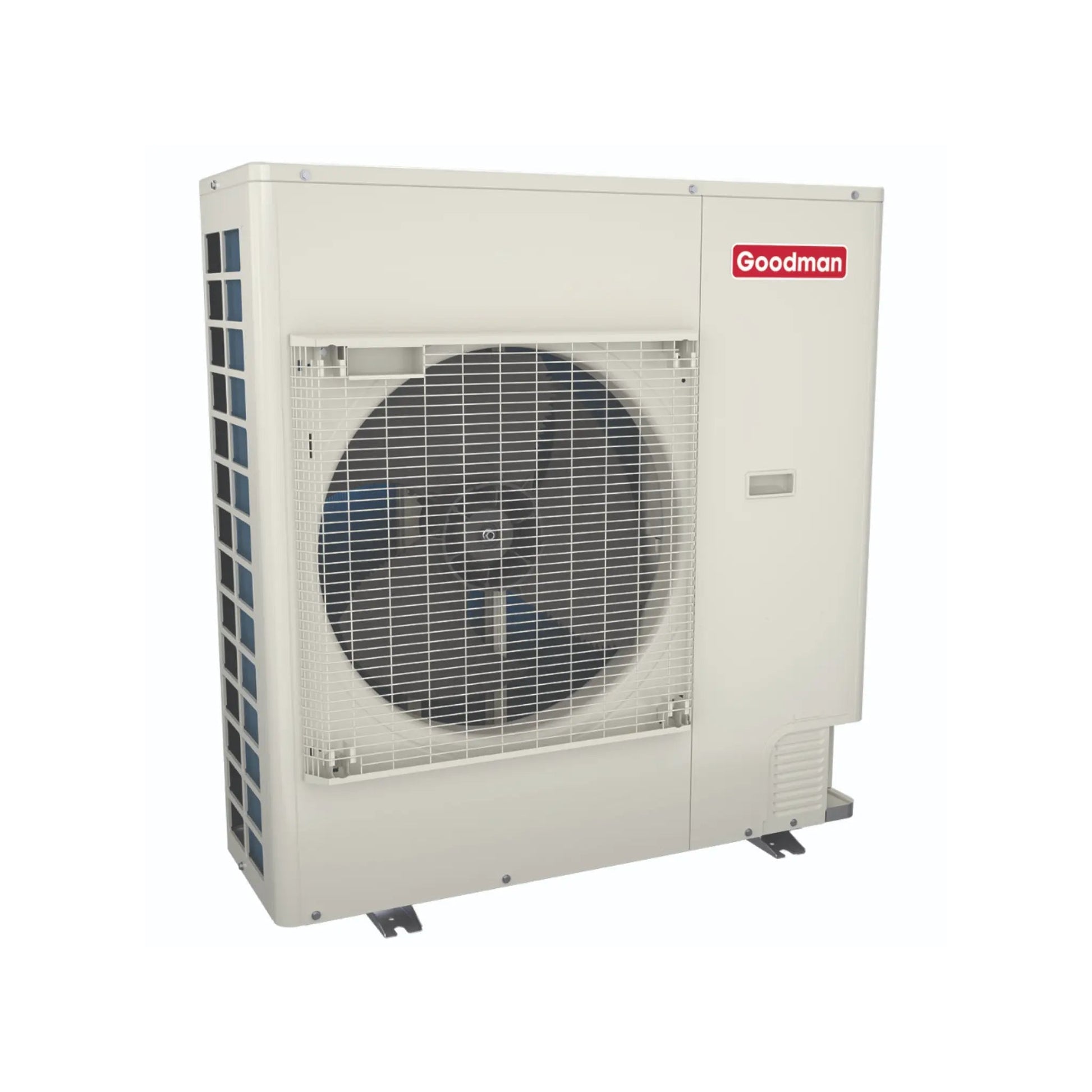

Technical Specifications - GZV7SA6010

product category Unitary
product class pim Split Heat Pump
system family Unitary Split System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GZV7SA
series name GSV7SA
model efficiency 17.5 SEER2
family description High-Effciency, Communication, Split System Heat Pump Up to 17.5 SEER2 & 8.6 HSPF2
installation type Ducted
communication feature Yes
communication feature type Non-Communicating
export control classification number eccn EAR99
product notes R32 Outdoor
item stocking unit of measure uom EA
pallet qty 3
country of origin Thailand
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cop17 hsvtc 3.6
cop47 hsvtc 3.6
eer2 hsvtc 9.8
energy star certified Yes
heating capacity nominal 60000 Btu/H
hspf 2 hsvtc 8.8
seer 2 hsvtc 17
produced in us No
cooling operation range std max 115 °F
cooling operation range std min 0 °F
heating operation range std max 70 °F
heating operation range std min -10 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 47 °F
rated heating condition ambient wb 43 °F
fan compressor drive input 24.5 A
max overcurrent protection 40 A
min circuit amps 34.4 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
compressor type Inverter
dimensions unit depth 22.625 in
dimensions unit height 56.3125 in
dimensions unit width 37 in
expansion device EEV
sound pressure high cooling 77 dBA
weight unit 236 lb
cooling capacity rated 52000 Btu/H
heating capacity rated 54000 Btu/H
tonnage 5
factory std refrigerant charge 162 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 38.50 in
dimensions case height 61.50 in
dimensions case width 16.50 in
dimensions distribution unit depth 38.5 in
dimensions distribution unit height 61.5 in
dimensions distribution unit width 16.5 in
dimensions pallet depth 48.00 in
dimensions pallet height 66.50 in
dimensions pallet width 40.00 in
dimensions shipping unit depth 38.50 in
dimensions shipping unit height 61.50 in
dimensions shipping unit width 16.50 in
shipping volume unit 39067.875 in³
truck factor 0.0000
volume case 39067.875 in³
volume distribution shipping unit 39067.875 in³
weight case 271.000 lb
weight distribution shipping unit 271 lb
weight shipping unit 271.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
