Goodman 5 Ton Evaporator Coil Uncased TXV 20" Cabinet Upflow/Downflow R32
Product Overview

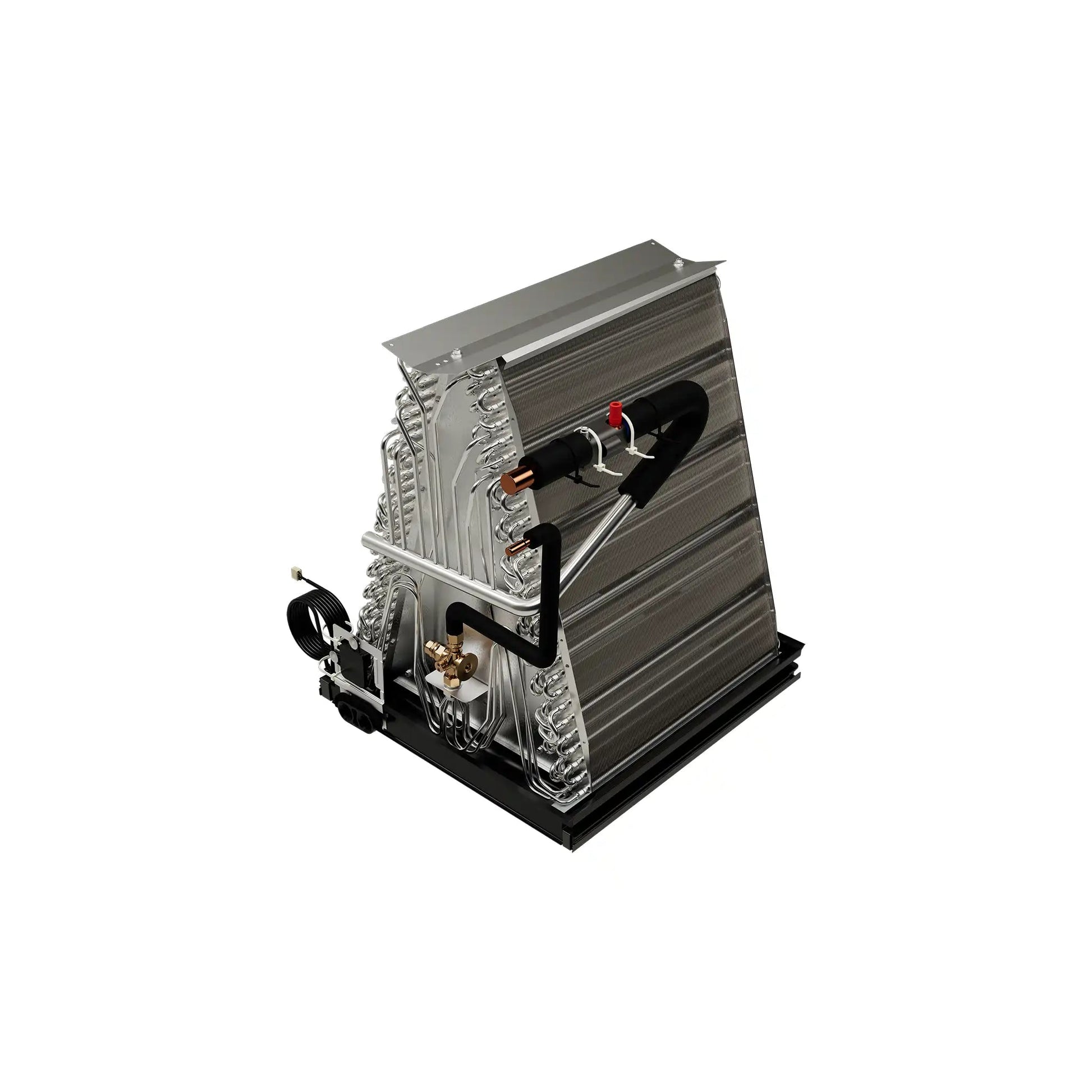

Goodman 5 Ton Evaporator Coil Uncased TXV 20" Cabinet Upflow/Downflow CAUTA6030C3
This all-aluminum evaporator coil is engineered specifically for next-generation A2L HVAC systems, in full compliance with the AIM Act of 2020. Not suitable for R-410A systems, this coil is designed exclusively for use with R-32 refrigerant applications, providing enhanced efficiency, safety, and environmental compliance. Ideal for HVAC professionals and OEM installations focused on modern refrigerant standards.
Key Features:
- All-Aluminum Coil Construction – Delivers long-lasting durability and corrosion resistance in demanding HVAC environments.
- Optimized for R-32 Refrigerant – Includes dedicated refrigerant circuits and manifolds to ensure peak performance with A2L systems.
- R-32 Sensor Built for Coil Life Span – Integrated for safe and reliable refrigerant monitoring throughout the coil’s operational life.
- Factory-Installed TXV (Thermal Expansion Valve) – Pre-installed for efficient cooling application performance and system compatibility.
- Standardized Copper Suction Tube Stub Length – Simplifies installation across a range of HVAC units and configurations.
- Foil-Faced Internal Insulation – Reduces cabinet condensation and enhances thermal efficiency inside the coil housing.
- Rust-Resistant Thermoplastic Drain Pan – Features low water-retention design and secondary drain connections for improved moisture management.
- DecaBDE-Free Construction – Complies with environmental safety standards, offering a safer material composition.
- Drain Pan Rails for Easy Removal and Repositioning – Maintains structural integrity while allowing hassle-free coil servicing.
- UV-Resistant Drain Pan – Prevents degradation and extends product life in various HVAC environments.
- AHRI Certified & ETL Listed – Third-party tested and certified to ensure quality, performance, and safety.
This evaporator coil is an ideal solution for HVAC installations transitioning to environmentally friendly refrigerants, ensuring compatibility and compliance with evolving industry regulations.
Goodman 5 Ton Evaporator Coil Uncased TXV 20" Cabinet Upflow/Downflow CAUTA6030C3
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 5 years | 10 years | 10 years |
| Standard Unit Replacement Warranty | 5 years | 5 years | 5 years |
| Registered Unit Replacement Warranty | 5 years | 10 years | 10 years |
Product Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valve for cooling applications
- Standardized copper suction tube stub length
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease withoutcompromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Technical Specifications - CAUTA6030C3
| sku | CAUTA6030C3 |
|---|---|
| manufacturer | Corporate |
| product category | Unitary |
| product class | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAUTA_32 |
| series name | CAUTA |
| short description | CAUTA Evaporator Coil, Upflow/Downflow, 5.0 Ton, R-32 |
| family description | CAUTA Uncased Coil |
| product description | 5T Uncased R-32 Coil with TXV |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 7/8 in |
| tonnage | 5 |
| height | 27.3 in |
| width | 20 in |
| depth | 21.3 in |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Coil |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051729421 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | Yes |
| cabinet finish | Unpainted |
| cased vs uncased | Uncased |
| dimensions unit depth | 21.3 in |
| dimensions unit height | 27.3 in |
| dimensions unit width | 20 in |
| expansion device | TXV |
| tonnage range | 5.0 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.00 in |
| dimensions case height | 32.75 in |
| dimensions case width | 23.50 in |
| dimensions distribution unit depth | 26 in |
| dimensions distribution unit height | 32.75 in |
| dimensions distribution unit width | 23.5 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 70.00 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.00 in |
| dimensions shipping unit height | 32.75 in |
| dimensions shipping unit width | 23.50 in |
| distribution shipping volume unit | 20010.25 in³ |
| shipping volume unit | 20010.250 in³ |
| truck factor | 0.0000 |
| volume case | 20010.250 in³ |
| volume distribution shipping unit | 20010.25 in³ |
| weight case | 43.000 lb |
| weight distribution shipping unit | 43 lb |
| weight shipping unit | 43.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
