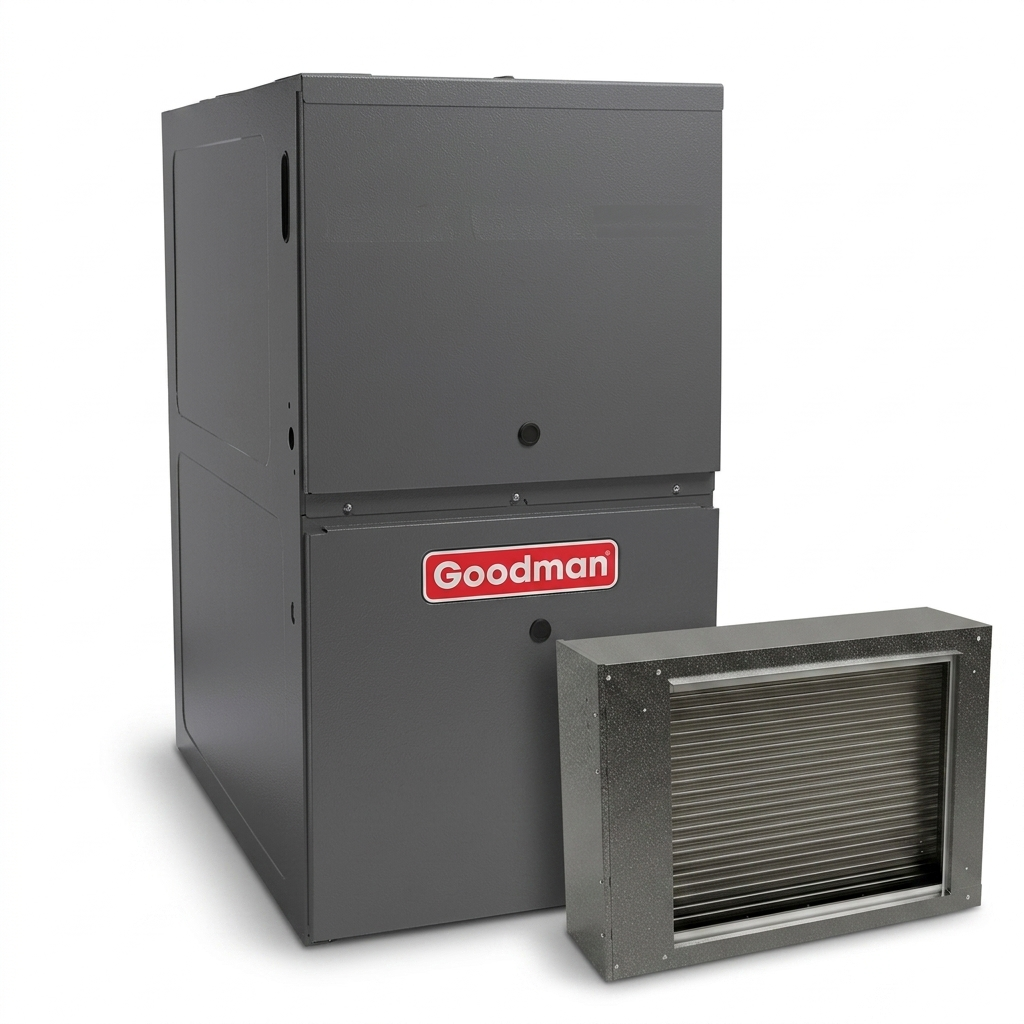

Goodman 5 Ton 80% AFUE Furnace and Coil System - R32 - Upflow/Horizontal

SKU: CSCT6012L3 + GRVT800603BX

System highlights
AC Type
Furnace & Coil Systems
Refrigerant Type
R32
Brand
Goodman
Indoor Unit
60000 BTU (5.0 TON)
Looking For
Furnace & Coil Systems
Airflow Direction
Upflow, Horizontal
Blower Motor
Variable Speed - ECM
Maximum CFM
1200
Fuel Type
Natural Gas, Propane
Burner Stages
Two Stages
Coil Style
Slab Coil
Furnace Heating BTU
60,000 BTU (5.00 Ton)
Furnace Efficiency
80% AFUE
Cabinet Width (in)
39
! Cabinet might need adjustment for sizing.
Goodman 5 Ton Cased Evaporator Coil TVX 39.5" Cabinet Horizontal Slab R32 (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$3,144.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 5 Ton 80% AFUE Furnace and Coil System - R32 - Upflow/Horizontal

Product Overview

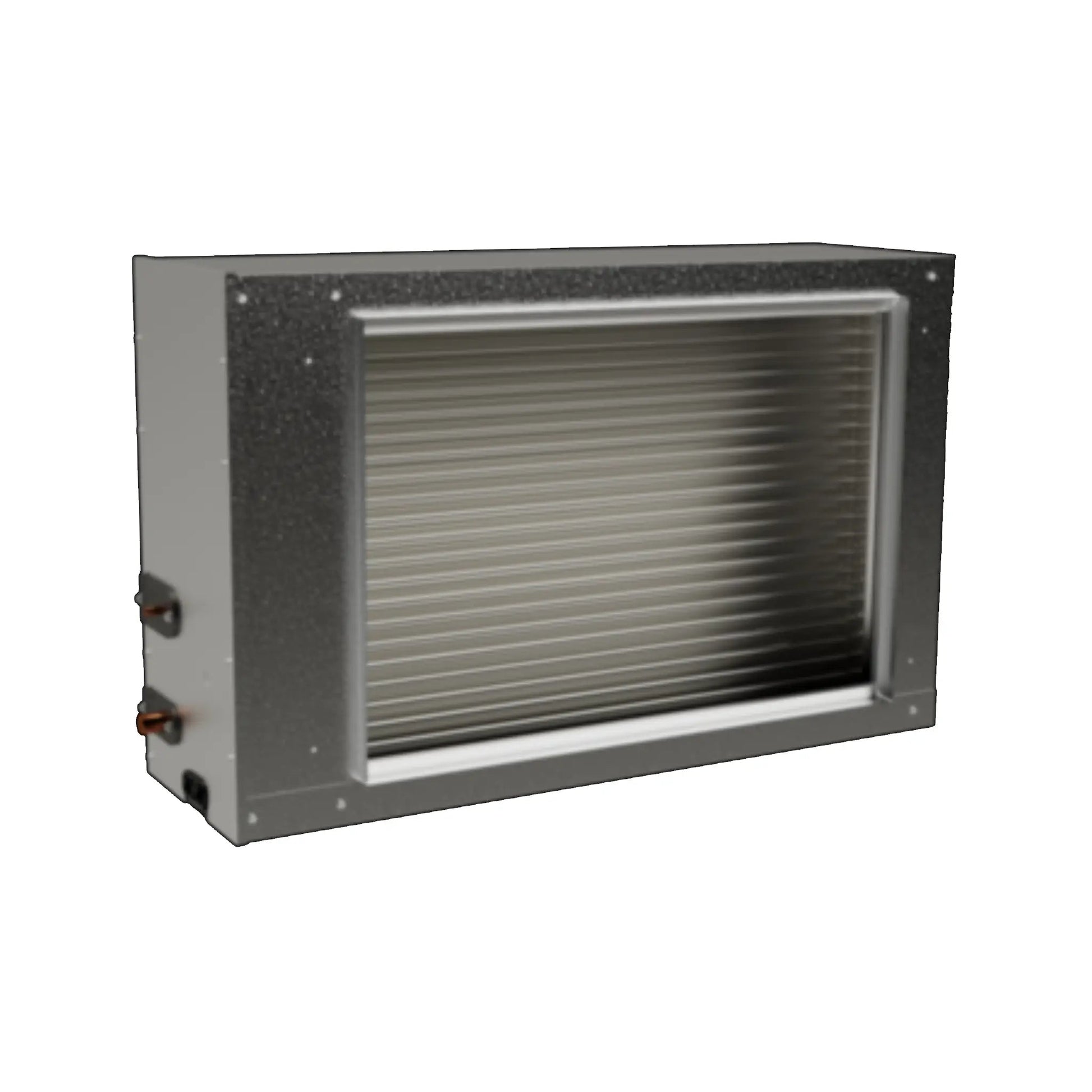

Goodman 5 Ton Cased Evaporator Coil TVX 39.5" Cabinet Horizontal Slab R32 CSCT6012L3

The Goodman CSCT6012L3 is the ultimate evaporator coil for large homes, offering powerful and energy-efficient cooling performance. Built with robust all-aluminum construction and optimized for R-32 refrigerant, this model is designed to meet the demands of high-capacity HVAC systems while maintaining environmental responsibility and long-term durability.

Key Features

  • Nominal Capacity: 4–5 tons – Ideal for cooling large residential spaces with high efficiency.
  • Dimensions: 39½" W x 12" D x 25" H – Standard size for easy system integration.
  • Service Valve: ⅜" Liquid, ⅞" Suction – Compatible with common HVAC service setups.
  • All-Aluminum Evaporator Coil: Offers enhanced corrosion resistance and effective heat transfer for long-lasting performance.
  • Optimized for R-32 Refrigerant: Delivers efficient operation while meeting low-GWP refrigerant standards.
  • Factory-Installed Thermal Expansion Valve (TXV): Provides precise refrigerant control and enhances system reliability.
  • UV-Resistant Drain Pan: Protects against mold and mildew growth, supporting clean indoor air quality.

The CSCT6012L3 is the go-to evaporator coil for homeowners and HVAC professionals seeking high-performance cooling solutions for large-scale residential applications, with a focus on efficiency, sustainability, and durability.

Goodman 5 Ton Cased Evaporator Coil TVX 39.5" Cabinet Horizontal Slab R32 CSCT6012L3

Warranty Type Commercial Multi-Family Residential
Standard Parts Warranty 5 years 5 years 5 years
Registered Parts Warranty 5 years 10 years 10 years

OVERVIEW

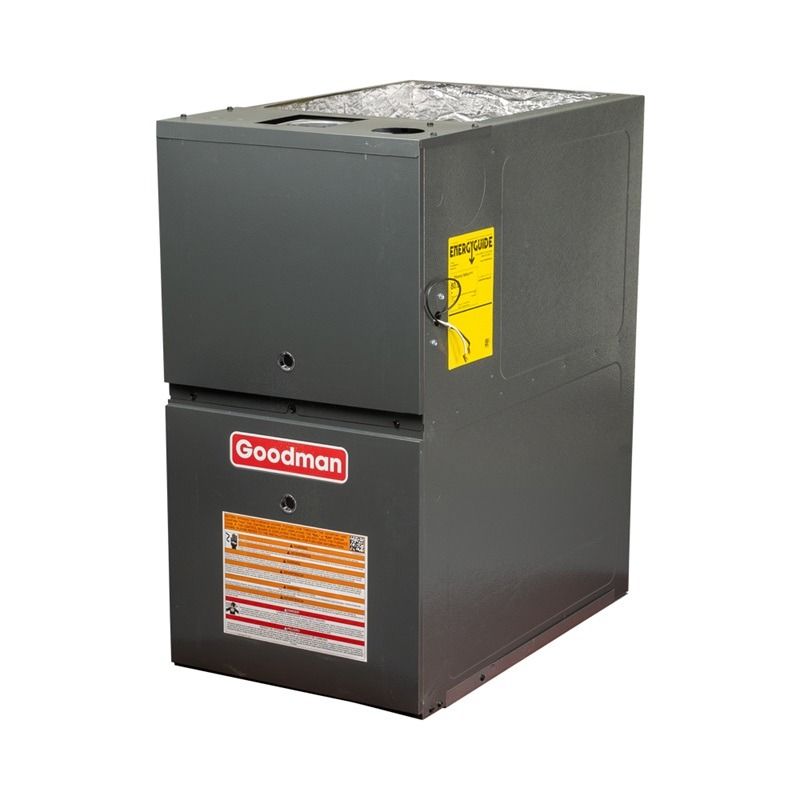

The Goodman GRVT800603BX gas furnace is part of Goodman's top-of-the-line series, known for its exceptional performance. This low NOx furnace features a two-stage burner and a variable speed blower motor, ensuring optimal comfort and efficiency. With the outstanding durability and reliability that Goodman 80% efficient furnaces are known for, we are proud to offer you this high-quality heating solution.

QUICK FACTS

  • This low NOx furnace is ideal to heat a small to medium house (in average climate conditions)
  • 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Requires metal flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

At an input of 60,000 BTU’s, the GRVT800603BX Goodman low NOx gas furnace is suitable for up to a small to medium house in an average climate. The output of this furnace is 48,000 BTU’s, which is calculated by the input times the 80% efficiency rating.

80% Efficiency Rating

With the industry standard efficiency of 80% AFUE, the GRVT800603BX Goodman low NOx gas furnace uses 80% of the fuel going into the furnace to heat your home and the remaining 20% of the fuel going into it is used up in normal furnace operations and is lost out of the flue venting. The GRVT800603BX requires metal flue venting like any 80

Product Features (CSCT6012L3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed thermal expansion valves for cooling applications
  • Compact and versatile - right or left horizontal position
  • Copper sweat connections
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Cabinet Features (CSCT6012L3)

  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Compact and versatile - right or left horizontal position
  • Copper sweat connections

Technical Specifications - CSCT6012L3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CSCT
series name CSCT
family description CSCT Horizontal Slab
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051750708
item stocking unit of measure uom EA
pallet qty 8
country of origin Mexico
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us No
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 12 in
dimensions unit height 25 in
dimensions unit width 39-1/2 in
expansion device TXV
tonnage 5
tonnage range 5
condensate drain outlet 3/4 in
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 14.00 in
dimensions case height 25.50 in
dimensions case width 41.50 in
dimensions distribution unit depth 14 in
dimensions distribution unit height 25.5 in
dimensions distribution unit width 41.5 in
dimensions pallet depth 56.00 in
dimensions pallet height 56.00 in
dimensions pallet width 43.00 in
dimensions shipping unit depth 14.00 in
dimensions shipping unit height 25.50 in
dimensions shipping unit width 41.50 in
distribution shipping volume unit 14815.5 in³
shipping volume unit 14815.500 in³
truck factor 0.0000
volume case 14815.500 in³
volume distribution shipping unit 14815.5 in³
weight case 60.090 lb
weight distribution shipping unit 60.09 lb
weight shipping unit 60.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Benefits (GRVT800603BX)

  • High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
  • Capable of using non communicating single-stage thermostats
  • Durablend long igniter life
  • Quietnd Economical heating
  • Operates on single-stage thermostats

Product Features (GRVT800603BX)

  • Heavy-dutyluminized-steel tubular heat exchanger
  • Efficientnd quiet variable-speed Blower
  • ComfortBridge™ Communicating System compatible
  • Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
  • Silicon Nitride igniter
  • Two-Stage gas valve

Cabinet Features (GRVT800603BX)

  • Multi-position installation: upflow, horizontal left or right
  • Convenient left or right connection for gasnd electrical service
  • Cabinetir leakage (Qleak) less than or equal to 2%
  • Fully insulated heat exchangernd blower section
  • Bottom or side returnirpplications
  • Heavy-gage steel cabinet with durable finish

Technical Specifications - GRVT800603BX

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GRVT80
series name GRVT80
model efficiency 0.80
family description Two-Stage, Variable-Speed ECM Gas Furnace 80% AFUE
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051703209
item stocking unit of measure uom EA
pallet qty 4
afue 80 %
cooling capacity nominal 36000 Btu/H
energy star certified No
installation configuration Upflow/Horizontal
produced in us No
temperature rise range high fire 15-45 °F
temperature rise range low fire 15-45 °F
current type AC
max overcurrent protection 15 A
min circuit amps 7.75 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1400 ft³/min
air flow rate low heating 980 ft³/min
ansi certifed Yes
blower motor rpm 1200 r/min
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 28 in
dimensions unit height 33-3/8 in
dimensions unit width 17-1/2 in
etl listed Yes
external static pressure rated 0.5
filter quantity 1
filter size min 16X25
heat exchanger type Gas
minimum clearances to combustible materials 1 ft
motor speed type Variable Speed ECM
nox burner type Low NOx
number of burners 3
weight unit 105 lb
blower motor horsepower 1/2 metric hp
high fire input capacity 60000 Btu
high fire output capacity 48,000
low fire input capacity 42,000
low fire output capacity 33,600
gas valve type Two Stage
vent diameter 4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 35.50 in
dimensions case width 18.50 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 35.5 in
dimensions distribution unit width 18.5 in
dimensions pallet depth 60.00 in
dimensions pallet height 35.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 35.50 in
dimensions shipping unit width 18.50 in
distribution shipping volume unit 19702.5 in³
shipping volume unit 19702.500 in³
truck factor 0.0000
volume case 19702.500 in³
volume distribution shipping unit 19702.5 in³
weight case 104.000 lb
weight distribution shipping unit 110.09 lb
weight shipping unit 104.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
registered parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
