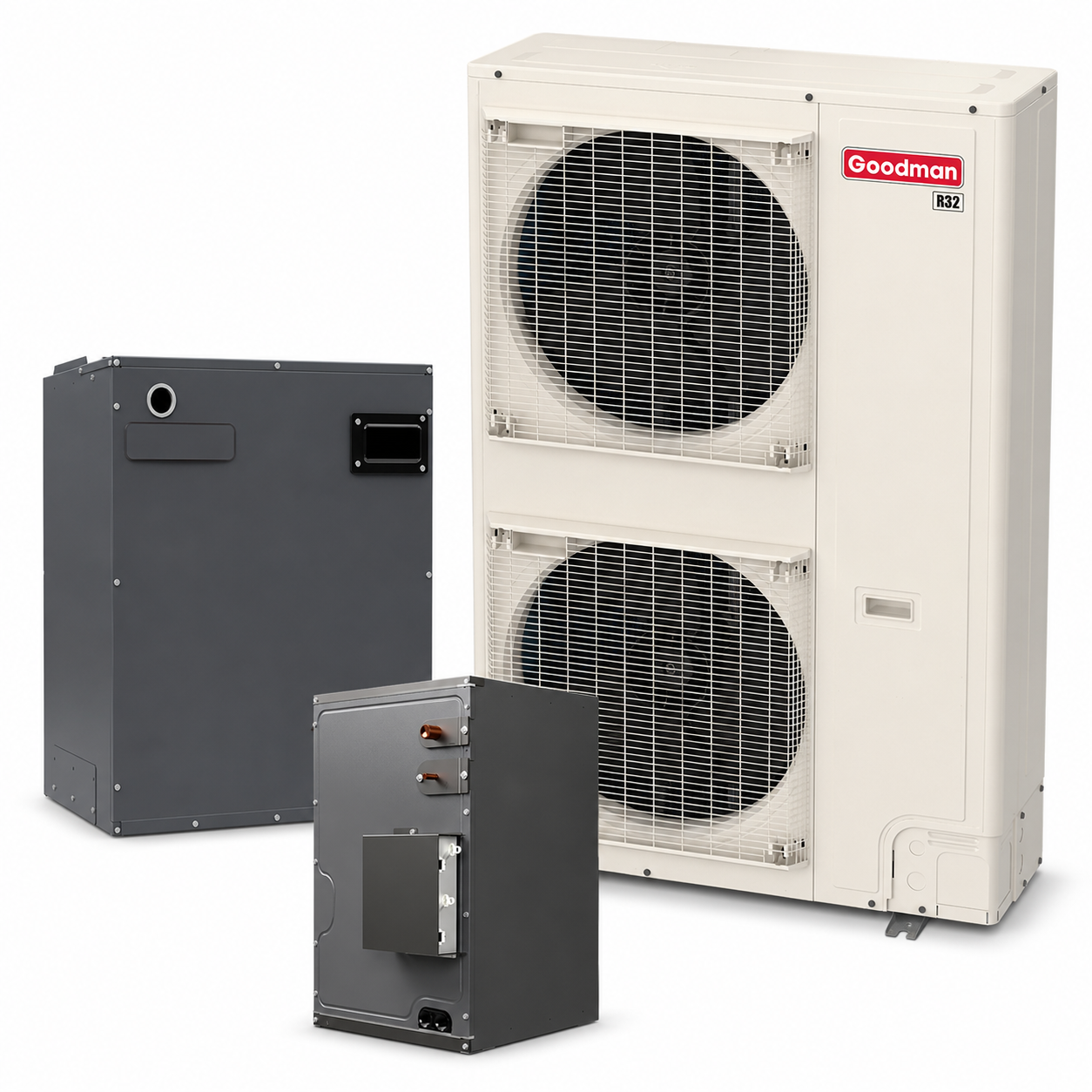

Goodman 5 Ton 16 SEER2 Electric Furnace and Air Conditioner System - Upflow/Downflow - 23 1/2"

Product Details

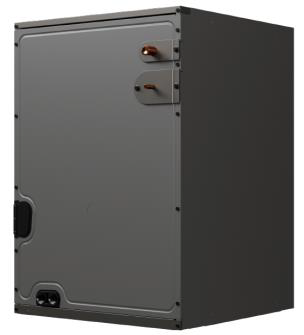

CAHEA3630C3 Cased Upflow/Downflow Evaporator Coil, 2-3 ton, R-32 Electronic Expansion Valve (EEV), 21" Wide, 30" Tall, 7mm coil tubing, for use with S-series All-Climate Heat Pumps, 58 lbs.

Cased Coil (CAHEA) for Amana Brand S-series All-Climate Heat Pumps

CAHEA — Multi-position Cold Climate Indoor Coils

Standard Features
• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• CAHEA models feature:
− Factory-installed electronic expansion valve (EEV) for precise refrigerant control
− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment
− Cooling and heat pump applications
− Fault recall of six most recent faults
• Standardized copper suction tube stub length
• Vertical and horizontal models available
• 21" depth for easier attic access
• CAHEA coils include single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified; ETL listed

R-32 coils have been equipped with a sensor in the airflow that will interrupt the cooling and heating demand and keep the blower running in the event a leak is detected. It is imperative that an R-32 indoor coil be appropriately matched with an R-32 outdoor unit.

Product Limited Warranty
The coil and functional parts in your CAHEA evaporator coil are covered by a 10-Year Parts Limited Warranty*. For a full description of this warranty, please see the warranty document.

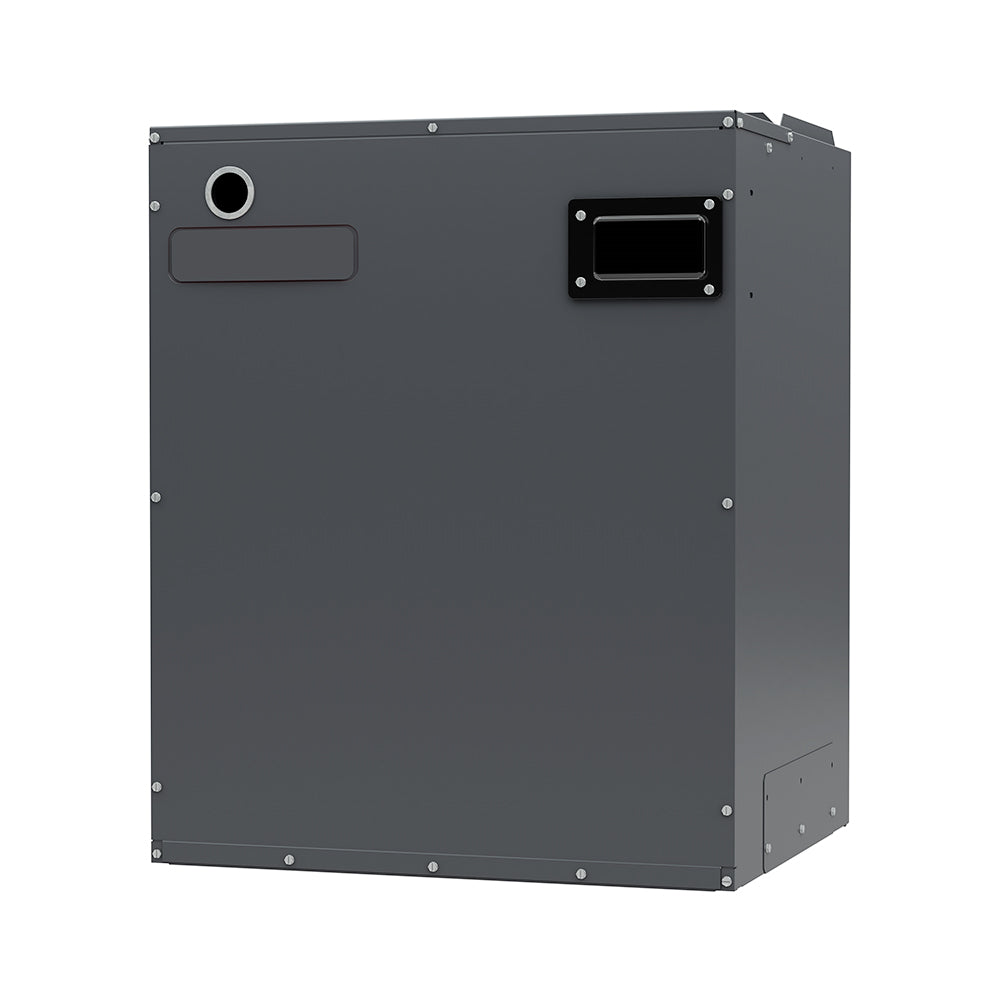

MBVK16CH1X00 Modular Blower, 1600 CFM, ECM, Climatalk (ComfortNet) Protocol, 21" Width, For Use with All-Climate Heat Pumps

MBVK Multi-Position, Variable-Speed ECM-Based, Modular Blower

Multi-Position, Variable-Speed
ECM-Based, Modular Blower
ComfortNet™ Compatible

Product Features
• Variable-speed ECM blower motor
• Integrated communicating ComfortNet™ Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
• Advanced configuration of the airflow and tonnage in communicating mode
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump and cooling applications
• Blower section usable as electric heater
• AHRI certified; ETL listed
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Cabinet air leakage less than 2% at 1.0 inch H₂0 when tested in accordance with ASHRE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂0 when tested in accordance with ASHRE standard 193
• Field Installed 3 kW – 25 kW electric heater kits available

Warranty
The MBVB and MBVK air handler models come with a 10-year parts Limited Warranty where online registration is completed within 60 days of installation.

Model: MBVK16CH1X00
Airflow Class: 1600 CFM
Motor: Variable‑speed ECM
Voltage: 208/230V, 1‑phase, 60 Hz
MCA: 6.5 A
MOP: 15 A
Blower Wheel: 11.9" × 10.7"
Blower Motor HP: 3/4 HP
Cabinet Width: 21"
Cabinet Depth: 21"
Cabinet Height: 30"
Ship Weight: 72 lbs
Cooling Airflow (Outdoor‑Unit‑Matched):
• 2T: 900 CFM
• 3T: 1450 CFM
• 5T: 1640 CFM
Certifications: AHRI Certified, ETL Listed, UL 60335‑2‑40 Compliant
