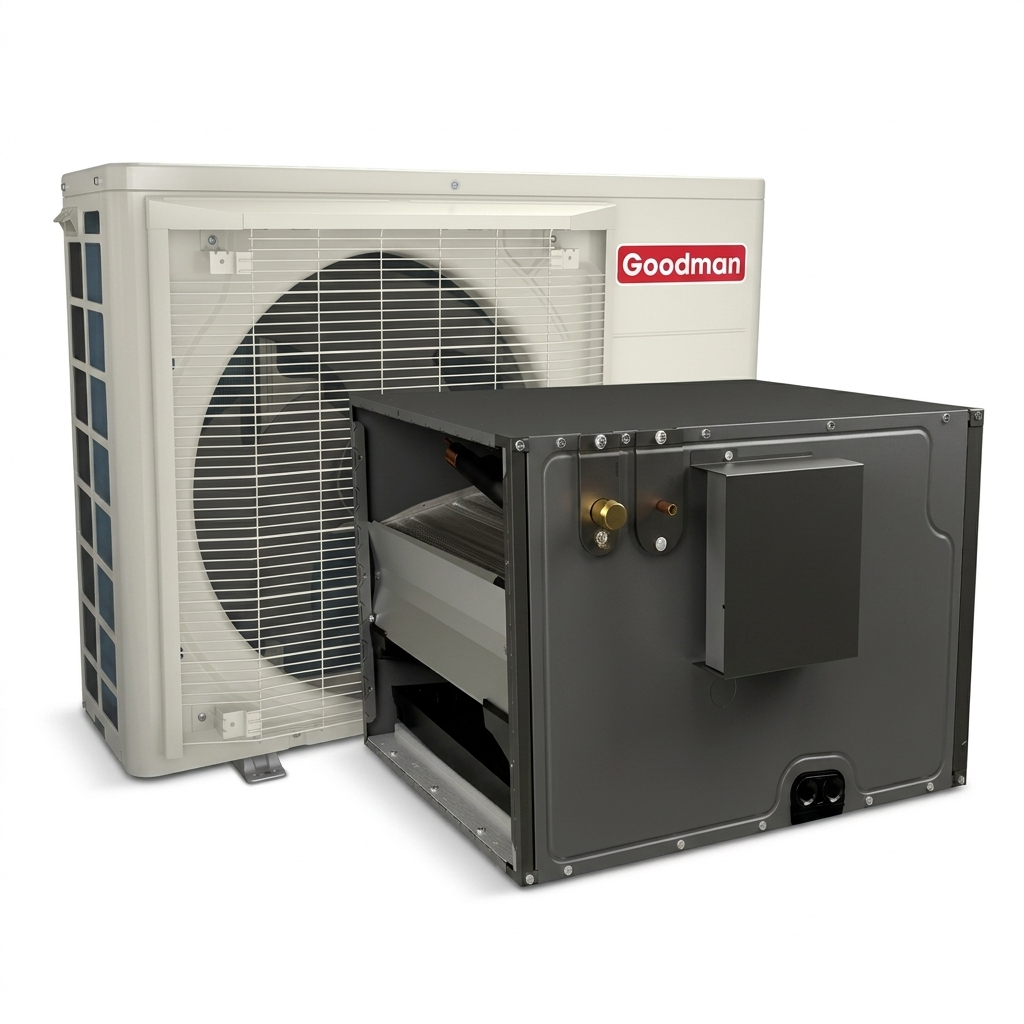

Goodman 5 Ton 16.6 SEER2 Central Heat Pump with 26 1/2' inch Horizontal Cased Coil | Inverter - R32
Product Overview
Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3
An air conditioner or heat pump is only as good as its evaporator coil. The Goodman CHPEA series is designed with accessibility, longevity, and value in mind, matching the quality of Goodman’s heating and cooling equipment. This cased A coil is made for horizontal airflow applications, with an all-aluminum construction that improves durability and heat transfer efficiency.
Key Features
- All-Aluminum Evaporator Coil: Reliable design with fins and grooved tubes to maximize surface area and optimize heat transfer.
- Secure Cabinet: Galvanized, embossed, and insulated cabinet that prevents air leakage and ensures long-lasting efficiency.
- Condensate Management: Foil-faced insulation reduces condensate formation, while a UV-resistant, DecaBDE-free thermoplastic drain pan with secondary drain connections keeps the system safe and operational.pr
- Optimized for R-32 Refrigerant: Fully compatible with R-32 refrigerant, making it the ideal choice for modern HVAC systems.
- Internal Electronic Expansion Valve (EEV): Factory-installed for simplified installation and precise refrigerant flow management.
- Extended Warranty: 12-year limited parts warranty with online registration within 60 days of installation. Standard 5-year warranty applies if unregistered.
Goodman 4 Ton Evaporator Coil Cased Aluminum Horizontal EEV 24.5" Width R32 CHPEA4830D3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 12 Years |

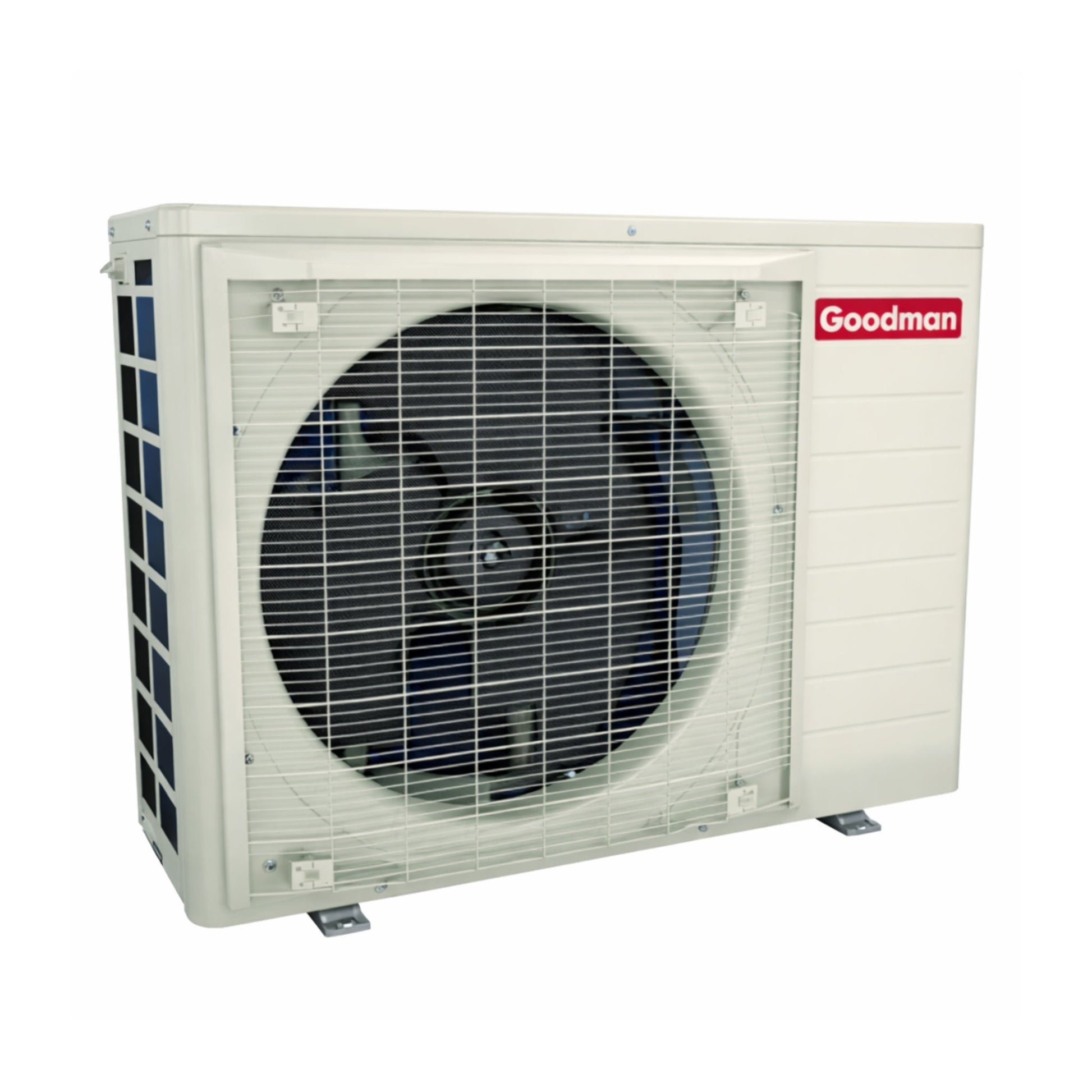

Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010
The Goodman GZV6SA6010 is a high-efficiency 5-ton side discharge heat pump condenser engineered for reliable performance and advanced comfort control. Featuring a variable-speed inverter compressor and quiet digitally commutated fan motor, this unit delivers consistent heating and cooling while maintaining low sound levels. Designed for use with R-32 refrigerant, it meets modern efficiency standards and offers enhanced diagnostics, durability, and installation flexibility for residential and light commercial applications.
Key Features
- Variable-Speed Inverter Swing Compressor for Precise Capacity Control
- Quiet Digitally Commutated Fan Motor with Enhanced Acoustical Comfort
- High-Density Compressor Sound Blanket
- Compatible with Goodman GTST Connected Thermostat
- Advanced Proprietary Control Algorithmic Logic
- Quiet Mode with Up to Three Selectable Sound Levels (as low as 45 dBA)
- Field-Selectable Boost Mode for High Load Conditions
- Diagnostic Indicator Lights with Seven-Segment LED Display and Fault Code Storage
- Bi-Flow Filter Drier (Field Installed)
- Coil and Ambient Temperature Sensors with Suction Pressure Transducer
- AHRI Certified and ETL Listed
Cabinet Features
- Heavy-Gauge Galvanized Steel Cabinet with Grille-Style Sound Control Design
- Custom Ivory White Powder-Paint Finish
- High-Corrosion ZAM® Steel Bottom Frame and Legs
- 500-Hour Salt Spray Tested for Enhanced Durability
- Wire Fan Discharge Grille
- Top and Side Service Access Panels
- Meets 2023 Florida Building Code Wind Load Requirements When Properly Anchored
This condenser is ideal for homeowners seeking quiet operation, advanced inverter technology, and dependable year-round comfort in a compact side-discharge design.
Goodman 5 Ton 16.2 SEER2 Heat Pump Inverter Side Discharge Condenser R32 GZV6SA6010
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |
Product Benefits (CHPEA4830D3)
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features (CHPEA4830D3)
- All-Aluminum evaporator coilOptimized for use with R-32 refrigerant including circuits and manifoldsR-32 sensor designed for the life span of the coilFactory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faultsStandardized copper suction tube stub length21" depth for easier attic accessFoil-faced insulation covers the internal casing to reduce cabinet condensation Galvanized, leather grain-embossed finish Rust resistant, thermoplastic drain pans featuring a low water-retention design DecaBDE-free thermoplastic drain pan with secondary drain connections Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity UV-resistant drain pan AHRI certified
- ETL listed
Cabinet Features (CHPEA4830D3)
- 21" depth for easier attic access
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
Technical Specifications - CHPEA4830D3
| product category | Unitary |
|---|---|
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CHPEA |
| series name | CHPEA |
| model efficiency | 17 SEER |
| family description | Cased Horizontal "A" with Internal EEV |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051737020 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 48000 Btu/H |
| produced in us | Yes |
| cabinet finish | Galvanized, leather grain-embossed finish, Painted |
| cased vs uncased | Cased |
| dimensions unit depth | 21 in |
| dimensions unit height | 25 in |
| dimensions unit width | 26.5 in |
| expansion device | EEV |
| indoor orifice size | 0.172 in |
| weight unit | 78 lb |
| tonnage | 4 |
| tonnage range | 4.0;5 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 1-1/8 in |
| pipe size liquid | 1/4 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 32.50 in |
| dimensions case height | 26.50 in |
| dimensions case width | 26.50 in |
| dimensions distribution unit depth | 32.5 in |
| dimensions distribution unit height | 26.5 in |
| dimensions distribution unit width | 26.5 in |
| dimensions pallet depth | 34.00 in |
| dimensions pallet height | 58.00 in |
| dimensions pallet width | 54.00 in |
| dimensions shipping unit depth | 32.50 in |
| dimensions shipping unit height | 26.50 in |
| dimensions shipping unit width | 26.50 in |
| distribution shipping volume unit | 22823.125 in³ |
| shipping volume unit | 22823.125 in³ |
| truck factor | 0.0000 |
| volume case | 22823.125 in³ |
| volume distribution shipping unit | 22823.125 in³ |
| weight case | 81.000 lb |
| weight distribution shipping unit | 81 lb |
| weight shipping unit | 81.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
Product Benefits (GZV6SA6010)
- Meets the 2023 M1 Test Standards
Product Features (GZV6SA6010)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman GTST connected thermostat and other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two lowvoltage wires to outdoor unit required
- Diagnostic indicator lights, seven-segment LED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode - provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45dBA)
- Field-selectable boost mode increases compressor speed during unusually high loads
- Field-installed bi-flow filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves with easy access to gauge ports
- AHRI Certified
Cabinet Features (GZV6SA6010)
- Heavy-gauge galvanized steel cabinet with grille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion (ZAM®), unpainted steel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GZV6SA6010
| product category | Unitary |
|---|---|
| product class pim | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GZV6SA |
| series name | GSV6S |
| model efficiency | 16.2 SEER2 |
| family description | High-Effciency, Communication, Split System Heat Pump Up to 16.2 SEER2 & 8.5 HSPF2 |
| installation type | Ducted |
| communication feature | Yes |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051747173 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cop47 hsvtc | 3.3 |
| eer2 hsvtc | 9 |
| energy star certified | No |
| heating capacity nominal | 60000 Btu/H |
| hspf 2 hsvtc | 8.2 |
| seer 2 hsvtc | 16.6 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -10 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 40 A |
| min circuit amps | 37.5 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| rated load amps | 30 A |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 12.625 in |
| dimensions unit height | 39 in |
| dimensions unit width | 37 in |
| expansion device | EEV |
| sound pressure high cooling | 71 dBA |
| weight unit | 179 lb |
| cooling capacity rated | 53500 Btu/H |
| heating capacity rated | 54500 Btu/H |
| tonnage | 5 |
| factory std refrigerant charge | 118 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 16.50 in |
| dimensions case height | 44.00 in |
| dimensions case width | 40.00 in |
| dimensions distribution unit depth | 16.5 in |
| dimensions distribution unit height | 44 in |
| dimensions distribution unit width | 40 in |
| dimensions pallet depth | 66.00 in |
| dimensions pallet height | 49.00 in |
| dimensions pallet width | 40.00 in |
| dimensions shipping unit depth | 16.50 in |
| dimensions shipping unit height | 44.00 in |
| dimensions shipping unit width | 40.00 in |
| distribution shipping volume unit | 29040 in³ |
| shipping volume unit | 29040.000 in³ |
| truck factor | 0.0000 |
| volume case | 29040.000 in³ |
| volume distribution shipping unit | 29040 in³ |
| weight case | 194.090 lb |
| weight distribution shipping unit | 194.09 lb |
| weight shipping unit | 194.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
