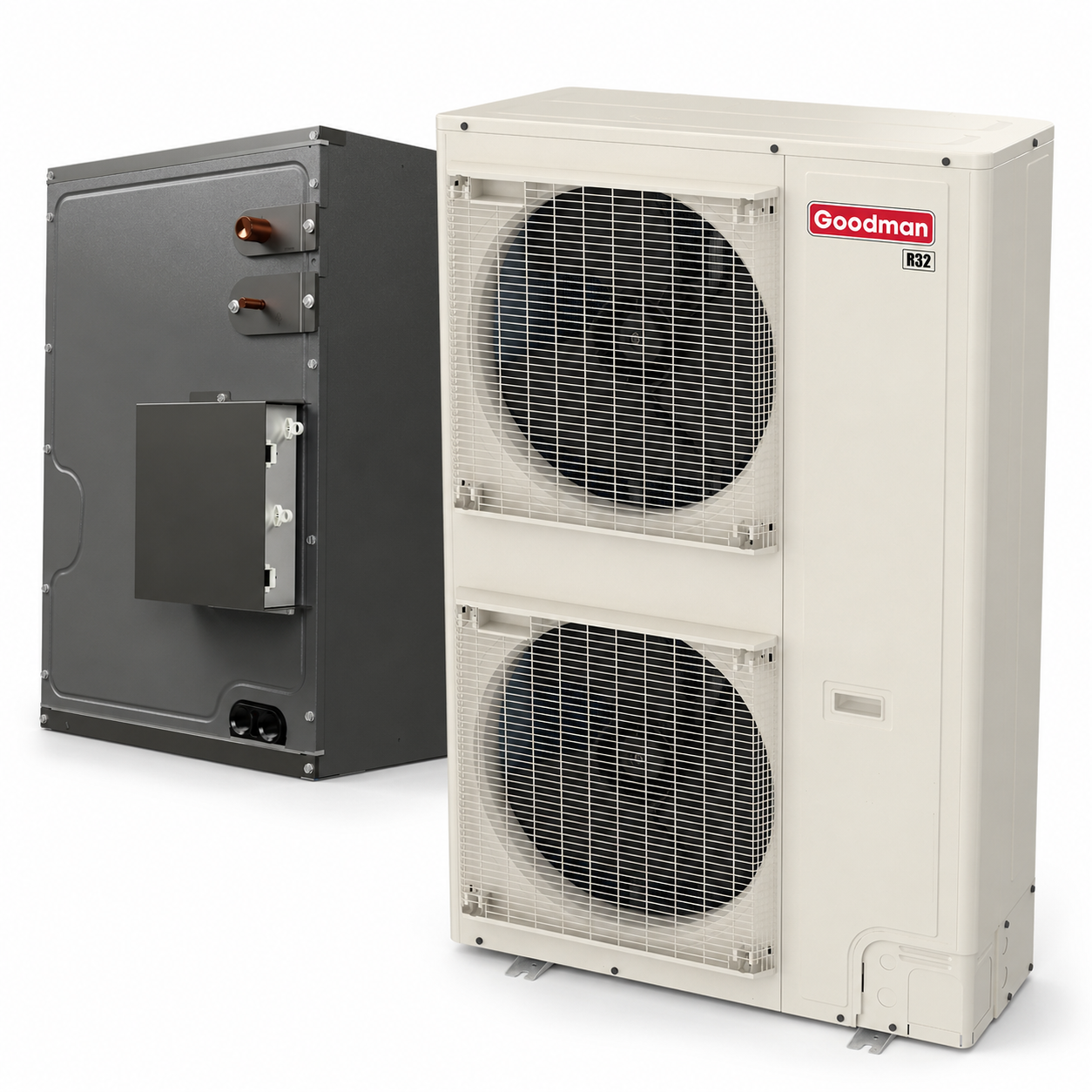

Goodman 5 Ton 16.0 SEER2 Central Air Conditioner Split with 23 1/2' inch Upflow/Downflow Cased Coil- R32

SKU: CAPEA6030C3 + GXV9SA6010

System highlights
AC Type
AC & Coil Systems
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
60000 BTU VO (5.0 TON)
Indoor Unit
60000 BTU (5.0 TON)
Looking For
AC & Coil Systems
SEER2 Rating
16.0
Airflow Direction
Upflow, Downflow
Coil Style
A-Coil
Cabinet Width (in)
23 1/2
Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$7,581.00
Shipping calculated at checkout.
View full details
Goodman

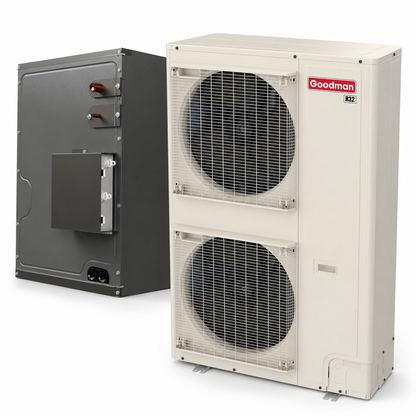

Goodman 5 Ton 16.0 SEER2 Central Air Conditioner Split with 23 1/2' inch Upflow/Downflow Cased Coil- R32

Product Overview

Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow  CAPEA6030C3

The Goodman CAPEA6030C3 is a 5-ton cased A coil evaporator designed for use in both split system air conditioners and heat pumps. Built with durable all-aluminum construction, this coil delivers reliable performance and superior heat transfer. It supports both upflow and downflow configurations and includes a factory-installed thermal expansion valve (TXV) for precise refrigerant control. Compatible with R-32 refrigerant, the coil also features foil-faced insulation and a thermoplastic drain pan to manage condensation effectively, all within a compact cabinet featuring a galvanized, leather grain-embossed finish.

Key Features

  • 5 Ton Cooling Capacity (60,000 BTU)
  • All-Aluminum A Coil Enhances Durability and Heat Transfer
  • Factory-Installed TXV for Efficient Refrigerant Metering
  • Optimized for R-32 Refrigerant Applications
  • Upflow and Downflow Configuration Compatibility
  • Thermoplastic Drain Pan for Improved Condensation Management
  • Foil-Faced Insulation Minimizes Internal Cabinet Moisture
  • Galvanized Steel Cabinet with Leather Grain-Embossed Finish
  • Single Front Access Panel for Service Access
  • AHRI Certified, ETL Listed, and ISO Certified

This 5-ton evaporator coil is an excellent fit for high-capacity residential HVAC systems requiring reliable performance, R-32 compatibility, and energy-efficient design in a flexible upflow/downflow configuration.

Goodman 5 Ton Evaporator Coil EEV Expansion 21" Cabinet Upflow/Downflow  CAPEA6030C3

Warranty Type Parts
Standard Warranty 5 Years
Registered Warranty 10 Years

Product Details

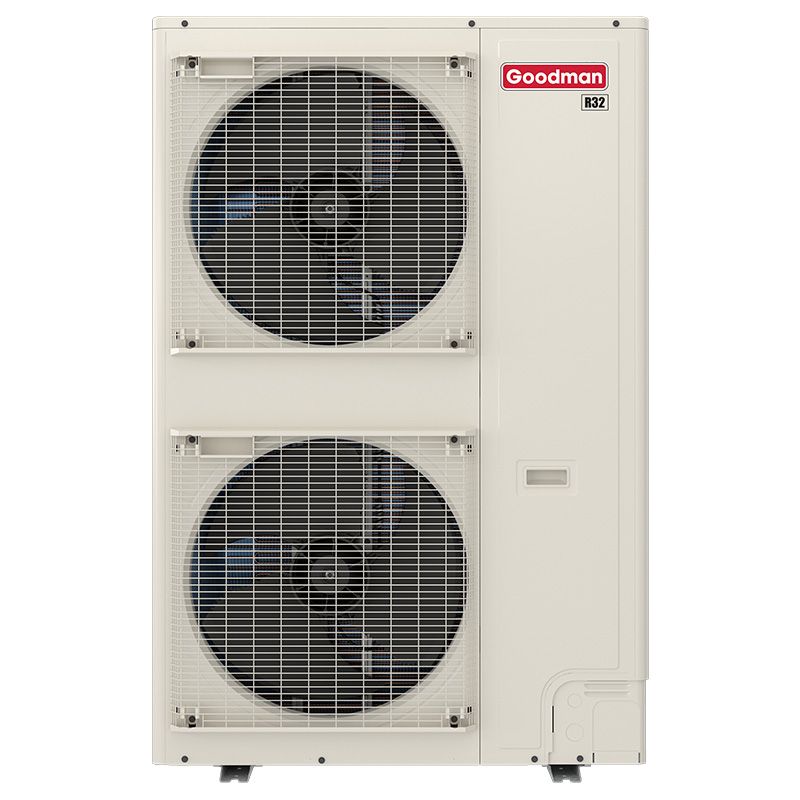

Goodman 5 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32

Powerful Inverter Technology for Large Homes

Engineered for large homes and demanding climates, the Goodman GXV9SA6010 offers maximum cooling capacity with precise inverter-driven control. It delivers strong performance during extreme heat while dialing back to save energy during lighter loads. Featuring quiet operation, flexible side-discharge installation, and R-32 refrigerant, this system balances power, efficiency, and long-term reliability.

  • Up to 19 SEER2 energy efficiency
  • High-capacity 5-ton cooling performance
  • Variable-speed inverter-driven compressor
  • Quiet mode operation for enhanced comfort
  • R-32 refrigerant for improved environmental performance

Why Choose This AC Condenser?

  • Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
  • More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
  • Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
  • Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
  • Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.

Product Benefits (CAPEA6030C3)

  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control

Product Features (CAPEA6030C3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Cabinet Features (CAPEA6030C3)

  • Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish

Technical Specifications - CAPEA6030C3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPEA_32
series name CAPEA
model efficiency 17 SEER
family description CAPEA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051731516
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
cooling capacity nominal 60000 Btu/H
produced in us Yes
cabinet finish Painted
dimensions unit depth 21 in
dimensions unit height 30 in
dimensions unit width 23.5 in
expansion device EEV
indoor orifice size 0.172 in
weight unit 67 lb
condensate drain outlet 3/4 in
pipe size gas 1-1/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 32.75 in
dimensions case width 23.50 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 32.75 in
dimensions distribution unit width 23.5 in
dimensions pallet depth 54.00 in
dimensions pallet height 70.00 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 32.75 in
dimensions shipping unit width 23.50 in
distribution shipping volume unit 20010.25 in³
shipping volume unit 20010.250 in³
truck factor 0.0000
volume case 20010.250 in³
volume distribution shipping unit 20010.25 in³
weight case 70.000 lb
weight distribution shipping unit 70 lb
weight shipping unit 70.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GXV9SA6010)

  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostatand other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two lowvoltagewires to outdoor unit required
  • Diagnostic indicator lights, seven-segment
  • LED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
  • Field-selectable boost mode increasescompressor speed during unusually high loads
  • Field-installed filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves witheasy access to gauge ports

Cabinet Features (GXV9SA6010)

  • Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GXV9SA6010

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GXV9SA
series name GXV9S
model efficiency 19.2 SEER2
communication feature Yes
communication feature type Goodman GTST Smart Thermostat
export control classification number eccn EAR99
item stocking unit of measure uom EA
pallet qty 3
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 10
energy star certified No
seer 2 hsvtc 17
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 0 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 95 °F
fan compressor drive input 24.5 A
max overcurrent protection 40 A
min circuit amps 34.4 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
compressor type Inverter
dimensions unit depth 22.625 in
dimensions unit height 56.3125 in
dimensions unit width 37 in
expansion device EEV
sound pressure high cooling 77 dBA
weight unit 236 lb
cooling capacity rated 57000 Btu/H
factory std refrigerant charge 162 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 38.50 in
dimensions case height 61.50 in
dimensions case width 16.50 in
dimensions distribution unit depth 38.5 in
dimensions distribution unit height 61.5 in
dimensions distribution unit width 16.5 in
dimensions pallet depth 48.00 in
dimensions pallet height 66.50 in
dimensions pallet width 40.00 in
dimensions shipping unit depth 38.50 in
dimensions shipping unit height 61.50 in
dimensions shipping unit width 16.50 in
shipping volume unit 39067.875 in³
truck factor 0.0000
volume case 39067.875 in³
volume distribution shipping unit 39067.875 in³
weight case 271.000 lb
weight distribution shipping unit 271 lb
weight shipping unit 271.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
