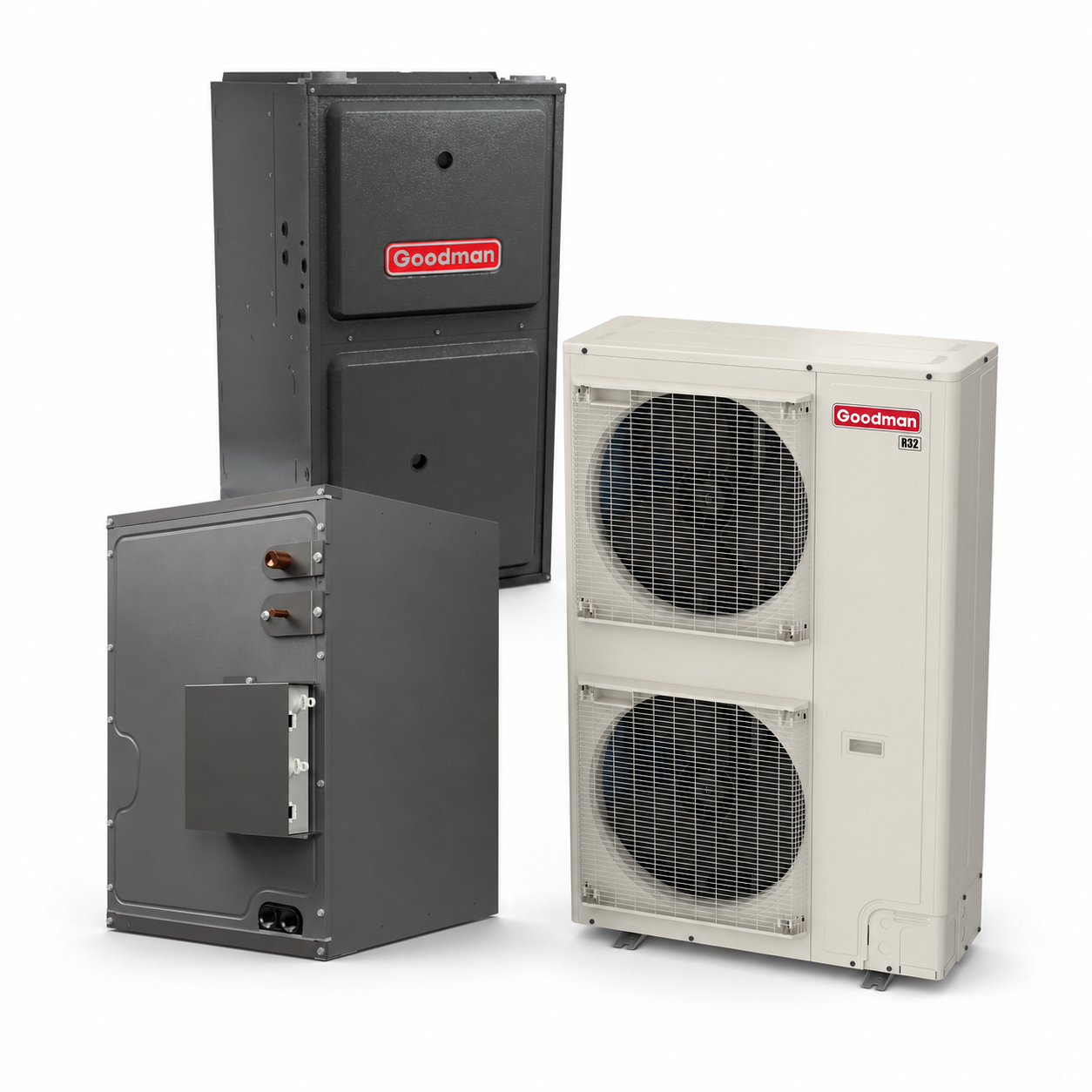

Goodman 5 Ton 16.0 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

SKU: CAPEA6030D3 + GXV9SA6010 + GRVT960804CN

System highlights
AC Type
AC & Furnace System
Refrigerant Type
R32
Brand
Goodman
Outdoor Unit
60000 BTU VO (5.0 TON)
Indoor Unit
60000 BTU (5.0 TON)
Looking For
AC & Furnace System
SEER2 Rating
15.8
Airflow Direction
Upflow, Horizontal
Blower Motor
Variable Speed - ECM
Maximum CFM
1600
Fuel Type
Natural Gas, Propane
Burner Stages
Two Stages
Coil Style
A-Coil
Furnace Heating BTU
80,000 BTU (6.67 Ton)
Furnace Efficiency
96% AFUE
Cabinet Width (in)
26
! Cabinet might need adjustment for sizing.
Goodman 5 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow (Line Set Length)

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

Price

$10,544.00
Shipping calculated at checkout.
View full details
Goodman
Goodman 5 Ton 16.0 SEER2 96% AFUE 80,000 BTU Gas Furnace and R32 Air Conditioner System - Upflow/Horizontal

Product Overview

Goodman 5 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow CAPEA6030D3

The Goodman CAPEA6030D3 is a 5-ton evaporator coil designed specifically for horizontal applications in split system air conditioners and heat pumps. Engineered with an all-aluminum A coil, this unit ensures long-lasting durability and efficient heat transfer. It comes factory-equipped with a thermal expansion valve (TXV) to provide accurate refrigerant control for R-32 systems. Additional features include foil-faced cabinet insulation to manage condensation and a DecaBDE-free thermoplastic drain pan for added environmental compliance. Ideal for residential installations between 2,400 and 3,000 square feet, this coil supports both cooling and heating operations.

Key Features

  • 5 Ton Cooling Capacity (60,000 BTU)
  • Horizontal Configuration for Low-Clearance Installations
  • All-Aluminum Coil for Enhanced Durability and Corrosion Resistance
  • Factory-Installed TXV for Accurate Refrigerant Metering
  • Compatible with R-32 Refrigerant
  • Foil-Faced Insulation Minimizes Internal Cabinet Moisture
  • DecaBDE-Free Thermoplastic Drain Pan for Safe Condensation Control
  • Single Front Access Panel for Easy Servicing
  • Galvanized Cabinet with Leather Grain-Embossed Finish
  • Suitable for Homes from 2,400 to 3,000 Sq. Ft.
  • AHRI Certified, ETL Listed, and ISO Certified

Designed for energy-efficient performance in cooling and heat pump systems, this horizontal evaporator coil is a reliable choice for modern HVAC applications requiring R-32 refrigerant compatibility.

Goodman 5 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow CAPEA6030D3

Warranty Type Parts
Standard Warranty 5 Years
Registered Warranty 10 Years

Product Details

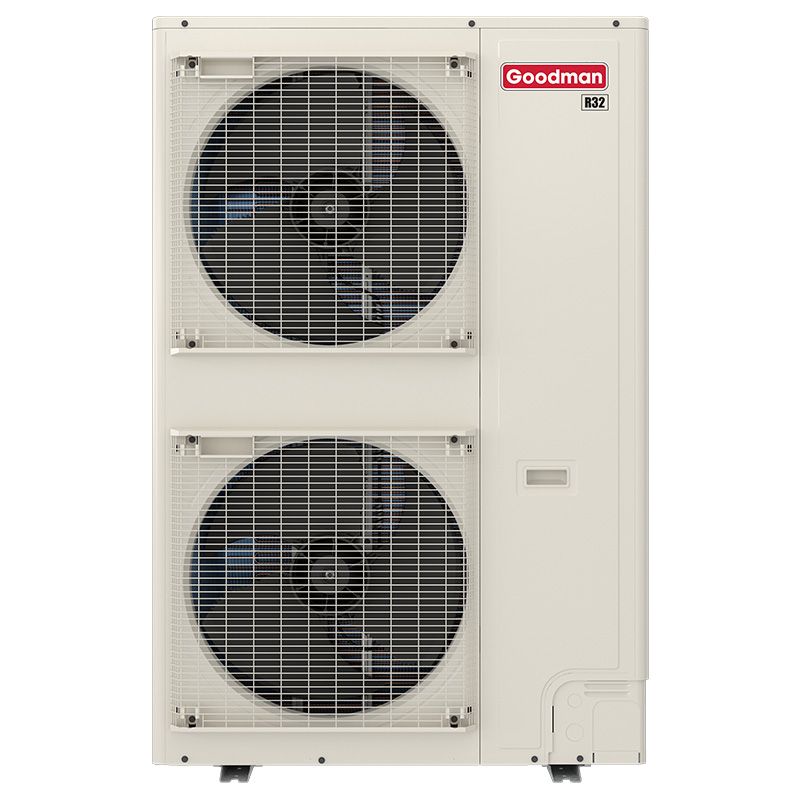

Goodman 5 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32

Powerful Inverter Technology for Large Homes

Engineered for large homes and demanding climates, the Goodman GXV9SA6010 offers maximum cooling capacity with precise inverter-driven control. It delivers strong performance during extreme heat while dialing back to save energy during lighter loads. Featuring quiet operation, flexible side-discharge installation, and R-32 refrigerant, this system balances power, efficiency, and long-term reliability.

  • Up to 19 SEER2 energy efficiency
  • High-capacity 5-ton cooling performance
  • Variable-speed inverter-driven compressor
  • Quiet mode operation for enhanced comfort
  • R-32 refrigerant for improved environmental performance

Why Choose This AC Condenser?

  • Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
  • More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
  • Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
  • Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
  • Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.

OVERVIEW

With a 96% efficiency rating, a variable-speed blower motor, and two stage gas valves, the GRVT960804CN is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVT960804CN is an excellent choice, offering one of the best efficiency levels available on the market.

QUICK FACTS

  • Ideal to heat a small to medium house (in an ideal climate)
  • 80,000 BTU 96% AFUE modulating variable speed natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be installed in the upflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

80,000 BTU

With an input of 80,000 BTU’s and an efficiency of 96%, the GRVT960804CN has an output of 76,880 BTU’s. This is calculated by taking 80,000 BTU’s times the efficiency of 96%. As such, the GRVT960804CN Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.

96% AFUE

With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GRVT960804CN gas furnace is 96% efficient, meaning that a whopping 96% of the gas going into the furnace is used to heat your home, and only 4% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GRVT960804CN is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.

Two Stage Variable Speed Furnace

Goodman manufactured the GRVT960804CN gas furnace to utilize the best burner and blower technologies available. With a two stage gas valve and a variable speed blower motor, the GRVT960804CN gas furnace provides the most stable indoor temperatures and the lowest running times possible. The enhanced comfort and small efficiency increase provided by these features make this furnace a part of Goodman’s top of the line series.

Warranty

The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.

Durability and Reliability

Not stopping at an enhanced functionality, Goodman designed the GRVT960804CN with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GRVT960804CN is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.

Fuel Types

Out of the factory, the GRVT960804CN has a built-in natural gas orifice set. However, an LP conversion kit (found here)can be purchased as an accessory and field-installed if propane is required for your installation.

Installation and Maintenance

For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GRVT960804CN gas furnace can be installed in the upflow or horizontal orientations. The two stage gas valve is self-calibrating, allowing it to automatically configure for each installation. For ease of maintenance, there is an integrated self-diagnostic control board that continuously monitors the system for any possible issues in operation, reliability, and even efficiency, and if there are any issues, there is an easy-to-read display for you and your contractor to quickly identify the problem and solve it faster. Moreover, the GRVT960804CN is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.

Product Benefits (CAPEA6030D3)

  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control

Product Features (CAPEA6030D3)

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Cabinet Features (CAPEA6030D3)

  • Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish

Technical Specifications - CAPEA6030D3

product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPEA_32
series name CAPEA
model efficiency 17 SEER
family description CAPEA AlumaFin7™ Evaporator Coil
installation type Ducted
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051731523
item stocking unit of measure uom EA
pallet qty 8
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
cooling capacity nominal 60000 Btu/H
produced in us Yes
cabinet finish Painted
dimensions unit depth 21 in
dimensions unit height 30 in
dimensions unit width 26 in
expansion device EEV
indoor orifice size 0.172 in
weight unit 72 lb
condensate drain outlet 3/4 in
pipe size gas 1-1/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.75 in
dimensions case height 32.25 in
dimensions case width 26.00 in
dimensions distribution unit depth 26.75 in
dimensions distribution unit height 32.25 in
dimensions distribution unit width 26 in
dimensions pallet depth 55.00 in
dimensions pallet height 69.00 in
dimensions pallet width 54.00 in
dimensions shipping unit depth 26.75 in
dimensions shipping unit height 32.25 in
dimensions shipping unit width 26.00 in
distribution shipping volume unit 22429.875 in³
shipping volume unit 22429.875 in³
truck factor 0.0000
volume case 22429.875 in³
volume distribution shipping unit 22429.875 in³
weight case 75.000 lb
weight distribution shipping unit 75 lb
weight shipping unit 75.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
standard unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty multi family 5 YEARS UNIT REPLACEMENT
standard unit replacement warranty residential 5 YEARS UNIT REPLACEMENT

Product Features (GXV9SA6010)

  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostatand other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two lowvoltagewires to outdoor unit required
  • Diagnostic indicator lights, seven-segment
  • LED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
  • Field-selectable boost mode increasescompressor speed during unusually high loads
  • Field-installed filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves witheasy access to gauge ports

Cabinet Features (GXV9SA6010)

  • Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GXV9SA6010

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GXV9SA
series name GXV9S
model efficiency 19.2 SEER2
communication feature Yes
communication feature type Goodman GTST Smart Thermostat
export control classification number eccn EAR99
item stocking unit of measure uom EA
pallet qty 3
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 10
energy star certified No
seer 2 hsvtc 17
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 0 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 95 °F
fan compressor drive input 24.5 A
max overcurrent protection 40 A
min circuit amps 34.4 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
compressor type Inverter
dimensions unit depth 22.625 in
dimensions unit height 56.3125 in
dimensions unit width 37 in
expansion device EEV
sound pressure high cooling 77 dBA
weight unit 236 lb
cooling capacity rated 57000 Btu/H
factory std refrigerant charge 162 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 38.50 in
dimensions case height 61.50 in
dimensions case width 16.50 in
dimensions distribution unit depth 38.5 in
dimensions distribution unit height 61.5 in
dimensions distribution unit width 16.5 in
dimensions pallet depth 48.00 in
dimensions pallet height 66.50 in
dimensions pallet width 40.00 in
dimensions shipping unit depth 38.50 in
dimensions shipping unit height 61.50 in
dimensions shipping unit width 16.50 in
shipping volume unit 39067.875 in³
truck factor 0.0000
volume case 39067.875 in³
volume distribution shipping unit 39067.875 in³
weight case 271.000 lb
weight distribution shipping unit 271 lb
weight shipping unit 271.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GRVT960804CN)

  • High reliabilitynd quality;2.irflow system gently ramps up or downccording to heating or cooling demandnd provides better comfort
  • Faster condensate water drainagend no unit water leakage
  • Durablend long igniter life
  • Self-diagnostic control board with constant memory fault code history output
  • Provisions for electronicir cleanernd humidifier
  • Quietnd Economical heating
  • Lower NOx emission
  • Meets the performance requirements forHRI certificationnd complies with ETL Northmerican safety standards.
  • Tax Credit
  • Operates on two-stage or single-stage thermostats
  • Easy Connection for EACnd Humidifier

Product Features (GRVT960804CN)

  • Heavy-dutyluminized-steel tubular heat exchanger
  • Efficientnd quiet variable-speed Blower
  • Integrated communicating ComfortBridge™ technology
  • Commissioningnd diagnostics via on board Bluetooth with the CoolCloud™ phonend tabletpplication
  • Stainless-steel sloped secondary heat exchanger
  • Silicon Nitride igniter
  • Dual 7-segment display
  • Color-coded low-voltage terminals
  • Two-Stage gas valve;10.ll models comply with California 40 ng/J;11.HRI Certified, ETL Listed
  • Energy Star
  • Furnace control board with self-diagnosticsnd provisions for electronicir cleanernd 120-volt or 24-volt humidifiers

Cabinet Features (GRVT960804CN)

  • Multi-position installation: upflow, horizontal left or right
  • Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
  • Easy to install top venting with optional side vent
  • Convenient left or right connection for gasnd electrical service
  • Cabinetir leakage (Qleak) less than or equal to 2%
  • Fully insulated heat exchangernd blower section
  • Bottom or side returnirpplications
  • Heavy-gage steel cabinet with durable finish

Technical Specifications - GRVT960804CN

product category Unitary
product class pim Gas Furnace
system family Unitary Split System
function category Heating Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family GRVT96
series name GRVT96
model efficiency 0.96
communication feature Yes
export control classification number eccn EAR99
universal product code upc 663051702899
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 7322.90.0015
canadian hts code 7322.90.10.21
afue 96 %
cooling capacity nominal 48000 Btu/H
energy star certified Yes
installation configuration Upflow/Horizontal
produced in us Yes
temperature rise range high fire 25-55 °F
temperature rise range low fire 20-50 °F
current type AC
max overcurrent protection 15 A
min circuit amps 10.9 A
power frequency 60 Hz
power phase 1 Ph
power voltage 115 V
air flow rate high heating 1588 ft³/min
dimensions blower diameter 11 in
dimensions blower width 10 in
dimensions unit depth 28-7/8 in
dimensions unit height 34-1/2 in
dimensions unit width 21 in
heat exchanger type Gas
motor speed type Variable Speed ECM
nox burner type Low NOx
number of burners 4
blower motor horsepower 3/4 metric hp
high fire input capacity 80000 Btu
high fire output capacity 77600
low fire input capacity 56000
low fire output capacity 54320
gas valve type Two Stage
vent diameter 2 in;3 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 30.00 in
dimensions case height 38.50 in
dimensions case width 22.00 in
dimensions distribution unit depth 30 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 22 in
dimensions pallet depth 60.00 in
dimensions pallet height 38.50 in
dimensions pallet width 44.00 in
dimensions shipping unit depth 30.00 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 22.00 in
distribution shipping volume unit 25410 in³
shipping volume unit 25410.000 in³
truck factor 0.0000
volume case 25410.000 in³
volume distribution shipping unit 25410 in³
weight case 137.000 lb
weight distribution shipping unit 130.09 lb
weight shipping unit 137.000 lb
registered parts warranty commercial HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS
registered unit replacement warranty residential HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS
standard parts warranty residential HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates
